SenTech STC-A33A User Manual

Small cubic type vga ccd monochrome analog camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

STC-A33A
User Guide
Small Cubic Type
VGA CCD
Monochrome Analog Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-A33A and is the answer not in the manual?

Questions and answers

Related Manuals for SenTech STC-A33A

Summary of Contents for SenTech STC-A33A

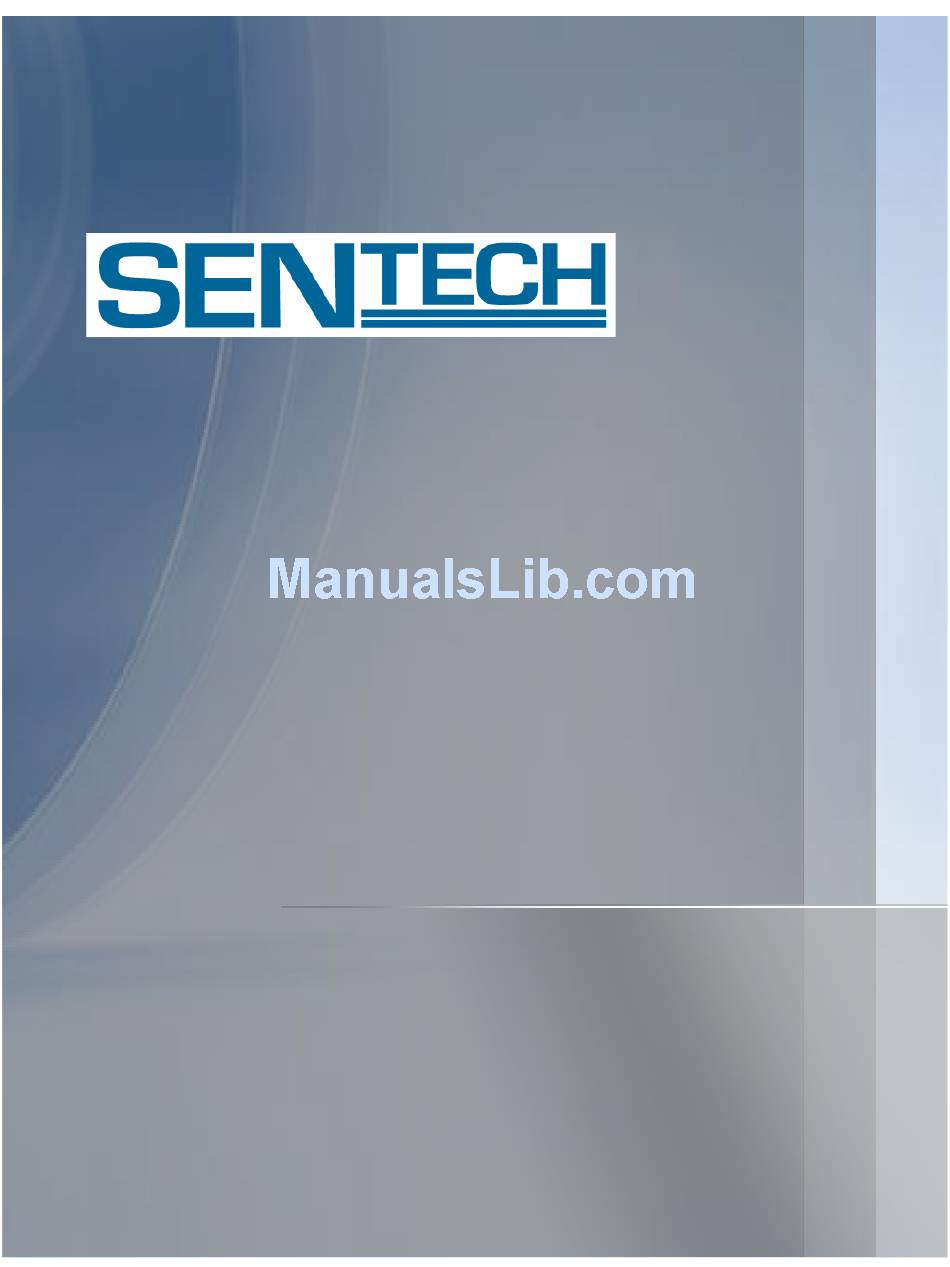

  • Page 1 STC-A33A User Guide Small Cubic Type VGA CCD Monochrome Analog Camera...

  • Page 2: Safety Precautions

    STC-A33A Safety Precautions For U.S.A. For U.S.A. CAUTION CAUTION Warning: Warning: For U.S.A. CAUTION RISK OF ELECTRIC SHOCK Warning: This equipment generates and uses radio frequency energy and if RISK OF ELECTRIC SHOCK This equipment generates and uses radio frequency energy and if...
  • Page 3 While every effort has been made to ensure that the details contained in Sentech America’s website and all documentation are correct and up-to-date, Sentech America assumes no liability, legal or otherwise for any errors in listings, specifications, part numbers, process, software or model applications.

  • Page 4: Table Of Contents

    STC-A33A Contents I. Rear Panel Specifications ..................................... 6 A. 12pin Connector ........................................6 B. DIP Switch Settings ........................................7 C. External Sync (HD/VD) Signal Impedance Switch ..............................7 D. Gain Switch ..........................................7 II. Input / Output Signal Specifications ................................8-9 A.
  • Page 5 STC-A33A V. Communication Protocol Specifications ..............................25-66 A. Communication Method......................................25 B. Communication Settings ......................................25 C. The Communication Format ....................................26 D. The Camera Control Command ..................................27-66 1. The Camera Command List ..................................27-28 2. Descriptions of the Camera Control Commands ............................29-33 3.

  • Page 6: Rear Panel Specifications

    STC-A33A I. Rear Panel Specifications A. 12 Pin Connector B. DIP Switch E. Manual Gain Pot D. Gain Switch C. External Sync (HD / VD) Signal Impedance Switch A. 12 Pin Connector The connector type: HR10A – 10R – 12PB (Hirose) or equivalent...

  • Page 7: Dip Switch Settings

    STC-A33A B. DIP Switch Settings DIP Switch Settings No. 1 to 3: Shutter Speed Shutter Speed No.1 No.2 No.3 OFF / Pulse Width Trigger 1/200 seconds 1/500 seconds 1/1,000 seconds 1/2,000 seconds 1/4,000 seconds 1/8,000 seconds 1/20,000 seconds No. 4 to 5: Reset Mode Reset Mode No.

  • Page 8: Input / Output Signal Specifications

    STC-A33A II. Input / Output Signal Specifications A. Input Signal Specifications 1. External Sync Signals a. Signal Level: 2.0 to 5.0 Vp-p 75 / 10k Ω (Switch Selectable) b. Termination Impedance: c. Signal Polarity: Negative 2-5Vp-p d. External HD / VD signal input phase tolerance: +/- 8.0 µseconds at 30fps...

  • Page 9: Output Signal Specifications

    STC-A33A B. Output Signals Specifications 1. WEN (Write Enable) Signal 3.3 Vp-p at 10k Ω termination a. Signal Level: b. Signal Polarity: Negative c. Pulse Width: 1H (H: Horizontal) 2. HD / VD Signals 3.3 Vp-p at 10k Ω termination a.

  • Page 10: Camera Output Timing Charts

    STC-A33A III. Camera Output Timing Charts A. Normal Mode (Setting: Address: 10H, Value: 1XX0XXXX) 1. Horizontal Timing 1 CLK = 81.4817 nseconds at 30 fps 1 CLK = 40.7407 nseconds at 60 fps 1 CLK = 27.1606 nseconds at 90 fps...

  • Page 11: Vertical Timing

    STC-A33A 2. Vertical Timing a. Normal Full Scanning (Settings: Address: 10H, Value: 1XX00XXX; Address: 11H, Value: X000X000) 1 H = 63.5556 µseconds, 29.9700 Hz 1 H = 31.7778 µseconds, 59.9400 Hz 1 H = 21.1852 µseconds, 89.9100 Hz 525H One vertical (1V)

  • Page 12: ½ Partial Scanning

    STC-A33A c. 1/2 Partial Scanning (Settings: Address: 10H, Value: 1XX01XXX; Address: 11H, Value: X000X001) 1 H = 63.5556 µseconds, 60.0544 Hz 1 H = 31.7778 µseconds, 120.108 Hz 1 H = 21.1852 µseconds, 180.163 Hz 525H One vertical (1V) (Non-reset)

  • Page 13: Variable Partial Scanning

    STC-A33A e. Variable Partial Scanning (Settings: Address: 10H, Value: 1XX01XXX; Address; 11H, Value: X000X111) One vertical (1V) 1068H (Non-reset) One vertical (1V) BLK_F + V_ACT + BLK_B (V-reset) Effective pixels Video out (Non-reset) BLK_F V_ACT BLK_B Vertical blanking Video output...

  • Page 14: Binning Mode (Setting: Address: 10H, Value: 1Xx1Xxxx)

    STC-A33A B. Binning Mode (Settings: Address: 10H, Value: 1XX1XXXX) 1. Horizontal Timing 1 CLK = 81.4817 nseconds at 30 fps 1 CLK = 40.7407 nseconds at 60 fps 1 CLK = 27.1606 nseconds at 90 fps 182CLK 336CLK 1360CLK CCD out H-trans.

  • Page 15: Vertical Timing

    STC-A33A 2. Vertical Timing a. Binning Full Scanning (Settings: 10H, Value: 1XX10XXX; Address: 11H, Value: X000X000) 1 H = 63.5556 µseconds, 60.0544 Hz 1 H = 31.7778 µseconds, 120.108 Hz 1 H = 21.1852 µseconds, 180.163 Hz 262H One vertical (1V)

  • Page 16: Binning ½ Partial Scanning

    STC-A33A c. Binning 1/2 Partial Scanning (Settings: Address: 10H, Value: 1XX11XXX; Address: 11H, Value: X000X001) 1 H = 63.5556 µseconds, 112.387 Hz 1 H = 31.7778 µseconds, 224.775 Hz 1 H = 21.1852 µseconds, 337.162 Hz 525H One vertical (1V)

  • Page 17: Camera Function Mode

    STC-A33A IV. Camera Function Mode A. Normal Mode 1. Normal Mode (Frame Exposure) I n t e r n a l E x p o s u r e t i m e C C D e x p o s u r e V i d e o o u t 2.

  • Page 18: Pulse Width Trigger Mode

    STC-A33A B. Pulse Width Trigger Mode In the “Pulse Width Trigger Mode” with positive polarity, the camera exposure starts at the rising edge of the trigger signal and stops at the falling edge of the trigger signal. Therefore, in the case that the exposure positive polarity is selected, the actual exposure occurs when the trigger signal is at its high state.

  • Page 19: Pulse Width Trigger Mode (Non-Reset, External Sync)

    STC-A33A 2. Pulse Width Trigger Mode (Non-Reset, External Sync) Function mode Normal mode Trigger mode Normal mode N o t e 1: Aut om at i c al l y s w i t c hes t o nor m al m ode i f t he pul s e w i dt h of t he t r i gger s i gnal i s m or e t han 500 m s ec .

  • Page 20: Pulse Width Trigger Mode (Non-Reset, Internal Sync)

    STC-A33A 3. Pulse Width Trigger Mode (Non-Reset, Internal Sync) Note. 1 Function mode Normal mode Trigger mode Normal mode A ut om at i c al l y s w i t c hes t o nor m al m ode i f t he pul s e w i dt h of the t r i gger s i gnal i s m or e t h a n 500 m s ec .

  • Page 21: Edge Preset Trigger Mode

    STC-A33A C. Edge Preset Trigger Mode In this “Edge Preset Trigger Mode” with positive polarity, the camera exposure starts at the rising edge of the trigger signal. In this mode, the exposure duration time is based on the preset exposure time (shutter speed) by the camera setting communication or the DIP Switch on the rear panel.

  • Page 22: Edge Preset Trigger Mode (Non-Reset, External Sync)

    STC-A33A 2. Edge Preset Trigger Mode (Non-Reset, External Sync) Note. 1 Function mode Normal mode Trigger mode Normal mode Automatically switch to the normal Note. 2 mode if the pulse width of the Max. 1H trigger signal is more than...

  • Page 23: Edge Preset Trigger Mode (Non-Reset, Internal Sync)

    STC-A33A 3. Edge Preset Trigger Mode (Non-Reset, Internal Sync) N o t e . 1 Function mode Normal mode Trigger mode Normal mode A u t o m a t i c a l l y s w i t c h e s t o t h e...

  • Page 24: H Reset Mode

    STC-A33A D. H Reset Mode Normally, the video noise appears when the start of the trigger signal is applied before finishing the video out of the previous frame. This noise is caused by the SUB pulse, which is activated to clear all residual charges on the CCD prior to a new exposure.

  • Page 25: Communication Protocol Specifications

    STC-A33A V. Communication Protocol Specifications This camera has a communication function that enables external devices, such as the PC, to control the camera functions and parameters. Use the “CLCtrl” communication software (version 9.0 or later) to communicate, or follow the communication protocol described below to communicate with the camera.

  • Page 26: The Communication Format

    STC-A33A C. The Communication Format 1. Sending Data Format from the PC to the Camera is shown below: a. Sending the read command: Device Code Read / Write Page Selection Command Code Data Length Data 8 bit 1 bit 8 bit...

  • Page 27: The Camera Control Command

    STC-A33A D. The Camera Control Command 1. The Camera Command List Notes:  The data unit of each command is 1 byte (8bit).  The data can be saved to the EEPROM if there is “X” in the “Save to EEPROM” column in the below list.
  • Page 28 STC-A33A Command Save to Initial Data Read / Write Function EEPROM Data Range The value of The gain offset (6bit: D[5…0]) Read / Write 0FH address 33 to 37H Reserved (Please do not use these) The clamp level (8bit: D[7…0])

  • Page 29: Descriptions Of The Camera Control Commands

    STC-A33A 2. Descriptions of the Camera Control Commands (The underline settings are factory default settings) Command No. Command Descriptions 0DH: [Back up data of the factory adjusted value for DAC reference voltage] DAV_BK[7…0] This data is the factory adjusted DAC reference voltage that is set to the address 61H.
  • Page 30 STC-A33A Command No. Command Descriptions [The camera function mode 3] Initial data: MOD3[7…0] = 0 This sets the following camera function modes. D[7…0] 12H: Always set “000” D7 to D5: No function MOD3[7…0] 00: Normal 10 to 11 reset, D4 to D3 Exposure start mode 01: No function (Prohibited setting.
  • Page 31 STC-A33A Command No. Command Descriptions [The exposure time (CLK) of the electronic shutter] Initial data: SHR [15…0] = 0, data range: 0 to 779 This and SVR[15…0] set the preset shutter speed (or CCD exposure time) for the electronic shutter.
  • Page 32 STC-A33A Command No. Command Descriptions [The digital gain] Initial data: DGB[7…0] = The value in the address 0EH, data range: 0 to 255. This sets the digital gain. The video output level is defined by the following formula: 31H: Video output level = (Input video level –CLAMP[7…0] x (1 + (DGB[7…0] / 128) + CLAMP [7…0]) DGB[7…0]...
  • Page 33 STC-A33A Command No. Command Descriptions [Status of the DIP switch on the rear panel] This obtains the status of the DIP switch on the rear panel. D[9…0] Binning mode 0: ON (Binning) 1: OFF (Normal) 74H: Sync system 0: HD/ VD signals in (External) 1: HD/VD signals out (Internal) DSW_ST[9…8]...

  • Page 34: Camera Control Commands

    STC-A33A 3. Camera Control Commands (The camera function modes: address 10H, 11H, 12H) a. Normal Mode (90fps) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal Full External...

  • Page 35: Normal Mode (60Fps)

    STC-A33A b. Normal Mode (60fps) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Full Scanning Internal 0.45 External Internal Partial full External scanning Internal 0.45 External...

  • Page 36: Normal Mode (30Fps)

    STC-A33A c. Normal Mode (30fps) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Full Scanning Internal 0.45 External Internal Partial full External scanning Internal 0.45 External...

  • Page 37: Trigger Mode (90Fps, Full Scanning)

    STC-A33A d. Trigger Mode (90fps, Full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 38: Trigger Mode (90Fps, Partial Full Scanning)

    STC-A33A e. Trigger Mode (90fps, Partial full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 39: Trigger Mode (90Fps, ½ Partial Scanning)

    STC-A33A f. Trigger Mode (90fps, 1/2 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 40: Trigger Mode (90Fps, ¼ Partial Scanning)

    STC-A33A g. Trigger Mode (90fps, 1/4 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 41: Trigger Mode (90Fps, Variable Partial Scanning)

    STC-A33A h. Trigger Mode (90fps, Variable partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 42: Trigger Mode (90Fps, Binning Full Scanning)

    STC-A33A i. Trigger Mode (90fps, Binning, Full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 43: Trigger Mode (90Fps, Binning Partial Full Scanning)

    STC-A33A j. Trigger Mode (90fps, Binning, Partial full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 44: Trigger Mode (90Fps, Binning ½ Partial Scanning)

    STC-A33A k Trigger Mode (90fps, Binning, 1/2 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 45: Trigger Mode (90Fps, Binning ¼ Partial Scanning)

    STC-A33A l. Trigger Mode (90fps, Binning, 1/4 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 46: Trigger Mode (90Fps, Binning Variable Partial Scanning)

    STC-A33A m. Trigger Mode (90fps, Binning, Variable partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 47: Trigger Mode (60Fps, Full Scanning)

    STC-A33A n. Trigger Mode (60fps, Full scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 48: Trigger Mode (60Fps, Partial Full Scanning)

    STC-A33A o. Trigger Mode (60fps, Partial full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 49: Trigger Mode (60Fps, ½ Partial Scanning)

    STC-A33A p. Trigger Mode (60fps, 1/2 partial scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 50: Trigger Mode (60Fps, ¼ Partial Scanning)

    STC-A33A q. Trigger Mode (60fps, 1/4 partial scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 51: Trigger Mode (60Fps, Variable Partial Scanning)

    STC-A33A r. Trigger Mode (60fps, Variable partial scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 52: Trigger Mode (60Fps, Binning Full Scanning)

    STC-A33A s. Trigger Mode (60fps, Binning, Full scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 53: Trigger Mode (60Fps, Binning Partial Full Scanning)

    STC-A33A t. Trigger Mode (60fps, Binning, Partial full scanning) Settings Function Frame Scanning Trigger Exposure Sync Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 54: Trigger Mode (60Fps, Binning ½ Partial Scanning)

    STC-A33A u. Trigger Mode (60fps, Binning, 1/2 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 55: Trigger Mode (60Fps, Binning ¼ Partial Scanning)

    STC-A33A v. Trigger Mode (60fps, Binning, 1/4 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 56: Trigger Mode (60Fps, Binning Variable Partial Scanning)

    STC-A33A w. Trigger Mode (60fps, Binning, Variable partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 57: Trigger Mode (30Fps, Full Scanning)

    STC-A33A x. Trigger Mode (30fps, Full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 58: Trigger Mode (30Fps, Partial Full Scanning)

    STC-A33A y. Trigger Mode (30fps, Partial full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 59: Trigger Mode (30Fps, ½ Partial Scanning)

    STC-A33A z. Trigger Mode (30fps, 1/2 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 60: Aa. Trigger Mode (30Fps, ¼ Partial Scanning)

    STC-A33A aa. Trigger Mode (30fps, 1/4 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 61: Bb. Trigger Mode (30Fps, Variable Partial Scanning)

    STC-A33A bb. Trigger Mode (30fps, Variable partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 62: Cc. Trigger Mode (30Fps, Binning Full Scanning)

    STC-A33A cc. Trigger Mode (30fps, Binning, Full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 63: Dd. Trigger Mode (30Fps, Binning Partial Full Scanning)

    STC-A33A dd. Trigger Mode (30fps, Binning, Partial full scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 64: Ee. Trigger Mode (30Fps, ½ Partial Scanning)

    STC-A33A ee. Trigger Mode (30fps, Binning, 1/2 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 65: Ff. Trigger Mode (30Fps, Binning ¼ Partial Scanning)

    STC-A33A ff. Trigger Mode (30fps, Binning, 1/4 partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...

  • Page 66: Gg. Trigger Mode (30Fps, Binning Variable Partial Scanning)

    STC-A33A gg. Trigger Mode (30fps, Binning, Variable partial scanning) Function Frame Scanning Trigger Exposure Sync Settings Binnig Trigger Mode Reset Mode Gamma Mode rate Method Polarity Start Mode System Internal External Normal Internal 0.45 External Positive Internal External H reset Internal 0.45...
  • Page 67 STC-A33A Revisions Date (D/M/Y) Changes Notes 2/9/2008 New Document Changed Command No. 28H:DLY [7…0] from (µseconds) to (clocks) 6/10/2009 Pg. 31 User Guide Rev 1.0...
  • Page 68 STC-A33A Sensor Technologies America, Inc. 1345 Valwood Pkwy, Suite 320 Carrollton, Texas 75006-6891 TEL (972) 481-9223 FAX (972) 481-9209 http://www.sentechamerica.com/ Sensor Technology Co., Ltd. 7F, Harada Center Building 9-17, Naka cho 4chrome Atsugi-city, Kanagawa 243-0018 Japan TEL +81-46-295-7061 FAX +81-46-295-7066 http://www.sentech.co.jp/...
