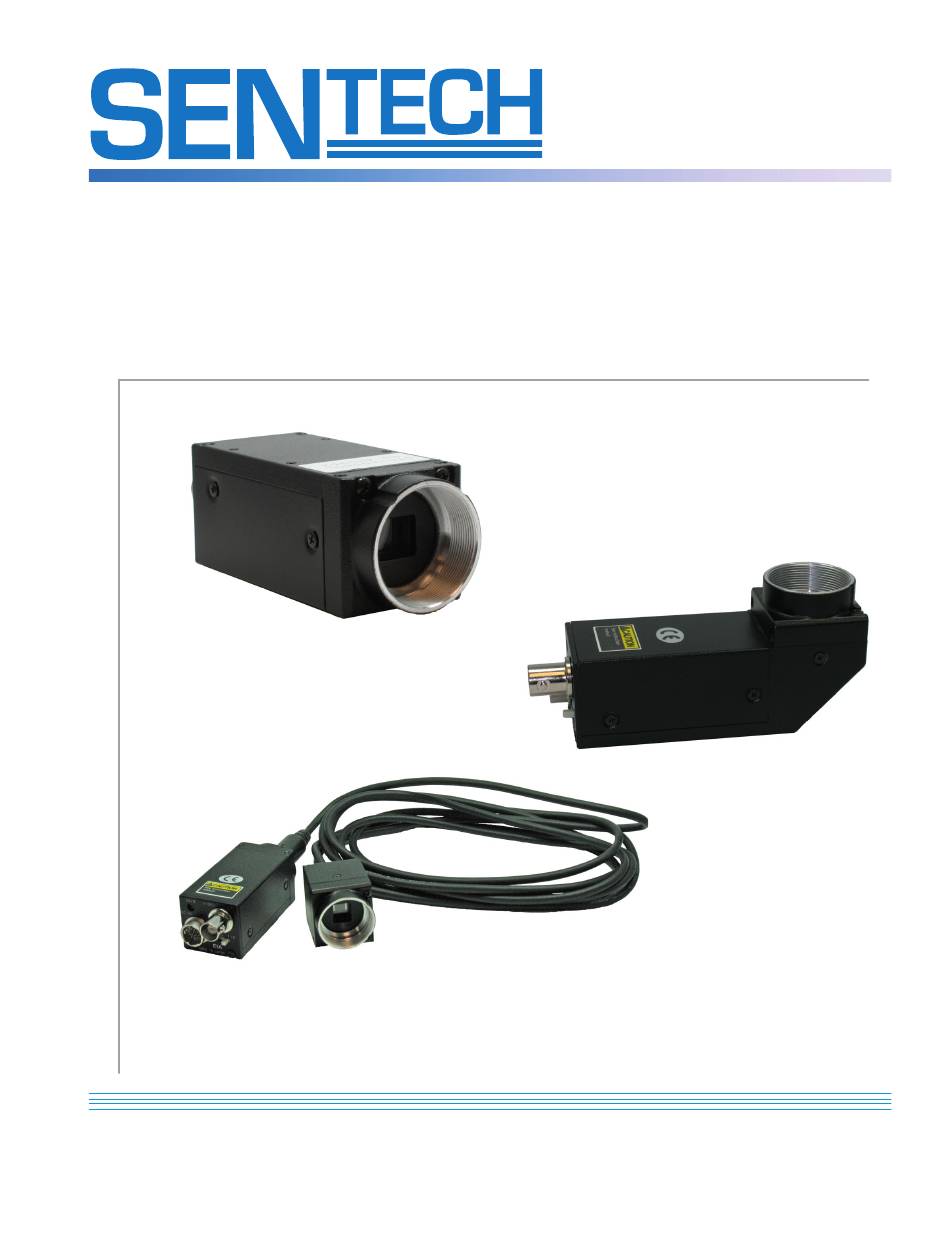

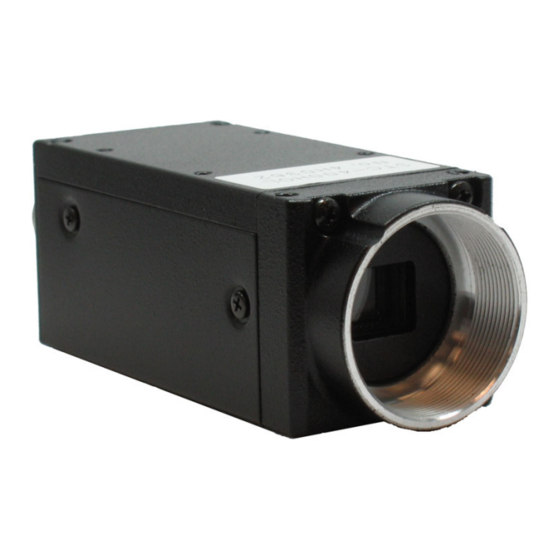

- Page 1 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 Industrial B&W CCD Camera S T C - 4 0 0 , S T C - 4 0 0 L , STC-SS400 S e r i e s Operating Manual Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
- Page 2 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
-
Page 3: Table Of Contents
7. Sync. Output Timing Chart ..........8. External Sync. Input Pulse ..........9. CCD Spectrum Response Curve ......... 10. Optional Components and Use ......... 11. Dimensions ..............12. STC-400 Series Product Family ......... Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com... -
Page 4: Precaution
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 Precaution • Handle the camera with care. Do not abuse the camera. Avoid striking or shaking it. Improper handling or storage could damage the camera. • Do not pull or damage camera cable. •... -
Page 5: Contents Of Box
Tripod adapter with 1/4" 20 UNC screw thread hole (TP-300) 3. Features The STC-400 Series is a collection of products to fit a wide variety of applications. The STC-400 Series comes in 1/3” and 1/2” CCD formats and in compact, remote head, and “L” shaped camera housings. WIth selectable shutter speeds from 1/60th to 1/10,000th of a second, the STC-400 can capture scenes and virtually and speed crisply and clearly. -
Page 6: Camera Specifications
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 4. Camera Specifications Signal Format: EIA (STC-400, STC-410, STC-400L, STC-410L) CCIR (STC-405, STC-415, STC-405L, STC-415L) Image Sensor: 1/2” IT CCD (STC-400, STC-405) 1/3” IT CCD (STC-410, STC-415) Total Picture Element: EIA: 811(H) x 508(V) CCIR: 795(H) x 596(V) Effective Picture Element:... - Page 7 (1.24” x 1.16” x 2.92”) • 12V DC Power STC-SS400 Series • STC-400L is 1/2”, STC-410L is 1/3” • Same basic features and specifications as STC-400 Series • C-Mount Lens Mount • Dimensions: 31(W) x 45(H) x 73(D)mm (1.24” x 1.8” x 2.92”) STC-SS400 Series •...
- Page 8 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 Image Related Specifications: Accumulation mode Frame / field (Internal switch switchable, Factory set up=Field) γ γ γ γ γ Correction 0.45 / 1 (Internal switch switchable, Factory set up=1) Gain Fixed/Manual (0dB –...
-
Page 9: Major Operating Controls And Functions
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 Sync. Output Signal: 2 - 5Vp-p 2 - 5Vp-p Clock: 2.5Vp-p/75Ω EIA: 14.31818MHz CCIR: 14.1875MHz External Output Connector: Hirose 12P connector (HR10-10R-12PA) Mechanical Specifications Lens Mount C-mount Optical Center Allowance Less than +10% Case Color Black... -
Page 10: Camera Board Layout
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 5.1) Camera Board Layout 5.2) Rear Panel 12-Pin Connector for Power and Control Signals Connector for power, external sync signals, and video output. This connector is usually connected to the power supply, sync signal generator (or sync source), and video monitor. -
Page 11: Pin Connector Pin-Out
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 5.3) 12-Pin Connector Pin-Out Pin No. Internal Sync External Sync +12Vdc +12Vdc Video GND Video GND Video Out Video Out HD GND HD GND HD Out HD In VD Out VD In Note: The mating connector is the... - Page 12 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 C) Camera Mode/Operation Switch (1) Frame Integration Mode Shutter Speed Switch Settings Mode CCIR SW1 SW2 SW3 SW4 SW5 Frame 1/30 1/25 Either Either Either ON Frame 1/60 1/50 Frame 1/100...
-
Page 13: Ccd Pixel Configuration
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 (3) Gama Setting (1.0 or 0.45) 6. CCD Pixel Configuration (A) Horizontal Pixel Configuration Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com... - Page 14 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 (B) Vertical Pixel Configuration - 2:1 Interlace, Frame Accumulation (C) Vertical Pixel Configuration - 2:1 Interlace, Field Accumulation Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
-
Page 15: Sync Output Timing Chart
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 7. Sync Output Timing Chart 8. External Sync Input Pulse HD/VD Input Pulse Requirements: 75Ω: 4±1Vp-p High Impedence (10KΩ): 5±5Vp-p Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com... -
Page 16: Ccd Spectrum Response Curve
Note: 1. Requires four (4) each M2 screws to mount the TP-300 to the bottom of the camera. (comes with TP-300 when purchased through SenTech) 2. Maximum length of the four screws must be 7mm Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com... -
Page 17: Dimensions
STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 11. Dimensions STC-400 Note: Measurements are given in mm Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com... - Page 18 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 11. Dimensions (Continued) STC-400L Note: Measurements are given in mm Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
- Page 19 STC-400 & STC-400L Series Operating Manual Rev. 0.1 - Created July 15,2005 11. Dimensions (Continued) STC-SS400 STC-SS400 Head Note: Measurements are given in mm Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
-
Page 20: Stc-400 Series Product Family
CCIR, 1/3” Monochrome Hi-Resolution CCD Remote Head (Top*) (*=Cable Orientation in Relation to the Remote Head) Special OEM versions of the STC-400 series are available, Please contact Sentech for more details and inofrmation Phone +66 87 803 1661 | www.imRNasia.com | sale@imRNasia.com...
