Summary of Contents for Endurance TF3i

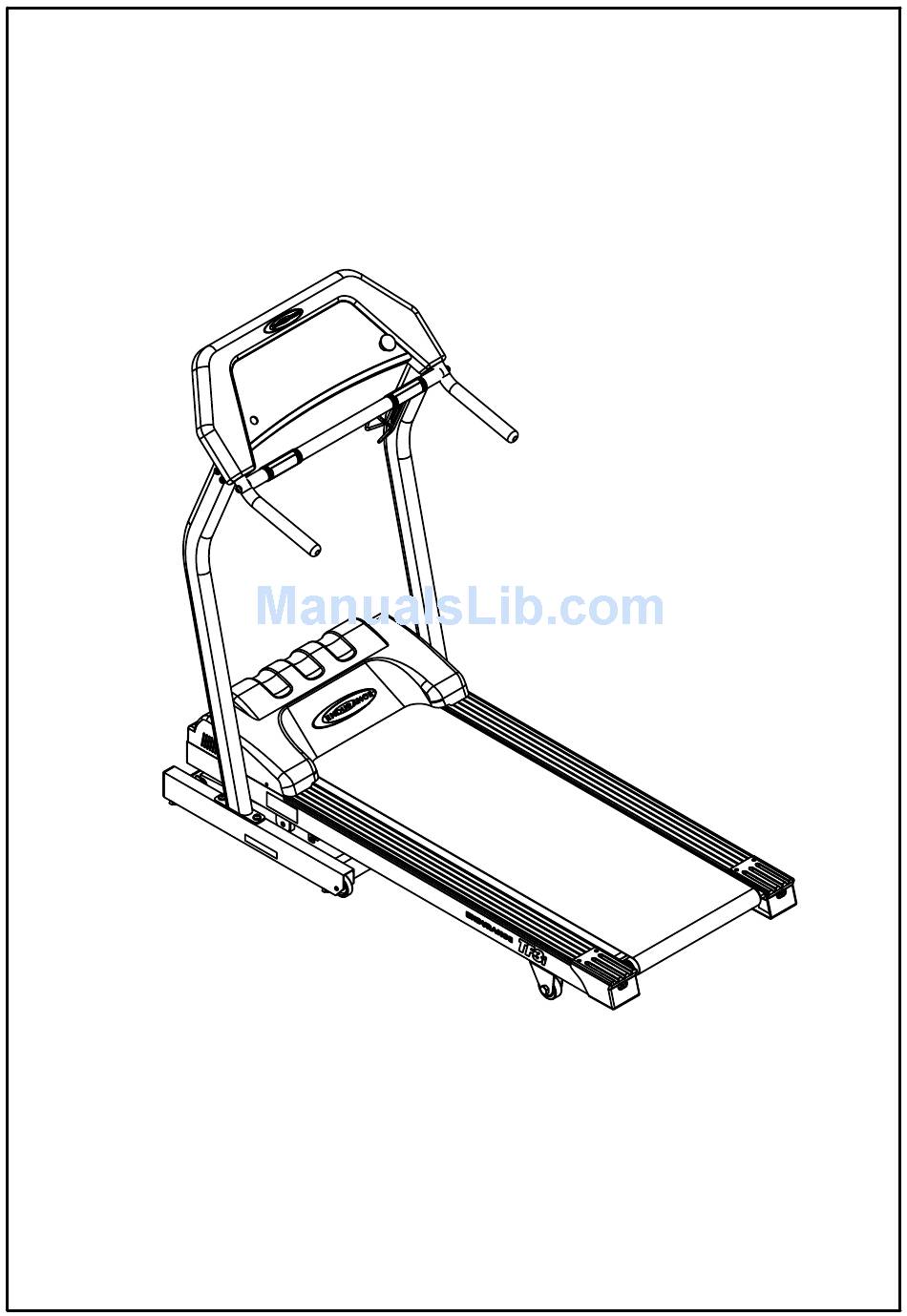

- Page 1 ENDURANCE TF3i VERSION 0409...
- Page 2 ENDURANCE TF i HARDWARE ILLUSTRATION SHEET Qty. A1. M4X10 Round Cross Screw--------------------[2pcs] A2. M8X16 Round Inner Hex Screw---------------[6pcs] A3. M10X95 Round Inner Hex Screw--------------[4pcs] C1. M8 (I.D)Washer----------------------------------[4pcs] C2. M10 (I.D)Washer---------------------------------[4pcs] C3. M8 (I.D)Radian Washer------------------------[2pcs] PAGE 1...
- Page 3 ENDURANCE TF3i HARNWARE ILLUSTATION SHEET A[1PCS] D[1PCS] E[1PCS] F[1PCS] B[1PCS] G[1PCS] C[1PCS] H[1PCS] PAGE 2...
- Page 4 ENDURANCE TF3i Assemble Procedures: 1.B 5.OTHERS Do not tighten the bolts down completely during first assembly. After the completion of step 3,then you may tighten the boltscompletely. Do not tighten the bolts down completely during first assembly. After the completion of step 3,then you may tighten the boltscompletely.
- Page 5 ENDURANCE T F 3 i make 3 turns After assembly and before turning power on position the rear roller using the ' T ' wrench ( refer to the drawing if needed ) . If belt is too far to the left side...
- Page 6 ENDURANCE T F 3 i TENSIONING THE BELT Running Belt If when you plant your foot on the belt , you can feel a sliping sensation then the belt has been stretched and is slipping over the roller. This is normal and common adjustment on a new treadmill.
