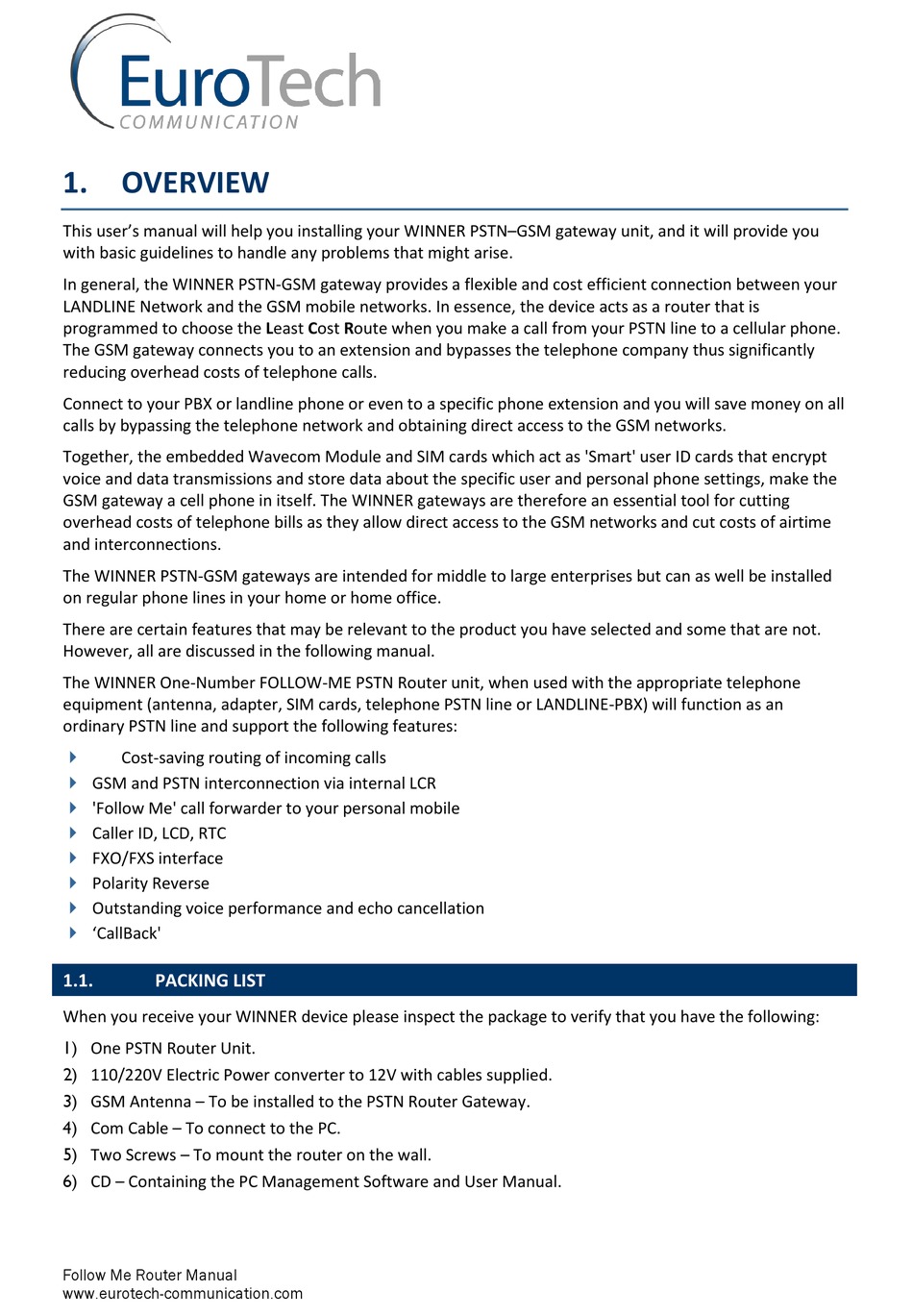

1. OVERVIEW

This user's manual will help you installing your WINNER PSTN–GSM gateway unit, and it will provide you
with basic guidelines to handle any problems that might arise.
In general, the WINNER PSTN-GSM gateway provides a flexible and cost efficient connection between your
LANDLINE Network and the GSM mobile networks. In essence, the device acts as a router that is
programmed to choose the Least Cost Route when you make a call from your PSTN line to a cellular phone.
The GSM gateway connects you to an extension and bypasses the telephone company thus significantly
reducing overhead costs of telephone calls.
Connect to your PBX or landline phone or even to a specific phone extension and you will save money on all
calls by bypassing the telephone network and obtaining direct access to the GSM networks.
Together, the embedded Wavecom Module and SIM cards which act as 'Smart' user ID cards that encrypt
voice and data transmissions and store data about the specific user and personal phone settings, make the
GSM gateway a cell phone in itself. The WINNER gateways are therefore an essential tool for cutting
overhead costs of telephone bills as they allow direct access to the GSM networks and cut costs of airtime
and interconnections.
The WINNER PSTN-GSM gateways are intended for middle to large enterprises but can as well be installed
on regular phone lines in your home or home office.
There are certain features that may be relevant to the product you have selected and some that are not.
However, all are discussed in the following manual.
The WINNER One-Number FOLLOW-ME PSTN Router unit, when used with the appropriate telephone
equipment (antenna, adapter, SIM cards, telephone PSTN line or LANDLINE-PBX) will function as an
ordinary PSTN line and support the following features:

Cost-saving routing of incoming calls

GSM and PSTN interconnection via internal LCR

'Follow Me' call forwarder to your personal mobile

Caller ID, LCD, RTC

FXO/FXS interface

Polarity Reverse

Outstanding voice performance and echo cancellation

'CallBack'
1.1.

PACKING LIST

When you receive your WINNER device please inspect the package to verify that you have the following:
1) One PSTN Router Unit.
2) 110/220V Electric Power converter to 12V with cables supplied.
3) GSM Antenna – To be installed to the PSTN Router Gateway.
4) Com Cable – To connect to the PC.
5) Two Screws – To mount the router on the wall.
6) CD – Containing the PC Management Software and User Manual.
