16 C 1: I
HAPTER NTRODUCING THE
Switch — Rear
View Detail

Power Socket

Power Socket
Unit Information
Label
Power Socket
Redundant Power
System Socket
S 3300 XM, SM, TM, MM
WITCH

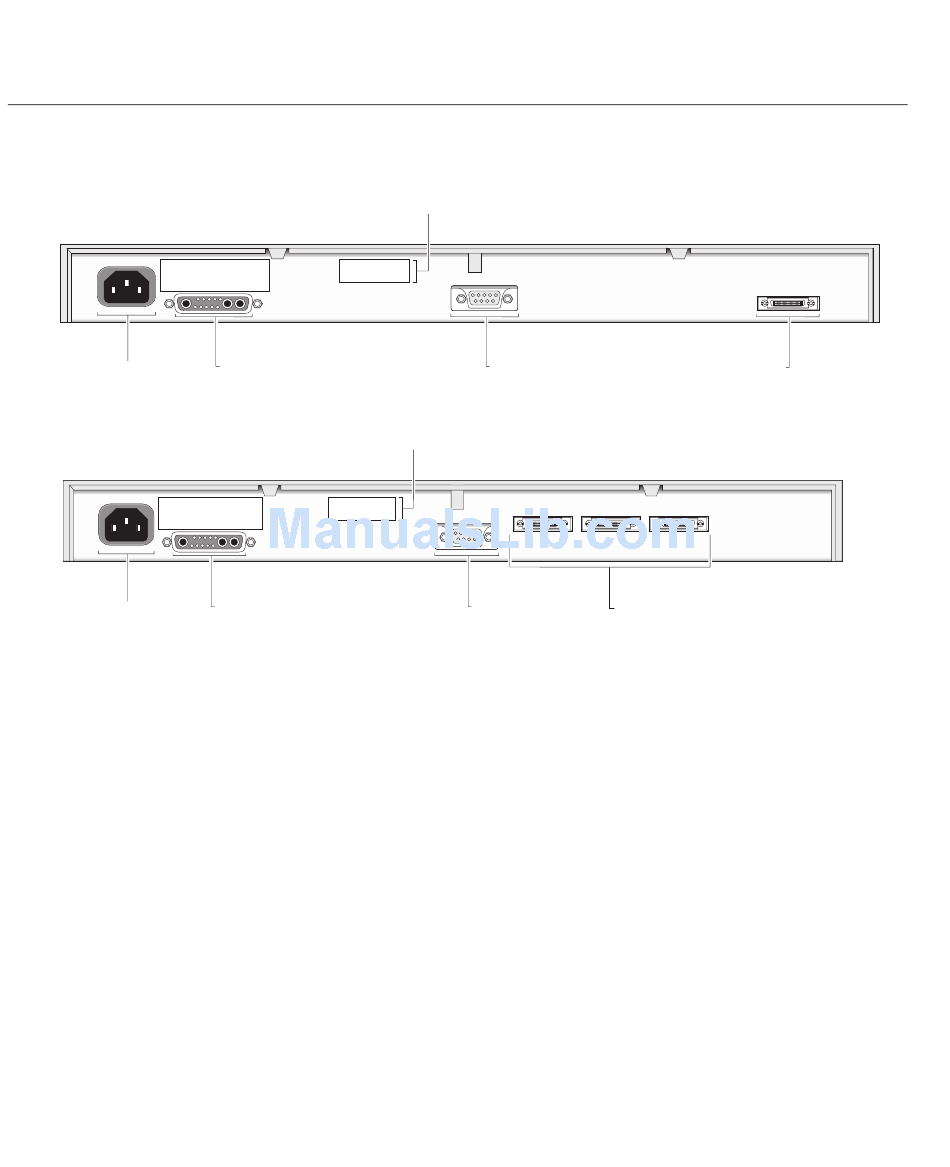

Figure 5 Switch 3300 XM, SM and TM— rear view

Unit Information Label

Switch 3300 XM 24 Port
3C16985A
MAC Addr: XXXXXXXXXX
Serial XXXXXXXXXXXX

Redundant Power System Socket

Figure 6 Switch 3300 MM — rear view
Unit Information Label
Switch 3300 MM 24 Port
3C16988
MAC Addr: XXXXXXXXXX
Serial XXXXXXXXXXXX
Redundant Power System Socket
This label shows the following:
The 3Com product name of the Switch
I
The 3Com 3C number of the Switch
I
The unique MAC address (Ethernet address) of the Switch
I
The serial number of the Switch
I
You may need this information for fault reporting purposes.
The Switch automatically adjusts its power setting to any supply voltage
in the range 100–240V A.C. (XM, SM and MM only) or in the range
90–240V A.C. (TM only).
To protect against internal power supply failure, you can use this socket
to connect a SuperStack Advanced Redundant Power System (ARPS) to
the Switch. See "Connecting a Redundant Power System" on page 32.
Console
(max) 19200,8,1,N
Console Port
Unit 2 Unit 3
Console
(max) 19200,8,1,N
Console Port Matrix Ports
Matrix Port
Matrix Port
Unit 4
