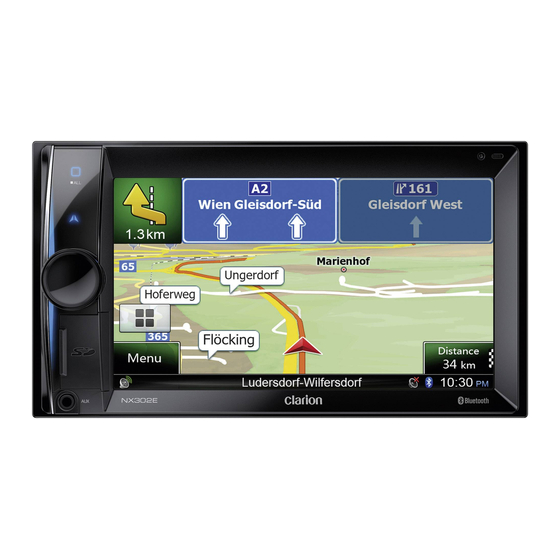

NX302E
MULTIMEDIA STATION WITH BUILT-IN NAVIGATION & 6.2" TOUCH
PANEL CONTROL

Advertisement

Table of Contents
loading

Related Manuals for Clarion Series

Summary of Contents for Clarion Series

  • Page 1 Owner´s manual NX302E MULTIMEDIA STATION WITH BUILT-IN NAVIGATION & 6.2” TOUCH PANEL CONTROL...

  • Page 2: Table Of Contents

    Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. • Check the contents of the enclosed warranty card and store it in a safe place with this manual. 1. FEATURES ........................3 Expanding Systems ......................

  • Page 3: Features

    1. FEATURES • 6.2” Wide-VGA Color LCD Touch Panel • Front-Panel Auxiliary Input and 2ch RCA Output with Subwoofer Control • B EAT-EQ with 3 Band Parametric Equalizer and MAGNA BASS EX Dynamic Bass Enhancement • Latest Map Guarantee Expanding Systems Expanding visual features Expanding audio features Rear Rear vision Monitor Camera 2 Channel Amplifier USB Memory ® ® iPod / iPhone (Connect via CCA-750) ® Bluetooth cellular phone Portable Player (Connect via AUX IN Jack) Notes: •  T he items listed outside of the frames are the commercial products generally sold. •...

  • Page 4: Precautions

    Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. ® and any use of such marks by Clarion Co.,Ltd, is under license. NX302E 531-1602kHz 87.5-108MHz...

  • Page 5: Cautions On Handling

    • The USB memory sticks must be recognized as “USB mass storage class“ to work properly. Some models may not operate correctly. W hen the memorized data is lost or damaged by any chance, Clarion shall not be liable for any damage. When using an USB memory stick, we recommend that you backup your data stored on it before using a personal computer etc.

  • Page 6: Controls

    4. CONTROLS Operational Panel ALL ] ALL MENU RESET [MIC] ] NAvI/Av [POWER/vOL] Micro SD card slot Only navigation map card is available and don't remove it when unit is power on. AUX Jack Names of Buttons [POWER/VOL] Knob • Press to power on the system when ignition on. •...

  • Page 7: Main Menu Operation

    5. MAIN MENU OPERATION Long press [ ALL ] button on the PANEL to [Settings]: Touch the icon to enter system show main source menu. setting menu. (see “System Setup”) Short press [ ALL ] button to show Short [Beat EQ]: Touch the icon to enter equalizer cut menu.

  • Page 8: System Setup

    6. SYSTEM SETUP At all mode, long press [ ALL ] button to Blinking LED enter main source menu. Touch [Custom] Touch [On] or [Off] to turn on/off the blinking on the bottom left of the screen, then select LED. [Settings] on the screen to enter Setting At blinking LED [On] mode, when ACC off, menu.
  • Page 9 Touch [ ] or [ ] button to adjust Fader, and touch [ ] or [ ] button to adjust • Input Aux Level (AUX1) Balance. Choose “Low”, “Middle“ or “High” input Touch [Center] to reset the value. level of auxiliary device. Touch [Back] to exit.
  • Page 10 Anti Theft • Anti Theft code You can set an Anti-theft code. After set successfully, when Battery wire reconnect, you need to input the Anti-theft code. 1. Long press the [General] button until a dialog box popped up. Touch [Yes] to set a personal code of Anti-Theft.

  • Page 11: Usb Operation

    7. USB OPERATION Accessing an USB 1. Insert an USB device into the USB cable. When connecting an USB device, the unit will read the files automatically. 2. To remove the USB device, you should first select another source or turn off the power, in order to avoid damaging the USB device.
  • Page 12 File extensions 1. Always add a file extension “.MP3”, “.WMA” to MP3, WMA file by using single byte letters. If you add a file extension ♪ other than specified or forget to add the ♪ file extension, the file cannot be played. 2.

  • Page 13: Search Function

    Search Function 10. Scan play 1. Touch the [ ] button to show folder/ 11. Back to main operation bar file list. Touch [ ] button to enter search menu. Browse mode 2 Input numbers by touching digit buttons, Touch the [ ] button to show track list.

  • Page 14: Usb Video Operation

    USB Video Operation This system can play video files (MP4, etc) 8. Show playback information stored in an USB memory. You can use it as 9. Back to main operation bar an video device by simply copying desired Browse mode video files into it.

  • Page 15: Bluetooth Operation

    8. BLUETOOTH OPERATION The Bluetooth allows you to utilize your car’s built-in audio system for wireless mobile phone or music handsfree communication. Some Bluetooth mobile phones have the audio features, and some portable audio players support Bluetooth feature. This system can play audio data stored in a Bluetooth audio device.

  • Page 16: Making A Call

    • D ialed/Received/Missed Call History You can search any Dialled/Missed/Received Call History. 1. Show history categories 1. Touch [ ] button to show following history 2. Backspace categories: Dialed, Received, Missed and 3. Paired device information Contacts. 4. Number pad Touch [Dialer] to dial number manually. 5.

  • Page 17: Bluetooth Audio Operation

    Please Track-up consult your nearest Clarion dealer for more 1. Touch the [ ] button to move to the information on the product of wireless audio beginning of the next track.

  • Page 18: Radio Operation

    9. RADIO OPERATION Select tuner for listening to the radio Long press [ ALL ] button to enter main source menu, then select [Tuner] to enter Tuner mode. If Tuner is not on the current source menu, touch [ - ] buttons on the bottom of the screen, or hold the center of screen and drag left/right to show more icons.

  • Page 19: Auto Store

    Auto store Only stations with sufficient signal strength will be detected and stored in the memory. To star automatic station search, touch following buttons on the operation bar in sequence: [ ] -> [ ] -> [OK] To stop auto store, press other buttons having radio functions.

  • Page 20: Radio Data System Operation

    Radio Data System Operation Radio Data System TA (Traffic Announcement) This unit has a built-in “Radio Data System” In the TA standby mode, when a traffic decoder system that supports broadcast announcement broadcast starts, the traffic stations transmitting “Radio Data System” announcement broadcast is received as top data.

  • Page 21: Ipod & Iphone Operation

    10. iPod & iPhone OPERATION Connect an iPod or iPhone to the USB connector via CCA-750 cable. When connecting a device, the unit will read the files automatically. The track information display on the screen once playback start. 11. Turn on / off Simple Control 12.

  • Page 22: Ipod Video Playback

    Fast forward/Fast reverse Fast forward Touch and hold the [ ] button . Fast reverse Touch and hold the [ ] button . Repeat play This function allows you to play the track repeatedly. Touch the [ ] button to select Repeat one or Repeat all.

  • Page 23: Navigation Operation

    11. NAvIGATION OPERATION Using a Micro SD card 1. Slide the cover of the card slot located on the bottom left of the panel to the right. Insert a Micro SD card into the card slot. 2. To remove the card, you should first select another source or turn off the power, in order to avoid damaging the card.

  • Page 24: Trouble Shooting

    13. TROUBLE SHOOTING GENERAL Problem Cause Measure Unit fuse blown. Replace with new fuse of correct rating. Unit can not power on. Car battery fuse blown. Replace with new fuse of correct rating. Turn off the power and press the [RESET] Unit can not button with a thin rod.

  • Page 25: Usb Devices

    USB Devices Problem Cause Measure The USB device has been Reversing the connection direction of the USB inserted with wrong direction. device, try it again. USB device cannot be inserted. The USB connector is broken. Replace with a new USB device. The USB device is damaged.

  • Page 26: Specifications

    14. SPECIFICATIONS FM Tuner Input Frequency range: 87.5-108.0MHz Audio input sensitivity: Usable sensitivity: 13dBf High: 320mV (at 1V output) Frequency response: 30Hz-15kHz Mid: 650mV (at 1V output) Stereo separation: 30dB(1kHz) Low: 1.3V (at 1V output) Signal/noise ratio: >55dB (input impedance 10 k or greater) AUX-in Audio level : ≤2V Video level : NTSC/PAL 1Vp-p@75Ω...

  • Page 27: Wiring And Connections

    NX302E 15. WIRING AND CONNECTIONS GPS Antenna GPS Antenna (Black) (Black) (Black) (Black) Radio Antenna Radio Antenna Refer to next page. Refer to next page. Black Black Black Black External Microphone Connection External Microphone Connection White White Line Out Rear Left Line Out Rear Left Black Black...
  • Page 28 Rear left - Rear left + Front left - Front left + Front right + Front right - Rear right + Rear right - Fuse 15A Battery + Reverse Parking ACC + AUTO ANT AMP Remote Illumination Phone Mute Ground Function Location Connector A...
  • Page 29 Clarion Co., Ltd. All Rights Reserved. Copyright © 2012: Clarion Co., Ltd. Printed in China...
  • Page 30 Owner's manual NX302E Navigation...
  • Page 31 Easy navigation map updates It is easy to keep the navigation system up to date. Simply download new map data from Clarion’s portal site, store them on a microSD card and insert it into the Clarion NX302E via the front card slot.
  • Page 32 Table of contents   1 Warnings and Safety information .................6 2 Getting started......................7   2.1 Buttons and other controls on the screen............... 8    2.1.1 Using keyboards ........................ 10   2.1.2 Beyond single screen tap ....................11 2.2 Map screen........................12   ...
  • Page 33   3.1.5 Selecting your Home location.................... 50   3.1.6 Selecting a recent destination from the History ..............51   3.1.7 Entering the Coordinate of the destination ................ 52   3.1.8 Navigate to a location stored in a photo................54   3.1.9 Building a route from the list of destinations (Create Route) ..........
  • Page 34   5.3.4 Route settings........................83   5.3.5 User profiles........................87   5.3.6 Map settings........................87   5.3.7 Visual guidance settings ....................89   5.3.8 Display settings........................90   5.3.9 Regional settings........................ 90   5.3.10 Trip monitor settings......................91 6 Glossary........................92  ...

  • Page 35: Warnings And Safety Information

    The navigation system helps you find your way to your destination with a connected GPS receiver. Clarion Mobile Map does not transmit your GPS position; others cannot track you. It is important that you look at the display only when it is safe to do so. If you are the driver of the vehicle, we recommend that you operate Clarion Mobile Map before you start your journey.

  • Page 36: Getting Started

    2. Getting started Clarion Mobile Map is optimised for in-car use. You can use it easily by tapping the screen buttons and the map with your fingertips. When using the navigation software for the first time, an initial setup process starts automatically.

  • Page 37: Buttons And Other Controls On The Screen

    The initial setup is now complete. The Configuration wizard can be restarted later from the Settings menu (page 79). After the initial setup, the Map screen appears and you can start using Clarion Mobile Map. 2.1 Buttons and other controls on the screen When you are using Clarion Mobile Map, you usually tap buttons on the touch screen.
  • Page 38 Slider When a feature can be set Drag the handle to to different values in a move the slider to range, Clarion Mobile Map its new position. shows an indicator on a • Tap the slider gauge that displays and where you want sets the value.

  • Page 39: Using Keyboards

    2.1.1 Using keyboards You only need to enter letters or numbers when needed. You can type with your fingertips on the full-screen keyboards and you can switch between various keyboard layouts, for example English, Greek or numerical. Task Instruction Switching to another keyboard layout, for Tap the button and select the new...

  • Page 40: Beyond Single Screen Tap

    2.1.2 Beyond single screen tap You usually need to tap the screen only once. However, some useful features can be accessed with combined touch screen tapping. Those are the following: Action Details Tapping and holding Tap and keep pressing the following buttons to reach extra functions: the screen •...

  • Page 41: Map Screen

    2.2 Map screen 2.2.1 Navigating on the map A small live map is displayed on the Navigation Menu, as a part of the button. To enlarge this small map and open the Map screen, tap This map shows the current position (the Vehimarker, a red arrow by default), the recommended route (an orange line), and the surrounding map area.
  • Page 42 If Clarion NX302E is capable of receiving live traffic information, the calculation takes into account traffic delays affecting your route if they are received. However, this calculation is rarely accurate.

  • Page 43: Position Markers

    2.2.3 Objects on the map 2.2.3.1 Streets and roads Clarion Mobile Map shows the streets in a way that is similar to how the paper road maps show them. Their width and colours correspond to their importance: you can easily tell a motorway from a small street.

  • Page 44: Turn Preview And Next Street

    2.2.3.2 Turn preview and Next street When navigating a route, the top section of the Map screen shows information about the next route event (manoeuvre) and the next street or the next city/town. There is a field in the top left corner that displays the next manoeuvre. Both the type of the event (turn, roundabout, exiting motorway, etc.) and its distance from the current position are displayed.

  • Page 45: Lane Information And Signposts

    When navigating on multi-lane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, Clarion Mobile Map displays the lanes and their directions using small arrows at the bottom of the map.

  • Page 46: Junction View

    2.2.3.4 Junction view If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. The lanes you need to take are displayed with arrows. Signposts can also be present if information is available. If you want to hide the currently displayed junction, tap the picture and the Map screen returns.

  • Page 47: Object Types

    3D buildings 3D block representation of full city building data containing actual building size and position on the map. 2.2.3.7 Elements of the active route Clarion Mobile Map shows the route in the following way: Symbol Name Description Current GPS position and Your current position displayed on the map.

  • Page 48: Traffic Events

    2.2.3.8 Traffic events Road segments affected by traffic events are displayed with an alternate colour on the map, and small symbols above the road show the nature of the event: to open the Traffic Summary screen. to open the list of traffic events: Now tap any of the list items to see its details, and to display the affected road segment in its full length on the map: Note!

  • Page 49: Manipulating The Map

    Zooming in and out Changes how much of the map is displayed on the screen. Clarion Mobile Map uses high-quality vector maps that let you examine the map at various zoom levels, always with optimised content. It always displays street names and other text...

  • Page 50: Quick Menu

    Compass in 2D The direction of the compass shows North. map view mode Tap the button to switch to North-up view, and then tap again to rotate the map in the previous direction. Compass in 3D The direction of the compass shows North. map view mode Tap the button to switch to North-up view, and then tap again to rotate the map in the...
  • Page 51 There are more functions available than the number of buttons in the menu. In Settings, you can choose the function of each button (page 82). The following options are available: Button Description Shortcut for Find / Find Places / This function lets you search for a Place along your route Quick Search (page or around your current location if there is no route calculated.
  • Page 52 Tap the Traffic icon in This button opens the Traffic Summary screen. the Navigation Menu or on the Map screen My Route / This button lets you bypass parts of the recommended Avoidances route. More / Trip Monitor This button opens the Trip Monitor screen where you can (page 78) manage your previously saved trip logs and track logs.

  • Page 53: Checking The Details Of The Current Position (Where Am I?)

    2.2.6 Checking the details of the current position (Where Am I?) This screen contains information about the current position (or about the last known position if GPS reception is not available) and a button to search for useful Places nearby. You can access this screen from the map in one of the following ways: •...

  • Page 54: Navigation Menu

    : Petrol stations Tap any of the buttons, select a Place from the list, and navigate to it. 2.3 Navigation Menu You can reach all parts of Clarion Mobile Map from the Navigation Menu. You have the following options: •...
  • Page 55 • to start navigating on the map. The button itself is a miniature live map that shows your current position, the recommended route and the surrounding map area. Tap the button to enlarge the map to the full screen. • to open the Traffic Summary screen.

  • Page 56: On-Road Navigation

    3 On-road navigation When first started, Clarion Mobile Map calculates routes using the road network of the high quality vector maps provided with the product. You can set up your route in different ways: • If you need a route for immediate navigation, you can select the destination and start navigating to it right away (normal navigation).

  • Page 57: Entering An Address

    Navigation Menu. In the Navigation Menu, tap the following buttons: By default, Clarion Mobile Map proposes the country and city/town where you are. If needed, tap , enter the first few letters of the country name on the keyboard, and select one country from the list of results.
  • Page 58 Enter the street name: Start entering the street name on the keyboard. Find the street you need: • The most likely street name is always shown in the input field. To accept it, tap • If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of results before it appears automatically, tap ).

  • Page 59: Entering The Midpoint Of A Street As The Destination

    After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. Tip! If you know that you will use this destination frequently, before tapping to confirm the destination, put it on the list of your Favourites first: tap then...

  • Page 60: Selecting An Intersection As The Destination

    Instead of entering the house number, tap . The midpoint of the street is selected as the destination. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location.
  • Page 61 Start entering the street name on the keyboard. Find the street you need: • The most likely street name is always shown in the input field. To accept it, tap • If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of results before it appears automatically, tap ).

  • Page 62: Selecting A City/Town Centre As The Destination

    3.1.1.4 Selecting a city/town centre as the destination The city/town centre is not the geometric centre of the city/town but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections.

  • Page 63: Entering An Address With A Postal Code

    Instead of entering the street name, tap . This way the centre of the displayed city/town becomes the destination of the route. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location.
  • Page 64 Start entering the postal code. Find the city/town you need: • The most likely postal code is always shown in the input field. To accept it, tap • If the desired number does not show up, open the list of results by tapping .

  • Page 65: Tips On Entering Addresses Quickly

    to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.) A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location.

  • Page 66: Selecting The Destination From The Places Of Interest

    3.1.2 Selecting the destination from the Places of Interest You can select your destination from the Places of Interest included with Clarion Mobile Map. Using the same screen, you can find a Place in different ways: •...

  • Page 67: Searching For A Place Of Interest Using Preset Categories

    After entering a few letters, tap to open the list of Places with names containing the entered character sequence. (optional) The Places in the list are ordered by the length of the necessary detour (when navigating a route) or by their distance from the current position (when no destination is given).
  • Page 68 In the Navigation Menu, tap the following buttons: The preset search categories appear: • • If an active route exists, petrol stations are searched along the route. • If there is no active route (destination is not selected), they are searched around the current position.

  • Page 69: Searching For A Place Of Interest By Category

    Tap any of the quick search buttons to get an instant list of Places. (optional) The Places in the list are ordered by their distance from the current or last known position, from the destination or by the length of the necessary detour. If you need to reorder the list, tap Browse the list if necessary and tap one of the list items.
  • Page 70 Select the area around which the Place should be searched for: • to search around the current position or if it is not available, around the last know position. (The result list will be ordered by the distance from this position.) •...
  • Page 71 Select one of the Place subcategories (e.g. Hotel or Motel) or tap to list all Places in the selected main category around the selected location or along the route. Sometimes the list of brands in the selected Place subcategory appears. Select one brand or tap to list all Places in the selected subcategory around the selected location or along the route.

  • Page 72: Searching For A Place Of Interest By Name

    14. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 3.1.2.4 Searching for a Place of Interest by name You can search for Places of Interest by their names.
  • Page 73 • to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants. (The result list will be ordered by the length of the necessary detour.) (optional) If you have selected , select the city/town to search in.
  • Page 74 if you have not done it before. Using the keyboard, start entering the name of the Place. 10. After entering a few letters, tap to open the list of Places with names containing the entered character sequence. 11. (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour.

  • Page 75: Searching For A Place Of Interest By Its Phone Number

    15. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 3.1.2.5 Searching for a Place of Interest by its Phone Number You can search for Places of Interest by their Phone Number: If you are on the Map screen, tap to return to the Navigation Menu.

  • Page 76: Selecting Nearby Assistance From 'Where Am I

    If necessary, tap the map somewhere else to modify the destination. The Cursor ) appears at the new location. Tap to confirm the destination, or tap to select a different destination. 10. After a short summary of the route parameters, the map appears showing the entire route.
  • Page 77 • : Police stations • : Petrol stations Tap any of the quick search buttons to get an instant list of that type of Places. (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour.

  • Page 78: Selecting A Map Location As The Destination

    3.1.3 Selecting a map location as the destination If you are on the Map screen, tap to return to the Navigation Menu. In the Navigation Menu, tap the following buttons: Locate your destination on the map: move and scale the map as needed. Tap the location that you want to select as your destination.

  • Page 79: Selecting Your Home Location

    . The list of Favourite destinations is displayed. Tap the Favourite that you want to set as your destination. If necessary, browse down to see more of the list or tap and enter a few letters from the name of the Favourite destination. A full screen map appears with the selected point in the middle.

  • Page 80: Selecting A Recent Destination From The History

    • If you are in the Navigation Menu, tap and then tap A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location.

  • Page 81: Entering The Coordinate Of The Destination

    The list of recent destinations appears. Smart History promotes three destinations to the first page based on your previous routes (most likely destinations). The rest of the destinations are ordered by time they were last selected. If necessary, scroll the list to see earlier destinations.
  • Page 82 You can enter the latitude and longitude values in any of the following formats: decimal degrees; degrees and decimal minutes; or degrees, minutes and decimal seconds. (optional) If necessary, tap then and enter the coordinate in UTM format. When finished, tap A full screen map appears with the selected point in the middle.

  • Page 83: Navigate To A Location Stored In A Photo

    3.1.8 Navigate to a location stored in a photo You can also set the location stored in a photo as your destination. Do as follows: If you are on the Map screen, tap to return to the Navigation Menu. In the Navigation Menu, tap Open the menu and tap The list of photos stored in the device appears.

  • Page 84: Building A Route From The List Of Destinations (Create Route)

    3.1.9 Building a route from the list of destinations (Create Route) You can also build your route destination by destination from the My Route menu. If you are on the Map screen, tap to return to the Navigation Menu. In the Navigation Menu, tap There is only one line in the list of route points, the start point of the route, normally the current GPS position.

  • Page 85: Viewing The Entire Route On The Map

    3.3 Checking route parameters and accessing route related functions You can check different parameters of the route recommended by Clarion Mobile Map. If you are on the Map screen, tap to return to the Navigation Menu.

  • Page 86: Modifying The Route

    You have the following options on this screen (for detailed instructions on how to use them, see the next chapter): • to edit the route: to add or remove destinations or change their sequence. You can also set a route start point other than your current location.

  • Page 87: Setting A New Starting Position For The Route

    • to add the newly selected location as an intermediate destination to your route. The other destinations of the route remain intact. Note: the new waypoint is placed among destinations to keep the route optimal. To decide where a waypoint to appear, use the Edit Route feature.

  • Page 88: Editing The List Of Destinations (Edit Route)

    The first line is the start of the route, normally the current GPS position. Tap confirm your action at the warning message. The Destination menu appears and you can select the start point of the route the same way you select a destination. When the new start point is set, tap The map returns with a transparent Vehimarker (showing that there is no GPS reception).

  • Page 89: Pausing The Active Route

    3.4.4 Pausing the active route You do not need to pause the active route: when you start driving again, Clarion Mobile Map restarts the voice instructions from your position. 3.4.5 Cancelling the active route To cancel the navigated route, do one of the following: •...

  • Page 90: Checking Route Alternatives When Planning The Route

    Select one of the route alternatives and tap to return to the previous screen. Clarion Mobile Map recalculates the route. The orange line now shows the new recommended route. NX302E English 61...

  • Page 91: Checking Route Alternatives For An Existing Route

    3.4.7 Checking route alternatives for an existing route To recalculate the active route with a different route planning method, you can modify the Route settings (page 83). There is another way to do this and to compare different route alternatives with the same route planning method. Do as follows: If you are on the Map screen, tap to return to the Navigation Menu.

  • Page 92: Changing The Vehicle Used In Route Planning

    Select one of the route alternatives then tap and hold for a few seconds to return to the Map screen. Clarion Mobile Map recalculates the route. The orange line now shows the new recommended route. 3.4.8 Changing the vehicle used in route planning To recalculate the active route for a different vehicle, do as follows.

  • Page 93: Changing The Road Types Used In Route Planning

    Clarion Mobile Map plans the best toll-free route. • - Clarion Mobile Map includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility of temporary ferries. You might also need to pay a fare on ferries.

  • Page 94: Saving A Location As A Favourite Destination

    3.5 Saving a location as a Favourite destination You can add any location to Favourites, the list of frequently used destinations. Planning a route to one of the Favourite destinations is described on page 49. Select a destination as described before. It can be an address, a Place, any location on the map, a previously used destination from History, etc.

  • Page 95: Saving A Location As An Alert Point

    3.6 Saving a location as an alert point You can save any map location as an alert point (for example a speed camera or a railway crossing). Browse the map and select a location. The red Cursor appears there. Scroll down the list and tap On the newly opened screen, select the type of the alert point, the direction from which you expect the alert, and (if applicable) the speed limit for this alert point.

  • Page 96: Editing An Alert Point

    3.7 Editing an alert point You can edit a previously saved or uploaded alert point (for example a speed camera or a railway crossing). Browse the map and select the alert point to edit. The red circle appears around the alert point.

  • Page 97: Watching The Simulation Of The Route

    3.8 Watching the simulation of the route You can run a simulated navigation that demonstrates the active route. Do as follows: If you are on the Map screen, tap to return to the Navigation Menu. In the Navigation Menu, tap Scroll down the list and tap .
  • Page 98 • : Tap to increase the speed of the simulation to 4, 8 or 16 times faster. Now tap again to return to the normal speed. to stop the simulation. NX302E English 69...

  • Page 99: Off-Road Navigation

    4 Off-road navigation When first started, Clarion Mobile Map calculates routes using the road network of the high quality vector maps provided with the product. You can switch the application to off-road mode in Navigation settings in one of the following ways: •...

  • Page 100: Reference Guide

    While driving without an active route: Smart Zoom will zoom in if you drive slowly and zoom out when you drive at high speed. 5.1.2 Daytime and night colour themes Clarion Mobile Map uses different colour themes during the day and during the night for both the map and the menu screens. •...

  • Page 101: Route Calculation And Recalculation

    • : Results in a route with fewer turns and no difficult manoeuvres. With this option, you can make Clarion Mobile Map to take, for example, the motorway instead of a series of smaller roads or streets. • Vehicle types: When creating a new vehicle profile, select one of the below vehicle types.
  • Page 102 Real-time Traffic events are also taken into account and sometimes greatly modify the route. Clarion Mobile Map automatically recalculates the route if you deviate from the proposed itinerary or if a newly received Traffic event concerns a part of the recommended route.

  • Page 103: Green Routing

    There is a special proximity warning for road safety cameras (like speed or red light cameras) and other proximity alert points (like schools or railroad crossings). These alert points are preloaded in Clarion Mobile Map. You can download more from www.clarion.naviextras.com or you can upload points in a specific text file if needed.

  • Page 104: Speed Limit Warning

    (ask your local dealer), or may not be fully correct for all roads in the map. The maximum speed set in the vehicle profile is also used for this warning. Clarion Mobile Map alerts you if you exceed the preset value even if the legal speed limit is higher.

  • Page 105: Traffic Information In Route Planning

    Clarion NX302E contains the TMC receiver that is needed to receive Traffic events. If public Traffic data is broadcast at your location, Clarion Mobile Map automatically takes into account the traffic events received. You do not need to set anything in the program. The receiver will automatically search the FM radio stations for TMC data, and the decoded information will immediately be used in route planning.
  • Page 106 to open the Traffic Summary screen: to open the list of traffic events: Now tap any of the list items to see its details, and to display the affected road segment in its full length on the map: Note! If there are traffic events on the recommended route that the application has not bypassed, the icon will open the list of significant traffic events to let you quickly check them.

  • Page 107: More' Menu

    Button Description You can configure the program settings, and modify the behaviour of Clarion Mobile Map. Fine-tune route planning options, change the look of the Map screen, turn on or off warnings, or restart the Configuration wizard, etc. See the next chapter for details.

  • Page 108: Settings Menu

    You can also access program usage statistics. 5.3 Settings menu You can configure the program settings, and modify the behaviour of Clarion Mobile Map. Tap the following buttons: The Settings menu has several options. Tap or scroll with your finger to see the full list.

  • Page 109: Sound And Warnings

    Adjust how the software helps you navigate with different kinds of route related information on the Map screen. Display related settings. These settings allow you to customise the application for your local language, measurement units, time and date settings and formats, as well as to choose the time zone.
  • Page 110 Maps may contain information about the speed limits of the road segments. Clarion Mobile Map is able to warn you if you exceed the current limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads in the map.

  • Page 111: Customise Quick Menu

    This feature allows you to receive a warning when approaching a Road Safety Camera or other alert points like school zones or railroad crossings. You must ensure on your own liability that using this feature is legal in the country where you intend to use it. You can set the alert for the different alert point categories individually.

  • Page 112: Route Settings

    When calculating a new route, or when recalculation becomes necessary based on the received Traffic events, Clarion Mobile Map avoids traffic events if it makes sense. You can also set the minimum delay that triggers route recalculation, and you can instruct the application if you want to confirm every recalculation.
  • Page 113 They can be enabled or disabled separately from toll roads. Clarion Mobile Map includes toll roads (pay roads where there is a per-use charge) in the routes by default. If you disable toll roads, Clarion Mobile Map plans the best toll-free route.
  • Page 114 Enter the average consumption of your vehicle when used on highways. The unit for consumption can be set in Regional Settings. Select the engine and fuel type of your vehicle. This helps in estimating the CO emission. Enter the average fuel price for travel cost calculation. The currency can be set in Regional Settings.
  • Page 115 • • All manoeuvres are available in intersections. • Directional constraints are taken into account the way that opposite direction is allowed with a low speed. • A private road is used only if the destination is there. • Walkways are excluded from routes. •...

  • Page 116: User Profiles

    5.3.5 User profiles If more drivers use Clarion Mobile Map for navigating, their settings can be remembered by using one of the user profiles. Rename the profiles after tapping the edit button on the right so that all users know which profile to use and switch between profiles by tapping its name.
  • Page 117 Button Description Switch the map view between a 3D perspective view and a 2D top- down view. Adjust the basic zoom and tilt levels to your needs. Three levels are available. When selected, the map zooms out to show an overview of the surrounding area if the next route event (manoeuvre) is far.

  • Page 118: Visual Guidance Settings

    When you slow down while driving on a motorway, there is a chance that you are in a traffic jam so Clarion Mobile Map offers you a detour using the next exit. The message shows you distance of the exit and the difference in distance and estimated time compared to the original route.

  • Page 119: Display Settings

    Also, if there are avoidable parts of the original route ahead (like a tunnel, a toll road or a ferry), you will find them in the list in case you want to bypass them with the help of Clarion Mobile Map.

  • Page 120: Trip Monitor Settings

    By default, time zone is taken from the map information and adjusted by your current location. Here you can set time zone and daylight saving manually. 5.3.10 Trip monitor settings Trip logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here.

  • Page 121: Glossary

    Colour theme Clarion Mobile Map comes with different colour themes for daytime or night use of the map and menu screens. Themes are custom graphic settings and they can have different colours for streets, blocks or surface waters in 2D and 3D modes, and they display shades or shadows in different ways in 3D mode.
  • Page 122 Road Safety Camera Special alert points for speed, red light or bus lane cameras. Different data sources are available. You can configure Clarion Mobile Map to warn you when you approach one of these cameras. Detecting the location of Road Safety Cameras is prohibited in certain countries. It is the sole responsibility of the driver to check whether this feature can be used during the trip.

  • Page 123: End User Licence Agreement

    7 End User Licence Agreement The contracting parties 1.1 This Agreement has been entered into by and between NNG Software Developing and Commercial Ltd. (registered seat: 23 Bérc utca, H-1016 Budapest, Hungary; company reg.no.: 01-09-891838) as Licensor (hereinafter: Licensor) and You as the end user (hereinafter: User; the User and the Licensor jointly referred to as: Parties) in subject of the use of the products specified in this Agreement, including software products, databases and content .
  • Page 124 4.5. Your rights under this Agreement will terminate immediately without notice from Licensor if you materially breach it or take any action in derogation of Licensor's and/or its licensors' rights to the Software Product. Licensor may terminate this Agreement if any Software Product becomes, or in Licensor's reasonable opinion likely to become, the subject of a claim of intellectual property infringement or trade secret misappropriation.
  • Page 125 7.1.6 to modify, extend, transform the Software Product (in whole or in part), to separate it into parts, combine it with other products, install it in other products, utilize it in other products, not even for the purpose of achieving interoperability with other devices; 7.1.7 apart from using the computer program, to obtain information from the Database as a part of the Software Product, to decompile the Database, to use, copy, modify, extend,...
  • Page 126 8.6 The Licensor also draws the attention of the User to the fact that, when using the Software Product in any form of vehicle, observing the traffic regulations and rules (e.g. use of obligatory and/or reasonable and suitable security measures, proper and generally expected care and attention in the given situation, and special care and attention required due to the use of the Software Product) is the exclusive responsibility of the User.
  • Page 127 10.1 The User hereby acknowledges that the Software Product may collect, transmit to Licensor or third parties, and in some cases store data connected to the usage of the Software Product by the User (e.g. movement/route data, user interaction data). Such data collection functions may be disabled or enabled by User any time from within the corresponding menu.
  • Page 128 11.7 Discontinuation. Licensor reserves the right to discontinue provision or access to any Online Content Service with or without prior notice to the User. Such discontinuation shall not entail any consequences other than here stated. In case of discontinued Online Content Services that were (i) provided for a pre-paid fee, AND (ii) such fee covers the use of the Online Content Service for a definite term (i.e.

  • Page 129: Copyright Note

    This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Clarion. © 2011 - Clarion Data Source © 2006-2010 Tele Atlas. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by Tele Atlas or its suppliers.

This manual is also suitable for:

Nx302e

Table of Contents
