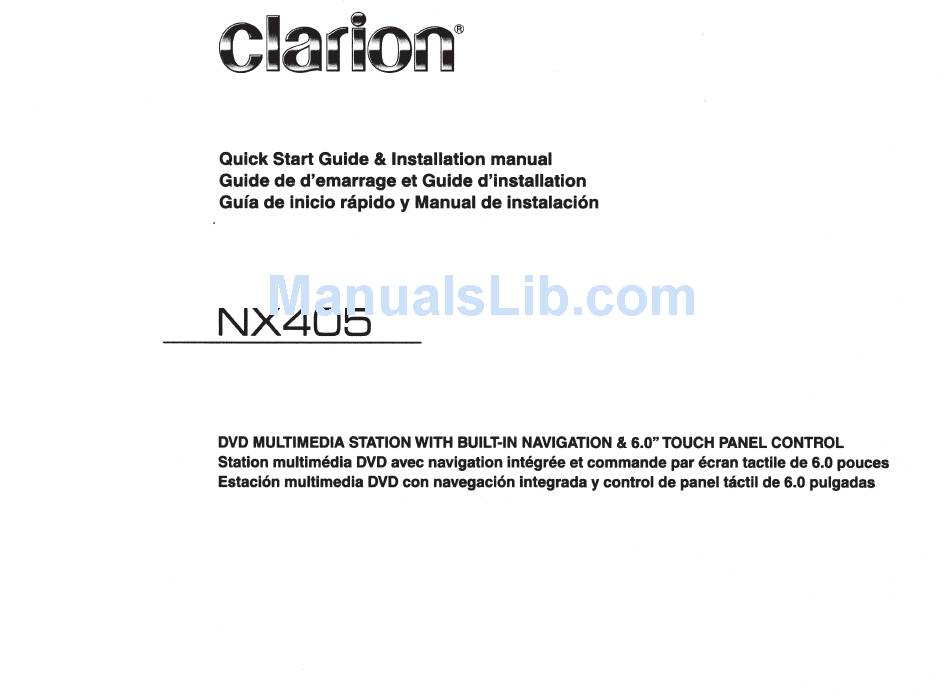

Quick Start Guide & Installation manual
Guide de d'emarrage et Guide d'installation
Gufa de inlcio rapido y Manual de instalaci6n
NX405

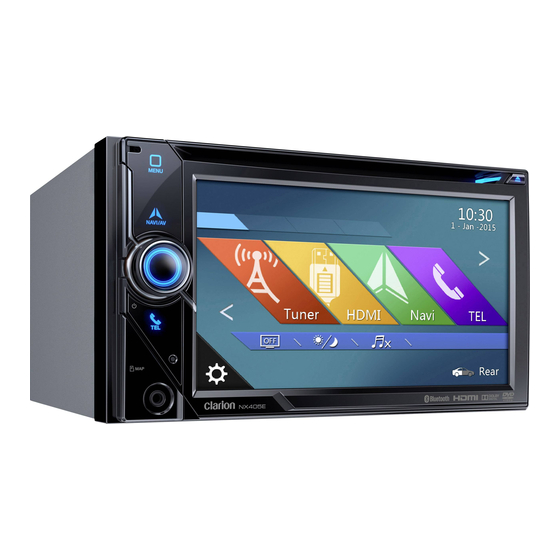

DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION
&
6.0" TOUCH PANEL CONTROL
Station multimedia DVD avec navigation integree et commande par ecran tactile de 6.0 pouces
Estaci6n multimedia DVD con navegaci6n integrada
y
control de panel tactll de 6.0 pulgadas

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX405 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarion NX405

  • Page 29 If it comes in contact with pedestrians, it may cause an accident. designed only for vehicles with DC 12V power supply. • Disconnect the negative terminal of the battery before connecting wires, otherwise an electric shock, injury by short circuit may occur. NX405...
  • Page 30 • Wire the connecting cords/cables away from high temperature areas. short circuit. Take care when wiring in the engine compartment. • When wiring the connecting cables in a vehicle with an airbag system, of the airbag. An airbag not operating correctly in an emergency may cause increased injury. NX405...
  • Page 31: Table Of Contents

    1. Prepare all articles necessary for installing the source unit before starting. Figure 1 beforehand. 2. Package Contents Main unit ........................1 Chassis Chassis Wiring harness .......................1 Damage GPS antenna .........................1 Clamp for GPS antenna's cable ..................3 NX405 ................1 Figure 3 Figure 2 Owner’s manual (CD-R) ....................1 NX405...
  • Page 32: Figure 4

    6- Flat head screws Mounting bracket 2. Wire as shown in Section 7. 3. Reassemble and secure the unit in the dashboard and set the face panel and center panel Figure 5 Vehicles other than NISSAN and TOYOTA Figure 4 NX405...
  • Page 33 Vehicle Tuner Connector Cable Mounting bracket Center Panel Radio Antenna Refer to page 34 about 0.5 to 1.5 mm so the unit can be inserted smoothly. with a nipper or similar tool. Typical Mounting Brackets WHITE WHITE WHITE WHITE marks. NX405...
  • Page 34: Gps Antenna

    • Wire the GPS antenna cord. Fasten Fuse holder the cord using the cord holders. Cord holder Figure 7 Figure 7 Double-sided tape • Stick the double-sided tape to the bottom face of the GPS antenna. Bottom face of the GPS antenna NX405...
  • Page 35 Parking brake signal cord +12V accessory Stopper Parking brake cord Grass-green Parking brake cord Note: *1: Connecting the PHONE INTERRUPT terminal The phone interrupt will mute the audio if the lead receives a negative or ground signal. NX405...
  • Page 37: Owner's Manual (Cd-R)

    Owner’s manual NX405 DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION & 6.0’’ TOUCH PANEL CONTROL...
  • Page 38: Clarion Product Registration Information

    The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Pour les Étas Unis et le Canada seulement...
  • Page 39 Video ID3 Mode Screen ................32 iPod Video List Mode Screen ................33 iPod Video Simple Control Mode Screen ............33 iPod Video Play Mode Screen ................33 iPod Audio Bluetooth Mode ................34 ® 12. Pandora OPERATIONS ................35 Selecting the Pandora Mode ................35 NX405...
  • Page 40 Video Rear Source ID3 Mode ..............52 21. SETTING OPERATIONS ..................53 General Setup Menu ...................53 Video Setup Menu ....................53 Audio Setup Menu ....................54 Navigation Setup Menu ..................54 Others Setup Menu .....................54 Set the Anti-Theft Code ..................55 22. TROUBLESHOOTING ..................56 General ........................56 DVD Player ......................56 NX405...
  • Page 41 USB Device ......................57 Bluetooth ......................57 SiriusXM Advisory Messages................58 TFT Screen ......................59 23. ERROR DISPLAY.....................60 DVD Player ......................60 24. SPECIFICATIONS ....................61 25. WIRE CONNECTION GUIDE ................63 NX405...
  • Page 42: Features

    Memory (Connect via CCA-750) VEHICLE TUNER ® iPhone SiriusXM-Connect Vehicle Tuner iPhone/ Smartphone via HDMI Bluetooth (Connect via CCA-750) Telephone (Connect via CCA-771,CCA-802) NOTE: The items listed outside of the frames are the commercial products generally sold. CCA-750,CCA-771,CCA-802:Sold separately. NX405...
  • Page 43: Precautions

    Using a fuse with a different specification may causes a fire. nearest Clarion service center for safety. Professional skills and experiences are required to do by this navigation system should ever override any highway regulations, your own judgment, or a knowledge of safe driving practices.
  • Page 44 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. NX405...
  • Page 45: Information For Users

    2.Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. 3.This unit uses a precision mechanism. Even NX405 in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.
  • Page 46: Cautions On Handling

    When affected by static electricity or When the memorized data is lost or electric noise. Connect/disconnect the USB damaged by any chance, Clarion shall not memory stick when it is not accessed. be liable for any damage. When using an USB memory stick, we supported.
  • Page 47: Handling Discs

    These may damage the disc or cause breakdown of the internal mechanism. NX405...
  • Page 48 ® trademarks owned by the Bluetooth SIG, Inc. And any use of such marks by Clarion Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc.
  • Page 49: Operation Panel

    Press and hold this button until you hear the warning ® tone, then you can use Siri Eyes Free function. [MENU] Button [RESET] Button Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared. NX405...
  • Page 50: Remote Control

    5. REMOTE CONTROL RCX005 Remote Control Included [OPEN] [MUTE] [POWER / SRC] [VOLUME] [ 0-9 ] [NAV/ AV] [BAND] [SET] [SRCH] [MENU] [PIC] [BACK] [ENT] [TAG] [RPT] [TITLE] [ROOT] ], [ ], [ [SUB.T] [ZOOM] [ANGLE] [AUDIO] Replacing the batteries CAUTION NX405...
  • Page 51: Remote Control Functions

    ] Button [BAND] Button [SET] Button [MUTE] Button [BACK] Button ], [ ], [ ], [ [POWER/SRC] Button [MENU] Button [0 - 9] [PIC] Button [ENT] Button [VOLUME] [TAG] Button ® [NAVI/AV] Button [TITLE] Button [SRCH] Button [ROOT] Button NX405...
  • Page 52 [RPT] Button [ZOOM] Button [AUDIO] Button [SUB-T] Button ], [ [ANGLE] Button [OPEN] Button ], [ NX405...
  • Page 53: Main Menu

    Flicking to right or left it will switch to next or previous page of main menu. Moving the menu position 1. Touch any quadrate icon on main menu more than 2 seconds, the icon will float on main menu. 2. Scrolling the floating icon to any position you want. NX405...
  • Page 54: Dvd Video Player Operations

    The CD player is not supported even if it is a hybrid disc. About MP3/WMA/AAC playback This unit can play back CD-R/CD-RW, DVD-R/ RW and DVD+R/RW discs on which MP3/WMA/ AAC music data have been recorded. For a detailed information, see the section entitled “Listening to compressed audio”. NX405...
  • Page 55: Change Dvd System Settings

    Ejecting a disc Note: When a disc with view restrictions is inserted, you will Note: viewable until the correct password is entered. If you force a disc into before auto reloading, it may damage a disc. NX405...
  • Page 56: Showing Dvd Player Mode Screen

    Operate the DVD Player Menu Play/Pause Playback Skip (Search) a Chapter ] or [ Skip use seek bar Fast Forward/Fast Backward ] or [ Note: backward operation. depending on the disc. Search function ] button. [0] to [9] ] button. NX405...
  • Page 57: Showing Video Files Player Mode Screen

    Switching Audio ] button NOTE: Repeat Playback Switching Subtitles ] button. ] button Using the Title Menu ] button Displaying the playback status Play video files ] button Showing Video Files Player Mode Screen ] button. NX405...
  • Page 58: Operate The Video Files Player Menu

    Repeat Playback button. Switching Audio Switching Subtitles Operate the Video Files Player Menu Video Files List Play/Pause Playback Playable Video Disc Formats Switch to Previous/Next File [ ] or [ ] Skip using seek bar NX405...
  • Page 59 NX405...
  • Page 60: Cd Player Operations

    9 - Shortcut button. 3. Touch the desired track title button. The 10 - Play/Pause button corresponding track is started playback. 11 - Next Track/Fast Forward button 12 - Shuffle button 13 - Direct Searching button 14 - Scan Start/Stop button NX405...
  • Page 61: Listening To Compressed Audio

    [Scan Displaying MP3/WMA/AAC TAG titles [Scan [Scan button. [Scan ] button. Precautions when creating MP3 disc [Scan [Scan button. Searching with the Track Number ] button. [0] to [9] Listening to Compressed Audio Tag Display Function 1.1 and 1.0. NX405...
  • Page 62: Playback Mp3/Wma/Aac Menu

    Playback MP3/WMA/AAC menu *Other operations about playing MP3/WMA/AAC are almost same as CD Player mode. NX405...
  • Page 63: Usb Audio Operations

    9. USB AUDIO OPERATIONS Notes on the Tag titles Note: Select USB Audio Mode Notes on Using USB Memories [USB Audio] General notes [USB Audio] Note: on the list. NX405...
  • Page 64: Playing Audio Files In Usb Memory

    ] or [ button. Searching with the Track Number ] button. Fast Forward /Fast Backward ] or [ [0] to [9] Note: depending on the audio files. Repeat Playback Shuffle Playback Alphabet Search Album Art work ID3 Information Area NX405...
  • Page 65: Notes On Using Usb Memories

    10. USB VIDEO OPERATIONS Playable Video Format Note: Notes on Using USB Memories General notes Notes on the Tag titles Select USB Video Mode Note: [USB Video] button on [USB Video] Note: on the list. Playing Video Files in USB Memory NX405...
  • Page 66 Touch [ ] button to search with alphabet in current list. Current File Information Area Skip Using Seek Bar Select a Folder on Display List Selecting a Track on the Display List Scanning the Tracks Searching with the Track Number NX405...
  • Page 67: Ipod Operations

    11. iPod OPERATIONS ® mode. Note: with unsupported versions. models, see our home page: www.clarion.com Notes on Using iPod/iPhone iPod Audio ID3 Mode Screen iPod Audio Menu Operations Note: back the music. NX405...
  • Page 68: Ipod Audio Playlist Mode Screen

    Play/Pause Playback Switch to Previous/Next file ] or [ Fast Forward /Fast Backward ] or [ Note: iPod Audio List Mode Screen depending on the audio files. Repeat Playback Shuffle Playback Album Art work ID3 Information Area Category List NX405...
  • Page 69: Ipod Audio Simple Control Mode Screen

    Selecting a list item from a list screen to play it. iPod Video Menu Operations 1 - Simple Control button. 2 - Video Mode button. ] in option menu, iPod Video ID3 Mode Screen Skipping a Track (Simple Control Mode) ] or [ NX405...
  • Page 70: Ipod Video List Mode Screen

    ] button to pause during playback. 2. Touch [ ] button again to resume playback. Switch to Previous/Next Track This operation is same as this in iPod Audio mode. ] or [ ] button during playback to play previous /next track. NX405...
  • Page 71: Ipod Audio Bluetooth Mode

    Audio mode. Please refer to the iPod Audio Mode operation. Note: Video playback is not available on all iPod/ iPhone devices. Please contact your Clarion dealer for details. An optional connection cable or accessory may be required for this feature. Note: status of the iPod/iPhone.
  • Page 72: Pandora ® Operations

    12. Pandora OPERATIONS ® If you have any issues with the Pandora application on your mobile phone, please direct them to pandora-support@pandora.com. Selecting the Pandora Mode Note: [Pandora] Note: Note: NX405...
  • Page 73: Pandora Bluetooth Mode

    Pandora when the Pandora mode. 5. During Pandora playback in the Pandora mode with the Bluetooth connection, the volume level is controlled only by the mobile phone side. (Both iOS devise and Android) NX405...
  • Page 74: Bluetooth Audio Player Operations

    13. Bluetooth AUDIO PLAYER OPERATIONS ® Registering Your Bluetooth Audio Player (Pairing) Note: audio players, see our home page: Selecting the Bluetooth Audio Mode [BT Audio] Bluetooth Audio Player Settings ] button to return to the NX405...
  • Page 75: Selecting The Bluetooth Audio Player

    Note: sounds may be fragmented, or switch noises may be generated. Playing Music Pausing Playback Playback Pauses. ] button. Skipping a Track Searching ] or [ Stopping Playback ] button to Show Track List Selecting the Bluetooth Audio Player NX405...
  • Page 76: Telephone Operations

    TELEPHONE OPERATIONS ® ] button to return to the Note: during the data transmission. Select the BT Phone Mode [TEL] ] or [ ] or [ Note: other end of the telephone has a reception problem. Bluetooth Telephone Settings NX405...
  • Page 77: Registering Your Cellular Phone (Pairing)

    Registering Your Cellular Phone (Pairing) Select the Cellular Phone Get the Phone Book Data Telephone Operations Making a call using the Ten-Key pad NX405...
  • Page 78 Making a Call Using the Phone Book Note: be sent from the cellular phone. ] button Making a Call Using the History ] button Answering to an incoming call ] button to ] button Note: connection with this system may be disconnected NX405...
  • Page 79: Using Siri Eyes Free Function

    3. Talk to Siri the same way as using it on the iPhone. 4. To finish Siri Eyes Free function, touch the [ button. Notes: Siri Eyes Free is availabe on iOS 6.1 or higher. Please use external mic when you use the Siri Eyes Free function. NX405...
  • Page 80: Tuner Operations

    15. TUNER OPERATIONS Listening to the Tuner [Tuner] Manual memory Auto Store [FM1/2/3/AM] Notes: overwritten. 11. Band button Preset Scan Seek Tuning ] or [ ] button Step Tuning [ ] or [ ] DX/Local Setting Recalling a preset station [FM1/2/3/AM] NX405...
  • Page 81: Activating Your Siriusxm Subscription

    SiriusXM signal to receive the activation message. You can also find it by touching the [Option Setting] button to enter the Setting menu. Selecting a Satellite Radio Mode NX405...
  • Page 82: Channel Selection By Up/Down Button

    2. Touch the [Set] button in “Password” item to set a 2. Touch and flick the category list up or down. new passcode following the screen indicator. 3. Touch the desired category item button to enter channel lists belonging to this category. NX405...
  • Page 83: Replay

    With iTunes song tagging, you can tag songs you hear missed programming from your current Band of Preset while listening to SiriusXM. The tagging information channels. Miss a music, news, talk or sports segment? is saved in your radio until you connect your iPod or NX405...
  • Page 84 When the memory of the unit is full, “Memory Full Connect iPod” may be displayed. 3. If there is stored tag information on the unit, when an iPod/iPhone supporting the tag function is connected, the stored tag information will be transferred to the iPod/iPhone automatically. NX405...
  • Page 85: Hdmi Mode

    (supplied with iPhone) (made by Apple Inc.) (2) Connection with the iPhone 5, iPhone 5s and iPhone 5c (made by Apple Inc.) (supplied with iPhone) (3) Connection with the Android Phone Android phone (4) Connection with the equipment with HDMI output NX405...
  • Page 86: Select Hdmi Source

    Select HDMI Source This HDMI mode is only indicate the screen of the iPhone, Android. Can‘t operate by the touch screen of NX405 Note: NX405...
  • Page 87: Aux

    If the reverse cable is connected correctly to the car, the unit goes to camera mode automatically when the car is in reverses. As an additional safety feature, the audio from camera with built-in microphones can be heard through the NX405. NX405...
  • Page 88: Rear Source Operations

    20. REAR SOURCE OPERATIONS Multi-Zone Operation DVD Video Rear Source Control Info Mode. Access Rear-Zone Exit Rear-Zone Touch the 2-Zone off button to close the Rear Source. Note: DVD Video Rear Source Control Direct Mode. DVD Video in Rear NX405...
  • Page 89: Ipod Video In Rear

    Video Rear Source ID3 Mode iPod Video in Rear iPod Video Rear Source Control Play Mode NX405...
  • Page 90: Setting Operations

    For example, if current setting is Right, when BT phone is coming in, only right speaker can hear the phone. Camera Audio: There are three options, Off, On and Mute. Version: Display the software version information. Note: time. Video Setup Menu NX405...
  • Page 91: Audio Setup Menu

    DVD Wide Screen Mode: Set the DVD wide screen Navigation Setup Menu mode On or Off. Audio Setup Menu Others Setup Menu Note: NX405...
  • Page 92 ] button Note: NX405...
  • Page 93: Troubleshooting

    Check that the parking brake is displayed. engaged. engaged. Disc cannot play with Feature exceeds set parental Release the view limitation or the display “PARENTAL level. change the parental level. VIOLATION” shown. See the subsection “Setting up the parental level” NX405...
  • Page 94: Usb Device

    The audio quality is poor after The Bluetooth reception is Move the device closer to the connection with a Bluetooth poor. car audio system or remove enabled device. any obstacle between the device and the system. NX405...
  • Page 95: Siriusxm Advisory Messages

    SiriusXM Advisory Messages Advisory Name Description NX405...
  • Page 96: Tft Screen

    (The liquid crystal panel is produced according to technology with very high precision. Note that, pixels of 99.99% or more, pixel missing or normally lit pixels account for 0.01%). NX405...
  • Page 97: Error Display

    Eject the disc then reload it inside the DVD deck and does properly. not play. PARENTAL VIOLATION Parental level error Set the correct Parental level. Region code error Region code error Eject the disc, and replace correct region code disc. NX405...
  • Page 98: Specifications

    Audio/Video output Power Output: Video output voltage: 1.0 V Screen Size: 6.0” wide type Pixels: 1,152,000 Signal to Noise Ratio: Resolution: 800 x 480 x 3 (RGB) Bluetooth Specification: Bluetooth Ver 4.0 Profile: HFP1.5(Hands Free Profile) HSP1.0 (Headset Profile) NX405...
  • Page 99 7’’ 4’’ NX405...
  • Page 100: Wire Connection Guide

    25. WIRE CONNECTION GUIDE Note: GPS Antenna SiriusXM Vehicle Tuner Connector Cable Radio Antenna Refer to next page HDMI CABLE YELLOW WHITE WHITE WHITE WHITE NX405...
  • Page 101 15 A Note: *1: Connecting the PHONE INTERRUPT terminal The phone interrupt will mute the audio if the lead receives a negative or ground signal. NX405...
  • Page 102 Clarion Co., Ltd. All Rights Reserved. Copyright © 2015: Clarion Co., Ltd.
  • Page 103 Owner’s manual NX405 English Clarion NX405 English 1...
  • Page 104 It is easy to keep the navigation system up to date. Simply download new map data from Clarion’s portal site, store them on a microSD card and insert it into the Clarion NX405 via the front card slot. Unpleasant surprises are now avoided as navigation maps will match the real world.
  • Page 105 3.1.2.6 Using the ZIP code to select a destination......................36 3.1.3 Selecting a Place of Interest ........................37 3.1.3.1 Using Quick search categories ........................... 37 3.1.3.2 Searching by category ............................39 3.1.3.3 Searching by name.............................. 41 3.1.3.4 Finding help nearby............................43 Clarion NX405 English 3...
  • Page 106 4.1.6 Speed limit warning ..........................67 4.1.7 Intelligent navigation ..........................68 4.1.7.1 Congestion detour on highways.......................... 68 4.1.7.2 Real-time alternative routes..........................69 4.1.7.3 Parking around destination ..........................69 4.1.7.4 Hints upon detour ............................... 70 4.2 Useful Information menu ........................70 4 Clarion NX405 English...
  • Page 107 5.5 Keyboard buttons are grayed out ..................... 85 5.6 The map is hidden behind an image of a junction ................86 6 Index ............................87 7 End-user license agreement ....................89 8 Copyright note ......................... 89 Clarion NX405 English 5...
  • Page 108: Warnings And Safety Information

    1 Warnings and safety information The navigation system helps you find your way to your destination with the built-in GPS receiver. NX405 does not transmit your GPS position; others cannot track you. NX405 collects usage information and GPS logs that may be used for improving the application and the quality of maps if you accept it when first using the application.
  • Page 109: Getting Started

    2 Getting started NX405 is optimized for in-car use. You can use it easily by tapping the screen buttons and the map with your fingertips. 2.1 Initial set-up When using the navigation software for the first time, an initial set-up process starts automatically.
  • Page 110 (page 82). Tap to continue. If needed, modify the default route planning options. Later you can change them in Route Preferences (page 74). Tap to continue. The initial set-up is now complete, tap to enter the Navigation view. 8 Clarion NX405 English...
  • Page 111: Screen Controls

    You need to confirm selections or changes only if the application needs to be restarted, if it needs to perform a major reconfiguration, or if you are about to lose some of your data or settings. Otherwise, NX405 saves your selections and applies the new settings without confirmation as soon as you use the controls.
  • Page 112 Caps Lock. Tap again to use lower case letters. Entering numbers and symbols to switch to a keyboard offering numbers and symbols. Finalizing the keyboard entry Starting a search for a keyboard entry Hiding the keyboard 10 Clarion NX405 English...
  • Page 113: Using Touch Gestures

    To move the map in map browsing mode: grab the map, and move it in the desired direction. Using pinch zoom Use pinch zoom on the Navigation view to zoom in and out by moving two fingers in a pinch gesture. Clarion NX405 English 11...
  • Page 114: Manipulating The Map

    Zooming in and Change how much of the map is displayed on the screen. NX405 uses maps that let you examine the locations at various zoom levels, always with optimized content. It always displays street names and other text with the same font size, never upside-down, and you only see the streets and objects that you need.
  • Page 115 Selecting Open a list of additional features like saving a location, or additional searching for Places around the cursor. options Selecting a Select the cursor location as a new destination. The route is destination automatically calculated. Clarion NX405 English 13...
  • Page 116: Navigation View

    2.3 Navigation view The navigation view is the main screen of NX405 that shows the planned route on a map. NX405 works with digital maps which are not simply the computerized versions of traditional paper maps. Similarly to paper road maps, the 2D mode of digital maps shows you streets and roads. Elevation is also illustrated in color.
  • Page 117 Navigation By tapping it, you can open the Navigation menu, where you can reach menu other parts of NX405. Street name It shows the current street name. By tapping it, you can open the Where Am I screen. See page 71.
  • Page 118: Streets And Roads

    2.3.2 GPS position markers When your GPS position is available, NX405 marks your current position. By default, this marker is a blue arrow. The dot near the arrow shows the GPS position as perceived by the GPS receiver.
  • Page 119: The Planned Route

    2.3.3 The planned route The planned route is the currently navigated route. Whenever the destination is set, the route is active until you delete it, reach your destination or suspend navigation. NX405 displays the route in the following ways: Symbol...
  • Page 120: Maneuver Icons

    Enter the traffic circle and take the first exit (next maneuver). Enter the traffic circle (second next maneuver). Enter the freeway. Exit the freeway. Board the ferry. Leave the ferry. Approaching a waypoint on the right. 18 Clarion NX405 English...
  • Page 121: Lane Information And Signposts

    When navigating on multi-lane roads, it is important to take the appropriate lane in order to follow the planned route. If lane information is available in the map data, NX405 displays the lanes and their directions using small arrows at the bottom of the map. Highlighted arrows represent the lanes and the direction you need to take.
  • Page 122: Tunnel View

    Tap any of them to display the exit area on the map. You can now easily add this service station as a waypoint to your route if necessary. If you want to display other types of Places at the next few service stations, you can change the icons in . See page 79. 20 Clarion NX405 English...
  • Page 123: Object Types

    NX405 supports the following 3D object types: Type Description 3D terrain NX405 displays 3D hills and mountains in the Navigation view, and illustrates them by coloring and shading on the 2D map. Elevated roads Elevated roads are complex intersections and vertically isolated roads (such as overpasses or bridges) displayed in 3D.
  • Page 124 Access the User profiles menu where you can create new profiles or edit the existing ones. If several drivers are using the navigation system, they can create their own profiles with their own settings. The following options are also available on many of the menu screens: Button Function 22 Clarion NX405 English...
  • Page 125 Tap it to return to the map from any menu screen. Tap the Back button to return to the previous screen. You can also press and hold this button to quickly return to the Navigation view from any other screen. Clarion NX405 English 23...
  • Page 126: Using The Navigation

    3 Using the navigation By default, NX405 calculates routes using the road network of the maps provided with the product. You can select the destination and start navigating to it right away (normal navigation) if you need a route for immediate navigation.
  • Page 127 If the new search area is in a different country or state, start entering the country/state and the town. to see the whole list of the matching results. With the proper search area displayed, start entering the name, address, or category of the destination you are looking for. Clarion NX405 English 25...
  • Page 128 Once the destination is selected, a full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The cursor ( ) appears in the new location. Check the settings for road types and change them if necessary. 26 Clarion NX405 English...
  • Page 129: Selecting An Address

    The address starting with the street name, see page 31 The center of a town, see page 33 The midpoint of a street, see page 34 An intersection, see page 35 Any of the above, starting the search with the ZIP code, see page 36. Clarion NX405 English 27...
  • Page 130: Entering An Address With States

    Navigation view to access the Navigation menu. By default, the NX405 proposes the country and state where you are or in case there is no valid GPS position, the country and state of the last known position. If needed, change the country. Tap...
  • Page 131 Select the street from the list. Enter the house number by performing the following steps: Tap the House number or crossing street field. Enter the house number on the keyboard. (To enter letters, tap Clarion NX405 English 29...
  • Page 132 The route is calculated and the map appears showing the entire route, where you can check route information and route alternatives. Tap to modify the route parameters, or tap to start your journey. 30 Clarion NX405 English...
  • Page 133: Entering An Address Starting With The Street Name

    Navigation view to access the Navigation menu. By default, NX405 proposes the country and state where you are. If needed, change the country. In the Select Country screen, you can immediately select a country from the list below the...
  • Page 134 A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The cursor ( ) appears at the new location. Check the settings for road types and change them if necessary. 32 Clarion NX405 English...
  • Page 135: Selecting A Town Center

    Go to , and modify the country and state as described earlier (page 28), if necessary. If necessary, select a new town by performing the following steps: Tap the Town or ZIP code field. Clarion NX405 English 33...
  • Page 136: Selecting The Midpoint Of A Street

    , and select the country and town as described earlier. The Select Street screen appears. Enter the street name by performing the following steps: Tap the Street name field. (optional) On the Select Street screen, you can immediately select a street from the list of suggestions. 34 Clarion NX405 English...
  • Page 137: Selecting An Intersection In A Town

    (optional) On the Select Street screen, you can immediately select a street from the list of suggestions. c. Otherwise, start entering the street name on the keyboard. The names that match the string appear in a list. Clarion NX405 English 35...
  • Page 138: Using The Zip Code To Select A Destination

    , and modify the country and state as described earlier (page 28), if necessary. Tap the Town or ZIP code field. Enter the ZIP code by performing the following steps: to open the numeric keypad. Start entering the ZIP code. c. Tap to open the list of results. 36 Clarion NX405 English...
  • Page 139: Selecting A Place Of Interest

    In case of emergency, you can also find help nearby, see page 43 3.1.3.1 Using Quick search categories The Quick search feature helps you quickly find the most frequently selected types of Places. Perform the following steps: on the Navigation view to access the Navigation menu. Clarion NX405 English 37...
  • Page 140 Place, or to save the location. If necessary, tap the map somewhere else to modify the destination. The cursor ( ) appears at the new location. Check the settings for road types and change them if necessary. 38 Clarion NX405 English...
  • Page 141: Searching By Category

    . By default, the search area is around the current position (or if it is not available, around the last known position). In this case, the following result list is ordered by the distance from this position. Clarion NX405 English 39...
  • Page 142 Select one of the main Place categories (for example, Accommodation), then browse the subcategories (for example, Hotel or Motel) to find your destination. You can turn the Category View off at any level to list all Places around the selected location or along the route. 40 Clarion NX405 English...
  • Page 143: Searching By Name

    (The result list is ordered by the distance from the center of the selected town.) to search for a place around the destination of the planned route. (The result list is ordered by the distance from the destination.) Clarion NX405 English 41...
  • Page 144 . Using the keyboard, start entering the name of the Place or browse in the categories. After entering a few letters, tap to open the list of Places or Place categories with names containing the entered character sequence. 42 Clarion NX405 English...
  • Page 145: Finding Help Nearby

    Tap any of the quick search buttons to get an instant list of those types of Places. (optional) The Places in the list can be ordered by the following criteria: By their distance from the current or last known position By name. to reorder the list. Clarion NX405 English 43...
  • Page 146: Selecting A Saved Location

    After you have selected a saved location as the destination, a full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The cursor ( ) appears in the new location. 44 Clarion NX405 English...
  • Page 147: Selecting A History Item

    The more you use the navigation software, the better it can guess your desired destination. To select a History item, perform the following steps: on the Navigation view to access the Navigation menu. Clarion NX405 English 45...
  • Page 148 Period Charge or Per-use Toll, tap for ferries, or tap for carpool lanes. to confirm the destination. You can also select a nearby point on the map or tap to select a different destination. 46 Clarion NX405 English...
  • Page 149: Selecting A Saved Route

    Navigation view to access the Navigation menu. The list of saved routes appears. If necessary, scroll the list to see earlier routes. Select a route and the Multipoint Route screen appears. If necessary, modify the saved route. Otherwise, tap Clarion NX405 English 47...
  • Page 150: Entering Coordinates

    Navigation view to access the Navigation menu. You can enter the latitude and longitude values in any of the following formats: decimal degrees, degrees and decimal minutes, or degrees, minutes and decimal seconds. Tap 48 Clarion NX405 English...
  • Page 151 The route is calculated and the map appears showing the entire route, where you can check route information and route alternatives. Tap to modify the route parameters, or tap to start your journey. Clarion NX405 English 49...
  • Page 152: Selecting A Location On The Map

    The route is calculated and the map appears showing the entire route, where you can check route information and route alternatives. Tap to modify the route parameters, or tap to start your journey. 50 Clarion NX405 English...
  • Page 153: Planning A Multipoint Route

    The New Route to... screen appears, where you can select the destination of the route the same way as described in the previous sections. When the selected location appears on the map, tap and the list returns. If needed, you can add further intermediate destinations. Clarion NX405 English 51...
  • Page 154: Checking Route Information And Alternatives

    The planned route is displayed in its full length on the map with the following additional information: The total length of route The total time of route. You have the following options on this screen: to receive detailed information about the route. 52 Clarion NX405 English...
  • Page 155: Editing The Route

    Saving the planned route, see page 56 Deleting the planned route, see page 57 Selecting a route alternative when planning the route, see page 58 Selecting a route alternative for an existing route, see page 59 Pausing guidance, see page 60. Clarion NX405 English 53...
  • Page 156: Setting A New Starting Point

    The Change Start to... screen appears. Select the starting point of the route the same way you select a destination. You can see the new starting point on the map. Tap and the Multipoint Route screen appears where you can continue adding a destination to your route. 54 Clarion NX405 English...
  • Page 157: Adding An Additional Destination

    The other destinations of the route remain intact. on the Navigation view and tap . Add a destination to your route as described on page 51. Clarion NX405 English 55...
  • Page 158: Modifying The List Of Destinations

    Main menu. Tap , then confirm the deletion. 3.3.4 Saving the planned route To save the planned route, perform the following steps: Select a destination as described earlier and tap 56 Clarion NX405 English...
  • Page 159: Deleting The Planned Route

    Type in a name and tap The route is saved and it is available in By selecting a previously saved route, NX405 recalculates the route using the saved destination and/or the waypoints. 3.3.5 Deleting the planned route You have the following two options to delete the navigated route:...
  • Page 160: Selecting A Route Alternative When Planning The Route

    Select one of the route alternatives and tap to return to the previous screen. NX405 recalculates the route. Tap to start your journey. The orange line now shows the new planned route. 58 Clarion NX405 English...
  • Page 161: Selecting A Route Alternative For An Existing Route

    Select one of the route alternatives and tap to return to the previous screen. NX405 replaces the original route. Tap to start your journey. The orange line now shows the new planned route. Clarion NX405 English 59...
  • Page 162: Pausing Guidance

    Select a destination as described before. It can be an address, a Place, any location on the map, a previously used destination from History, and so on. When the map appears with the selected location in the middle, tap (optional) Using the keyboard, you can change the name offered for the Saved Location. 60 Clarion NX405 English...
  • Page 163: Editing A Saved Location

    In Saved Locations, Home and Work cannot be renamed. To change your home or work Note! location, tap , and confirm the address change. Adding a location to the list of saved locations is described on page 60. Clarion NX405 English 61...
  • Page 164: Adding An Alert Point

    Scroll down the list and tap Select the type of the Alert Point, the direction from which you expect the alert, and (if applicable) the speed limit for this Alert Point. to save the location as a new Alert Point. 62 Clarion NX405 English...
  • Page 165: Running A Simulation

    (optional) You have the following controls during the simulation (the control buttons disappear after a few seconds but you can open them again if you tap the map): : Jump to the next route event (maneuver). : Pause the simulation. : Jump to the previous route event (maneuver). Clarion NX405 English 63...
  • Page 166: Off-Road Navigation

    3.7 Off-road navigation When first started, NX405 calculates routes using the road network of the maps provided with the product. If you want to disregard roads during navigation, you can switch to off-road mode, for example when driving in a desert.
  • Page 167: Navigating In Off-Road Mode

    Turn Preview field in the top left corner shows a compass with your bearing and the distance of the next destination. When you reach the final destination, the navigation ends. If you do not want to use off-road navigation, switch back to on-road navigation by tapping Note! Clarion NX405 English 65...
  • Page 168: Reference Guide

    There is a special proximity warning for road safety cameras (like speed or red light cameras) and other proximity Alert Points (like schools or railroad crossings). These Alert Points are not part of NX405. You can download Alert points from clarion.naviextras.com or you can upload points in a specific text file if needed.
  • Page 169: Route Calculation And Recalculation

    The maximum speed set in the vehicle profile (page 74) is also used for this warning. NX405 alerts you if you exceed the pre-set value even if the legal speed limit is higher.
  • Page 170: Intelligent Navigation

    The following sections describe these features. 4.1.7.1 Congestion detour on highways NX405 may offer a detour when you slow down on a highway due to a traffic jam. The Potential congestion detour window appears and shows the length and duration of the detour.
  • Page 171: Real-Time Alternative Routes

    4.1.7.3 Parking around destination If you leave the planned route by exiting a freeway, NX405 tries to guess the reason for making a detour. By tapping , you can open a top-down map with the recommended parking Places around the destination.
  • Page 172: Hints Upon Detour

    4.1.7.4 Hints upon detour If you leave the planned route by exiting a freeway, NX405 tries to guess the reason for making a detour. The Reason for detour window appears and shows available gas stations, restaurants or other Places around the current position. Also, if there are avoidable parts of the original route ahead (like a tunnel, a toll road or a ferry), you can find them in the list, in case you want to bypass them.
  • Page 173: Where Am I

    Latitude and Longitude (coordinate of the current position in WGS84 format) The nearest town Next crossing road/street Previous crossing road/street. You can also perform some actions on this screen. to add the current position to the saved locations and to check the country information. Clarion NX405 English 71...
  • Page 174: Trip Monitor

    By tapping your recorded trip on the Trip Monitor screen, you can check information such as time, speed, altitude and distance. By tapping on the Trip Data Details screen, you can view the trip on the map, export track logs, and check the elevation and speed profiles. 72 Clarion NX405 English...
  • Page 175: Settings Menu

    4.3 Settings menu You can configure the navigation settings, and modify the behavior of NX405, by tapping Tap the arrows to view the content of other pages. The Settings menu provides the following options: Button Function Select the road types used in route planning, and the route planning method.
  • Page 176: Route Preferences Settings

    To add a new vehicle profile, perform the following steps: , browse the list of vehicles, and tap Select the vehicle type and set the parameters below. You can set the following parameters: 74 Clarion NX405 English...
  • Page 177: Route Planning Method Types

    Results in a route with fewer turns and no difficult maneuvers. With this option, you can make NX405 take, for example, the freeway instead of a series of smaller roads or streets.
  • Page 178: Road Types

    Per-use toll roads are pay roads where there is a per-use charge in the routes by default. If you disable toll roads, NX405 plans the best toll-free route. NX405 includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility of temporary ferries. You might also need to pay a fare on ferries.
  • Page 179: Sound Settings

    Announce the road numbers only. Announce the maneuver only. Set whether you want an immediate announcement for the next maneuver after each turn, or it is enough to receive the information when the turn is near. Clarion NX405 English 77...
  • Page 180: Warnings Settings

    You can enable and modify the following settings: Button Description NX405 is able to warn you if you exceed the current speed limit. This information may not be available in your region, or may not be fully correct for all roads on the map.
  • Page 181: Navigation View Settings

    3D buildings, landmarks, and manage your Place visibility sets (which Places to show on the map). You can modify the following settings: Clarion NX405 English 79...
  • Page 182 Turn it on to get freeway service information (for example gas stations, restaurants) or turn it off if you do not need it. Select the service types displayed for the freeway exits. Choose from the Places categories. 80 Clarion NX405 English...
  • Page 183 A top-down overview of the tunnel and the remaining distance are also displayed. In certain situations, NX405 offers a detour when there is a traffic jam on a highway. See page 68.
  • Page 184: Regional Settings

    TTS Voice with a microphone icon: Besides the above-mentioned profiles, it can also be used for voice recognition. You can set the measurement units and time/date format to be used. NX405 may not support all the listed units in some voice guidance languages.
  • Page 185: Trip Monitor Settings

    Anonymous track logs are sometimes used for providing real-time information service. Your trips can also help us improve the quality and coverage of maps. Clarion NX405 English 83...
  • Page 186: Troubleshooting

    Cause: The digital map data may not include every single address. Solution 1: If the house number is not known or NX405 cannot find it, select only the street name. This way, NX405 will navigate you to the midpoint of the street, where you can find the exact address more easily.
  • Page 187: Disabling The Speed Limit Warning

    Issue: Some keyboard buttons are grayed out and cannot be used. Cause: NX405 has a smart keyboard for address search, which means that only those buttons are active that can be used to type a name that is available on the map.
  • Page 188: The Map Is Hidden Behind An Image Of A Junction

    Solution: If you want to hide the currently displayed junction and return to the Navigation view, tap the picture. To turn off this feature, perform the following steps: , and . Now the tunnel view will not appear again. 86 Clarion NX405 English...
  • Page 189: Index

    Editing the route, 53 Off-road navigation, 64, 75 Fast route, 75 Favorites (Saved Locations), 44, 60, 61 Parking, 69 Places of Interest, 37 GPS Information, 71 POI (Places), 37 Green route, 75 Possible alternative route, 69 Clarion NX405 English 87...
  • Page 190 Simulation, 63 Work address, 44, 60 Smart zoom, 67 Sound settings, 77 Speed camera, 66, 79, 85 ZIP code, 36 Speed limit, 78, 85 Zooming, 11, 12, 67 Speed limit warning, 67, 85 Starting point, 54 88 Clarion NX405 English...
  • Page 191: End-User License Agreement

    2.4 U.S. Government Users. If you acquire the Navigation Product by or on behalf of the United States Government or any other entity seeking or applying rights similar to those customarily claimed by the United States Government, you are on notice that the Navigation Product is a commercial item as that Clarion NX405 English 89...
  • Page 192 5. Rights under copyright or other intellectual property rights 5.1 All material copyrights and other intellectual property rights vested in the Navigation Product or any parts thereof, that are not explicitly granted in this Agreement or by virtue of law, are reserved. 90 Clarion NX405 English...
  • Page 193 7.2 The User may only use the Databases and information from the Services available through the Navigation Product (including but not limited to the traffic data received from the RDS TMC or on-line TMC traffic information service) for his/her own benefit and at his/her own risk. It is strictly prohibited to Clarion NX405 English 91...
  • Page 194 Navigation Product) is the exclusive responsibility of the User. The Licensor shall not assume any responsibility for any damages occurred in relation to use of the Navigation Product in any vehicle. 92 Clarion NX405 English...
  • Page 195 Device or may be deleted by the User manually. 10.3 Collected data is transmitted, stored and handled anonymously and no connection of the data with the User shall be established by Licensor or any third party. Clarion NX405 English 93...
  • Page 196 Applicable third party terms shall be listed in the “About” section of the Navigation Product, in the Device documentation, at a website address indicated in the “About” section or as part of this Agreement. When first using / enabling Connected Services, User accepts compliance with those third party terms and conditions. 94 Clarion NX405 English...
  • Page 197 Attribution of third parties (e.g. copyright notices) supplying software modules, Databases, Services or other material to the Navigation Product are listed in the “About” section of the Navigation Product or at a website address indicated in the “About” section. Clarion NX405 English 95...
  • Page 198 The product and the information contained herein are subject to change without prior notification. This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Clarion. © 2014 - Clarion ©...

Table of Contents

Save PDF
