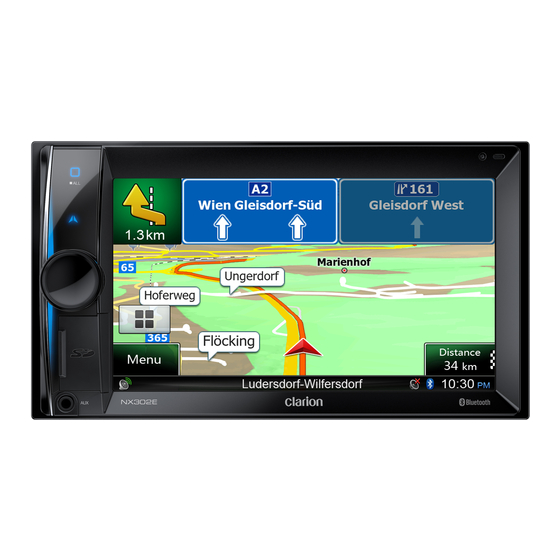

Clarion NX302E Installation Manual

Installation Guide

Before Starting

Package Contents

Source unit ................................................1
Wire connector ..........................................1
GPS antenna .............................................1
CLAMP for GPS antenna's cable ..............3
DOUBLE FACE TAPE for GPS Antenna...1
Cleaning cloth ............................................1
Warranty Card ...........................................1
Quick Start Guide ......................................1

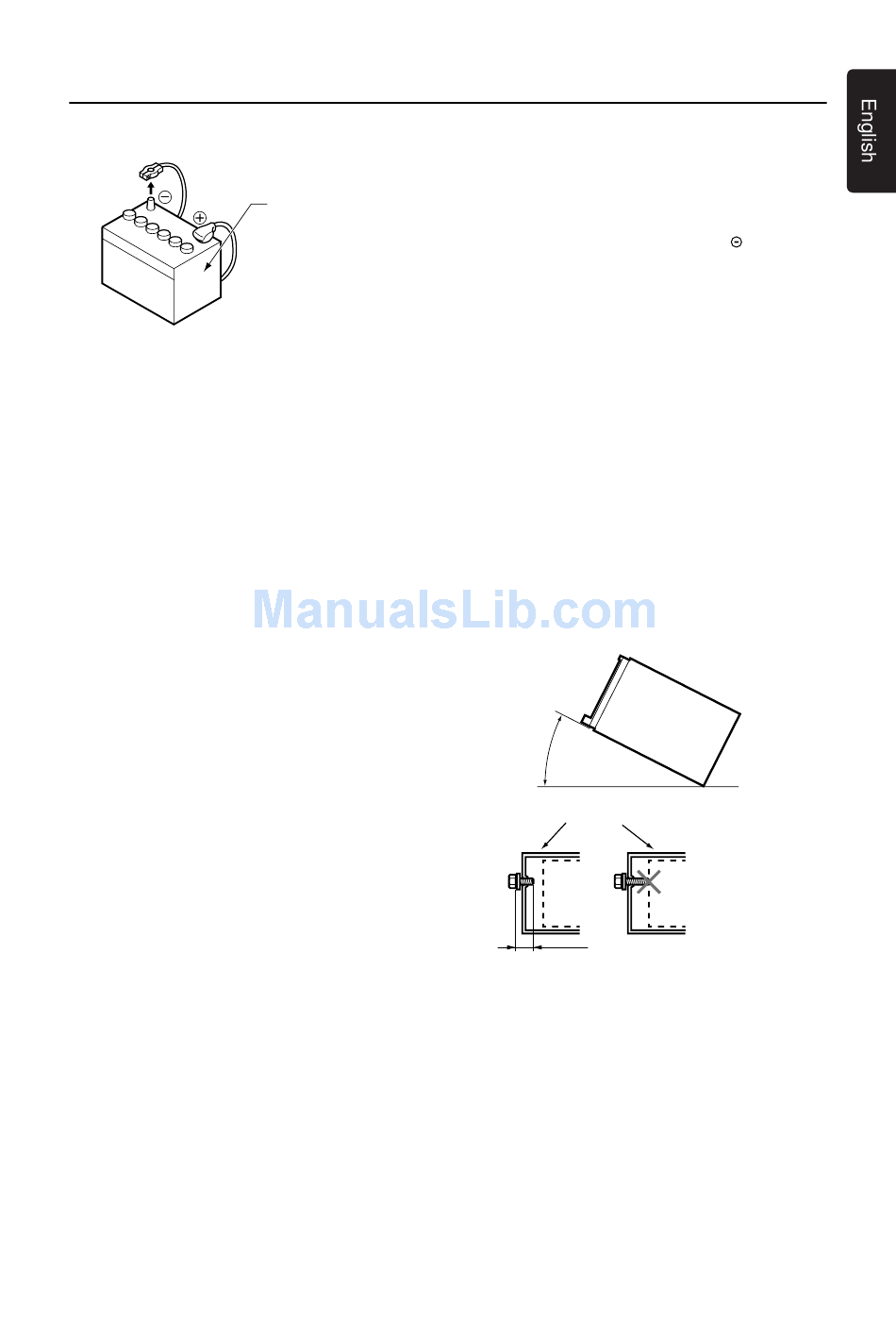

Cautions On Installation
1. Prepare all articles necessary for installing
the main unit before starting.
2. Install the unit within 30° of the horizontal
plane.
3. If you have to do any modification on the
car body, such as drilling holes, consult
your car dealer beforehand.
4. Use the included screws for installation.
Using other screws can cause damage.
1. This set is exclusively for use in cars with a
Car battery
2. Read these instructions carefully.
3. Be sure to disconnect the battery " " terminal
negative ground, 12 V power supply.
before starting. This is to prevent short circuits
during installation.
Owner's manual (CD-R) ............................1
Electro tap .................................................2
Flush mount bolts(M5x6) ...........................8
Hexagon Head Screw(M5x6) ....................8
Rear Stud Bolt ...........................................1
Rubber Parts .............................................1
AV cable ....................................................1
Max. 30°
Chassis
Max. 6 mm (M5 screw)
Damage
NX302E 11
