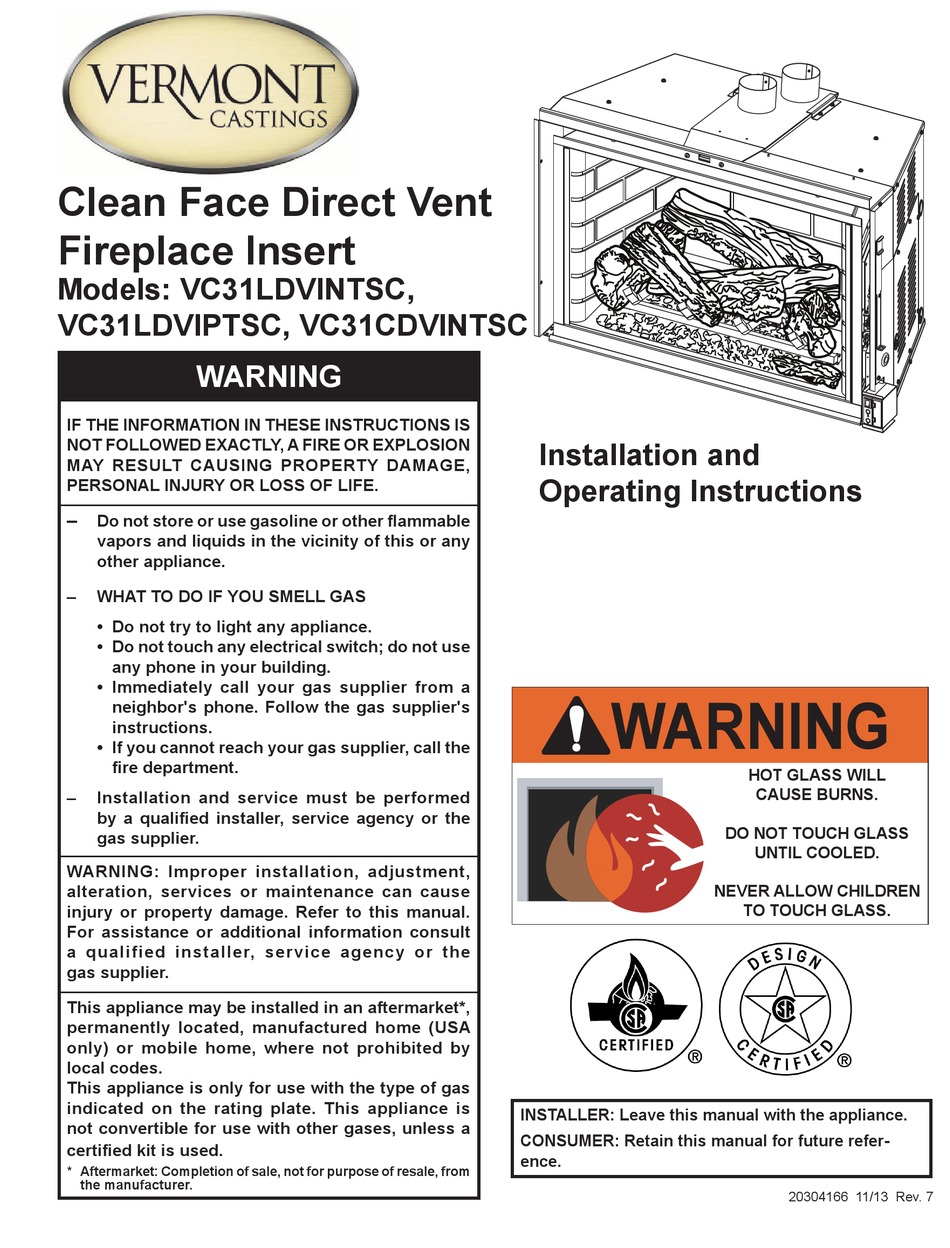

Clean face direct vent fireplace insert

Advertisement

Clean Face Direct Vent
Fireplace Insert
models: VC31lDVINtsC,
VC31lDVIptsC, VC31CDVINtsC
WARNING
IF the INFORmAtION IN these INstRuCtIONs Is
NOt FOllOWeD exACtly, A FIRe OR explOsION
mAy Result CAusING pROpeRty DAmAGe,
peRsONAl INjuRy OR lOss OF lIFe.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WhAt tO DO IF yOu smell GAs
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: Improper installation, adjustment,
alteration, services or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
this appliance may be installed in an aftermarket*,
permanently located, manufactured home (usA
only) or mobile home, where not prohibited by
local codes.
this appliance is only for use with the type of gas
indicated on the rating plate. this appliance is
not convertible for use with other gases, unless a
certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
Installation and

Operating Instructions

4166
VCFDVI31 insert cover
WARNING
AVERTISSEMENT
INstAlleR: leave this manual with the appliance.
CONsumeR: Retain this manual for future refer-
ence.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitré avant d'y toucher.
Ne laisser jamais les enfants
20304166 11/13 Rev. 7
toucher le panneau vitré.
