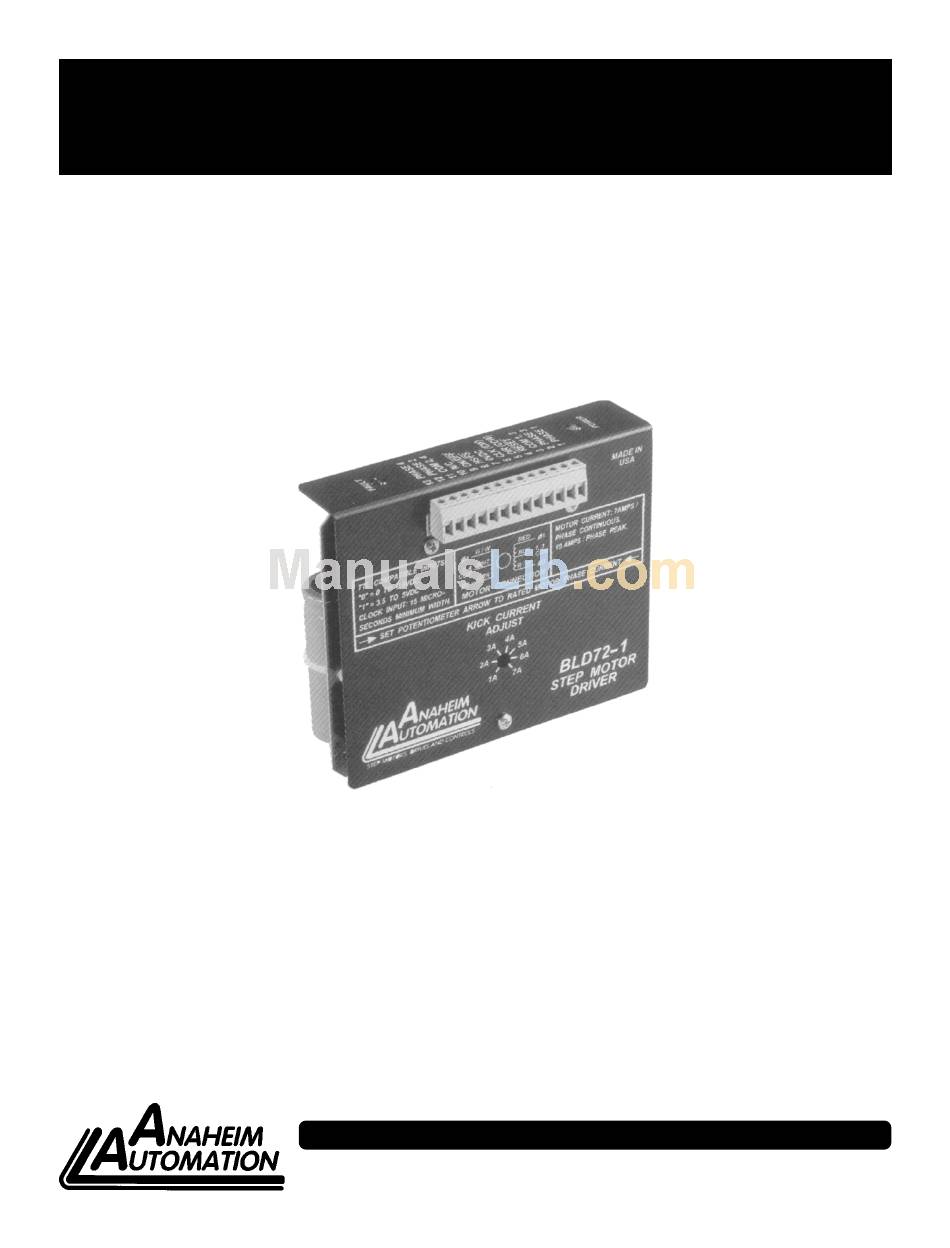

- Page 1 Bilevel Step Motor Driver User’s Guide A N A H E I M A U T O M A T I O N 910 East Orangefair Lane, Anaheim, CA 92801 (714) 992-6990 fax: (714) 992-0471 e-mail: info@anaheimautomation.com website: www.anaheimautomation.com #L010011...
-
Page 2: General Description
Features • Bilevel Driver Operation • 10 Amps per Phase Operating Current (Kick Current) • 7 Amps per Phase Standstill Current • 70 Volt Operation • Short Circuit Protection • Open Circuit Protection • Unipolar Operation • Motor ON/OFF Input •... -
Page 3: Clock Modes
Clock Modes The BLD72 has two clock options: Clock and Direction, or Dual Clock operation. Jumper JP2 is used to select the clock option. Basically JP2 selects Terminal 5 as either the Direction input or the CCW input. With the Clock and Direction option (most common option), clock pulses applied to the Clock input (Ter- minal 6) cause the motor to step. -
Page 4: Fault Protection
Jumper Functions/Locations i t a i t i t l u t l u Table1: Jumper Settings Adjusting Kick Current By following the instructions on the cover, use a small screwdriver to adjust the potentiometer. Line up the potentiometer’s arrow to the number corresponding to the motors rated current (amps/phase). Example 1: 23D104 Motor, Set to 2.0A. -
Page 5: Wiring Diagram
GENERATOR Power Supply Requirements The BLD72 must be powered by a recommended Anaheim Automation transformer. The AA2791 trans- former and the AA2793 transformer are the most commonly used and are both rated for 300VA. These transformers have a high voltage winding, a low voltage winding, and a logic voltage winding. The AA2793 has two high voltage windings and two low voltage windings for powering two BLD72’s. - Page 6 Transformer Drawings .800 MAX 1.500 1.450 MAX Note: The AA2793 transformer is the same physical size as the AA2791, but it has two sets of second- ary windings (to power two drivers) and a dual primary winding for 115/230V operation. Figure 7: AA2791 Transformer Specs 2.350 2.500...
- Page 7 Figure 9: Wiring for different line voltages for the AA2793 transformer.
-
Page 8: Dimensions Drawings
Dimensions Drawings Figure 10: BLD72 Dimensions Note: The BLD72 and BLD72-1 are the same except for the base plate. The BLD72 is a replacement driver for use in Driver Packs. The BLD72-1 is a modular driver which has a larger base plate. Figure 11: BLD72-1 Dimensions... -
Page 9: Motor Compatibility
Add suffix “S” for single-ended shaft, or suffix “D” for double-ended shaft. Notes: Other motors not listed above may be compatible with this driver. Anaheim Automation carries a full-line of standard and high torque step motors. Contact the factory regarding compatibility. See back cover for speed/toque curves. -
Page 10: Specifications
Motor phase ratings of 1.0 Amp minimum are required to meet the minimum kick level. Power Requirement: Anaheim Automation recommended transformer. Operating Temperature : 0 to 60 degrees C It is recommended that the aluminum driver baseplate be mounted on a larger aluminum plate, or similar heat-conducting structure, whenever possible. -
Page 11: Troubleshooting
Anaheim Automation will repair or replace at its’ option, any product which has been found to be defective and is within the warranty period, provided that the item is shipped freight prepaid, with previous authorization (RMA#) to Anaheim Automation’s plant in Anaheim, California. - Page 12 Torque Speed Curves A N A H E I M A U T O M A T I O N...
