Summary of Contents for Time Guard ECO1FL

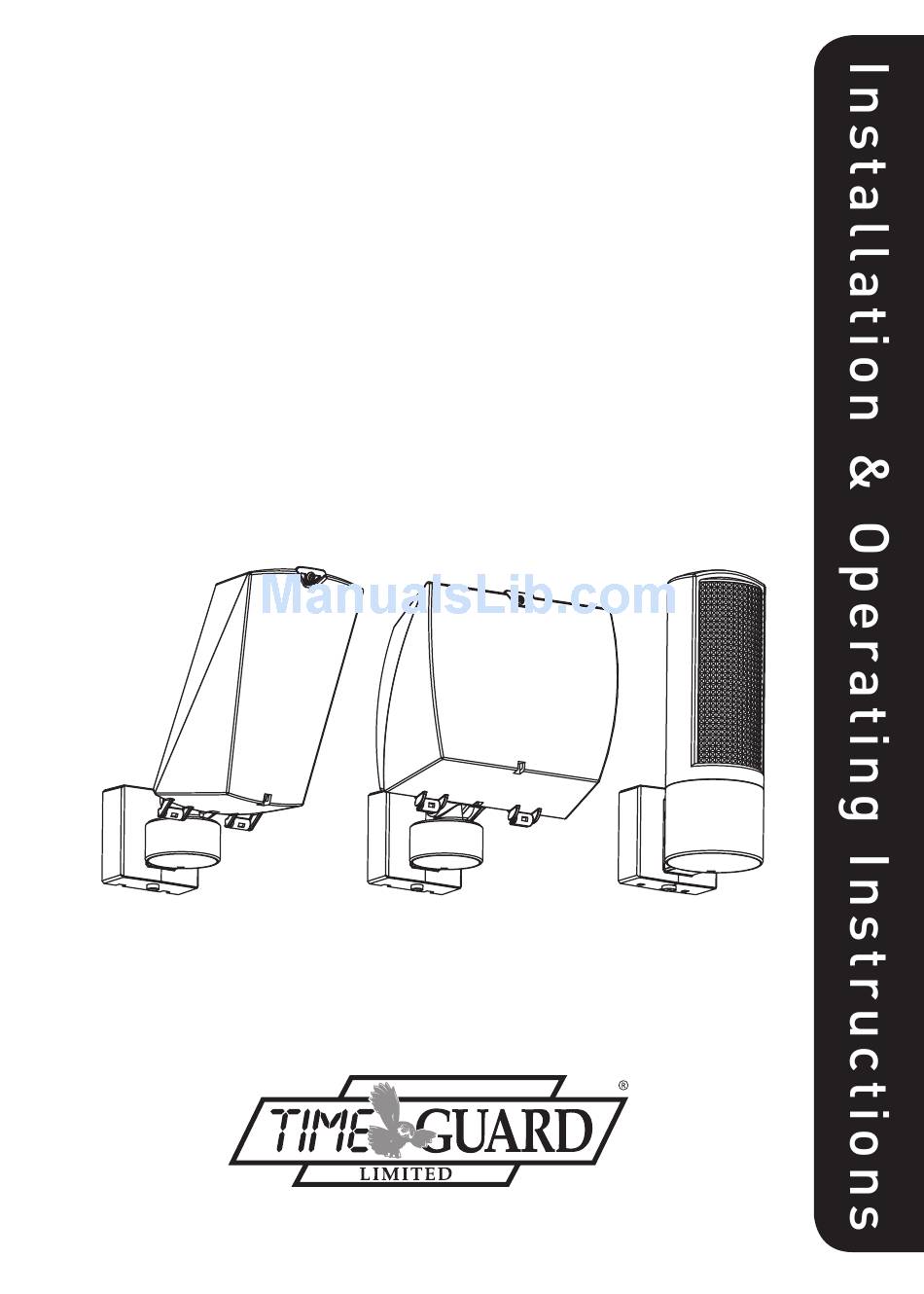

- Page 1 ECO CFL Flood Light Uncontrolled Model: ECO1FL Model: ECO2FL Model: ECO3FL...
- Page 2 4 x 32mm 6 x 30mm Ø6mm 60mm 35mm...
- Page 3 Slaving For ECO CFL For ECO 1FL & ECO2FL only Flood Light Uncontrolled Unit only 23W Max...
-
Page 4: General Information
• Instruction manual. Please keep safe for future reference. • Accessory Pack including lens mask , screws and wall plugs. • 1pc. 20W low energy Compact Fluorescent Light. (For ECO1FL & ECO3FL) • 2pcs 20W low energy Compact Fluorescent Light. (For ECO2FL) 3. - Page 5 4. Installation IMPORTANT Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation (Diagram 2). After choosing a suitable location install the unit as follows: The unit is suitable for connection to a 230 V ac 50Hz electricity supply. It is suggested that 3-core round flexible cable of 1mm²...
- Page 6 Fit and fully secure the retaining screw (Diagram 3). For ECO1FL & ECO2FL To fit CFL, release but do not remove the screw on the front cover of the floodlight , open and rotate down but do not separate from the main floodlight body.
-
Page 7: Troubleshooting Guide
5. Technical Specifi cations 230V AC ~ 50Hz Power Supply 230 AC 20W Compact Fluorescent lamp supplied Lamp Type Environmental Protection IP44 (suitable for outdoor use) E27 Base 23W compact fl uorescent maximum Do not use incandescent or halogen bulbs 6. - Page 8 HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Offi ce: 020 8452 1112 or email csc @ timeguard.com Designed in the U.K. 67-058-422...
