Summary of Contents for Time Guard MLB98

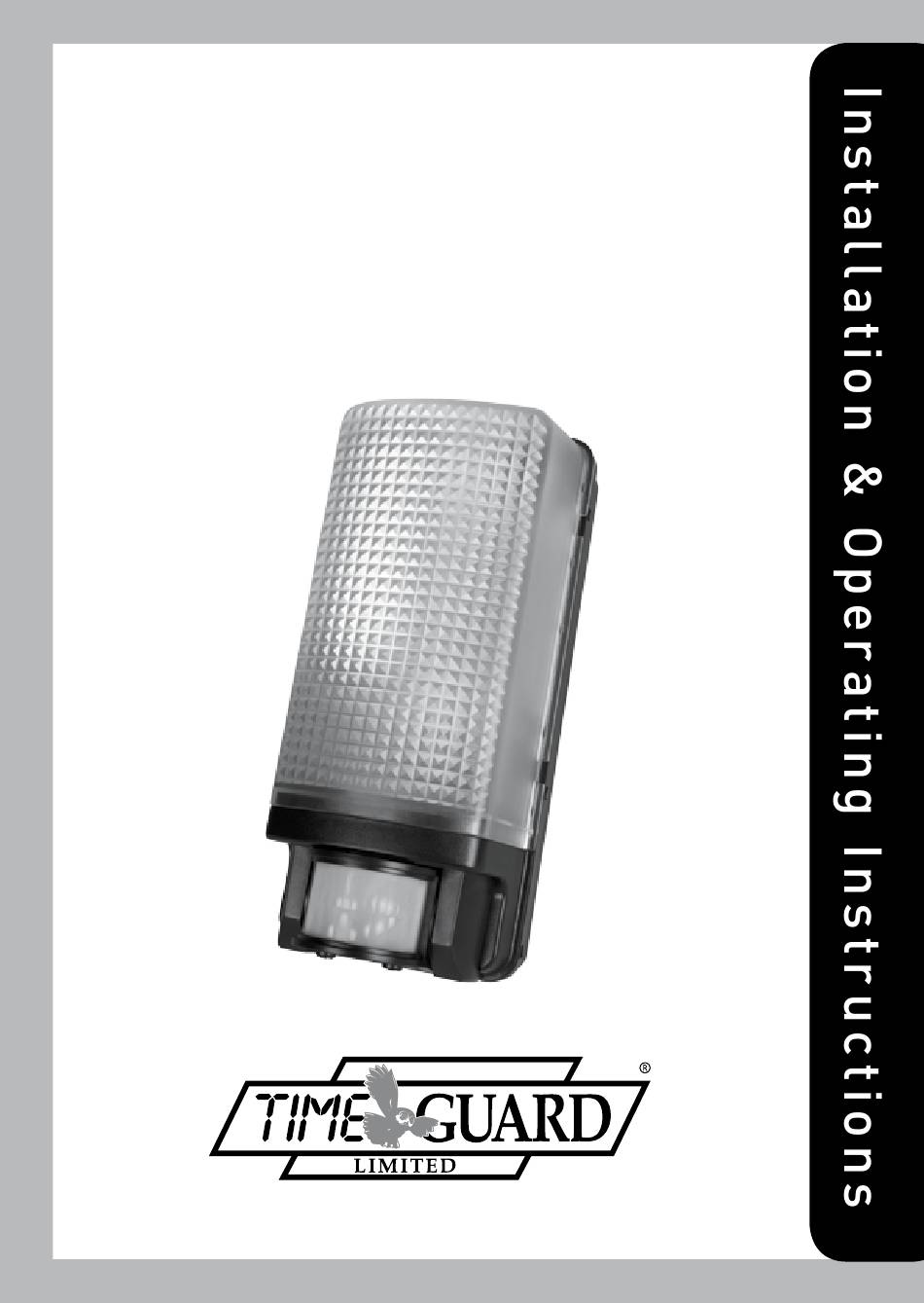

- Page 1 60W Multi PIR Bulkhead Model: MLB98 – Black...
-
Page 2: General Information
1. General information: The unit utilises passive infrared technology to detect heat radiation of moving human bodies. Upon detection, the lamp will illuminate for a user-determined time period. An integral daylight sensor ensures night-only operation. Parts Included Tools & Parts Needed •... -
Page 3: Installation
3. Installation: After choosing a suitable location (see previous section) install the unit as follows: IMPORTANT Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation. The unit is suitable for connection to a 230 V AC 50Hz electricity supply. - Page 4 The diagram below also shows the required connections for the addition of slave luminaires. When adding slaves, be sure not to exceed the maximum switchable load (see Technical Specifications). Isolation Switch 4. Operating and testing: Walk Test Procedure The sensor will rotate from left to right, and tilt forward or backward. Adjust the sensor to point in the required direction (see diagram B).
- Page 5 The TIME setting controls how long the unit remains illuminated following activation and after all motion ceases. (See diagram E the time adjustment knob is indicated by the "Clock" symbol). The minimum time (fully anti-clockwise) is approx. 5 seconds, whilst the maximum time (fully clockwise) is approx.
-
Page 6: Technical Specifications
Holiday Mode The benefit of Holiday Mode is that the user can program the unit automatically illuminate for a certain time, (1– 8 hours) each night. At dusk the unit will illuminate for this set period after which it will extinguish. The unit will continue to operate normally when it senses movement until dawn. At dusk the following night the process will be repeated, the unit will remain on for this set period (1 –... -
Page 7: Troubleshooting Guide
6. Trouble shooting guide: Problem Solution • Lamp stays ON all The unit may be suffering from false activation. Cover the sensor the time at night. lens completely with a thick cloth. This will prevent the sensor from ‘seeing’ anything. If the unit now switches off after the set time duration and does not re-activate, this indicates that the problem was caused by false activation. - Page 8 Problem Solution • Unit activates The level of ambient light in the area may be too dark for the during the daytime current DUSK setting. During daylight, adjust the DUSK control slightly anti-clockwise. When the lamp load extinguishes, enter the detection area.
- Page 9 Top View 200º Side View 2.5m Less sensitive Terminal cover More sensitive...
- Page 10 Dusk/Dawn Time Override/Holiday Mode Lens Mask Restrict long detection Restrict short detection Restrict RHS detection Restrict LHS detection...
-
Page 11: Year Guarantee
5 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture, within 5 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. - Page 12 For assistance with the product please contact: HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Office: 020 8452 1112 or email csc @ timeguard.com 67-058-474 (issue 3)
