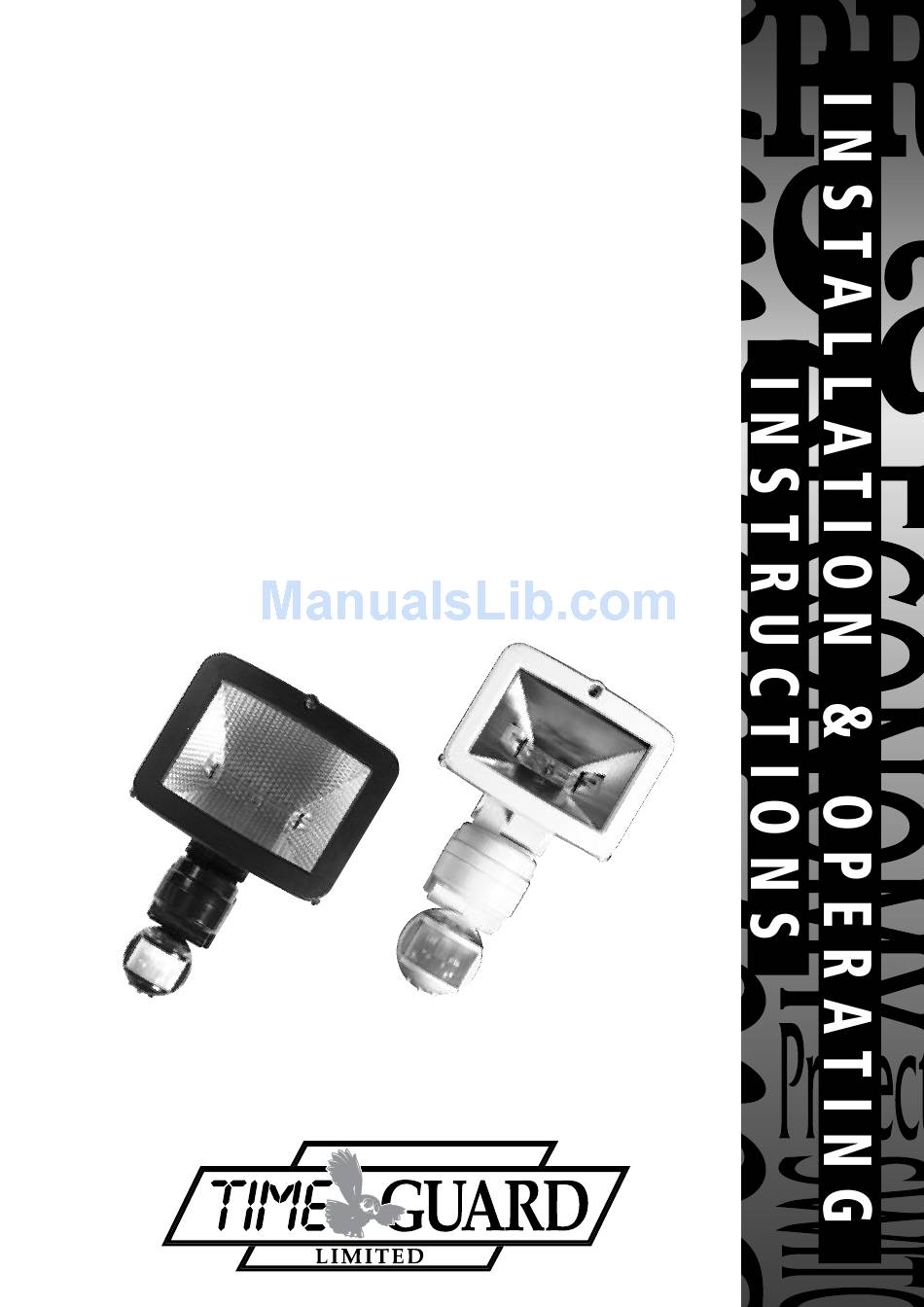

- Page 1 500W multi Pir Halogen floodligHt cat No. MLB500c - Black cat No. MLW500c - White 150W multi Pir Halogen floodligHt cat No. MLB150c - Black cat No. MLW150c - White installation & operating instructions...
-
Page 2: General Information
SECTION ONE GENERAL INFORMATION The unit utilises passive infrared technology to detect heat radiation of moving human bodies. Upon detection, the lamp will illuminate for a user-determined time period. An integral daylight sensor ensures night-only operation. PARTS INCLUDED - Luminaire c/w PIR Sensor unit. - Instruction manual. -
Page 3: Installation
SECTION THREE INSTALLATION *** IMPORTANT *** Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation. After choosing a suitable location (see previous section) install the unit as follows: Remove the wiring box cover by unscrewing the retaining screw (fig F) and with a screwdriver gently push down and ease out. - Page 4 Place this edge against walland use diagram to estimate incoming cable length 75mm (3”) NOT TO SCALE 25mm (1”) INCOMING WIRE TEMPLATE Use this diagram to estimate incoming cable length...
- Page 5 Time Dusk/Dawn Holiday Mode Lens Mask Restrict long detection Restrict short detection Restrict RHS detection Restrict LHS detection...
-
Page 6: Connection Diagram
CONNECTION DIAGRAM Mains Supply Isolation Switch The diagram below also shows the required connections for the addition of slave luminaires. When adding slaves, be sure not to exceed the maximum switchable load (see Technical Specifications). SECTION FOUR OPERATION AND TESTING WALK TEST PROCEDURE The sensor will rotate from left to right, and tilt forward or backward. - Page 7 TOP VIEW 200º SIDE VIEW 2.5m Less sensitive More sensitive...
-
Page 8: Holiday Mode
Manual Override Mode is indicated by the permanent illumination of a single red LED in the top of the sensor head. To switch the unit back into Auto Mode, flick the internal wall switch/circuit breaker off/on once within 1 second. The unit will return to Auto Mode. This is indicated by the return of the left to right scrolling LED's as described in Automatic Operation above. - Page 9 TEST MODE - THREE LEDS VISIBLE The lamp will now illuminate for approximately 2 seconds every time movement is detected. Walk across the detection area approximately 5 metres from the unit. Each time you are detected the lamp will illuminate. Now stand still until the lamp extinguishes (this should take approx.
-
Page 10: Troubleshooting Guide
In the event of the cover glass *The lamp supplied is a class C (high shattering, do not replace with efficiency) unit of normal household glass. 400W power Contact the Timeguard helpline consumption giving for replacement details. a similar light output to the lower efficiency 500W If you experience problems refer... - Page 11 PROBLEM SOLUTION o PIR sensor will not operate Check that the power is switched ON at the circuit breaker/ at all. internal wall switch. Turn OFF the power to the unit and check the wiring connections as per the diagram (see previous section 3). Ensure no connections are loose.
- Page 12 For assistance with the product please contact:- HELPLINE 020-8450-0515 or email helpline@timeguard.com For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND Tel: 020-8452-1112 or email csc@timeguard.com Group company 67-058-310 (Iss.2)
