StarTech.com USB110EXT2 Instruction Manual

Instruction Manual
1 Port USB 1.1 Extender over Cat5/Cat6 - up to 131ft (40m)
USB110EXT2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1x USB 1.1 Local Extender
• 1x USB 1.1 Remote Extender
• 1x Instruction Manual

System Requirements

• USB enabled host system with available USB port
• length of Category 5/5e/6 UTP cabling
• Microsoft® Windows® 2000/ XP(32/64 bit)/ Server 2003(32/64 bit)/
Vista(32/64 bit)/ 7(32/64 bit)/ Server 2008 R2/ 8 (32/64 bit)/
Windows CE 6.0, and Apple® Mac OS X®, and Linux®

Preparing Your Site

1. Determine where the local host system (i.e. computer) will be located.
2. Determine where the remote USB peripheral will be located.
3. If you are using surface cabling, ensure you have enough Cat5/6
unshielded twisted pair (UTP) cabling to connect the Local
Extender to the Remote Extender's location, and that each end
is terminated with a RJ45 connector. The cabling should not go
through any networking equipment (i.e. router, switch). If the actual
devices are not set up yet, make sure to leave enough excess cable
slack to accommodate for changes in device placement.
OR
If you are using premise cabling, ensure that the Cat5/6 unshielded
twisted pair (UTP) cabling between the local Extender and the
Remote Extender has been properly terminated in a wall outlet/
panel in each location and there is a patch cable long enough
to connect the Remote Extender and the Local Extender to
their respective outlets. The cabling should not go through any
networking equipment (i.e. router, switch).
For the most up-to-date information, please visit: www.startech.com

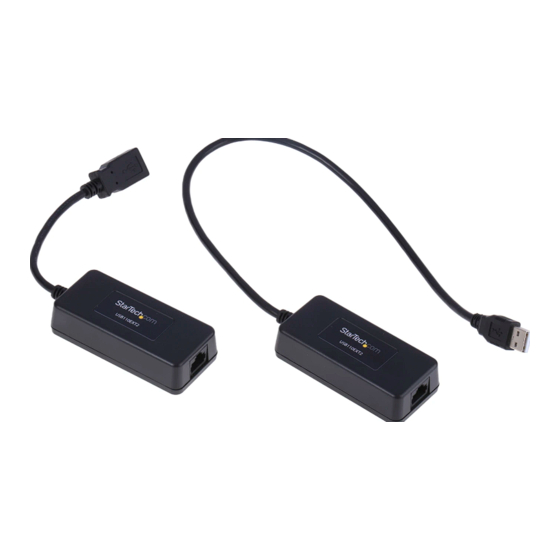

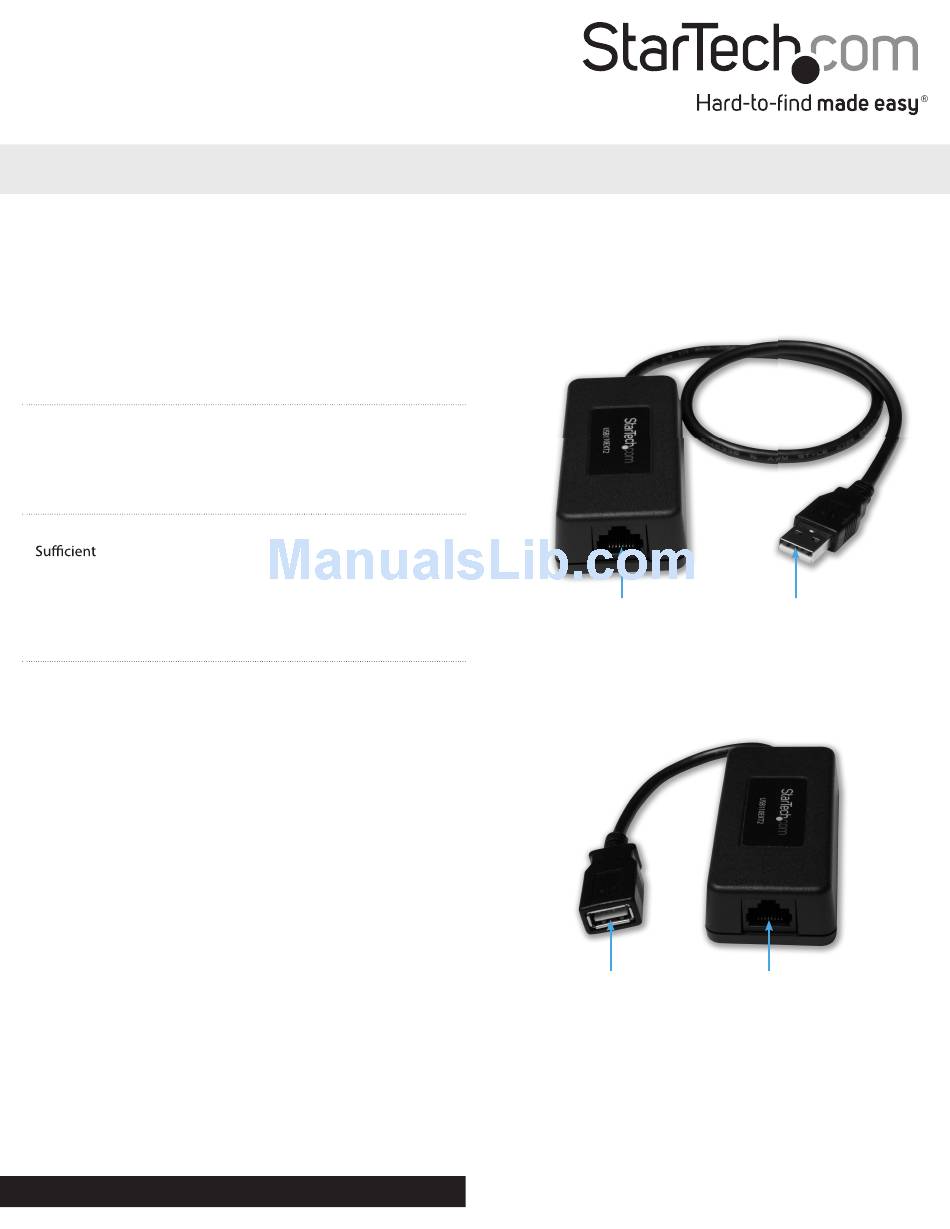

Local Extender
RJ45 connector
Remote Extender
USB type A female
connector
USB type A male
connector
RJ45 connector
Manual Revision: 23/01/2013
