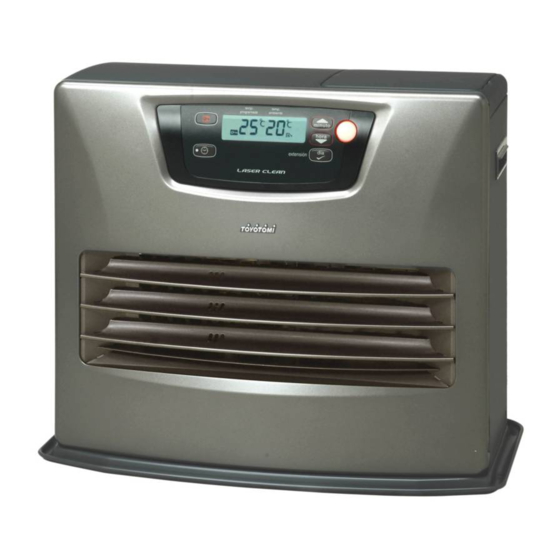

Summary of Contents for Toyotomi Laser Clean LC-41
-
Page 1: Table Of Contents
LASER CLEAN INSTRUCTION MANUAL MODEL LC-41 IMPORTANT READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. CONTENTS SPECIFICATIONS ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1 ROUTINE MAINTENANCE ⋯⋯⋯⋯⋯⋯11 PART NAME ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1 TROUBLESHOOTING ⋯⋯⋯⋯⋯⋯⋯⋯12 LONG TERM STORAGE ⋯⋯⋯⋯⋯⋯⋯13 OPERATION⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5 EMERGENCY MESSAGE ⋯⋯⋯⋯⋯⋯10... -
Page 2: Specifications ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1
SPECIFICATIONS * Matching Room Size to HEAT RATING LC-41 MODEL • Because the “Heat Load” of an area to be High 14,300 BTU / 4.2 kW heated is influenced by so many factors, it is HEAT RATING impossible to specify a heater output to an 3,800 BTU / 1.1 kW... - Page 3 OPERATION PANEL Key-lock Button Adjustment Keys Digital Indicator ON/OFF Button/Lamp Save Key Timer Key Extension Key ON/OFF Lamp — flashing : Preheating mode constant : Heater in operation key-lock Indicator — constant : Childproof Lock is on. Temperature Indicator — constant : The Digital Indicator shows Set temperature and Room temperature.
- Page 4 UNPACKING AND PLACEMENT 1. Take out heater from box carefully to avoid damage. 2. Remove all packing materials from heater. 3. Make sure all screws are tight and all parts intact. NOTE : Save shipping carton and all packing materials for future storage of your heater.
- Page 5 FUELING WARNING : Use only water-clear kerosene (paraffin). Never use gasoline or other flammable liquids. ALWAYS extinguish heater before refill heater fuel tank. Fuel heater outside the living area. 1. Open the fuel tank lid on the top of heater cabinet and lift out the removable fuel tank.
-
Page 6: Operation⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5
OPERATION CAUTION : Always make sure that there is sufficient ventilation. SET CLOCK It is only possible to set the correct time, when the heater is connected to the mains and not burning. 1. Use the Adjustment Keys ( ▼ hour / ▲ min.) to set the time. 2. - Page 7 TIMER IGNITION Your heater can be arranged to ignite automatcally at a chosen time by use of a pre-set “Timer”. This “Timer” can only be set after the clock setting has been completed. 1. Press the button and then the “Timer” key immediately after that.
- Page 8 TEMPERATURE REGULATION 1. Use the Adjustment keys ( ▼ hour / ▲ min.) to adjust the temperature. 2. Adjust the temperature using the key on the right ( ▲ min.) to set the temperature to a higher setting and the key on the left ( ▼...
- Page 9 CHILDPROOF LOCK The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater.
- Page 10 AUTOMATIC CLEANING MODE When the heater has been burning continuously for two hours at its highest setting, the burner will automatically start an autoclean procedure. The display will show the autocleaningcode running back to . The procedure takes 5 minutes, during which the heater will burn at its lowest setting, while the burner autocleans.
-
Page 11: Emergency Message ⋯⋯⋯⋯⋯⋯10
EMERGENCY MESSAGE In the event that heater should extinguish itself, without any action or your part, you should look to the digital indicator for any of the following messages. MESSAGE MESSAGE MEANING (Digital Indicator) Temperature within the heater too high. e - 0 Power interrupted. -
Page 12: Routine Maintenance ⋯⋯⋯⋯⋯⋯11
ROUTINE MAINTENANCE CAUTION : Be sure to unplug heater before performing any checks or cleaning. CAUTION : Do not remove any parts from the heater except removable fuel tank, fuel acceptance fitting and air filter. WARNING : Allow heater to cool completely before cleaning or maintenance. 1. -
Page 13: Troubleshooting ⋯⋯⋯⋯⋯⋯⋯⋯12
TROUBLESHOOTING Should problems arise during operation or ignition, use this chart to determine the cause and the proper steps to take. Be sure to unplug heater and allow to cool completely before taking corrective measures. PROBLEM CAUSE SOLUTION POWER LAMP FAILS —... -
Page 14: Long Term Storage ⋯⋯⋯⋯⋯⋯⋯13
LONG TERM STORAGE At the end of the heating season, you must store the heater in a dust-free plece, if possible in its original packaging. The following procedures are recommended. 1. Drain Fuel Tank Remove any kerosene (paraffin), dust or water remaining in Fuel acceptance fitting the fuel sub tank and removable fuel tank to prevent rusting. - Page 15 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, Japan New 8/10 Printed in Japan 7899001921...
