Summary of Contents for Logik LWC25S10
-

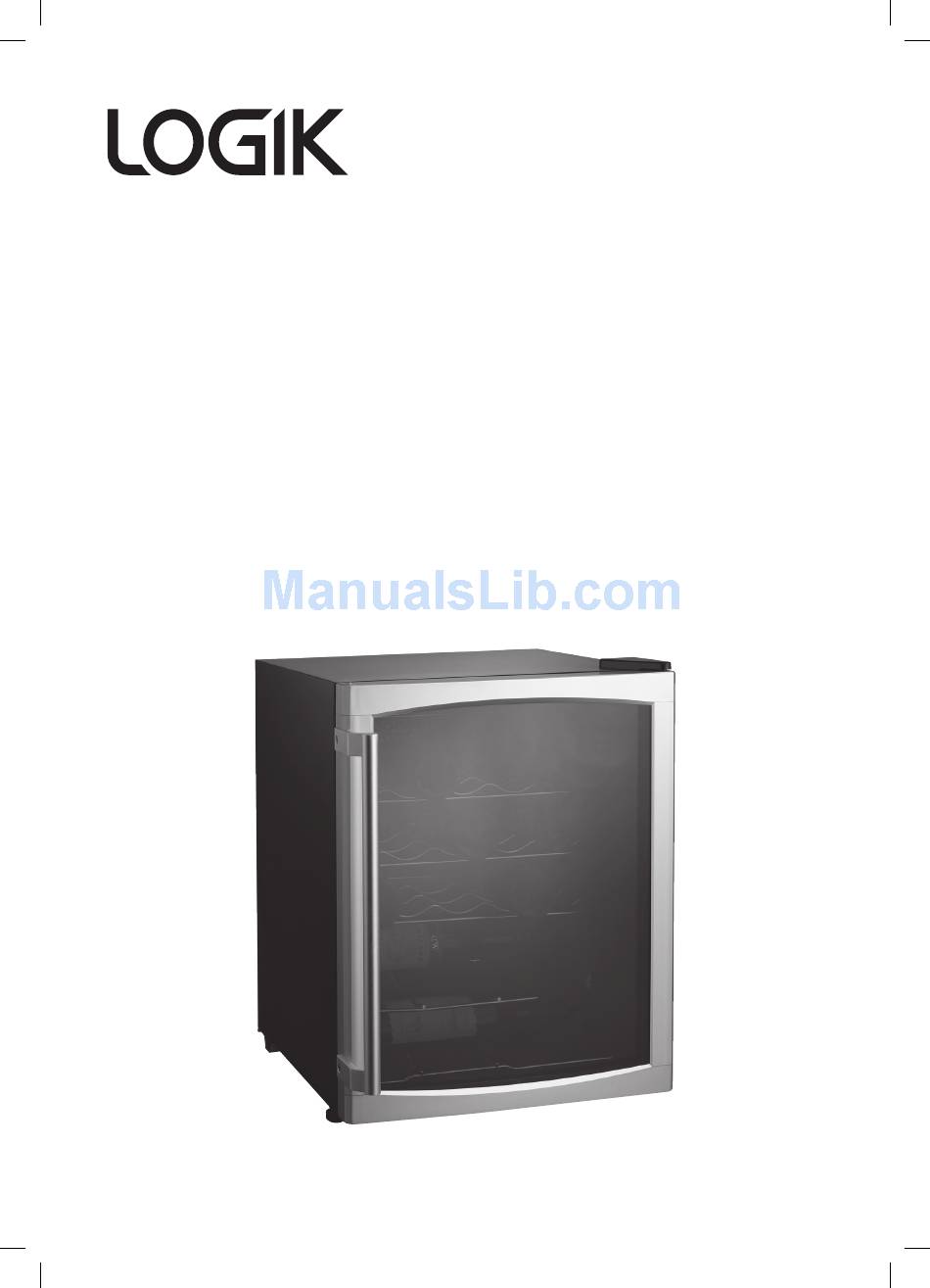

Page 1: Wine Cooler
Wine Cooler Instruction Manual LWC25S10... -
Page 2: Table Of Contents
Contents Unpacking ............................ 3 Product Overview ........................4 Installation ........................... 4 Location ..................................4 Handle Assembly ........................5 Levelling the Wine Cooler ........................... 5 Cleaning Before Use ............................. 6 Before Using Your Wine Cooler ......................... 6 Operating Instructions ........................ 7 Switching on Your Wine Cooler ......................... -
Page 3: Unpacking
Congratulations on the purchase of your new Logik Wine Cooler. We recommend that you spend some time reading this instruction manual in order that you fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 4: Product Overview
Product Overview The metal bar is used to prevent the wine bottles having direct contact with the rear evaporator. Metal Bar Glass Door Shelves Humidifier Thermostat Control Dial Bottle Rack Installation Location When selecting a position for your wine cooler you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. -
Page 5: Handle Assembly
Handle Assembly 1. Take out the handle and 2 screws. 2. Hold the handle onto the door edge and tightened with the screws provided. Levelling the Wine Cooler To do this use the two levelling feet at the front of the wine cooler. -
Page 6: Cleaning Before Use
Cleaning Before Use Wipe the inside of the wine cooler with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’ sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the wine cooler with a damp cloth. If you require more information refer to the CLEANING section. -
Page 7: Operating Instructions
Operating Instructions Switching On Your Wine Cooler 1. The internal temperature of your wine cooler is controlled by a thermostat. There are 7 settings, of which position 7 is the coldest and position 0 turns the wine cooler off. 2. Make sure that the Thermostat Control Dial, located inside the wine cooler on the right hand side is set to 7. -
Page 8: Using The Humidifer
Using the humidifer Using the humidifier can protect wine from too much or too less humidity. If your wine cooler is too dry (below 50% RH), the cork dries up. The air can get into the wine and alter its composition. However the humidity of your wine cooler can’t be too high (above 80% RH), as the humidity damages the cork and the smell of the cork will go into the wine. -
Page 9: Noises Inside The Wine Cooler
Noises Inside the Wine Cooler If you have not owned a wine cooler before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 10: Filling Your Wine Cooler
Filling Your Wine Cooler When filling your wine cooler the greater the amount of wine placed inside the wine cooler from room temperature, the longer it will take to cool them to the desired temperature. You may wish to temporarily turn the Thermostat Control Dial to a higher setting to speed up the cooling process. -
Page 11: Cleaning
Cleaning Cleaning Inside the Wine Cooler There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall is defrosted automatically. 1. Before cleaning the wine cooler always switch off and disconnect the electrical supply. 2. -
Page 12: Maintenance
Maintenance Care When Handling Hold the wine cooler around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Installation Don’t cover or block the both sides of your appliance. Servicing This wine cooler should be serviced by an authorised engineer and only genuine spare parts should be used. -
Page 13: Specification
Specification Model LWC25S10 Rated Voltage 230 V Rated Frequency 50 Hz 480 x 495 x 627 mm Overall Dimension ( Height x Depth x Width ) Overall Space Required in Use 960 x 990 x 657 mm ( Height x Depth x Width ) -
Page 14: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the wine cooler and keep them for future reference. • Retain the manual. - Page 15 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 16 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Shelves x 3 RB8060027200 Bottle Rack x 1 RB80600027300 Door x 1 40052000000 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
