Summary of Contents for Logik LWC59B12

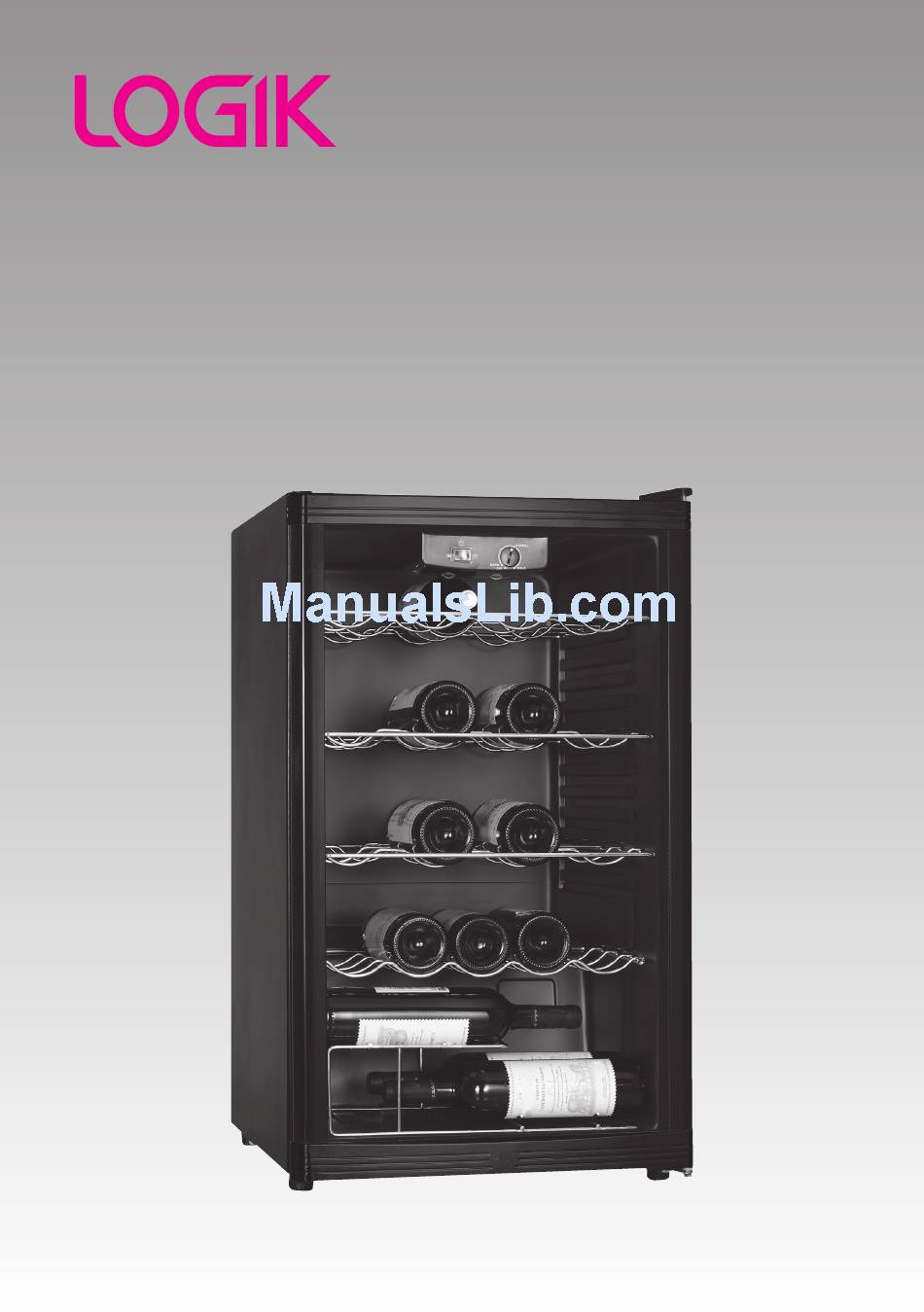

- Page 1 59 Bottle Wine Cooler Instruction Manual LWC59B12 (Wine not included)
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Rear Spacer ................................8 Levelling the Unit ..............................9 Cleaning Before Use .............................. 9 Before Using Your Unit ............................9 Product Overview ........................10 Operation ........................... -
Page 4: Unpacking
Thank you for purchasing your new Logik Wine Cooler. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
Installation INSTALLATION Location When selecting a position for your unit make sure the floor is flat and firm, and that the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight. If you are placing your unit in an outbuilding such as a garage or annex ensure that the unit is placed above the damp course, otherwise condensation will occur on the cabinet. - Page 6 INSTALLATION 2. Remove the top right hinge cover. 3. Undo the screws. Then remove the hinge bracket. 4. Remove the top left screw cover. 5. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.
- Page 7 INSTALLATION 6. Remove the screws and bottom hinge. Then remove the adjustable feet from both side. Unscrew 7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Unscrew Screw 8. Refit the bracket fitting the bottom hinge pin.
-
Page 8: Rear Spacer
INSTALLATION 9. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. 10. Insert the hinge bracket and screw it to the top of the unit. 11. -
Page 9: Levelling The Unit
INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of warm water and bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 10: Product Overview
Product Overview Light Switch & Thermostat Knob Adjustable Bottle Shelves Glass Door Bottom Bottle Shelf Bottle Rack Levelling Feet... -
Page 11: Operation
Operation Switching On Your Wine Cooler 1. The internal temperature of the wine cooler is NORMAL controlled by a thermostat. There are four settings COLD, NORMAL, WARM and OFF. 2. Before connecting the wine cooler to the mains socket, make sure that the thermostat control dial, WARM located at the front of the wine cooler is set to COLD... -
Page 12: Stacking The Wine Bottles
Stacking the Wine Bottles The shelf system has been designed so that a range of shelf heights can be selected. All the shelves can be adjusted. There is also a bottle rack at the bottom of the wine cooler. • Max Capacity : 59 bottles. • There is a 4°C to 6°C variance between the top and bottom shelves of the unit. -
Page 13: Filling Your Wine Cooler
Different wines are best kept at different temperatures. To choose the temperature at which to store your wines please consult the table below. Serving Temperatures Wine Type °F °C Rose Wine 48-54 9-12 White Wine 48-58 9-14 Sherry (Light) 48-58 9-14 Red Wine 57-68... -
Page 14: Cleaning
Cleaning Cleaning the Inside of the Wine Cooler There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall will defrost automatically. 1. Before cleaning the wine cooler always switch off and disconnect the mains supply. 2. -
Page 15: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always switch the internal light OFF, then disconnect the mains supply. 2. Remove the plastic light bulb cover. Note that you may need to first unscrew it. 3. Unscrew the old bulb. 4. -
Page 16: Specification
Specification Model LWC59B12 Wine Storage Compartment 115L Storage Temperature +5 °C – +20 °C Wine Storage Compartment 50 - 80% Humidity Energy Consumption 0.79 kWh / 24 h Energy consumption 288 kWh per year, based on standard test results for 24 hours. -
Page 17: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 18 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 19 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LWC59B12-003)
