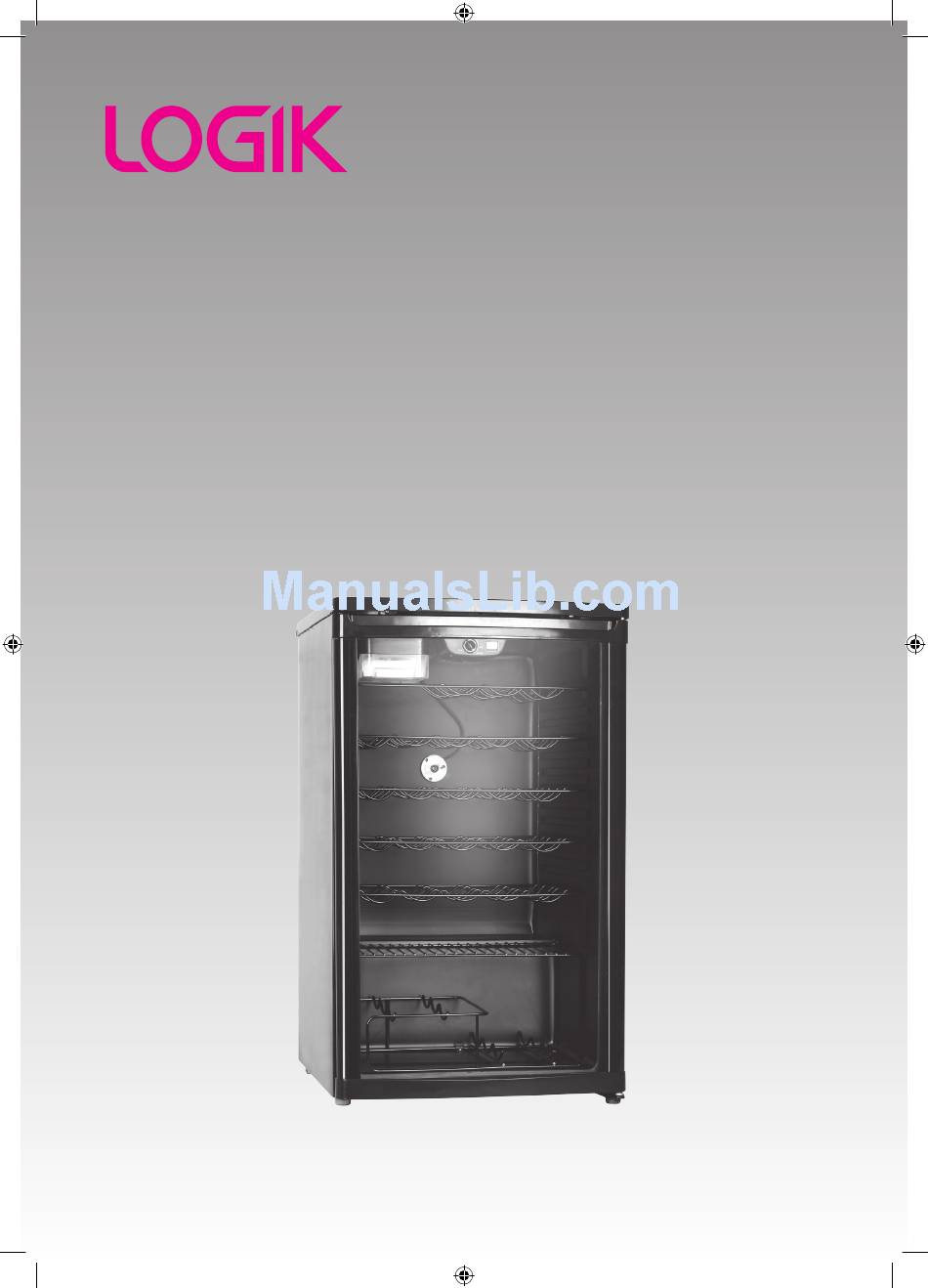

- Page 1 Wine Cooler Instruction Manual LWC32B10 LWC32B10_IB_final110309.indd 1 09/03/2011 11:43 AM...
- Page 2 LWC32B10_IB_final110309.indd 2 09/03/2011 11:43 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................7 Cleaning Before Use .............................. 7 Before Using Your Unit ............................7 Product Overview ........................8 Operation ............................. 9 Switching On Your Wine Cooler ........................9 Using the humidifier............................10 Filling water in humidifier ..........................10 Stacking the Wine Bottles ..........................10... -
Page 4: Unpacking
Thank you for purchasing your new Logik Wine Cooler. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit make sure the floor is flat and firm, and that the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight. If you are placing your unit in an outbuilding such as a garage or annex ensure that the unit is placed above the damp course, otherwise condensation will occur on the cabinet. - Page 6 INSTALLATION 3. Place the two screws, the bottom bracket and the levelling feet to one side. 4. Lift the door and place it on a padded surface to prevent scratching it. 5. Remove the top hinge pin and spring inside. Refit on to the opposite side.
-
Page 7: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 8: Product Overview

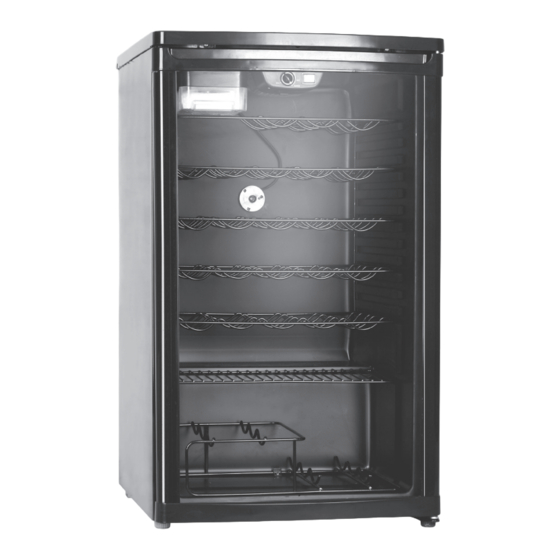

Product Overview Thermostat (at the rear of the Cooler) Humidifier Adjustable Shelves Glass Door Shelf Bottle Rack Levelling Feet LWC32B10_IB_final110309.indd 8 09/03/2011 11:43 AM... -
Page 9: Operation
Operation Switching On Your Wine Cooler 1. The internal temperature of the wine cooler is THERMOSTAT CONTROL DIAL controlled by a thermostat. There are four settings NORMAL MIN, NORMAL, MAX and SUPER. 2. Before connecting the wine cooler to the mains socket, make sure that the thermostat control dial, located at the rear of the wine cooler on the right hand side is set to MAX. -
Page 10: Using The Humidifier
Using the humidifier Using the humidifier can protect wine from too much or too less humidity. If your wine cooler is too dry (below 50% RH), the cork dries up. The air can get into the wine and alter its composition. -
Page 11: Noises Inside The Wine Cooler
Noises Inside the Wine Cooler You may notice that your wine cooler makes some unusual noises. These noises are perfectly normal, and are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your wine cooler. -
Page 12: Filling Your Wine Cooler
Filling Your Wine Cooler When filling your wine cooler the greater the amount of cans and bottles placed inside the wine cooler from room temperature, the longer it will take to cool them to the desired temperature. You may wish to temporarily turn the Thermostat Control Dial to a higher setting to speed up the cooling process. -
Page 13: Cleaning
Cleaning Cleaning the Inside of the Wine Cooler There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall will defrost automatically. 1. Before cleaning the wine cooler always switch off and disconnect the mains supply. 2. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always switch the internal light to OFF, then disconnect the mains supply. 2. Hold and unscrew the light bulb cover. 3. Remove the plastic light bulb cover. 4. Remove the old bulb by unscrewing in an anti-clockwise direction. -
Page 15: Specification
Specification Model LWC32B10 Rated Voltage 230V Rated Frequency 50Hz Overall Dimension 504 x 514 x 845mm ( Height x Depth x Width ) 112L Overall Gross Volume 4.0 cubic feet 110L Storage Volume 3.9 cubic feet Storage Temperature +5 – +20 °C... -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 18 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LWC32B10-002) LWC32B10_IB_final110309.indd 18 09/03/2011 11:43 AM...
- Page 19 LWC32B10_IB_final110309.indd 19 09/03/2011 11:43 AM...
- Page 20 LWC32B10_IB_final110309.indd 20 09/03/2011 11:43 AM...
