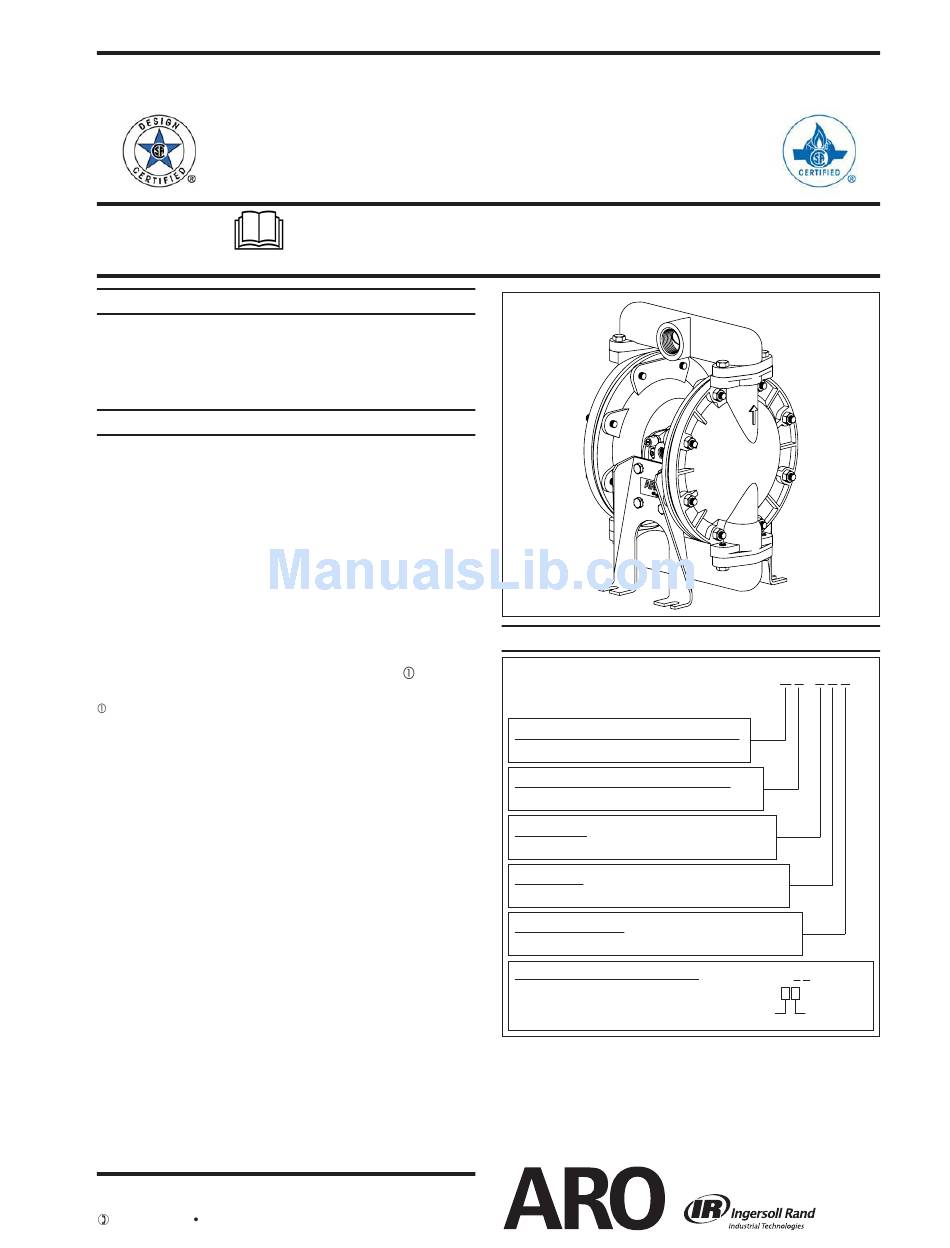

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637118-C for gas section repair (see page 6).
637119-C9-C for fl uid section repair (see page 4).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . Gas Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 lbs (8.62 kgs)
Maximum Gas Inlet Pressure . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate
(fl ooded inlet)
Displacement / Cycle @ 100 p.s.i.g. . 0.156 gal. (0.59 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits . . . 32° to 125° F (0° to 52° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . 64.5 db(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com
1" DIAPHRAGM PUMP
CSA CERTIFIED, 1:1 RATIO, METALLIC
INTENDED FOR USE WITH SWEET NATURAL GAS
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . 35 g.p.m. (133 l.p.m.)
) to meet the intent of ANSI
Aeq
© 2010
CCN 15276603
6661HX-XXX-C
MODEL DESCRIPTION CHART
Center Section Material, Fluid Connection
H - Aluminum, 1 - 11-1/2 N.P.T.F. - 1
Fluid Cap / Manifold Material, Hardware
0 - Aluminum, Carbon Steel
Seat Material
1 - Aluminum
Ball Material
C - Hytrel®
Diaphragm Material
9 - Hytrel
Fluid Section Service Kit Selection
EXAMPLE: Model #6661H0-1C9-C
Fluid Section Service Kit # 637119-C9-C
RELEASED:
12-18-06
REVISED:
5-20-10
(REV. 04)
Figure 1
6661 H 0 - 1 C 9 - C
6661H0 - 1 X X - C
637119 - X X - C
Ball
Diaphragm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6661HX-XXX-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingersoll-Rand 6661HX-XXX-C

  • Page 1 C - Hytrel® Diaphragm Material 9 - Hytrel Fluid Section Service Kit Selection EXAMPLE: Model #6661H0-1C9-C Fluid Section Service Kit # 637119-C9-C CCN 15276603 6661HX-XXX-C RELEASED: 12-18-06 REVISED: 5-20-10 (REV. 04) Figure 1 6661 H 0 - 1 C 9 - C...
  • Page 2: Operating And Safety Precautions

    = Hazards or unsafe practices which WARNING could result in severe personal injury, death or substantial property damage. = Hazards or unsafe practices which CAUTION could result in minor personal injury, product or property damage. = Important installation, operation or NOTICE maintenance information. 6661HX-XXX-C (en)
  • Page 3: General Description

    Loctite® is a registered trademark of Henkel Loctite Corporation 271™, 262™, 572™ and 577™ are trademarks of Henkel Loctite Corporation Hytrel® and Viton® are registered trademarks of the DuPont Company ARO® is a registered trademark of Ingersoll-Rand Company 6661HX-XXX-C (en) MAINTENANCE Certain ARO “Smart Parts”...
  • Page 4: Parts List

    PARTS LIST / 6661HX-XXX-C FLUID SECTION 637119-C9-C fl uid section service kits include: Balls (item 22), diaphragms (item 7) plus items 2, 3, 19 and 93706-1 Key-Lube grease (page 6). Item Description Qty Part No. (size) 1 Rod (1) 98724-1 2 “O”...
  • Page 5 PARTS LIST / 6661HX-XXX-C FLUID SECTION FOR THE GAS MO- TOR SECTION, SEE Gas side Fluid side Cross section view of diaphragm. 6661HX-XXX-C (en) PAGES 6 & 7. TORQUE REQUIREMENTS NOTE: DO NOT OVERTIGHTEN FASTENERS. (14) Bolt, 25 - 30 ft. lbs (33.9 - 40.7 Nm).
  • Page 6 PARTS LIST / 6661HX-XXX-C GAS MOTOR SECTION Indicates parts included in 637118-C gas section repair kit. Item Description (Qty) Part No. (size) 101 Motor Body (1) 94743 102 “O” Ring (2) Y325-20 (1/16” x 1” o.d.) 103 Sleeve (1) 94527...
  • Page 7 PARTS LIST / 6661HX-XXX-C GAS MOTOR SECTION IMPORTANT BE CERTAIN TO ORIENT (115) SPACER LEGS AWAY FROM BLOCKING INTERNAL PORTS WHEN REASSEMBLING GAS SECTION. MAJOR VALVE CROSS SECTION DETAIL Figure 4 6661HX-XXX-C (en) MAJOR VALVE See cross section detail, fi gure 4.
  • Page 8: Troubleshooting

    F - 6-1/2” (165.1 mm) J - 7-5/16" (185.7 mm) G - 12-1/2” (317.5 mm) K - 7/16” (11.1 mm) Pump Model “L” Material Inlet / Outlet 6661H0-1C9-C 1 - 11-1/2 N.P.T.F. - 1 (outlet) (inlet) Figure 5 PN 97999-1236 6661HX-XXX-C (en)
