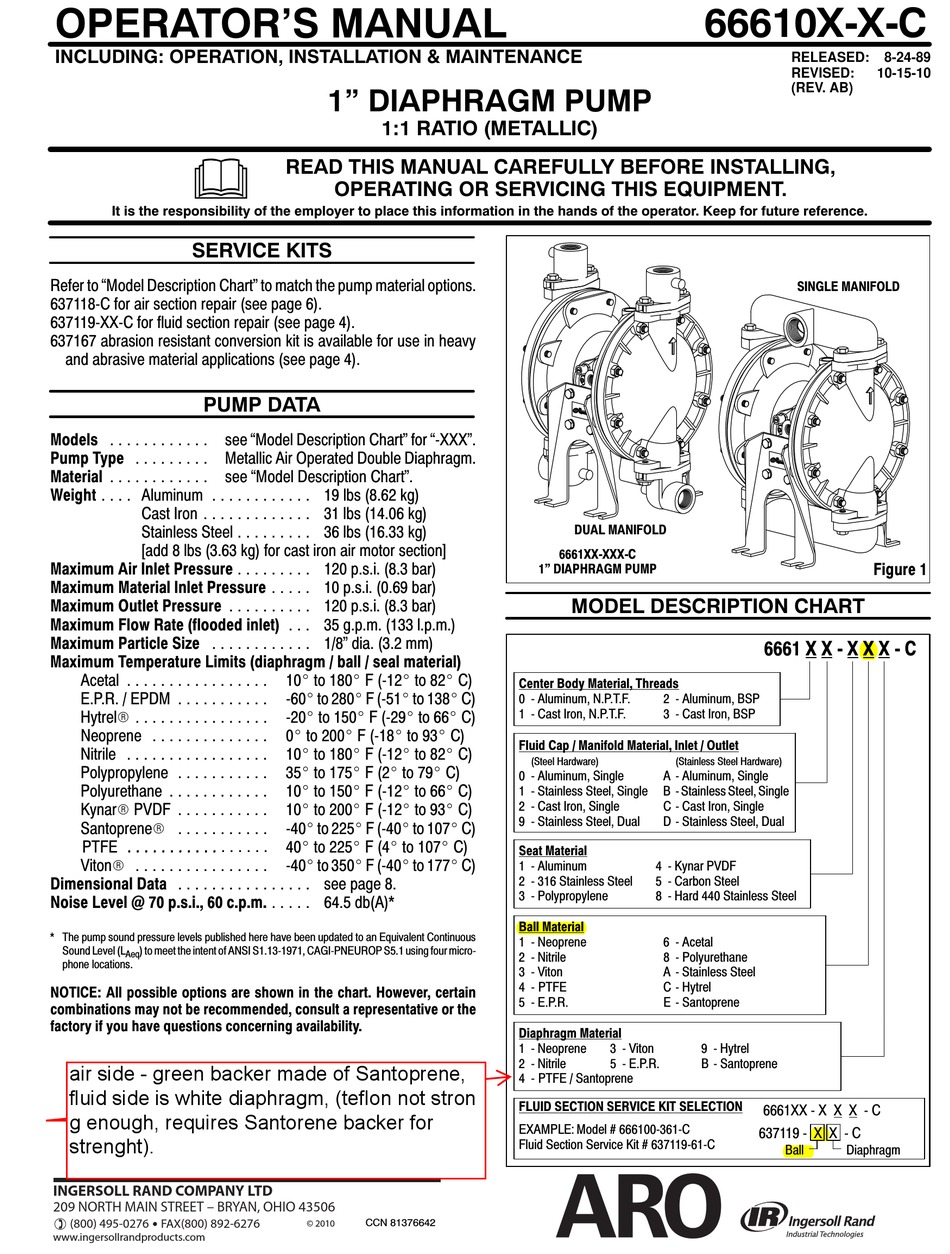

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to "Model Description Chart" to match the pump material options.
637118-C for air section repair (see page 6).
637119-XX-C for fluid section repair (see page 4).
637167 abrasion resistant conversion kit is available for use in heavy
and abrasive material applications (see page 4).
PUMP DATA
Models
. . . . . . . . . . . .
see "Model Description Chart" for "-XXX".
Pump Type
. . . . . . . . .
Metallic Air Operated Double Diaphragm.
Material
. . . . . . . . . . . .
see "Model Description Chart".
Weight
. . . .
Aluminum
. . . . . . . . . . . .
Cast Iron
. . . . . . . . . . . . .
Stainless Steel
[add 8 lbs (3.63 kg) for cast iron air motor section]
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure
. . . . . . . . . .
Maximum Flow Rate (flooded inlet)
Maximum Particle Size
. . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
Acetal
. . . . . . . . . . . . . . . . .
E.P.R. / EPDM
. . . . . . . . . . .
R
Hytrel
. . . . . . . . . . . . . . . .
Neoprene
. . . . . . . . . . . . . .
Nitrile
. . . . . . . . . . . . . . . . .
Polypropylene
. . . . . . . . . . .
Polyurethane
. . . . . . . . . . . .
R
Kynar
PVDF
. . . . . . . . . . .
R
Santoprene
. . . . . . . . . . .
PTFE
. . . . . . . . . . .
. . . . . . . . . . . . . . . . .
R
Viton
. . . . . . . . . . . . . . . .
Dimensional Data
. . . . . . . . . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
* The pump sound pressure levels published here have been updated to an Equivalent Continuous
Sound Level (L
) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four micro-
Aeq
phone locations.
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
air side - green backer made of Santoprene,
fluid side is white diaphragm, (teflon not stron
g enough, requires Santorene backer for
strenght).
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
19 lbs (8.62 kg)
31 lbs (14.06 kg)
. . . . . . . . .
36 lbs (16.33 kg)
. . . . . . . . .
120 p.s.i. (8.3 bar)
. . . . .
10 p.s.i. (0.69 bar)
120 p.s.i. (8.3 bar)
. . .
35 g.p.m. (133 l.p.m.)
1/8" dia. (3.2 mm)
10_ to 180_ F (-12_ to 82_ C)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 150_ F (-29_ to 66_ C)
0_ to 200_ F (-18_ to 93_ C)
10_ to 180_ F (-12_ to 82_ C)
35_ to 175_ F (2_ to 79_ C)
10_ to 150_ F (-12_ to 66_ C)
10_ to 200_ F (-12_ to 93_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8.
. . . . .
64.5 db(A)*
CCN 81376642
© 2010
DUAL MANIFOLD
6661XX-XXX-C
1'' DIAPHRAGM PUMP
MODEL DESCRIPTION CHART
Center Body Material, Threads
0 - Aluminum, N.P.T.F.
2 - Aluminum, BSP
1 - Cast Iron, N.P.T.F.
3 - Cast Iron, BSP
Fluid Cap / Manifold Material, Inlet / Outlet
(Steel Hardware)
(Stainless Steel Hardware)
0 - Aluminum, Single
A - Aluminum, Single
1 - Stainless Steel, Single
B - Stainless Steel, Single
2 - Cast Iron, Single
C - Cast Iron, Single
9 - Stainless Steel, Dual
D - Stainless Steel, Dual
Seat Material
1 - Aluminum
4 - Kynar PVDF
2 - 316 Stainless Steel
5 - Carbon Steel
3 - Polypropylene
8 - Hard 440 Stainless Steel
Ball Material
1 - Neoprene
6 - Acetal
2 - Nitrile
8 - Polyurethane
3 - Viton
A - Stainless Steel
4 - PTFE
C - Hytrel
5 - E.P.R.
E - Santoprene
Diaphragm Material
1 - Neoprene
3 - Viton
2 - Nitrile
5 - E.P.R.
4 - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # 666100-361-C
Fluid Section Service Kit # 637119-61-C
66610X-X-C
RELEASED:
REVISED:
10-15-10
(REV. AB)
SINGLE MANIFOLD
Figure 1
6661 X X - X X X - C
9 - Hytrel
B - Santoprene
6661XX - X X X - C
637119 - X X - C
Ball
Diaphragm
8-24-89
