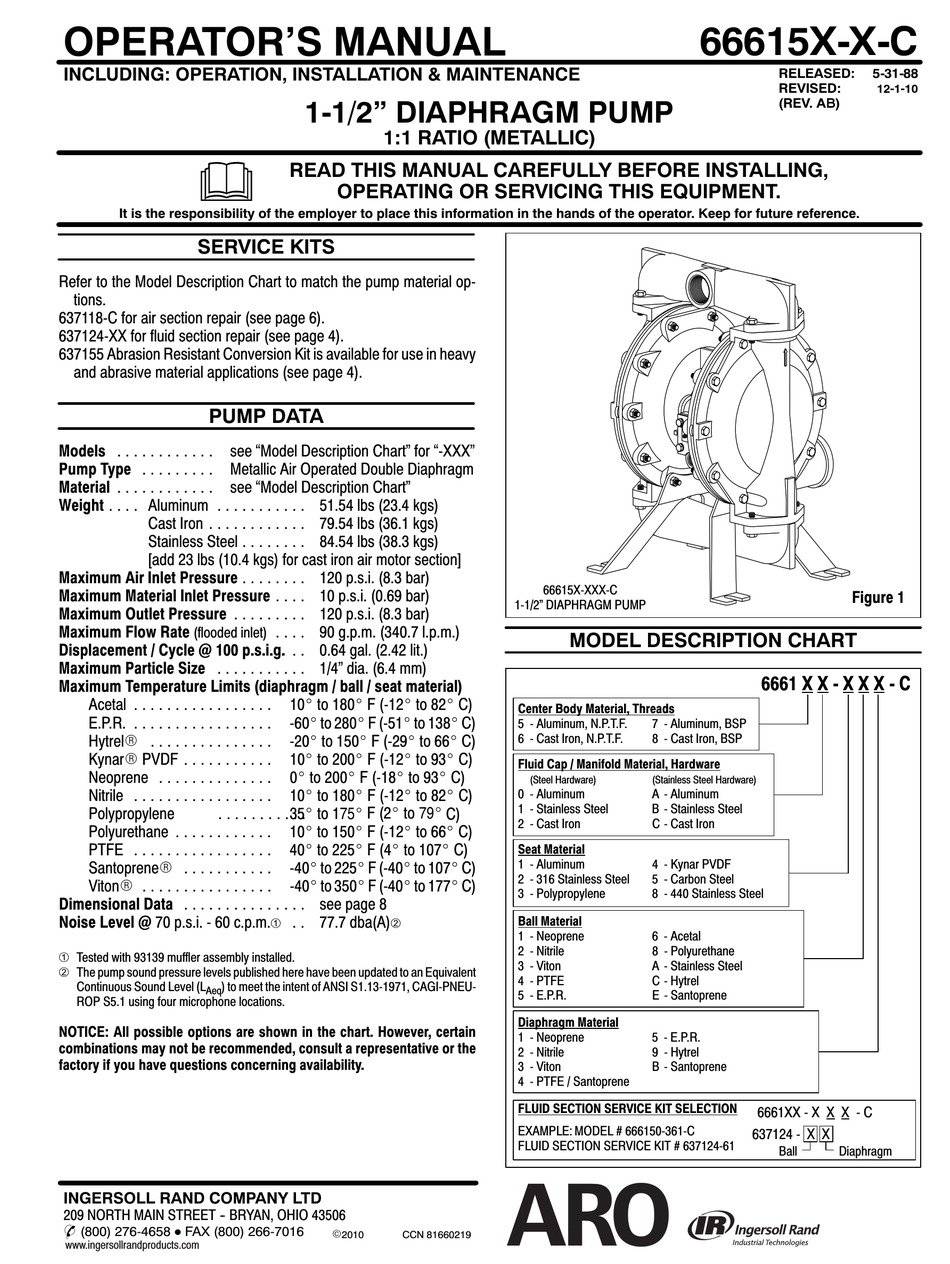

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to the Model Description Chart to match the pump material op-
tions.
637118-C for air section repair (see page 6).
637124-XX for fluid section repair (see page 4).
637155 Abrasion Resistant Conversion Kit is available for use in heavy
and abrasive material applications (see page 4).
PUMP DATA
Models . . . . . . . . . . . . see "Model Description Chart" for "-XXX"
Pump Type . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . see "Model Description Chart"
Weight . . . . Aluminum . . . . . . . . . . .
Cast Iron . . . . . . . . . . . .
Stainless Steel
[add 23 lbs (10.4 kgs) for cast iron air motor section]
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seat material)
Acetal . . . . . . . . . . . . . . . . .
E.P.R. . . . . . . . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . .
KynarR PVDF . . . . . . . . . . .
Neoprene . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
Polyurethane . . . . . . . . . . . .
PTFE . . . . . . . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . .
Noise Level @ 70 p.s.i. - 60 c.p.m.
Tested with 93139 muffler assembly installed.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
D
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com
1-1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
51.54 lbs (23.4 kgs)
79.54 lbs (36.1 kgs)
. . . . . . . . 84.54 lbs (38.3 kgs)
. . . . . . . . 120 p.s.i. (8.3 bar)
. . . . 10 p.s.i. (0.69 bar)
120 p.s.i. (8.3 bar)
. . . . 90 g.p.m. (340.7 l.p.m.)
. . 0.64 gal. (2.42 lit.)
1/4" dia. (6.4 mm)
10_ to 180_ F (-12_ to 82_ C)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 150_ F (-29_ to 66_ C)
10_ to 200_ F (-12_ to 93_ C)
0_ to 200_ F (-18_ to 93_ C)
10_ to 180_ F (-12_ to 82_ C)
35_ to 175_ F (2_ to 79_ C)
10_ to 150_ F (-12_ to 66_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 225_ F (-40_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8
. . 77.7 dba(A)
E
2010 CCN 81660219
66615X-XXX-C
1-1/2" DIAPHRAGM PUMP
MODEL DESCRIPTION CHART
Center Body Material, Threads
5 - Aluminum, N.P.T.F. 7 - Aluminum, BSP
6 - Cast Iron, N.P.T.F. 8 - Cast Iron, BSP
Fluid Cap / Manifold Material, Hardware
(Steel Hardware) (Stainless Steel Hardware)
0 - Aluminum A - Aluminum
1 - Stainless Steel B - Stainless Steel
2 - Cast Iron C - Cast Iron
Seat Material
1 - Aluminum 4 - Kynar PVDF
2 - 316 Stainless Steel 5 - Carbon Steel
3 - Polypropylene 8 - 440 Stainless Steel
Ball Material
1 - Neoprene 6 - Acetal
2 - Nitrile 8 - Polyurethane
3 - Viton A - Stainless Steel
4 - PTFE C - Hytrel
5 - E.P.R. E - Santoprene
Diaphragm Material
1 - Neoprene 5 - E.P.R.
2 - Nitrile 9 - Hytrel
3 - Viton B - Santoprene
4 - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # 666150-361-C
FLUID SECTION SERVICE KIT # 637124-61
66615X-X-C
RELEASED: 5-31-88
12-1-10
REVISED:
(REV. AB)

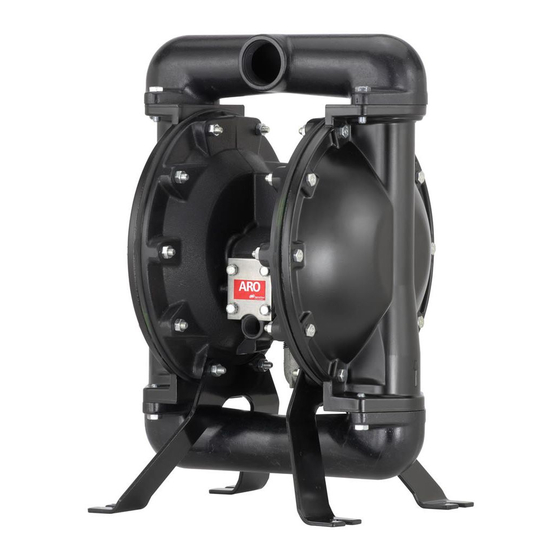

Figure 1
6661 X X - X X X - C
6661XX - X X X - C
637124 - X X
Ball Diaphragm
