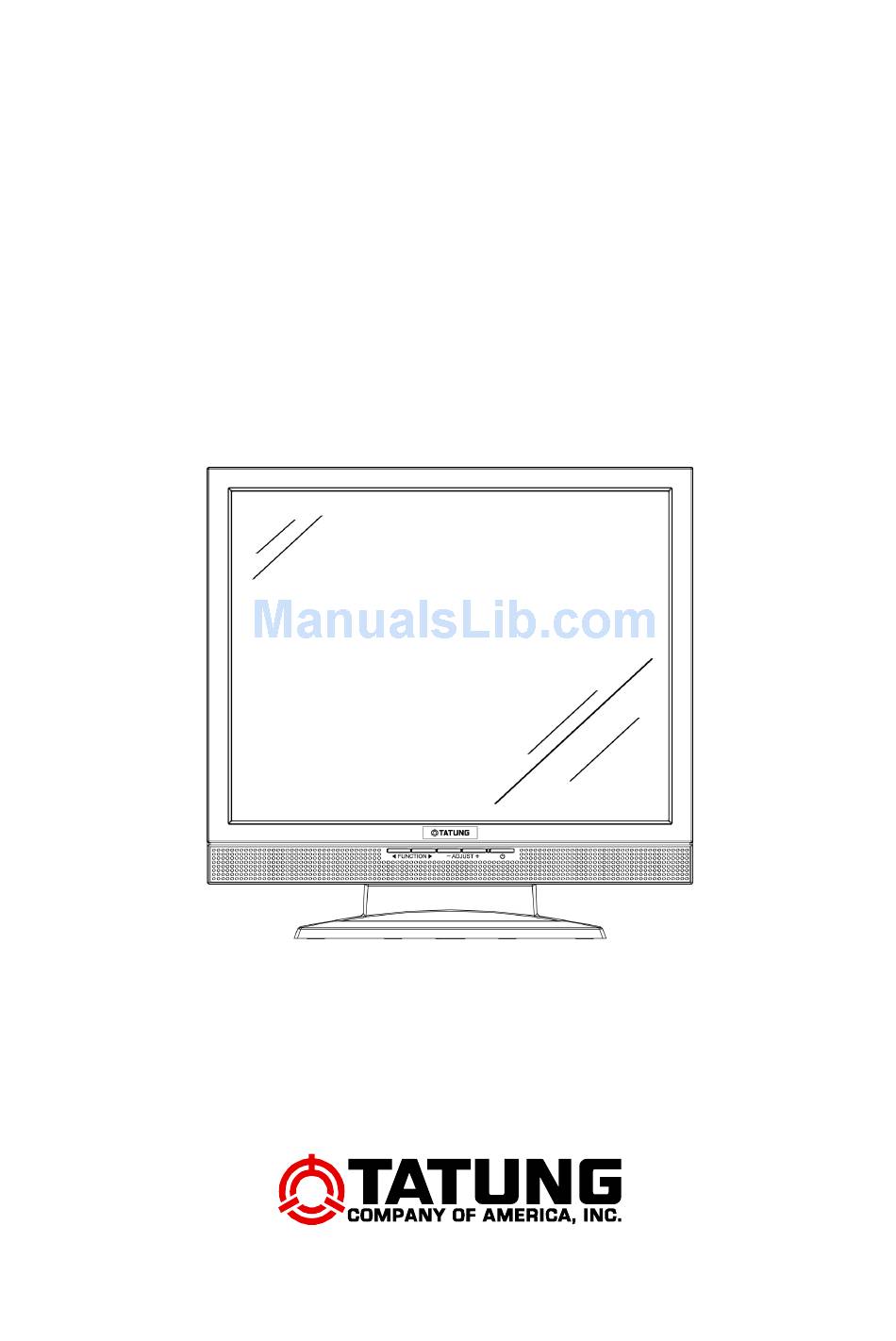

- Page 1 OPERATING INSTRUCTIONS TLM-1505...
-
Page 3: Preface
REFACE FCC Compliance Statement This device complies with part 15 of the FCC Rules. Opeartion is subjected to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Radio Frequency Interference Statement
The Federal Communications Commission warns that changes or modifications of the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE mark for Class B ITE (Following European standard EN55022/1998; EN61000- 3-2/1995;... -
Page 5: Important Operating Instructions
Important Operating Instructions Please read the following instructions carefully. This manual should be retained for future use. 1. To clean the LCD monitor screen, first, make sure the monitor is in the power off mode. Unplug the monitor from its power source before cleaning it. -
Page 6: Table Of Contents
Introduction CONTENTS PREFACE ........................I CHAPTER 1......................... 1 Unpacking Identifying Components The LCD Multimedia Monitor — Front View The LCD Multimedia Monitor — Rear View Adjusting the Tilting Angle Raising Your Monitor to an Upright Position and Adjusting Monitor Angle Power Management System CHAPTER 2......................... -
Page 7: Chapter 1
HAPTER The LCD Multimedia Monitor Unpacking After you unpack your LCD multimedia monitor, make sure the following items are included in the box and in good condition: Standard Item • LCD multimedia monitor • VGA Cable With 15-Pin D-Sub VGA Connector(Male) •... -
Page 8: Identifying Components
Identifying Components The LCD Multimedia Monitor — Front View Figure 1-1: The LCD multimedia Monitor Front View Power-On Indicator This LED indicator stays lit when the power is on and blinks when the LCD multimedia monitor is in power saving mode 2. -
Page 9: Adjusting The Tilting Angle
1. Audio Line-in 2. AC Power Jack 3. VGA Cable With 15-Pin D-Sub VGA Connector (Male) 4. S-Video connector 5. AV connector Adjusting the Tilting Angle The LCD multimedia monitor’s angle settings range from -5° to 25°. See Figure 1-3. Figure 1-3: Tilting the Monitor... -
Page 10: Raising Your Monitor To An Upright Position And Adjusting Monitor Angle
Raising Your Monitor to an Upright Position and Adjusting Monitor Angle... -
Page 11: Power Management System
Power Management System The LCD multimedia monitor complies with the VESA DPMS power management proposal. When the LCD multimedia monitor is in power saving mode or detects an incorrect timing, the monitor screen will be blank and the power LED indicator starts blinking. -
Page 12: Chapter 2
HAPTER The Display Controls LCD Multimedia Monitor Control Panel Figure 2-1: The LCD Monitor Panel OSD Menu Button Press this button to pop up the OSD (On-Screen Display) menu. This button is also a Function Select button 2. Adjustment Control Buttons These two buttons allow you to adjust the selected control functions in the OSD. -
Page 13: Adjusting The Monitor's Display
Adjusting the Monitor’s Display OSD Main Menu To access the OSD main menu, press the OSD Menu button. Use the Function Select buttons to scroll between the OSD main menu options. The option that is currently selected is blinking. Pressing one of adjustment control buttons causes the following screen to appear: Figure 2-2: The OSD Main Menu ◆ANALOG MODE: When analog signal input is selected. - Page 14 H-POSITION: To move the LCD monitor’s display left or right on a horizontal plane. V-POSITION: To move the LCD monitor’s display up or down on a vertical plane. PHASE: To adjust the focus and clarity of the display. CLOCK: To adjust the display pixel alignment. RESET: To reset all of the Monitor-Control submenu settings to the factory default.
- Page 15 EXIT: To exit the OSD-Control submenu. GRAPHIC-CONTROL Option The Graphic-Control option lets you make adjustments that effect the contrast, brightness and color of the LCD monitor’s display. Press the Adjustment control button to display the submenu. CONTRAST: To adjust the contrast level of the display screen. BRIGHTNESS: To adjust the light level on the display screen.
- Page 16 Press the Adjustment control button to display the submenu. LANGUAGE: The supported languages include German, English, French, Spanish, Italian and Japanese. AUDIO VOLUME: To increase or decrease the volume of the LCD monitor’s sound system. INFORMATION: To indicate display mode timings and firmware version.
- Page 17 OSD-CONTROL Option The OSD-Control menu option lets you adjust the position of the OSD on the screen. Press the Adjustment control button to display the submenu. Use the Function Select buttons to select one of the following submenu options: OSD-H-POSITION: To change the position of the OSD on a horizontal plane.
- Page 18 RESET: To reset all of the Video-Control submenu settings to the factory default. EXIT: To exit the Video-Control submenu. MISC-CONTROL Option The Misc-Control menu option lets you select the OSD display language, adjust the audio volume setting and view system information. Press the Adjustment control button to display the submenu.
- Page 19 Signal out of monitor’s supported range (Please refer to Addendum) When the frequency range of the signal is out of the monitor’s specifications, the display will show the following message on two cases: Case 1: The incoming frame rate is higher than 75Hz.
-
Page 20: Hot-Key Buttons For Quick Adjustment Of Monitor Settings
Hot-Key Buttons for Quick Adjustment of Monitor Settings. (〝AUTO-ADJUST〞hot-key is effective only when analog input signal is selected for application) 1. "Auto-adjust" hot-key button: Press button 2 to apply the monitor setting automatically. A small “AUTO-ADJUST” OSD is also displayed. 2. -
Page 21: Troubleshooting Procedures
PPENDIX Troubleshooting Troubleshooting Procedures This LCD monitor comes pre-adjusted with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. Before applying any of the following troubleshooting procedures, you should first apply the Auto Adjust option in the OSD menu. - Page 22 either Adjustment Control button several times. If there is still no display, press the other Adjustment Control button several times. 3. If step 2 doesn’t work, connect your PC system to another external CRT. If your PC system functions properly with a CRT monitor but it does not function with the LCD monitor, and the LCD monitor’s power LED is blinking, the output timing of the PC’s VGA card may be out of the LCD’s synchronous range.
-
Page 23: Tft Lcd Monitor Specifications
PPENDIX Technical Information TFT LCD Monitor Specifications LCD Panel 15"XGA Control Software Power switch with LED indicator Functions Power (ON/OFF) On-Screen Main Menu Submenu Display (OSD) ANALOG MODE: MONITOR-CONTROL AUTO-ADJUST, H-POSITION, V- POSITION, PHASE, CLOCK, RESET, GRAPHIC / TEXT, PORT-SELECT, EXIT OSD-CONTROL OSD-H-POSITION, OSD-V-... - Page 24 Display Area (mm) 304.1 x 228.1 (15" diagonal) Display Colors 16.7M Video Input VGA, S-Video, AV Scanning Frequency 24-60K H/V, Hz 56-75 Power Management Meets VESA DPMS Power Consumption 30 / 5 Max. (ON/OFF, W) Dimensions W x H x D 344 x 332 x 200 mm Approx.
-
Page 25: Supported Timing
PPENDIX Supported Timing Dot Clock Vertical Horizontal Sync Operating Item Standards Resolution (MHz) Scanning Scanning Polarity or Mode Frequency Frequency composite (Hz) (kHz) sync (H/V) 640x400 25.20 70.15 31.50 PC98 640x400 21.05 56.42 24.83 PC98 MAC 13” 640x480 30.24 66.67 35.00 A / G mode... - Page 26 TATUNG COMPANY OF AMERICA 2850 El Presidio ST. Long Beach, CA 90810 (800) 827-2850 www.tatungusa.com 6200564181...
