Summary of Contents for Technibel GR9FI65R5IAA

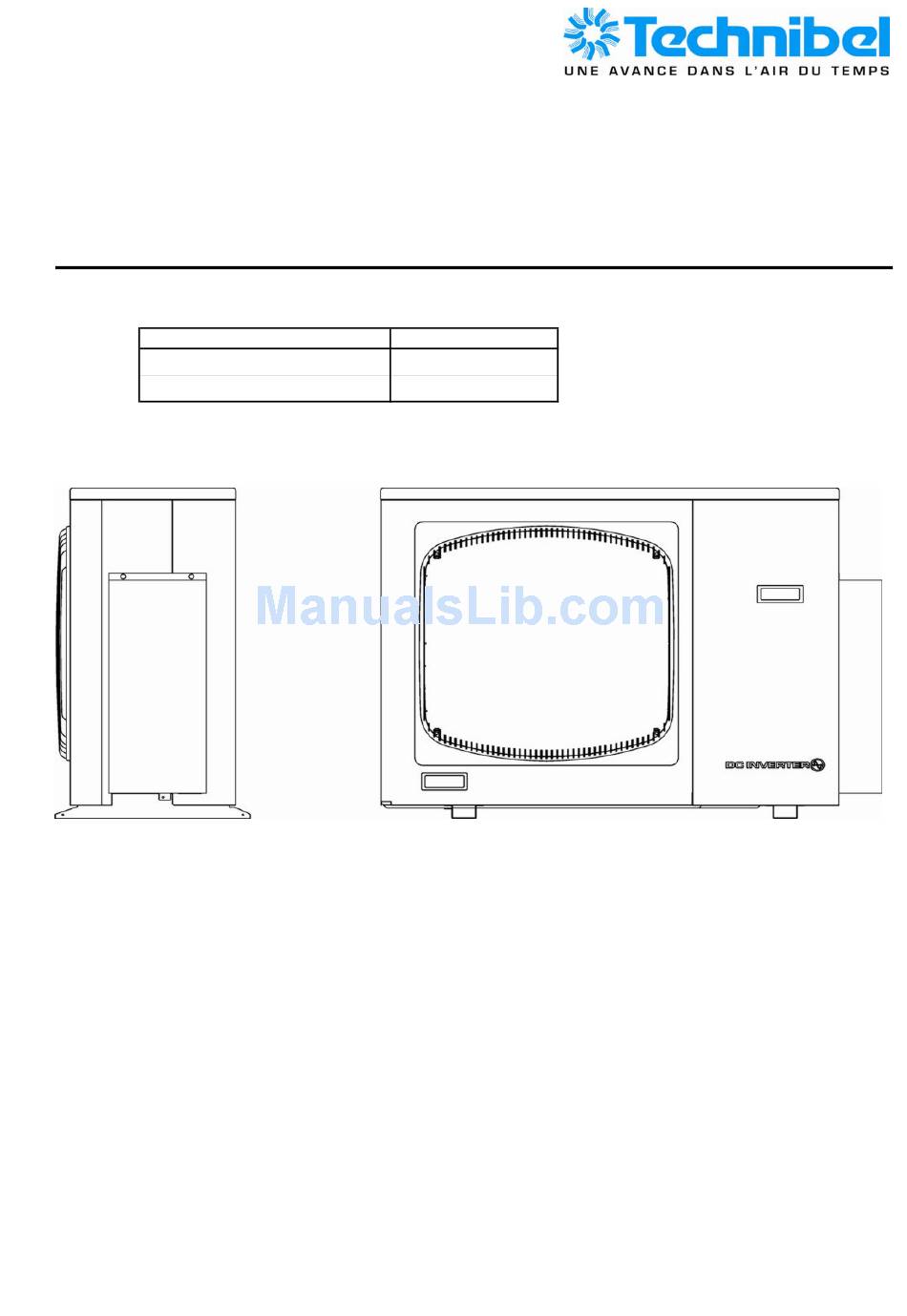

- Page 1 TECHNICAL DATA & SERVICE MANUAL GR9FI65R5IAA OUTDOOR UNIT: TRIAL SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. GR9FI65R5IAA 38.7107.102 0.8180.611.01 06/2011...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit Specifications 2-2 Major Component Specifications 2-3 Other Component Specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 4-1 Trial Split System Refrigerant Flow Diagram 4-2 Dual Split System Refrigerant Flow Diagram 4-3 Mono Split System Refrigerant Flow Diagram 5. -
Page 4: Operating Range
1. OPERATING RANGE GR9FI65R5IAA Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 10°C D.B. / 6°C W.B. -15°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum 5°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications GR9FI65R5IAA 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Heating Performance * MPA9FIB0R5I x1 + MTAFIA0R5I x2 6,50 7,30 Capacity BTU/h 22179 24909 Air circulation (High) m³/h Moisture removal (High) -
Page 6: Major Component Specifications
2-2 Major Component Specifications GR9FI65R5IAA Compressor Twin Rotary (Hermetic) DC inverter Type TNB220FLHMT Compressor model Nominal input (compressor rating condition) 2200 FV50S …… 870 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) 0,64 Software Protection Overload relay Safety devices Type Operating Temp. -
Page 7: Other Component Specifications
2-3 Other Component Specifications GR9FI65R5IAA LDK-41 (Coil) V2-410060-300 (Valve) 4-way Valve (20S) AC 220/240 V, 50 Hz Coil rating Ω (at 20°C) 1600 ± 5% Coil resistance UKV-U030E (Coil) UKV-18D31 (Valve) Electronic Expansion Valve A Coil rating DC 12 V Ω... -
Page 8: Dimensional Data
3. DIMENSIONAL DATA GR9FI65R5IAA NARROW TUBE WIDE TUBE 3x ø.6,35 (1/4") 2x ø.9,52 (3/8") 1x ø.12,7 (1/2") SERVICE VALVE TUBE 2x ø.6,35 (1/4") 4 - Ø12 for anchor bolt dimension [mm]... -
Page 9: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM 4-1 Trial Split System Refrigerant Flow Diagram Outdoor Unit: Indoor Unit A: GR9FI65R5IAA MPA9FIB0R5I.. Indoor Unit B: MTAFIA0R5I.. Indoor Unit C: MTAFIA0R5I.. Insulation of Refrigerant Tubing IMPORTANT Because expansion valve is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. -
Page 10: Dual Split System Refrigerant Flow Diagram
4-2 Dual Split System Refrigerant Flow Diagram Outdoor Unit: Indoor Unit A: GR9FI65R5IAA MPA9FIB0R5I.. Indoor Unit B: MTAFIA0R5I.. Indoor Unit C: Insulation of Refrigerant Tubing IMPORTANT Because expansion valve is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. -
Page 11: Mono Split System Refrigerant Flow Diagram
4-3 Mono Split System Refrigerant Flow Diagram Outdoor Unit: Indoor Unit A: GR9FI65R5IAA MPA9FIB0R5I.. Indoor Unit B: Indoor Unit C: "BRIDGE" TUBE Insulation of Refrigerant Tubing IMPORTANT Because expansion valve is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. -
Page 12: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts GR9FI65R5IAA Cooling Characteristics Heating Characteristics 10,0 Indoor inlet air D.B. (°C) Indoor inlet air D.B. (°C) D.B. Outdoor inlet air temperature (°C) Outdoor inlet D.B. temperature (°C) 1,20 Indoor inlet air Indoor inlet air D.B. -
Page 13: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics Outdoor unit: GR9FI65R5IAA COOLING Outdoor unit 3 Indoor Unit Complete Unit Fan Motor + Compressor Fan Motor 230 V - 1 Phase - 50 Hz Performance at 8,24 Rating conditions Running Amps. 0,66 Power input... -
Page 14: Electric Wiring Diagram
6-2 Electric Wiring Diagram GR9FI65R5IAA... -
Page 15: Trial Split System Wiring Diagram
6-3 Trial Split System Wiring Diagram Outdoor unit: GR9FI65R5IAA Indoor unit: MPA9FIB0R5I x1 + MTAFIA0R5I x2 6-4 Dual Split System Wiring Diagram Outdoor unit: GR9FI65R5IAA Indoor unit: MPA9FIB0R5I + MTAFIA0R5I 6-5 Mono Split System Wiring Diagram Outdoor unit: GR9FI65R5IAA Indoor unit:... -
Page 16: Function
7. FUNCTION 7-1 Diagnostic With this feature is possible to have a visual signal that a trouble is occurring. This mode is always active and the signalling is made through the display board LEDS . In case of no troubles the LEDS status follows its normal function. The detected troubles are showed to the user/technician using the 3 (5) leds of the indoor unit receiver and the 5 leds on the outdoor pcb. - Page 17 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
