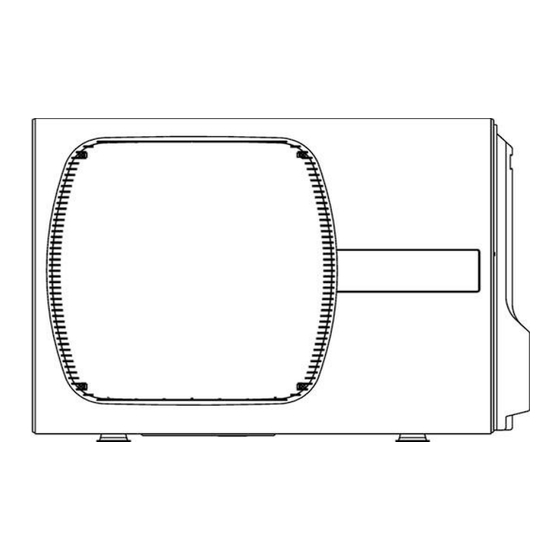

- Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: GR9FI40R5IAA SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. GR9FI40R5IAA 387107101 0.8180.598.00 04/2010...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit Specifications 2-2 Major Component Specifications 2-3 Other Component Specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 6. ELECTRICAL DATA 6-1 Electrical Characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE GR9FI40R5IAA Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 10°C D.B. / 6°C W.B. -15°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum 5°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications GR9FI40R5IAA 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Heating Performance * MTA8FIA0R5IAA 3,50 3,90 Capacity BTU/h 11942 13307 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating... -
Page 6: Major Component Specifications
2-2 Major Component Specifications GR9FI40R5IAA Compressor Rotary (Hermetic) DC inverter Type 5RS102XBE01 Compressor model Nominal input (compressor rating condition) RB68A …… 320 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) 0,858 Software Protection Overload relay Safety devices Type Operating Temp. Open °C... -
Page 7: Other Component Specifications
2-3 Other Component Specifications GR9FI40R5IAA 4-way Valve (20S) SQ-136 (Coil) SHF-4H-23U (Valve) AC 220/240 V, 50 Hz Coil rating Ω (at 20°C) 1440 ± 5% Coil resistance ZCAM-MD12EX(Coil) ZCAM-BD15EX (Valve) Electronic Expansion Valve DC 12 V Coil rating Ω (at 20°C) 46 ±... -
Page 8: Dimensional Data
3. DIMENSIONAL DATA GR9FI40R5IAA 4 - Ø12 for anchor bolt WIDE TUBE ø.9,52 NARROW TUBE ø.6,35 dimension [mm]... -
Page 9: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Outdoor Unit: GR9FI40R5IAA Indoor Unit: MTA8FIA0R5IAA MTA8FBIA0R5IAA Outdoor Unit Indoor Unit Insulation of Refrigerant Tubing IMPORTANT Because capillary tubing is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation, both tubes must be well insulated with a proper insulation material. -
Page 10: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts GR9FI40R5IAA Cooling Characteristics Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) Outdoor inlet air D.B. temperature (°C) Outdoor inlet D.B. temperature (°C) 3,60 1,10 Indoor inlet air 3,40 D.B. (°C) -
Page 11: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: GR9FI40R5IAA COOLING Outdoor unit Indoor Unit Complete Unit Fan Motor + Compressor Fan Motor 230 V - 1 Phase - 50 Hz Performance at 4,27 Rating conditions Running Amps. 0,13 Power input... -
Page 12: Electric Wiring Diagram
