Disassembly; Panel (Front); Cabinet (Upper) Single Assy; Main Board Section - Sony ICF-C112 Service Manual
Hide thumbs
Also See for ICF-C112:
- Manual (3 pages) ,
- Operating instructions (2 pages) ,
- Specification sheet (2 pages)
Table of Contents
Advertisement

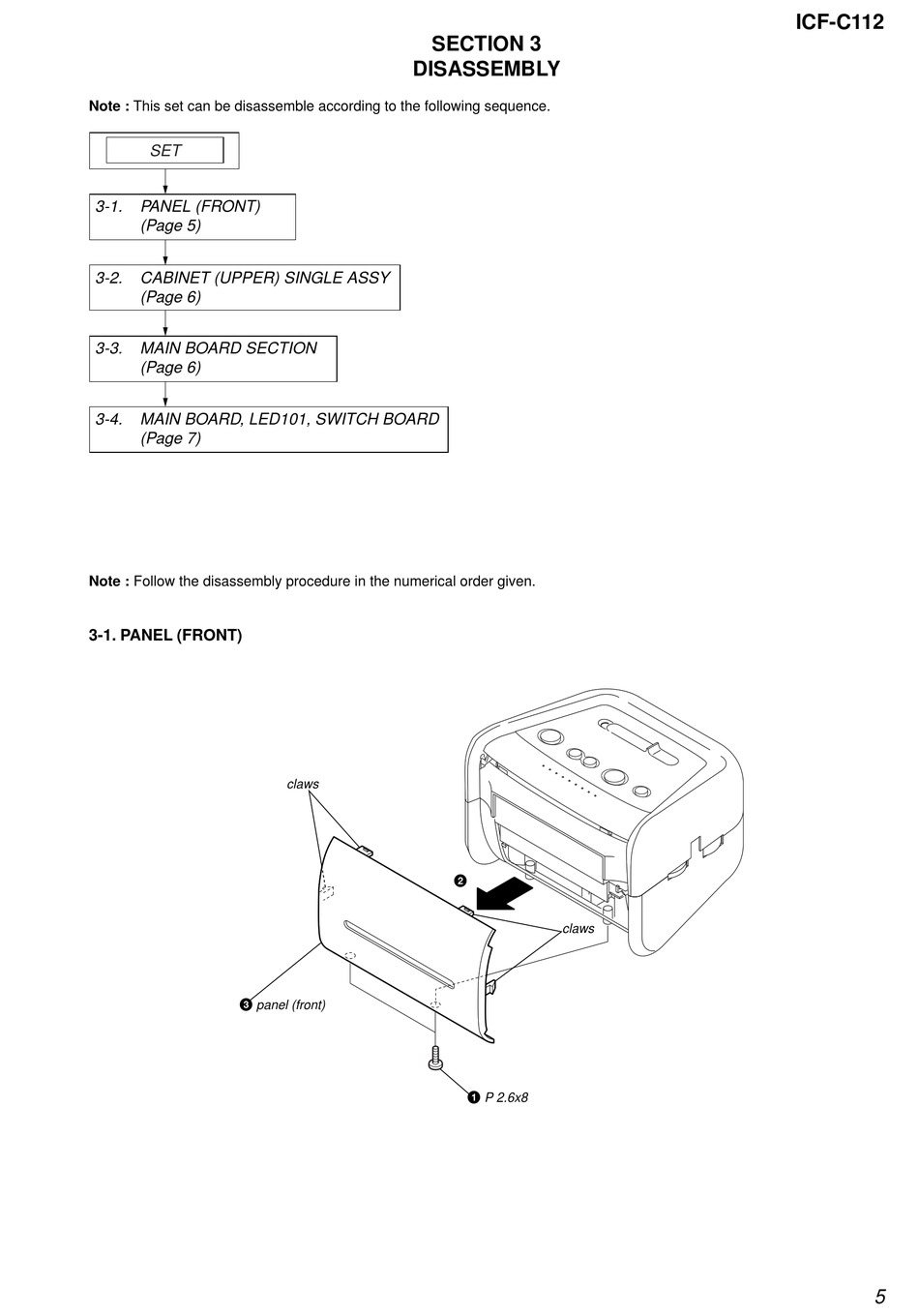

Note : This set can be disassemble according to the following sequence.
SET
3-1.
PANEL (FRONT)
(Page 5)
3-2.
CABINET (UPPER) SINGLE ASSY
(Page 6)
3-3.
MAIN BOARD SECTION
(Page 6)
3-4.
MAIN BOARD, LED101, SWITCH BOARD
(Page 7)
Note : Follow the disassembly procedure in the numerical order given.
3-1. PANEL (FRONT)
3 panel (front)
SECTION 3
DISASSEMBLY
claws
2
claws
1 P 2.6x8
ICF-C112
5
