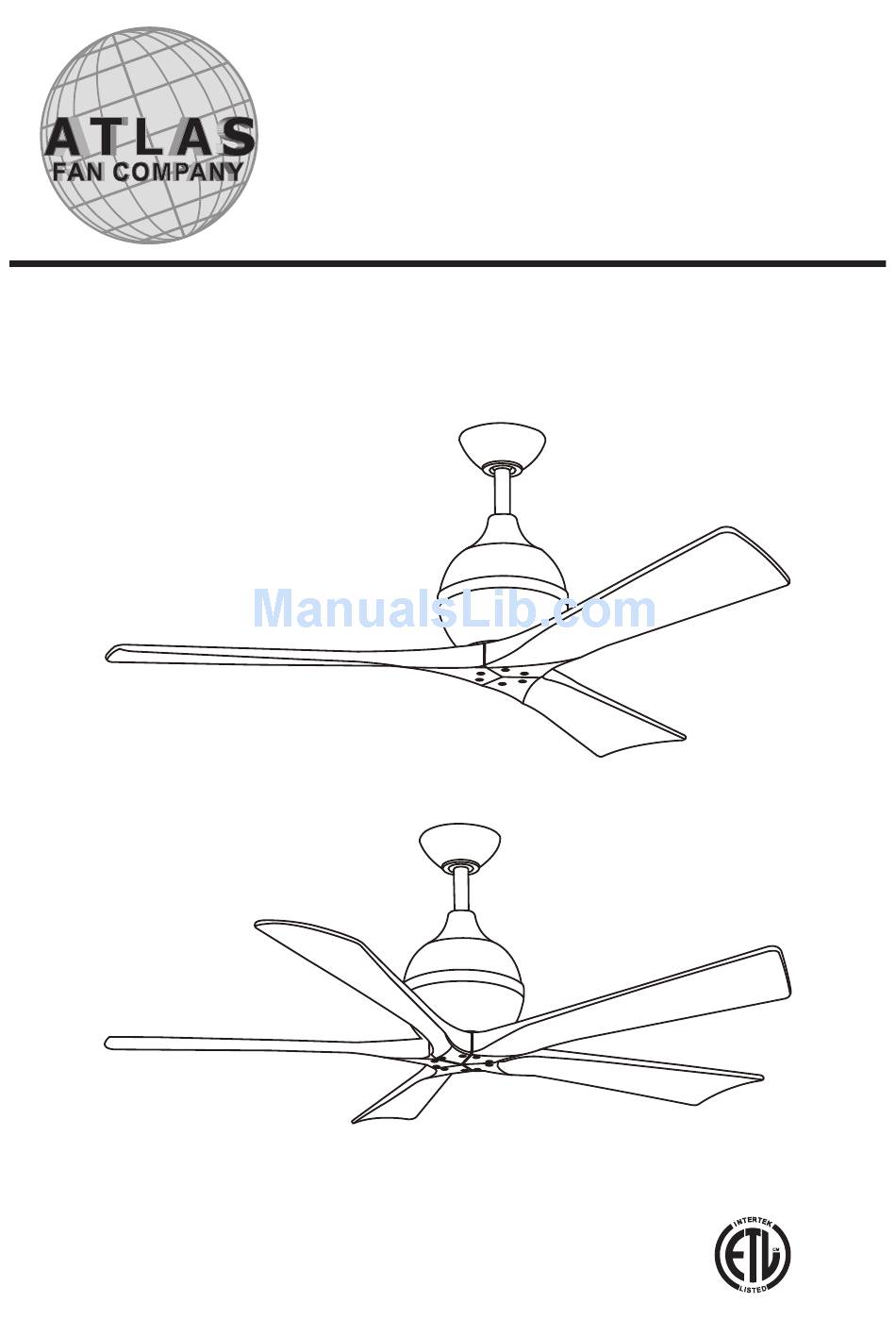

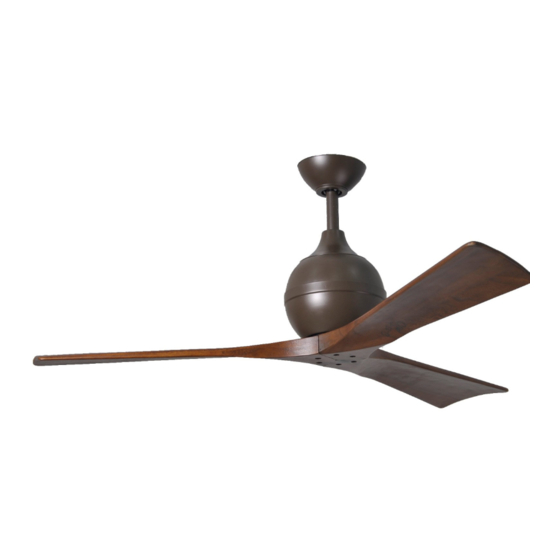

- Page 1 Irene 52” CEILING FAN READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Attaching the Fan Blades....................Make the Electric Connections..................Finishing the Installation....................Operating the Remote Control..................Operating Your Fan ....................... Care of Your Fan......................Troubleshooting...................... -
Page 3: Tools And Materials Required
Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a-1. Blade set (3) (for Irene-3) a-2. Blade set (5) (for Irene-5) Hanger bracket assembly Ball / down rod assembly Coupling cover... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
NOTE: This fan includes is supplied with two types of blades installation. Follow the step below to installing your fan blade properly. The inner holes are for 3 blades. ( for Irene-3) The outer holes are for 5 blades. ( for Irene-5) Figure 5 6. -
Page 7: Attaching The Fan Blades
5. Loosen the two set screws from the central Supply wires shaft/top coupling of the motor assembly. Downrod Doing so will allow the down rod to enter the central shaft. (Fig. 9) Canopy 6. Carefully feed the fan wires through the down rod and pull them taut. -
Page 8: Make The Electric Connections
7. MAKE THE ELECTRIC Outlet box CONNECTIONS White ("AC IN N") Green or bare Black ("AC IN L") Remember to disconnect the power. Follow the copper (ground) steps below to connect the fan to your Ground (green) household wiring. Use the wire connecting nuts Black (motor) (Connect to ground wire on hanger bracket if no... -
Page 9: Operating The Remote Control
9. OPERATING THE REMOTE CONTROL Your DC brushless motor is equipped with a automatically learned type remote control. Restore power to ceiling fan and test the transmitter as below for proper operation: Install one 23A/12V battery (included). To prevent damage to transmitter, remove the battery if not used for long periods of time (Fig. -
Page 10: Operating Your Fan
10. OPERATING YOUR Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Figure 15 Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. -
Page 11: Care Of Your Fan
11. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.
