READ AND SAVE THESE INSTRUCTIONS
QUICK ASSEMBLY NOTES:
* Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.

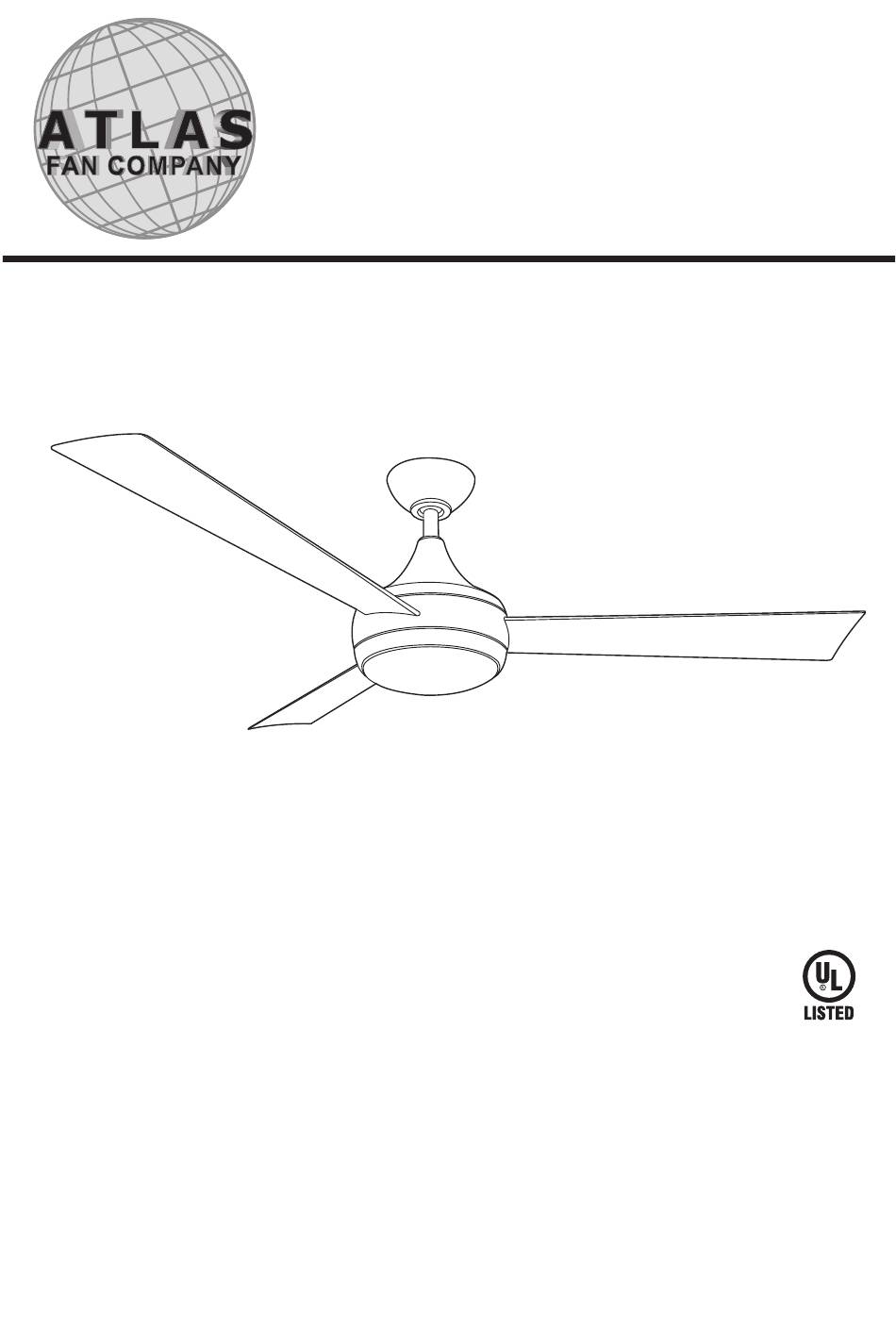

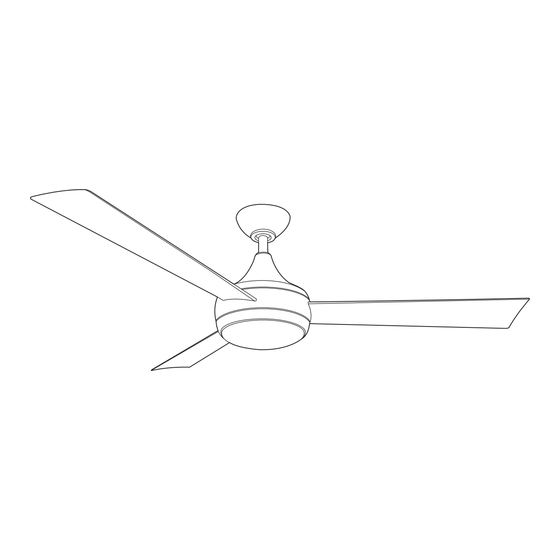

Donaire
52" CEILING FAN
FAN RATING AC 120V. 60Hz
For Wet Location
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Donaire
Summary of Contents for Atlas Donaire
- Page 1 Donaire 52” CEILING FAN READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz For Wet Location QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins. * Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Make the Electric Connections..................Finishing the Installation....................Attaching the Fan Blades....................Installing the Light Kit..................... Operating the Remote Control..................Operating Your Fan ..................... Care of Your Fan...................... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set (3) Blade support plates (3) Hanger bracket Canopy Canopy bottom cover Downrod Rubber Cover... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan and other items, be cautious when working electricity has been turned off at the circuit around or cleaning the fan. breaker or fuse box before beginning. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN Ceiling Before touching a screw driver thoroughly hanger read these instructions. bracket Warning/Caution: Before installing fan, turn off Ceiling power at service panel and check all visible canopy screws and bolts for tightness. 1. Remove the decorative canopy bottom cover Canopy cover from the canopy by turning the cover counter... -
Page 7: Make The Electric Connections
9. Now lift the motor assembly into position and place the hanger ball into the hanger bracket. Rotate down rod until the "Check Tab" has dropped into the "Registration Slot" and the Screw down rod and ball assembly seat firmly. The down rod and ball assembly should not rotate if this is done correctly. - Page 8 2. Motor to Receiver Electrical Connections: Connect the WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from the OUTLET BOX Receiver. Connect the BLACK wire from the fan to the BLACK wire marked "TO MOTOR L" from WHITE (NEUTRAL) BLACK (HOT) the Receiver.
-
Page 9: Finishing The Installation
7. FINISHING THE INSTALLATION 1. Tuck connections neatly into ceiling outlet Outlet box box. 2. Slide the canopy up to hanger bracket and Hanger bracket place the key hole on the canopy over the screw on the hanger bracket, turn canopy Screws until it locks in place at the narrow section of the key holes. -
Page 10: Installing The Light Kit
9. ATTACHING THE MOUNTING PLATE Step 1. Remove the 1 of 3 screws from the mounting ring and keep it for future use. Loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 11: Operating The Remote Control
11. OPERATING THE REMOTE CONTROL Install 12V MN21/A23 battery (included). To prevent damage to transmitter, remove the battery if not used for long periods. (Fig. 16) Restore Power to Ceiling Fan. A. H, M, L Buttons: These buttons are used to set the fan speeds as follows;... -
Page 12: Care Of Your Fan
13. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 13 Dealer will give additional directions. If unable to resolve satisfactorily, call Matthews-Gerbar, Ltd. at the phone number below, giving the dealer's name, address, date and number of dealer's invoice, and describe the nature of the defect. DONAIRE MATTHEWS-GERBAR, LTD. 1881 INDUSTRIAL DRIVE, LIBERTYVILLE, IL 60048...
