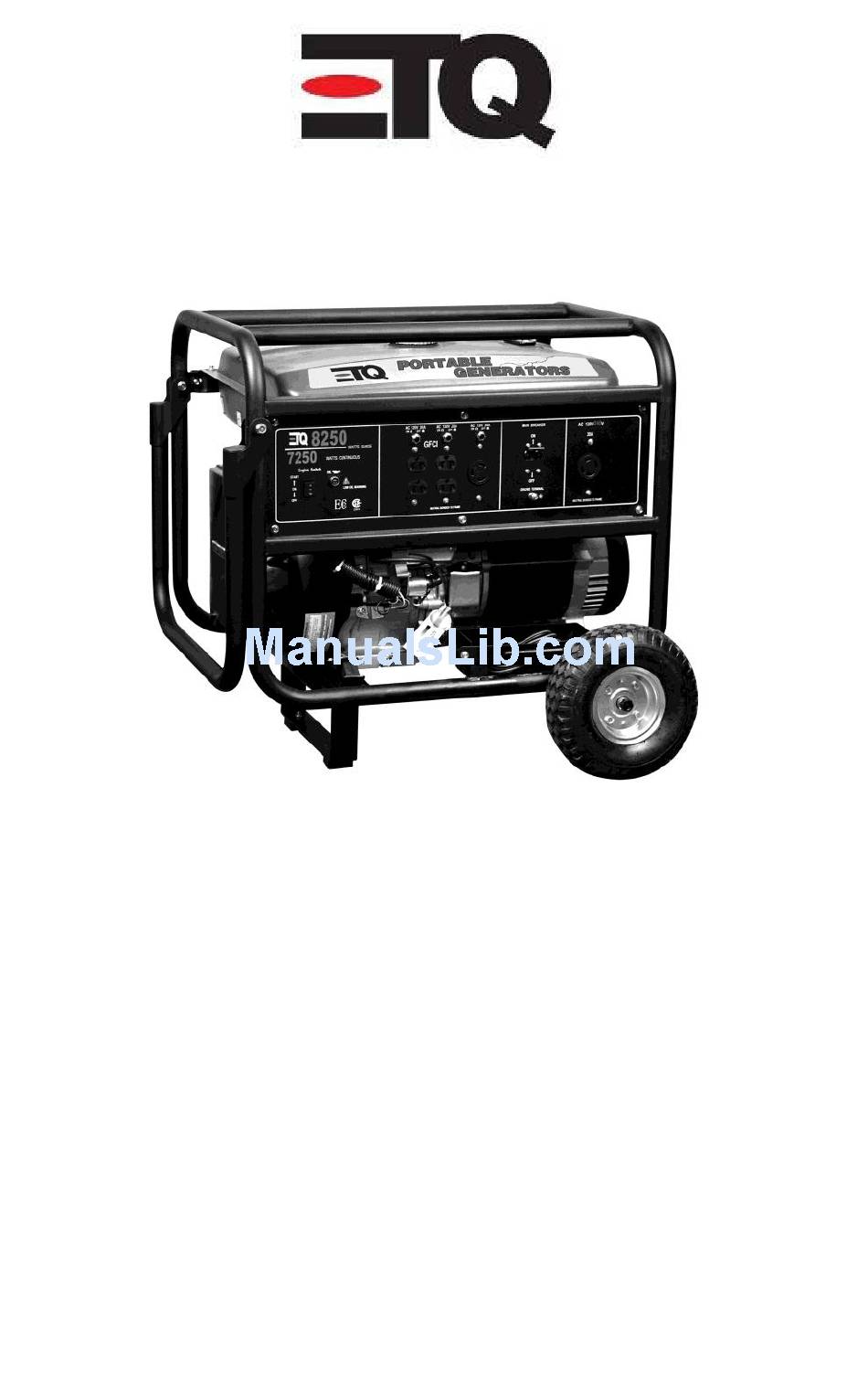

- Page 1 Eastern Tools & Equipment, Inc TG72B12 Portable Generator 8250 Surge Watts 7250 Continuous Watts Customer Service (888)-908-6200 www.easterntools.com Eastern Tools & Equipment. Inc Ontario, CA U.S.A...
-
Page 2: Table Of Contents
Thank you for purchasing products from EASTERNTOOLS & EQUIPMENT, INC. We appreciate your business. The following manual is only a guide to assist you and is not a complete or comprehensive manual of all aspects of maintaining and repairing your generator. The equipment you have purchased is a complex piece of machinery. -
Page 3: Safety Warning
Safety Warning Please read this manual to understand how to ELECTRIC SHOCK AND SHORT CIRCUIT use your unit as well as understanding the risk the come with the unit. Be sure to notify the utility company when using the generator for backup NOTICE exceeding your generator wattage/ power. -
Page 4: Generator Specifications
Keep the same concept when disconnecting 2. Allow the oil to drain completely. electrical devices; make sure all devices are in 3. Replace the drain plug. the "OFF" position before disconnecting. 4. Remove oil fill cap/dipstick to add oil. 5. Add 33.8 oz (1 L) of oil and replace oil fill Operate the generator on level surfaces only. -
Page 5: Control And Features
Controls and Features Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. (20) (21) (18) (19) (17) (16) (14) (15) (11) (12) (13) (10) (1) FUEL TANK CAP (12) CAP ASSY,OIL FILLER... - Page 6 Order Name Air-cooled generator set Tool Kit: Flat Head Screwdriver Spark Plug Wrench Wrench, 8×10,17×19 Battery Wire Assembly Kit: Wheel (2 pcs) Assembly Kit: Wheel Kit Hardware Assembly Kit: Generator Foot (2 pcs) etc. Assembly Kit: Handle 吊钩Suspend Conveyance Suspend Owner’s manual...
-
Page 7: Auto Throttle Switch
AUTO THROTTLE CONTROL SWITCH 2. CONNECTING THE BATTERY'S CATHODE: When using the generator, leave the AUTO THROTTLE CONTROL SWITCH (ATC) in the “ON” a. Connect one end of the white cable to the position; as soon as output is not needed. The (negative) "... -
Page 8: Starting The Unit
STARTING THE UNIT MAINTENANCE Please refer to your start up guide that comes Generator maintenance consists of keeping the with your unit. unit clean and dry. Be sure to store the unit in a clean and dry environment, where it will not be Before beginning your work, you must verify exposed to excessive dust, dirt, moisture or any corrosive vapors. - Page 9 AIR FILTER Unscrew the bolt from the air cleaner cover, and remove the air cleaner cover. Check the air cleaner element to be sure they are clean and in good condition. L13-30R: 120V, 30Amp Twist Lock Receptacle If the air filter is dirty, remove and clean the element.
-
Page 10: Maintenance
MAINTENANCE ·Tighten the oil drain plug and fill the engine with new oil to the filter neck. ·Pull the starter grip carefully until resistance is felt. ·Store the generator in a clean area. Below is a routine maintenance schedule. (1):These items should be serviced by a dealer. (2):Every 3 years. -
Page 11: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution Generator will not start No Gasoline Add Gasoline Faulty spark plug Replace spark plug Unit loaded during start up Remove load from unit Generator will not start; Low oil level Fill crankcase to the proper level Generator starts but runs Place generator on a flat, level roughly... - Page 12 WIRING DIAGRAM...
- Page 13 Parts List...
- Page 19 LIMITED WARRANTY Eastern Tools & Equipment, Inc. will repair or replace, free of charge, any part or parts of the generator that are defective in material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this Warranty must be borne by purchaser. This warranty is effective for the time period and subject to the conditions provided for in this policy.
-
Page 20: Normal Wear
Normal wear: Engines and generators, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part of an engine. Improper maintenance: The life of an engine or your equipment depends upon the conditions under which it operates, and the care it receives. -
Page 21: Warranty
periods of time listed above listed above provided there has been no abuse, neglect or improper maintenance of your small nonroad engine. Your emission control system may include parts such as the carburetor, or fuel-injection system, the ignition system and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies. -
Page 22: Product Registration
PRODUCT REGISTRATION For more efficient customer service, please fill out the information below and mail to Eastern Tools & Equipment, Inc. Product Warranty and Registration Division. Model No._________________ Engine Serial No.____________ Purchase Date ____/____/_____ Purchased from: [ ] Retail Location [ ] Private Consumer [ ] Other________________________________ Name_________________________________________________________________________...
