Owner's Manual Model TG8250 (TG72K12)
AIR-COOLED GASOLINE ENGINE GENERATOR SET

Advertisement

Table of Contents
loading

Related Manuals for ETQ TG8250

Summary of Contents for ETQ TG8250

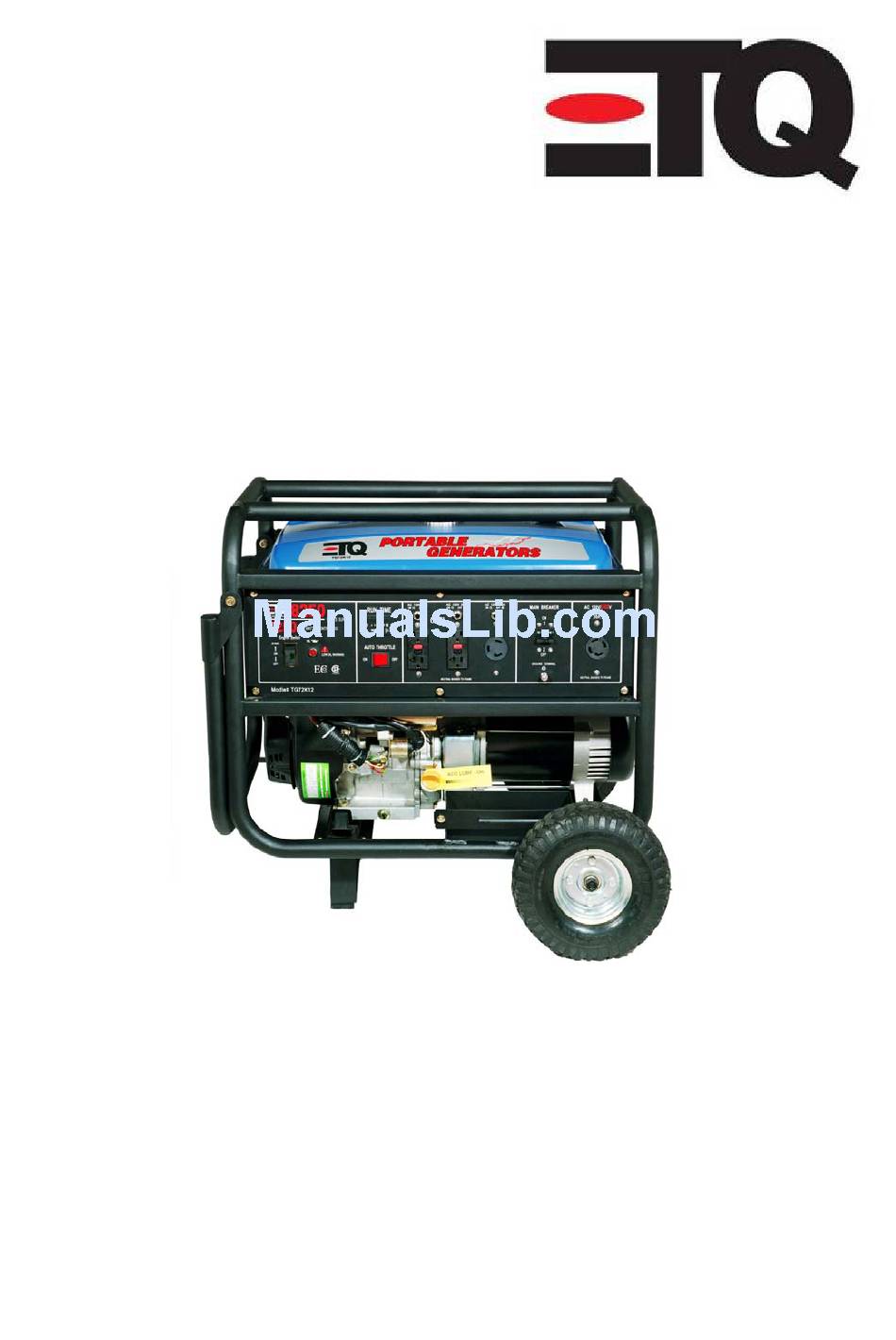

  • Page 1 Owner’s Manual Model TG8250 (TG72K12) AIR-COOLED GASOLINE ENGINE GENERATOR SET...

  • Page 2: Wiring Diagram

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com WIRING DIAGRAM...

  • Page 3: Part Listings

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com PART LISTINGS GENERATOR NUMBER PART NUMBER DESCRIPTION 19620-188-00 CONNECTION FLAT 31120-D70-00 STATOR COMP 31150-D70-00 STATOR COVER 31130-D70-00 ROTOR,COMP 31170-188-00 GENERATOR STAY 31203-188-00 BRACKET,RR.,MOTOR(BLACK) 19512-188-00 GENERATOR FAN 31160-188-00 BRUSH ASSY 30300-190-00 VOLTAGE REGULATOR (7KW) 95701-10285-00 FASTNESS BOLT(ROTOR)10×285...

  • Page 4: Fuel Tank Assembly

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com FUEL TANK ASSEMBLY NUMBER PART NUMBER DESCRIPTION 16950-168-00 COCK ASSY.FUEL 95003-188-00 CLIP,TUBE (B8) 95001-188-00 TUBE,FUEL 4.5×205 17640-190-00 FUEL SENSOR ASSY 17620-168-00 CAP COMP,FUEL FILLER 15420-188-00 FUEL FILLER 17510-T80-00 TANK COMP,FUEL(BLUE) 95701-06012-00 BOLT,FLANGE M6X12 90486-06022-00...

  • Page 5: Frame＆Control Panel

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com FRAME＆CONTROL PANEL 9/10 4/5/6 NUMBER PART NUMBER DESCRIPTION 50310-T80-00 FRAME COMP 33100-T80-00 CONTROL PANEL ASSY 33120-188-00 CONTROL PANEL CASE 77320-188-00 BOTTOM RUBBER A 94050-08000-00 NUT FLANGE M8 94050-10000-00 NUT FLANGE M10 77330-188-00 BOTTOM RUBBER B 82350-T80-00...
  • Page 6 EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com CRANKCASE NUMBER PART NUMBER DESCRIPTION 12000-190-00 CRANKCASE (HOLE) 92800-12016-00 BOLT,PLUG,DRAIN 12×16 94109-12000-00 WASHER,DRAIN PLUG,12MM 91201-188-00 OIL SEAL 34X52X8 96110-188-00 BEARING BALL RADIAL 6202 15510-188-00 SWITCH ASSY,OIL LEVEL 95701-06016-00 BOLT,FLANGE,6X16 44832-188-00 CLAMPER’METAL CABLE 95701-06012-00 BOLT,FLANGE,6X12...

  • Page 7: Push Rod & Valve Rocker

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com PUSH ROD & VALVE ROCKER 11 10 16 15 NUMBER PART NUMBER DESCRIPTION 14100-190-00 CAM SHAFT ASSY 14410-188-00 ROD,PUSH 5×165 14441-188-00 LIFTER VALVE 9×46 14711-188-00 VALVE,INLET 14721-188-00 VALVE,EXHAUST 12209-188-00 SEAL,VALVE STEM 14775-188-00 RETAINER,EXH VALVE DOWN SPRING 14751-188-00...

  • Page 8: Cylinder Head & Cylinder Head Cover Assembly

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com CYLINDER HEAD & CYLINDER HEAD COVER ASSEMBLY NUMBER PART NUMBER DESCRIPTION 12210-190-00 HEAK ASSY CYLN 12204-188-00 GUIDE.IN,VALVE 12205-188-00 GUIDE ,EXH VALVE 90603-188-00 CLIP,GUIDE EXHAUST VALVE 12251-190-00 GASKET,CYLINDER HEAD 12310-188-00 COVER COMP,HEAD 12391-188-00 PKG,HEAD COVER 90035-08040-00...

  • Page 9: Crankcase Cover Assembly

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com CRANKCASE COVER ASSEMBLY NUMBER PART NUMBER DESCRIPTION 11300-188-00 COVER ASSY.,CRANK CASE 11315-188-00 COVER DUCT 11381-188-00 PKG,CASE COVER 15620-188-00 CAP ASSY,OIL FILLER(YELLOW) 91301-188-00 O-RING 26×2.7 16512-188-00 HOLDER,GOV WEIGHT 90451-188-00 WASHER THRUST 6MM 90602-188-00 CLIP,GOV HOLDER 16513-188-00...

  • Page 10: Crankshaft, Piston & Tie-Rod

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com CRANKSHAFT, PISTON & TIE-ROD 11 12 2 3 4 DESCRIPTION NUMBER PART NUMBER 13010-190-00 RING SET,PISTON (STD) 13011-190-00 PISTON RING (A) 13012-190-00 PISTON RING (B) 13014-190-00 SIDE RING 13013-190-00 WAVE RING 90551-188-00 CLIP PISTON PIN 13101-190-00...

  • Page 11: Carburetor Assembly & Air Cleaner Assembly

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com CARBURETOR ASSEMBLY & AIR CLEANER ASSEMBLY NUMBER PART NUMBER DESCRIPTION 16100-190-00 CARBURETOR ASSY 16961-188-00 LATEX PIPE A 16962-188-00 LATEX PIPE B 95003-188-00 CLIP,TUBE (B8) 45460-188-00 BAND’WIRE,CHECK VALVE 16965-188-00 CHECK VALVE 16960-188-00 CHECK VALVE ASSY 16269-188-00...

  • Page 12: Recoil Starter

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com RECOIL STARTER NUMBER PART NUMBER DESCRIPTION 28400-188-00 STARTER ASSY,RECOIL(BLACK) 95701-06008-00 BOLT,FLANGE,6X8 28410-188-00 CASE COMP RECOIL STARTER(BLACK) 28444-188-00 SETAINER, SPRING 28421-188-00 REEL,RECOIL STARTER 19610-188-00 COVER COMP.,FAN (BLACK) 95701-06012-00 BOLT,FLANGE,6X12 RECOIL STARTER NUMBER PART NUMBER DESCRIPTION...

  • Page 13: Ignition Coil

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com IGNITION COIL NUMBER PART NUMBER DESCRIPTION 30500-190-00 COIL ASSY.,IGNIYION 30600-188-00 TERMINAL ASSY.,HIGE TENSION 44831-188-00-FD STAY LINE BOARD 30410-188-00 COIL,PULSER 35850-188-00 ELECTRICIZE WINDING 36101-188-00 CORD, STOP SWITCH 90650-188-00 BAND’WIRE 95701-06012-00 BOLT,FLANGE 6X12 95701-06030-00 BOLT,FLANGE 6X30 95701-06025-00...

  • Page 14: Starting Motor Assy

    EASTERN TOOLS & EQUIPMENT INC Tel: (888)908-6200 Web Site: easterntools.com STARTING MOTOR ASSY NUMBER PART NUMBER DESCRIPTION 31204-188-00 CONTACTOR ASSY 31206-188-00 ARMATURE COMP 31207-188-00 CLUTCH COMP.,OVERRUNNING 31210-188-00 MOTOR UNIT,STARTER 31211-188-00 BRACKET,CENTER 31212-188-00 BRACKET,FR 31213-188-00 GEAR,DRIVE PINION 31215-188-00 BRUSH 31218-188-00 YOKE COMP 31219-188-00 SPRING,BRUSH RETURN 31222-188-00...

This manual is also suitable for:

Tg72k12
