Connector Panel

The projector provides eight discreet video connectors:
• two component RCA
• two S-video
• one composite RCA
• one M1-DA (HD, DVI, and computer)
• one VESA (HD, HD component, and computer)
• one component D5
It also has a mini-jack input for a Niles or Xantech-compatible IR repeater
and an RS-232 connector for serial control. The Command Line Interface
(CLI) specifications and commands are listed in the Appendix starting on
page 36.
Two 3.5 mm mini-jack triggers provide 12 volt current. Trigger 1 provides a
constant output while the projector is on. If you connect your projection
screen to Trigger 1, when you turn on the projector the screen will move
down; when you turn the projector off, the screen will return to the storage
position. Trigger 2 provides a 4:3 aspect trigger. When you select 4:3 in the
Aspect Ratio menu or from the Resize button on the remote, a 12v signal
will be sent after a three second delay. Use this trigger for screens with 4:3
aspect curtains. When you switch back to 16:9 format, the curtains open to
reveal the entire screen.
For details on each connector type and their inputs, see page 34.

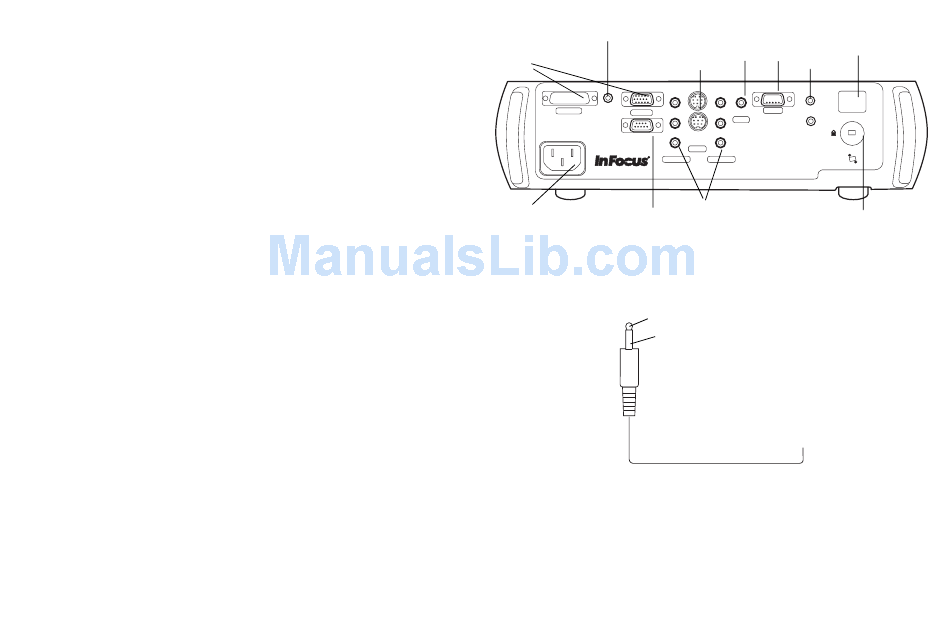

IR input
video/computer
1 & 2
IR in
M1-DA 1
vesa 2
serial control
power
connector
serial
connector
screen trigger connection
+12v
3.5mm mono plug
4
D5
video
video
s-video 12v triggers
1
Y Y
D5 8 trigger 1
2
7
Pb Pb
video
trigger 2
Pr Pr
4
5
s-video
3 6
component
component
component
video
ground
to screen relay (see screen manufacturer
for details)
remote control
receiver (IR)
lock
