Connecting a computer

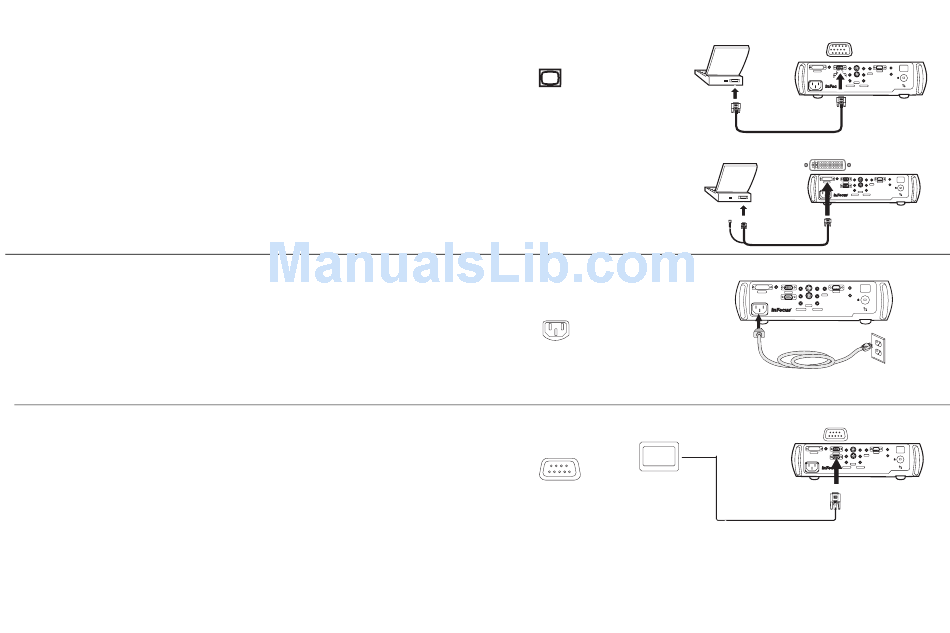

Connect either a VESA cable or M1 cable into the appropriate connector on
the projector. Connect the other end to the video port on your computer. If
you are using a desktop computer, you first need to disconnect the monitor
cable from the computer's video port.
Connect the power cable to the connector on the back of the projector and to
your electrical outlet.
The Power LED on the projector's keypad turns solid green.
NOTE: Always use the power cable that shipped with the projector.
Turn on the projector, then your computer.
You can control the projector from an LCD control panel or computer by
connecting an RS-232 cable to the projector's Serial connector. Specific
RS-232 commands can be found in the Appendix starting on page 37 and in
the Service and Support section of our website at www.infocushome.com/
support.
connect computer cable
connect power cable
connect RS-232 cable
10
1
Y Y
IR in trigger 1
M1-DA 1 vesa 2 2 D5 8
Pb Pb 7
video
trigger 2
Pr 4 Pr
serial control
5
s-video
3 6
component component
1
Y Y
IR in
M1-DA 1 vesa 2 2 D5 8 trigger 1
Pb Pb 7
video
trigger 2
Pr 4 Pr
serial control
5
s-video
3 6
component component
1
Y Y
IR in
M1-DA 1 2 D5 8 trigger 1
vesa 2 Pb Pb 7
video
trigger 2
Pr Pr
4
serial control
5
s-video
3 6
component component
1
Y Y
IR in
M1-DA 1 2 D5 8 trigger 1
vesa 2 Pb Pb 7
video
trigger 2
Pr Pr
serial control 4
5
s-video
3 6
component component
