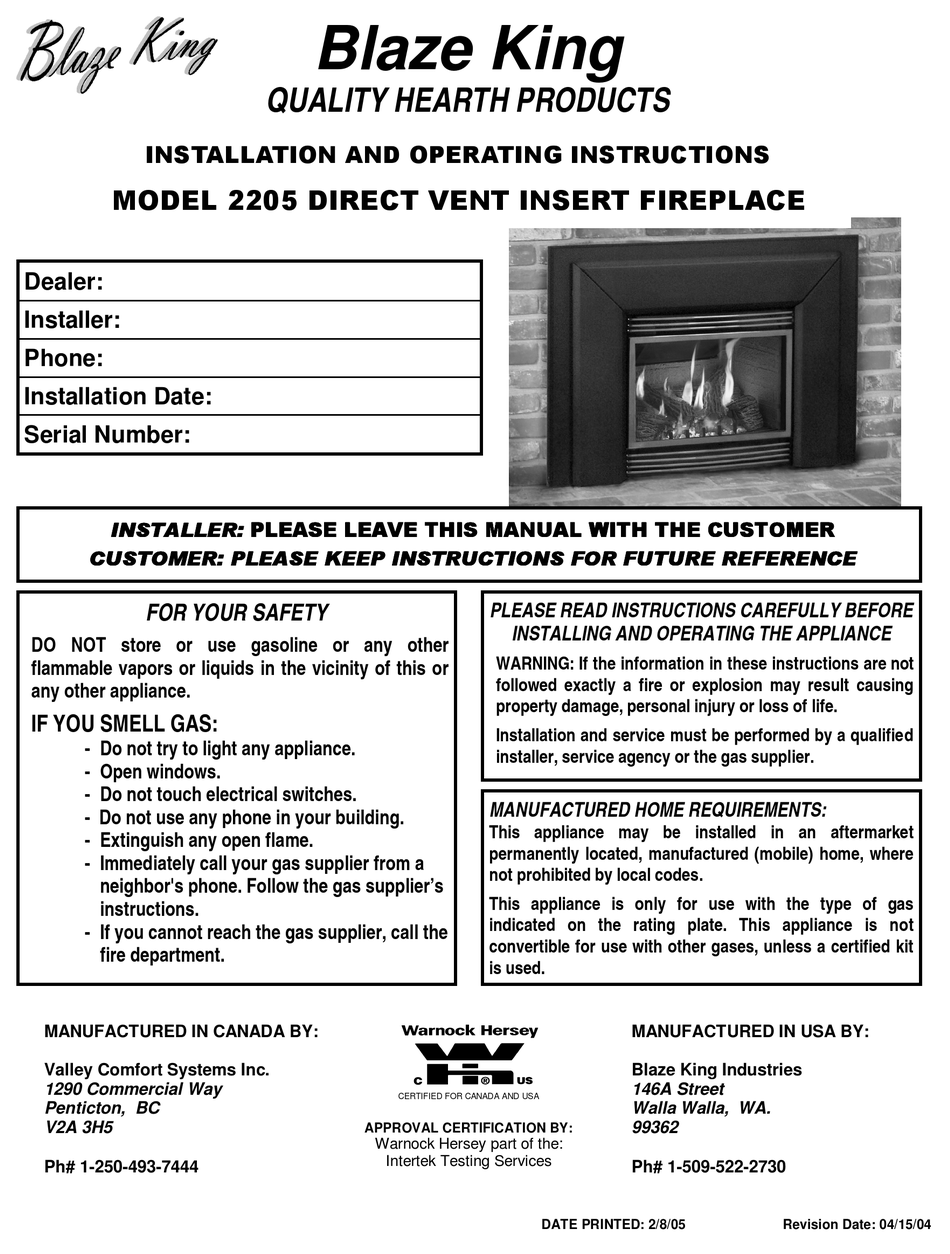

INSTALLATION AND OPERATING INSTRUCTIONS

MODEL 2205 DIRECT VENT INSERT FIREPLACE

Dealer:

Installer:

Phone:

Installation Date:

Serial Number:

I I I I NSTALLER:

NSTALLER:

NSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER

NSTALLER:

CUSTOMER: PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE

FOR YOUR SAFETY

DO NOT store or use gasoline or any other

flammable vapors or liquids in the vicinity of this or

any other appliance.

IF YOU SMELL GAS:

- Do not try to light any appliance.

- Open windows.

- Do not touch electrical switches.

- Do not use any phone in your building.

- Extinguish any open flame.

- Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

- If you cannot reach the gas supplier, call the

fire department.

MANUFACTURED IN CANADA BY:

Valley Comfort Systems Inc.

1290 Commercial Way

Penticton, BC

V2A 3H5

Ph# 1-250-493-7444

OM-2205

Blaze King

QUALITY HEARTH PRODUCTS

PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER

CERTIFIED FOR CANADA AND USA

APPROVAL CERTIFICATION BY:

Warnock Hersey part of the:

Intertek Testing Services

PLEASE READ INSTRUCTIONS CAREFULLY BEFORE

INSTALLING AND OPERATING THE APPLIANCE

WARNING: If the information in these instructions are not

followed exactly a fire or explosion may result causing

property damage, personal injury or loss of life.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

MANUFACTURED HOME REQUIREMENTS:

This appliance may be installed in an aftermarket

permanently located, manufactured (mobile) home, where

not prohibited by local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certified kit

is used.

Page 1

DATE PRINTED: 2/8/05

MANUFACTURED IN USA BY:

Blaze King Industries

146A Street

Walla Walla, WA.

99362

Ph# 1-509-522-2730

Revision Date: 04/15/04

Table of Contents

Need help?

Do you have a question about the 2205 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blaze King 2205

Page 1 Blaze King QUALITY HEARTH PRODUCTS INSTALLATION AND OPERATING INSTRUCTIONS MODEL 2205 DIRECT VENT INSERT FIREPLACE Dealer: Installer: Phone: Installation Date: Serial Number: I I I I NSTALLER: NSTALLER: NSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER NSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER...
Page 2: Table Of Contents
Mail your warranty card TODAY, and SAVE your BILL OF SALE. This card is included with the accessory package inside each firebox. Your Blaze King Stove has its own personal serial number, no two In order to receive full warranty coverage and stoves are alike.
Page 3: Introduction
Blaze King customer. This owner’s manual explains the steps required to safely assemble, install, operate, and maintain your new appliance. The model 2205 is one of the most advanced gas fireplaces on the market. It is designed using the latest technology and manufactured to the highest quality.
Page 4: Copy Of Certification Label
2007 Fabriqué au Canada par: 1290 Commercial Way Penticton, B.C. APRIL / 2008 V2A 3H5 Canada AVRIL Manufactured in U.S.A. Blaze King Industries MAY / JUNE / JULY / AUGUST / 2009 Fabrique au U.S.A. par: 146A Street JUIN JUIL AOÛT...
Page 5: Specifications
SPECIFICATIONS MODEL 2205 Natural Gas (NG) Propane (LP) 1.3 - 3.5 in. w.c. (0.32 - 0.9 kPa) 2.7 - 11.0 in. w.c. (0.67- 2.75 kPa) Manifold Pressure 5.0 in. w.c. (1.2 kPa) 12.0 in. w.c. (3.0 kPa) Min. Supply Pressure for Purpose of Input Adjustment 7.0 in.
Page 6: Appliance Description And Dimensions
APPLIANCE DESCRIPTION & DIMENSIONS APPLIANCE DIMENSIONS OM-2205 Page 6 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 7: Safety Notice
♦ Young children should be carefully supervised when they are in the same room as the appliance . OM-2205 Page 7 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 8: Planning Your Installation
CAUTION: This appliance is designed for use in a factory built solid fuel burning fireplace meeting the requirements of ULCS 610 in Canada & UL 127 in the United States. It cannot be enclosed by combustible material and used as a built-in gas fireplace. OM-2205 Page 8...
Page 9: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES OM-2205 Page 9 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 10 INSTALLATION VENTING Please follow the venting instructions as strictly as possible to obtain the best performance from the appliance. THESE ARE THE ONLY VENTING COMPONENTS APPROVED FOR USE WITH THE MODEL 2205. Duravent Product Numbers: High Wind Cap #991 Adapter...
Page 11 This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. VENTING CHART The model 2205 is only certified for vertical terminations. “WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury”.
Page 12 Maximum gas supply pressure should never exceed 14.0 in. w.c. (3.48 kPa) or 1/2 psi. for both natural gas and propane. BE SURE TO TIGHTEN THE PRESSURE TAP SET-SCREW AFTER CHECKING THE PRESSURE. CHECK ALL GAS CONNECTIONS FOR GAS LEAKS. OM-2205 Page 12 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 13 ♦ High Altitude: In the USA the model 2205 is approved for altitudes up to 2000 feet using the factory installed burner orifice. At ♦ elevations above 2000 feet, U.S. codes require a decrease in the input rating by replacing the burner orifice. The input should be reduced by 4% for each 1000 feet above sea level (see appendix ‘A’).
Page 14 If required, a wall thermostat may be installed. correctly adjusted during installation is NOT Blaze King provides a thermostat but any CSA, covered under the warranty ULC or UL approved 250-750 millivolt rated non-anticipator type thermostat may be used.
Page 15 1 piece trim pack down over the outside edges of the shroud kit. Remove all protective coating from the gold plated surfaces. See next page for picture of finished installation. OM-2205 Page 15 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 16 SHROUD KIT & GRILL ROD KIT INSTALLTION OM-2205 Page 16 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 17: Door Installation & Removal
5 or as in picture 7. picture 5 or as in picture 7. OM-2205 Page 17 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 18: Wiring Diagrams
Blower MILLIVOLT CIRCUIT Room Thermostat (optional) Piezo Push Button Ignitor Pilot Remote Control (Optional) Assembly Bridge across these terminals (TP-TH) to test ancillary switching TH -TP Pilot Tube Honeywell Valve Thermocouple OM-2205 Page 18 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 19 CAUTION: Do not turn the unit off and on again within a 6. Turn thermostat to the desired comfort level or turn ON/OFF minimum of a 60 second wait. switch to the ON position. OM-2205 Page 19 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 20: Operating Instructions
♦ These are all normal sounds associated with this type of appliance and should not be considered as defects. Burner On Unit Off OM-2205 Page 20 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 21 POLISH PLUS by KEL KEM c) COOK TOP CLEAN CREME by ELCO d) WHITE OFF by RUTLAND NOTE: This is a problem beyond Blaze King’s control and is not covered under warranty. NOTICE: COLD WEATHER OPERATION When using any gas appliance (LPG or NAT Gas) water is a byproduct of the combustion process. Under normal conditions this moisture is expelled through the vent into the atmosphere and does not cause any harm.
Page 22: Maintenance
30 seconds. Pilot Flame Should Look Like This Pilot Top View Of Burner Thermopile PILOT ASSEMBLY: OM-2205 Page 22 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 23 DO NOT OPERATE APPLIANCE WITH THE GLASS DOOR REMOVED, OPEN, CRACKED, OR BROKEN. REPLACEMENT OF GLASS SHOULD BE DONE BY A LICENSED OR QUALIFIED SERVICE PERSON AS AUTHORIZED BY BLAZE KING. DO NOT ATTEMPT TO REMOVE DOOR OR REPLACE GLASS •...
Page 24: Replacement Parts List
2205 REPLACEMENT PARTS LIST PART NAME: PART # Back Log 9867 Front Log 9868 Fiber Embers 0745 Gas Valve (Robert Shaw) Nat. 0718A Gas Valve (Honeywell) 0720VC Piezzo Push Button Igniter (R/S only) 0737 Main Burner Switch 0725 Right Twig...
Page 25: Appendix 'A' (High Altitude)
2,000 / Nat 36# / Prop 53# 1,000 / Nat 36# / Prop 53# SEA LEVEL / Nat 36# / Prop 53# Check with your local gas supplier for correct calorific value (BTU rating). OM-2205 Page 25 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 26: Appendix 'B' (Conversion Kits)
CONVERSION KIT CONTENTS 1. Main Burner orifice. The model 2205 is designed to burn either Natural Gas or 2. Pilot Orifice Propane (LP) Fuel. Each heater leaves the factory equipped for one specific fuel but it is a simple operation to convert the Valve Kit.
Page 27 Included with each gas stove manufactured by Blaze King is a Warranty Card, which must be completed in its entirety and returned to Blaze king within ten days from the date of purchase. Blaze King will be unable to properly administer the warranty if the card is not completed and registered on file.
Page 28 King of the defect prior to the expiration of any warranted items, the following procedure will occur. Blaze King will inspect the product to determine that there is indeed a defect and that the defect is covered by warranty. Blaze King will either repair or replace the product at its' discretion.
Page 29: Appendix 'D' (Trouble Shooting)
⇒ Place jumper wire across terminals TH-THTP, if burner comes on this will the pilot lit. Faulty wall or unit on/off indicate you have a poor connection or faulty appliance on/off switch, wall switch. switch or wall thermostat. Faulty thermostat. OM-2205 Page 29 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 30 ⇒ Short out speed controller to check for defective operation. connection. ⇒ Check terminals on speed controller. If you have 120VAC the blower Defective speed motor is defective. controller. Defective blower. SERVICE HISTORY DATE CORRECTIVE ACTION (INCLUDE REPLACEMENT PARTS) OM-2205 Page 30 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
Page 31 NOTES OM-2205 Page 31 DATE PRINTED: 2/8/05 Revision Date: 04/15/04...
