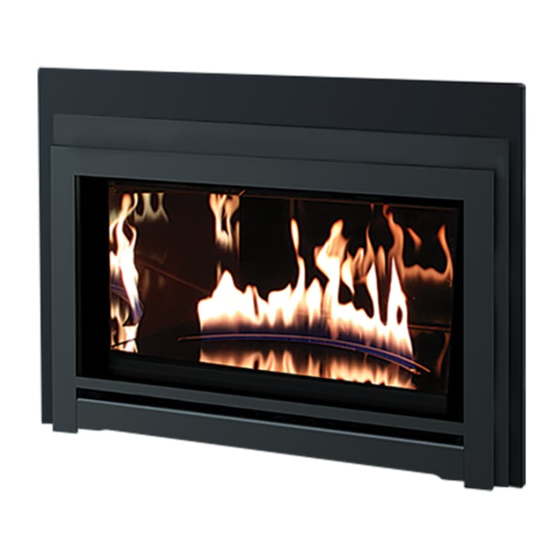

Direct vent gas fireplace insert

Advertisement

Quick Links

FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious injury,
death, or property damage.
Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Leave the premises.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call
the fi re department.
Installation and service must be
performed by a qualifi ed installer, service agency
or the gas supplier.
WARNING: If the information in these instructions are not followed exactly, a fi re or
explosion may result causing property damage, personal injury or loss of life.
Installer: Please complete the details on the back cover and leave this manual with the
PFS report#:F18-431
Homeowner: Please keep these instructions for future reference.
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
180-CL2714.IPI v1.01
CLARITY CL2714.IPI
DIRECT VENT GAS FIREPLACE INSERT
with Intermittent Pilot Ignition (IPI)
For use with natural gas (NG) or propane (LPG)
OPERATION & INSTALLATION MANUAL
homeowner.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance may be installed in an OEM Installation in a
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions
and the Manufactured Home Construction and Safety
Standard, Tittle 24 CRF, Part 3280, in the United States, or the
Standard for Installation in Mobile Homes, CAN/CSA Z240 MH
Series, in Canada.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certifi ed kit is used.
A safety screen designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other
at-risk individuals. If the safety screen becomes damaged,
the safety screen shall be replaced with the manufacturer's
safety screen for this appliance.
Date Installed:
Serial No.:
April 21, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLARITY CL2714.IPI and is the answer not in the manual?

Questions and answers

Summary of Contents for Blaze King CLARITY CL2714.IPI

  • Page 1 CLARITY CL2714.IPI DIRECT VENT GAS FIREPLACE INSERT Date Installed: with Intermittent Pilot Ignition (IPI) Serial No.: For use with natural gas (NG) or propane (LPG) OPERATION & INSTALLATION MANUAL FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
  • Page 2: Table Of Contents

    Page 2 Clarity CL2714 IPI TABLE OF CONTENTS SAFETY PRECAUTIONS _________________________________________________________________ 4 GENERAL ..................................4 YOUR SAFETY ................................4 INSTALLATION ................................5 GENERAL INFORMATION ________________________________________________________________ 6 APPLIANCE CERTIFICATION ..........................6 INSTALLATION CODES ............................6 SPECIFICATIONS..............................6 HIGH ALTITUDE INSTALLATION ........................6 CERTIFICATION LABEL __________________________________________________________________ 7 MA Code - CO Detector __________________________________________________________________ 8 UNIT DIMENSIONS _______________________________________________________________________ 9...
  • Page 3 State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov Manufactured By Valley Comfort Systems Inc. Blaze King Industries 1290 Commercial Way 146 A Street Penticton, BC V2A 3H5 Walla Walla, WA 99362 CANADA U.S.A.
  • Page 4: Safety Precautions

    Page 4 Clarity CL2714 IPI SAFETY PRECAUTIONS NOTE: Failure to follow these instructions could cause a malfunction of the fi replace, which could result in death, serious bodily injury, and/or property damage. GENERAL • Installation and repair should be done by a qualifi ed service person. The appliance should be inspected before the fi...
  • Page 5: Installation

    Clarity CL2714 IPI Page 5 SAFETY PRECAUTIONS INSTALLATION • Installation and service must be performed by a qualifi ed installer, service agency or gas supplier • Only doors certifi ed with the appliance shall be used. (see door part numbers in “PARTS LIST”) •...
  • Page 6: General Information

    Page 6 Clarity CL2714 IPI GENERAL INFORMATION APPLIANCE CERTIFICATION This appliance is tested and certifi ed to the following US and Canadian gas appliance standards: • ANSI Z21.88-2017 / CSA 2.33-2017 Vented Gas Fireplace Heaters, • CAN/CGA-2.17-M91 (R2014) Gas-Fired Appliance for Use at High Altitudes •...
  • Page 7: Certification Label

    Clarity CL2714 IPI Page 7 CERTIFICATION LABEL 180-CL2714.IPI v1.01 April 21, 2021...
  • Page 8: Ma Code - Co Detector

    Page 8 Clarity CL2714 IPI MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifi cations to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above fi...
  • Page 9: Unit Dimensions

    Clarity CL2714 IPI Page 9 UNIT DIMENSIONS RATING LABEL LOCATION The rating label is located below the fi rebox behind a fl ip down door. It is affi xed to rectangular metal sheets that are chained to the appliance. UNIT DIMENSIONS (SHOWN WITH SAFETY SCREEN TRIM AND SECONDARY TRIM) NOTE: TURNING ON YOUR APPLIANCE WHEN IT HAS BEEN OFF FOR AWHILE MAY CAUSE TEMPORARY CONDENSATION TO APPEAR ON THE GLASS.
  • Page 10: Shroud And Shelf Options

    Page 10 Clarity CL2714 IPI SHROUD AND SHELF OPTIONS S.Z4981 CL2714 SHROUD 24.5” x 36.5” S.Z4982 CL2714 SHROUD 26.5” X 38” S.Z4983 CL2714 SHROUD 29” x 40” S.Z4984 CL2714 SHROUD 32” x 44” 180-CL2714.IPI v1.01 April 21, 2021...
  • Page 11 Clarity CL2714 IPI Page 11 SHROUD AND SHELF OPTIONS S.Z4985 CL2714 SHROUD 32” x 44” TRIMMABLE S.Z4990 CL2714 45” SHELF W/ RISERS REQUIRES CL2714 SHROUD S.Z4994 CL2714 ANGLED SHROUD BASE REQUIRES S.Z4981 CL2714 SHROUD 24.5”x36.5” ” OR S.Z4982 CL2714 SHROUD 26.5”x38 180-CL2714.IPI v1.01 April 21, 2021...
  • Page 12: Installation Planning

    Page 12 Clarity CL2714 IPI INSTALLATION PLANNING THIS FIREPLACE INSERT SHALL BE INSTALLED BY A QUALIFIED SERVICE AGENCY IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS AND ALL APPLICABLE CODES AND REQUIREMENTS OF THE AUTHORITIES HAVING JURISDICTION. This section of the owner’s manual is for the use of qualifi ed service technicians only. Gas connections, clearances to combustibles, minimum fi...
  • Page 13: Factory Built Fireplace Or Zero Clearance Fireplace

    Clarity CL2714 IPI Page 13 INSTALLATION PLANNING The included label plate, shown below, must be permanently attached inside the cavity of the fi replace in a visible location. WARNING: This fi replace has been converted for use with a gas fi replace insert only and cannot be used for burning wood or solid fuels unless all original parts have been replaced, and the fi...
  • Page 14: Installation Clearances

    Page 14 Clarity CL2714 IPI INSTALLATION CLEARANCES OPERATION OF THIS HEATER WHEN NOT CONNECTED TO A PROPERLY INSTALLED AND MAINTAINED VENTING SYSTEM CAN RESULT IN CARBON MONOXIDE (CO) POISONING AND POSSIBLE DEATH MINIMUM CLEARANCES TO COMBUSTIBLES A Unit to sidewall. 4.5”...
  • Page 15: Minimum Fireplace Dimensions

    Clarity CL2714 IPI Page 15 INSTALLATION CLEARANCES MINIMUM FIREPLACE DIMENSIONS The minimum fi replace dimensions the this insert are in the following diagrams and chart: COMBUSTIBLE FLOOR IN FRONT CAN BE LEVEL WITH HEARTH AND CL2714 LEVELING BOLTS MUST BE INSTALLED.
  • Page 16: Optional Blower

    Page 16 Clarity CL2714 IPI OPTIONAL BLOWER S.Z5277.IPI BLOWER INSTALLATION 5. Slide label plates out and set them to the side. 1. If attached, lift the safety screen trim up and out, away from the appliance, and set it aside. (see “SAFETY SCREEN TRIM REMOVAL”...
  • Page 17 Clarity CL2714 IPI Page 17 OPTIONAL BLOWER 7. Slide the blower along the back wall until it reaches the stop fl ange, then feed the blower 10. Insert the blower connector into the IFC board. wires to the right hand side. 8.
  • Page 18: Installation

    Page 18 Clarity CL2714 IPI INSTALLATION INITIAL SETUP 1. There are six leveling bolts on the appliance as shown in (Fig.1). Level the appliance from side to side and front to back. Adjust the leveling bolts to desired vertical position so the appliance is level.
  • Page 19: Vent Termination Location

    Clarity CL2714 IPI Page 19 INSTALLATION VENT TERMINATION LOCATION • In heavy snowfall areas make sure vent termination is located where it will not be blocked by snowfall or snow from snow removal equipment. • Locate vent termination away from plants, bushes, or any other object on or near the vent termination that will interfere or obstruct the air fl...
  • Page 20: Vent Connector Removal And Installation

    Page 20 Clarity CL2714 IPI INSTALLATION VENT CONNECTOR REMOVAL AND INSTALLATION The vent connector slide plate is shipped attached to the insert, but may be removed and attached to fl ex vent for tight installations. NOTE: The vent connector slide plate gasket must not be damaged or removed.
  • Page 21: Vent Restrictor

    Clarity CL2714 IPI Page 21 INSTALLATION VENT RESTRICTOR Due to the high draft produced by certain venting confi gurations the vent restrictor may be adjusted to maintain performance. If vent restriction is necessary it can be adjusted as follows: 1. Turn off the appliance and allow it to cool down completely.
  • Page 22: Air Shutter Adjustment

    Page 22 Clarity CL2714 IPI INSTALLATION AIR SHUTTER ADJUSTMENT The air shutter allows the amount of air coming into the burner to be adjusted in order to accommodate diff erent climates and venting arrangements. 1. Remove the safety screen trim (see SAFETY SCREEN TRIM REMOVAL).
  • Page 23: Electrical Requirements

    Clarity CL2714 IPI Page 23 INSTALLATION ELECTRICAL REQUIREMENTS ELECTRICAL GROUNDING INSTRUCTIONS THIS APPLIANCE IS EQUIPPED WITH A GROUND SCREW FOR YOUR PROTECTION AGAINST SHOCK HAZARD. ENSURE PROPER GROUNDED WIRING IS SUPPLIED AND CONNECTED TO THIS UNIT. LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
  • Page 24: Lighting Instructions

    Page 24 Clarity CL2714 IPI LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal injury or loss of life. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.
  • Page 25: 885 Proflame Valve

    Clarity CL2714 IPI Page 25 885 PROFLAME VALVE 885 PROFLAME VALVE ON-OFF solenoid EV1 terminals ON-OFF solenoid EV2 terminals Inlet pressure test point Outlet pressure test point Electrical pressure modulator device Pressure modulator device terminal Pilot adjusting screw Pilot outlet Gas inlet with protective seal Gas outlet with protective seal Ground connection...
  • Page 26: Operating Instructions

    Page 26 Clarity CL2714 IPI OPERATING INSTRUCTIONS PROFLAME 2 WALL MOUNT TRANSMITTER / REMOTE OPERATION Intermittent Pilot Ignition (IPI) The Profl ame 2 Transmitter is an integrated part of the Profl ame 2 System, which consists of these elements: A Profl ame 2 wall mount transmitter / remote, and an Integrated Fireplace Controller (IFC) with a wiring harness that connects to the gas valve, stepper motor and convection fan.
  • Page 27 Clarity CL2714 IPI Page 27 OPERATING INSTRUCTIONS WALL MOUNTING The Profl ame remote control is supplied with an adapter for wall mounting. Install the controller 1.5 m above fl oor level, well away from heat sources, kitchens, doors or windows. Metallic structures or radio interferences can reduce the operative distance of the device.
  • Page 28 Page 28 Clarity CL2714 IPI OPERATING INSTRUCTIONS Turn On the Appliance With the system OFF, press the ON/OFF Key on the Transmitter. The Transmitter display will show some other active Icons on the screen. At the same time the Receiver will activate the appliance. A single “beep” from the Receiver will confi...
  • Page 29 Clarity CL2714 IPI Page 29 OPERATING INSTRUCTIONS Room Thermostat (Transmitter Operation) The Remote Control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in a room. To activate this function, press the Thermostat Key (Fig. 1). The LCD display on the Transmitter will change to show that the room thermostat is “ON”...
  • Page 30 Page 30 Clarity CL2714 IPI OPERATING INSTRUCTIONS Blower Speed Control If the appliance is equipped with a blower. The speed of the blower can be controlled by the Profl ame system. The blower speed can be adjusted through six (6) speeds. To activate this function use the Mode Key (Fig.1) to index to the blower control icon (Fig.
  • Page 31 Clarity CL2714 IPI Page 31 OPERATING INSTRUCTIONS Continuous Pilot / Intermittent Pilot (CPI/IPI) Selection With the system in “OFF” position press the Mode Key (Fig. 1) to index to the CPI mode icon (Fig. 17 & 18). When enabled it will act as a standing pilot unit with an automatic shutoff timer that will turn the pilot off after 7 days.
  • Page 32: Maintenance And Service

    Page 32 Clarity CL2714 IPI MAINTENANCE and SERVICE ROUTINE MAINTENANCE Regularly: • Clean and remove any lint accumulations or debris from the grills and combustion or convection air passage ways. • Keep the appliance area free from combustible materials, such as paper, wood, clothing, gasoline, fl...
  • Page 33: Safety Screen Trim Removal

    Clarity CL2714 IPI Page 33 MAINTENANCE and SERVICE SAFETY SCREEN TRIM REMOVAL 1. Turn off the appliance and allow it to cool down completely. 2. The safety screen trim fi ts into tabs on the appliance. Lift the safety screen trim up and out, away from the appliance, and set it aside.
  • Page 34: Glass Door Replacement

    Removal and replacement of the glass from the door must be done by a qualifi ed service technician. The glass door must be purchased from a Blaze King dealer. No substitute materials are allowed. BURNER REMOVAL 1.
  • Page 35: Safety Screen Replacement

    Clarity CL2714 IPI Page 35 MAINTENANCE and SERVICE SAFETY SCREEN REPLACEMENT The CL2714 is supplied with a safety screen pre-installed inside the safety screen trim. If the safety screen becomes damaged it must be replaced with part #645-16305 for Z4921 Safety Screen Trim.
  • Page 36: Fuel Conversion

    Page 36 Clarity CL2714 IPI MAINTENANCE and SERVICE FUEL CONVERSION THIS CONVERSION KIT SHALL BE INSTALLED BY A QUALIFIED SERVICE AGENCY IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS AND ALL APPLICABLE CODES AND REQUIREMENTS OF THE AUTHORITIES HAVING JURISDICTION. IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE, EXPLOSION OR PRODUCTION OF CARBON MONOXIDE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
  • Page 37 Clarity CL2714 IPI Page 37 MAINTENANCE and SERVICE Fig.8 How to convert CL2714 IPI pilot orifi ce: 1. Remove the spring clamped hood from pilot and set aside (Fig.8). 2. Unscrew orifi ce from pilot using a 4 mm allen key (Fig.9), then screw in the new orifi...
  • Page 38 Page 38 Clarity CL2714 IPI MAINTENANCE and SERVICE 180-CL2714.IPI v1.01 April 21, 2021...
  • Page 39: Valve Removal & Installation

    Clarity CL2714 IPI Page 39 VALVE REMOVAL & INSTALLATION TO BE DONE BY QUALIFIED PERSONNEL ONLY 1. Turn off the gas valve, disconnect the gas and electricity to the appliance. 2. Remove safety screen trim and glass door. (see SAFETY SCREEN TRIM AND GLASS DOOR REMOVAL) 3.
  • Page 40: Venting Parts List

    Page 40 Clarity CL2714 IPI VENTING PARTS LIST M&G DURAVENT DIRECTVENT PRO / GS SYSTEM PARTS LIST DESCRIPTION PART OLD PART Aluminum Flex Length - 3” 3DFA-35 Flex Coupling - 3” 3DFA-FC Co-Axial to Co-linear Appliance Connector 46DVA-GCL Chimney Liner Termination Kit 46DVA-GK Co-Linear Kit w/ Flex 46DVA-CL33-25...
  • Page 41 VENTING PARTS LIST Clarity CL2714 IPI Page 41 BDM PARTS LIST ORDER # DESCRIPTION PROFORM 35’ INSERT CO-LINEAR TERMINATION KITS: 94203370 3"X3"VCL PROFORM KIT 35'X 2 94203370B 3"X3"VCL PROFORM KIT 35'X 2 W/ BLACK CAP PROFORM INSERT CO-LINEAR INSULATED KITS: 942103360 3"X3"VCL PROFORM INSULATED KIT 30'X 2 942103360B...
  • Page 42 Page 42 Clarity CL2714 IPI VENTING PARTS LIST OLYMPIA PARTS LIST KITS PART DESCRIPTION VDV-CKVCCH33 3”x3” Co-Linear Kit that includes a High Wind Vertical Cap, 2 3”x35’ rolls of Aluminum Liner and 4 hose clamps VDV-CK33CC Square Style 3”x3” Stainless Steel Co-Linear Cap and 2 Hose clamps. The cap has 2 built-in Hose Clamps VDVB-CK33CC Square Style 3”x3”...
  • Page 43: Parts List

    Clarity CL2714 IPI Page 43 PARTS LIST ITEM PART DESCRIPTION NUMBER 4911 BAFFLE Z4910 FLOOR PLATE 640-4900 14” WIDE BURNER 610-199-059 PF2 PILOT ASSEMBLY Z4917 CL2714 DOOR ASSEMBLY 4980 SECONDARY TRIM 645-1630 SAFETY SCREEN 16” X 30.5” S.Z4921 SAFETY SCREEN TRIM w/ SCREEN Z4927 VALVE ASSEMBLY WITH BURNER 600-885-809...
  • Page 44: Troubleshooting

    Page 44 Clarity CL2714 IPI TROUBLESHOOTING DIAGNOSTIC FLASH CODES ON IFC CONTROL 1. Fail to ignite: If there is no positive ignition, the board will go into lock out and the LED will blink 3 times in intervals until the system is reset. 2.
  • Page 45 Clarity CL2714 IPI Page 45 TROUBLESHOOTING Please check to make sure the instructions are followed exactly before attempting trouble shooting of the appliance. TROUBLESHOOTING AND SERVICING OF GAS AND ELECTRICAL DEVICES OF THE APPLIANCE SHOULD ONLY BE CONDUCTED BY A QUALIFIED SERVICE TECHNICIAN PROBLEM POSSIBLE CAUSE ACTION...
  • Page 46 Page 46 Clarity CL2714 IPI TROUBLESHOOTING • Turn the system off by pressing the ON/OFF button on the transmitter • After approximately 2 seconds press the ON/OFF button on the transmitter again. Locking conditions Reset the Profl ame IFC board •...
  • Page 47: Warranty

    Blaze King and its respective brands extend the following warranty for gas appliances purchased from an authorized Blaze King dealer and installed in the United States of America or Canada. Warranty starts with date of purchase by the original owner (End User) except as noted for replacement parts.
  • Page 48 Blaze King is the manufacturer of the Blaze King line of heating products. At Blaze King, our commitment to the highest level of quality and customer service is the most important thing we do. Each Blaze King stove is built on a tradition of using only the fi...
  • Page 49 WARRANTY If you are not satisfi ed with the service provided by the Blaze King dealer, write to Blaze King at the address listed on the last page of the Owner’s Manual. Include a copy of the original purchase invoice and a description of the problem.
  • Page 50 Labor rates are set per component and as such total labor costs may not be covered. 26. If a defect or problem is determined by Blaze King to be non warrantable, Blaze King will not be liable for travel costs for service work.
