Connecting The Cable Modem Continued...

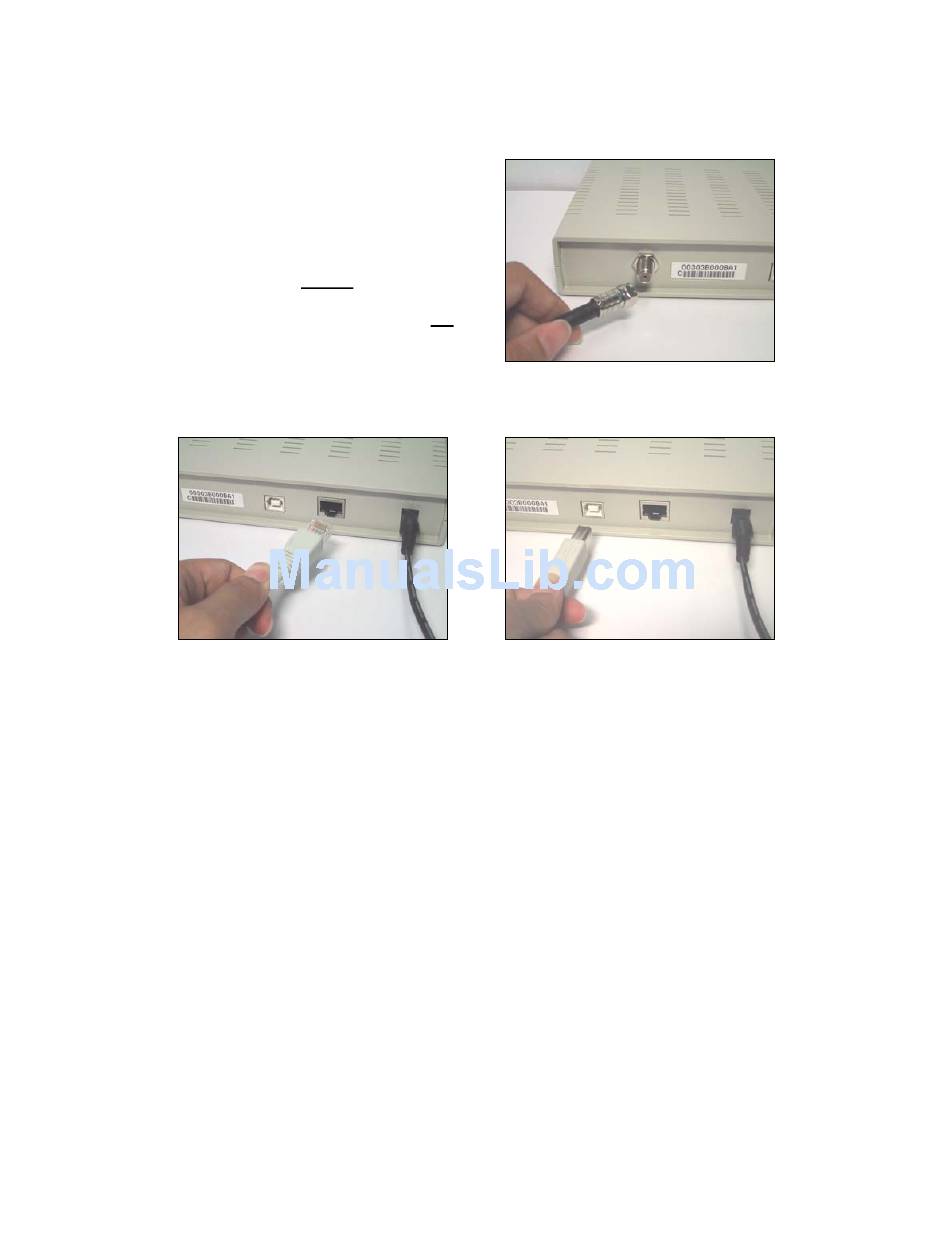

Connect the coaxial cable provided for the Internet connection to the jack
labeled "CABLE IN" in the back of the cable modem unit.
Wait 1 to 3 minutes for the status light
to illuminate. If the status LED does not
turn "ON," please contact your
broadband cable company for further
instructions.
NOTE:
* The DCM-200 USB/Ethernet Cable Modem
will work only with the Ethernet port OR the
USB port connected. BOTH PORTS
CANNOT BE CONNECTED

Ethernet Cable

A1. Connect an Ethernet cable to
the port labeled "Ethernet"
on the back of the cable
modem. Plug the other end
of the Ethernet cable into
the Ethernet adapter that is
installed in your computer.
SIMULTANEOUSLY.
OR
USB Cable
A2. Connect a USB cable to
the "USB type B" port on
the back of the cable
modem unit. Plug the
other end of the USB
cable into the "USB type
A" outlet on your
computer.
2
