Quick Links

Instructions when using for the first time
Inserting the batteries
1.
Camera settings when using for the first time (4.3)
2.
Taking a photograph
3.
Viewing photographs
4.
Installing the driver
5.
Connecting the camera
6.
7.
Installing the applications
Viewing and transferring photographs
8.
1
Introduction

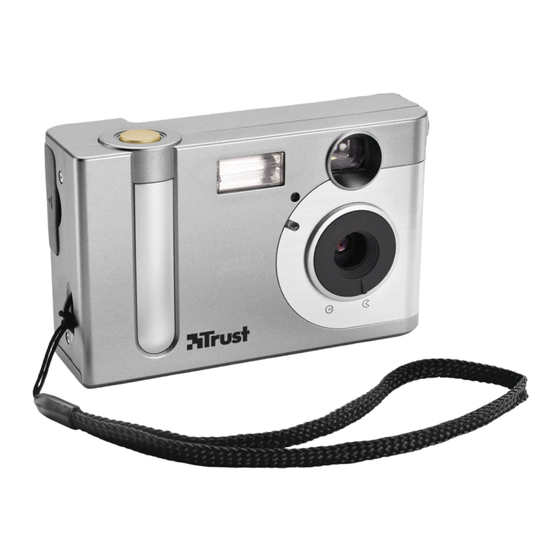

This instruction manual is for users of the TRUST 610 LCD POWERC@M ZOOM.
This camera is able to take a maximum of 108 photographs in the low resolution, 35
photographs in the standard resolution and 16 photographs in the maximum
resolution. The highest photograph resolution is 1600 x 1200 pixels (2.1 Mpixel). The
camera has an 8 MB internal flash memory, a webcam function, an automatic
exposure, a lens with a fixed focal length, a digital zoom and a flash function. The
camera's memory can be increased up to a maximum of 128 Mbyte using an
optional Smart Media Card.
2
Safety
2.1
General information
Carefully read the following instructions before use.
- The TRUST 610 LCD POWERC@M ZOOM does not require any special
maintenance. Use a slightly damp, soft cloth to clean the camera.
- Do not use aggressive substances, such as petrol or white spirit, to clean the
device. These may harm the material.
- Do not submerge the device in liquid. This may be dangerous and will damage
the device. Do not use this device near water.
- Do not repair the device yourself. The flash uses a high voltage and there is a
danger or receiving an electric shock.
- Do not look through the viewfinder if it is aimed directly at the sun, because this
may damage your eyes.
- Do not use the flash within a distance of 1 metre from somebody's eyes. This is
particularly important when photographing babies and young children.
2.2
Batteries
1.
The batteries supplied with the camera are not rechargeable. Do not try to
recharge them, The batteries may explode.
2.
Never throw the batteries onto an open fire. The batteries may explode.
3.
Never drill holes into the batteries.
4.
Keep the batteries out of the reach of small children.
5.
Only use AA alkaline or rechargeable AA NiMh/1600 mA batteries with this
camera.
6.
When the batteries are empty, ask your local authority where you can
dispose of them.
Note:
Do not use old and new batteries at the same time, because the old
batteries may leak and cause damage.
Note:
The batteries should be removed if the camera is not going to be used
for some time. This will save the battery capacity.
TRUST 610 LCD POWERC@M ZOOM
Chapter
(4.2)
!
(4.6)
(4.7)
(5.2)
(5.3)
(6.)
(7.3)
1
U K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trust 610

  • Page 1 (7.3) Introduction This instruction manual is for users of the TRUST 610 LCD POWERC@M ZOOM. This camera is able to take a maximum of 108 photographs in the low resolution, 35 photographs in the standard resolution and 16 photographs in the maximum resolution.
  • Page 2: Description Of The Camera

    TRUST 610 LCD POWERC@M ZOOM Description of the camera Front of the camera Use table 1 in combination with figure 1. Item Description Function Exposure button Takes a photograph. If this button is pushed half way in, the camera prepares itself to take a photograph.
  • Page 3 TRUST 610 LCD POWERC@M ZOOM Rear of the camera Use table 2 in combination with figure 2. Item Description Function Viewfinder For viewing the image to record. You can also view the subject by looking at the built-in LCD screen. The viewfinder is useful in bright light if the LCD screen is difficult to see.
  • Page 4: Bottom Of The Camera

    TRUST 610 LCD POWERC@M ZOOM Item Description Function delete them. Table 2: Functions of the rear of the camera Bottom of the camera Use table 3 in combination with figure 3. Item Description Function Screw point for stand Here, you can attach the stand provided with the camera or a larger, more professional, stand.
  • Page 5: Item Description

    Close the battery flap again by pushing it sideways slightly and sliding it closed. The TRUST 610 LCD POWERC@M ZOOM is now ready for use. Note: Only use non-rechargeable alkaline batteries or NiMH 1600 mA, or higher, rechargeable batteries. Other types of batteries do not work correctly in this camera.
  • Page 6: Internal Clock

    TRUST 610 LCD POWERC@M ZOOM The batteries are full. The battery capacity is low. Only a few more photographs can be taken. Table 6: Battery conditions Camera settings when using for the first time 4.3.1 Opening the Set-up menu See figure 2 on the first page of this instruction manual for this explanation. Most settings are available on the LCD screen via the set-up menu.
  • Page 7 TRUST 610 LCD POWERC@M ZOOM Press the LCD button (14, figure 2) to save the clock settings and exit the submenu. The time has now been set. Most used settings 4.4.1 LCD screen The LCD screen can be turned off to save the batteries. You can also turn off the menu items to have a better view of the image.
  • Page 8: Digital Zoom

    TRUST 610 LCD POWERC@M ZOOM Tip: Using the flash will cause the batteries to become empty more quickly, because the flash uses a lot of energy. It is also possible that the charging time will take longer the more the flash is used.
  • Page 9 4.5.2 Memory card or internal memory With the TRUST 610 LCD POWERC@M ZOOM, you can save photographs in the internal memory or on an optional Smart Media Card. When it is turned on, the camera will select to save photographs on the Smart Media Card, if one is available.
  • Page 10 TRUST 610 LCD POWERC@M ZOOM Use the UP and DOWN buttons to scroll through the list until the desired resolution is selected. Select a higher resolution for a better print result. Select a lower resolution to increase the number of photographs which can be saved in the camera.
  • Page 11 TRUST 610 LCD POWERC@M ZOOM Place the MODE switch (6) in the PHOTO position. The LCD screen (15) will still be turned off. You can turn on the LCD screen by pressing the LCD button (14) or you can use the viewfinder (1). If the LCD screen is used, all the settings will also be visible.
  • Page 12 TRUST 610 LCD POWERC@M ZOOM Press the EXPOSURE button to select the special effect. You will see the special effect on the LCD screen and you can now take photographs. There are two special effects. Monochrome: takes photographs in black-and-white.
  • Page 13: Installing The Software

    Click on ‘TRUST 610 LCD POWERC@M ZOOM‘ to start the installation of the camera. Follow the on-screen instructions. The installation of the driver and software for the TRUST 610 LCD POWERC@M ZOOM has now been completed. The installation of the other programs is described later in this instruction manual.
  • Page 14: Checking After The Installation

    If used as a webcam: Imaging device – TRUST 610 LCD Powercam Zoom, Dummy driver – TRUST 610 LCD Powercam Zoom, WDM Bulk Driver – TRUST 610 LCD Powercam Zoom, WDM Video Capture If used to download photographs: Disk drives –...
  • Page 15: Installing The Application Software

    Photo Express 4.0 is an application that can be used to load and edit the photographs on your PC which you have taken using your TRUST 610 LCD POWERC@M ZOOM. This program requires 500 MB free hard disk space. Follow the instructions below to install Photo Express 4.0.
  • Page 16: Using The Software

    7.1.1 Downloading photographs from the camera The TRUST 610 LCD POWERC@M ZOOM is visible in Windows (and also MAC OS) as an extra removable disk. Its use is as easy as moving a file. In contrast to other cameras, this camera, therefore, does not require a separate (TWAIN) driver.
  • Page 17 The main window will appear. The 'Set-up Internet Connection' window may also appear. Click on the 'Skip for now' button to close this window if it appears. The Trust camera will be visible as a ‘Removable disk’ in the list on the left-hand side of the window.
  • Page 18 TRUST 610 LCD POWERC@M ZOOM Note: The program has the option to publish the photographs on the Internet (if you have a connection to the Internet). This is useful if you wish to show your photographs to friends. Remember that anybody will then be able to see your photographs and the company that administers the site has the right to use your photographs in advertisements.
  • Page 19: Webcam & Internet

    Do not allow children to use NetMeeting unsupervised. Webcam & Internet The Trust 610 LCD POWERC@M ZOOM can also be used as a webcam, for example, on your Internet page. A number of informative sites about webcams are given below: http://www.camarades.com...
  • Page 20: Troubleshooting

    Carry out the following: The TRUST 610 between the camera 1) Remove the TV Capture card. and the TV card. 2) Install the TRUST 610 LCD POWERC@M POWERC@M ZOOM. ZOOM does not 3) Install the TV capture card. work in...
  • Page 21 TRUST 610 LCD POWERC@M ZOOM Problem Cause Possible solution The camera is turned Turn the camera on or take it out of off or is in the sleep the sleep mode by pressing the mode. MODE switch for a couple of seconds.
  • Page 22 TRUST 610 LCD POWERC@M ZOOM Problem Cause Possible solution If a too high VGA Set your VGA card to a lower resolution is used (for resolution and colour depth (for example, 1600 x example, 800 x 600 / 16 bits 1200), it is possible colours).
  • Page 23 Troubleshooter. If you still have problems after trying these solutions, please contact one of the Trust Customer Care Centers. You can find more information at the back of this instruction manual. Please have the following information available: •...
