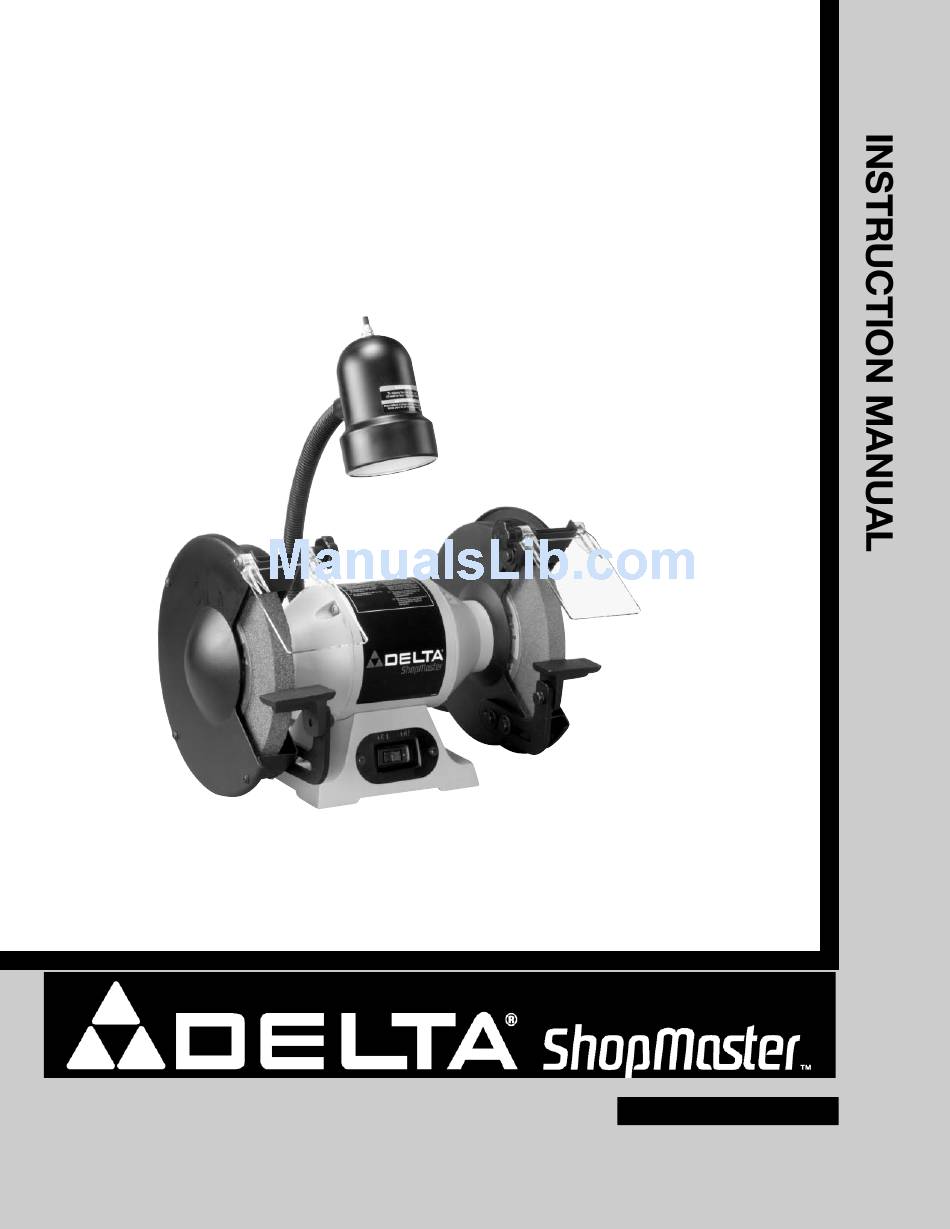

8" bench grinder with lamp
Hide thumbs Also See for GR350:

Advertisement

8" Bench Grinder
with Lamp
(Model GR350)
PART NO. 905596 - 04-29-05
Copyright © 2005 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 15
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta GR350

  • Page 1 8" Bench Grinder with Lamp (Model GR350) PART NO. 905596 - 04-29-05 Copyright © 2005 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 15 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).
  • Page 2: Table Of Contents

    NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery and we have advised you.
  • Page 3: Safety Guidelines

    SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 4: General Safety Rules

    13. USE RECOMMENDED ACCESSORIES. The use of and wash exposed areas with soap and water. accessories and attachments not recommended by Delta may cause damage to the machine or injury to the user.
  • Page 5: Additional Specific Safety Rules

    ADDITIONAL SPECIFIC SAFETY RULES FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY. DO NOT OPERATE THIS MACHINE until it is 16. CLEAN THE MACHINE thoroughly when processing completely assembled and installed according to the different types of workpieces (wood, steel, or instructions.
  • Page 6: Power Connections

    POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug.
  • Page 7: Functional Description

    FUNCTIONAL DESCRIPTION FOREWORD The Delta ShopMaster Model GR350 is an 8"Bench Grinder that comes with a flexible lamp, adjustable tool rests, and two large eye shields for added safety. NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the manual are representative only and may not depict the actual color, labeling, or accessories, and are intended to illustrate technique only.
  • Page 8: Carton Contents

    CARTON CONTENTS 1. Grinder 9. 5/16-18x3/4" Hex head bolt (2) 2. Tool rest (2) 10. 3/4" Flat washer (4) 3. Tool rest arm (2) 11. 5/16-18x5/8" Hex head bolt (4) 4. Eye shield (2) 12. 1/4-20x1/4" Hex head bolt (2) 5.
  • Page 9: Tool Rest

    For your own safety, do not connect the machine to the power source until the machine is completely assembled and you read and understand the entire instruction manual. ASSEMBLY ASSEMBLY TOOLS REQUIRED Wrench (supplied) ASSEMBLY TIME ESTIMATE Less than 1 hour TOOL RESTS 1.
  • Page 10: Eye Shield

    SPARK GUARDS Mount the spark guard (A) Fig. 3 to the side of each wheel guard, using the 1/4-20x1/4" hex head screw (B) and 1/4" flat washer (C). NOTE: Place the tab (D) Fig. 3 (on the side of the spark guard) (A) in the slot (E), before attaching the spark guard (A) to the grinder.
  • Page 11: Operation

    GRINDING WHEELS The use of accessories and attachments not recommended by Delta may result in the risk of injuries. Only use 1" wide grinding wheels rated for 3600 RPM or higher and 8" in diameter with a 5/8" arbor hole.
  • Page 12: Troubleshooting

    Do not overtighten the wheel nuts when installing grinding wheels. Tighten the wheel nuts enough to drive the wheel and prevent slippage. TROUBLESHOOTING For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582).
  • Page 13: Maintenance

    SERVICE PARTS, SERVICE OR WARRANTY ASSISTANCE All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network • of Porter-Cable Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
  • Page 14: Warranty

    Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
  • Page 15: Español

    Phone: (514) 336-8772 Fax: (604) 420-3522 Fax: (514) 336-3505 The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE • DELTA): Auto-Set ®...
