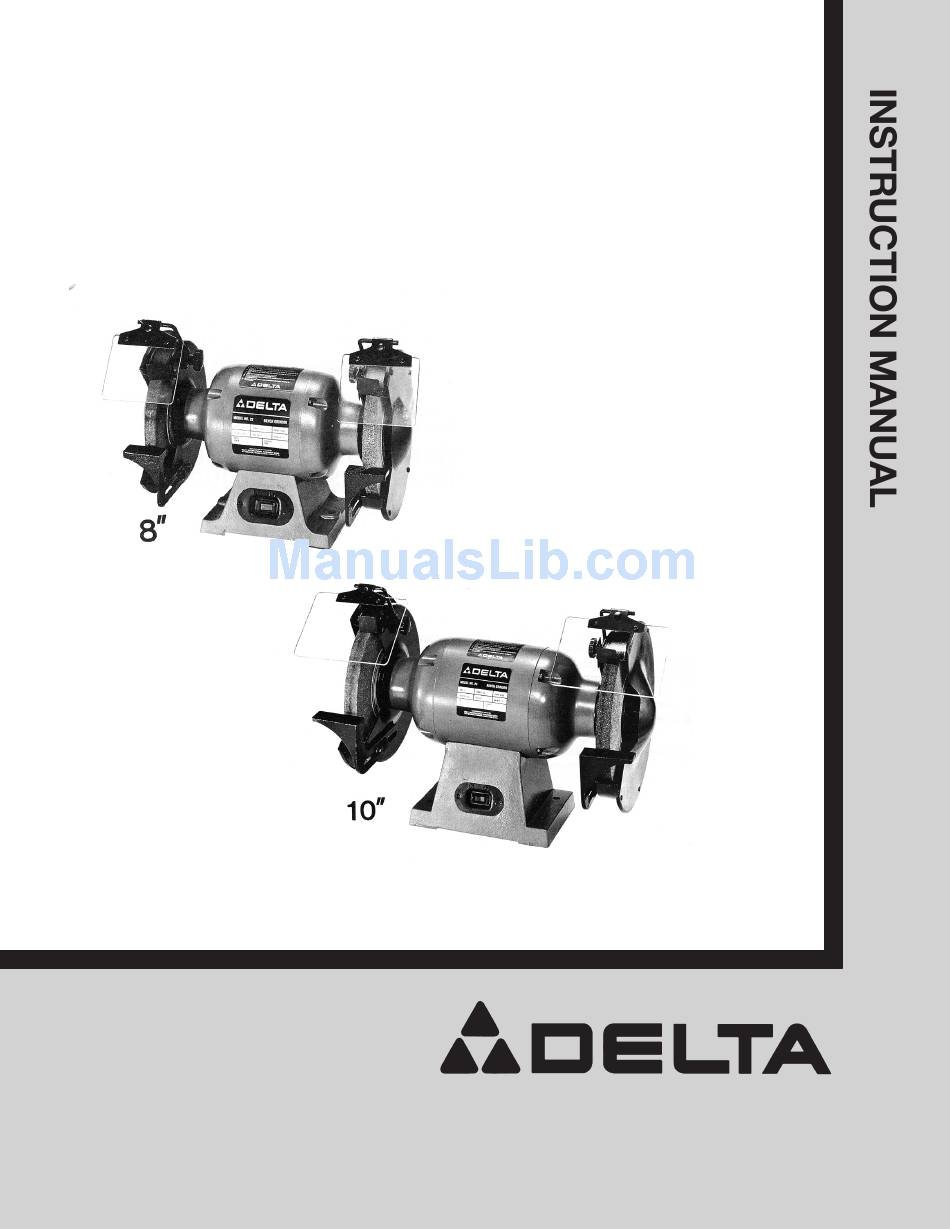

8" and 10"
Bench Grinders
(Models 23-880 & 23-980)
The Serial No. and Model No. plate
is attached to the front of the
motor. Locate this plate and record
the Serial No. and Model No. in
your manual for future reference.
SERIAL NO.
MODEL NO.
Dated 8-11-95
PART NO. 1345338
© Delta International Machinery Corp. 1995
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta 23-880
Summary of Contents for Delta 23-880
- Page 1 Locate this plate and record the Serial No. and Model No. in your manual for future reference. SERIAL NO. MODEL NO. Dated 8-11-95 PART NO. 1345338 © Delta International Machinery Corp. 1995...
-
Page 2: Safety Rules
If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product. -
Page 3: Additional Safety Rules For Grinders
UNPACKING AND CLEANING Your new grinder is shipped complete in one carton. Carefully unpack the grinder and all loose items from the carton. WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE GRINDER TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. -
Page 4: Assembly Instructions
(A) should be adjusted accordingly. ASSEMBLING EYE SHIELDS Your grinder is supplied with two safety eye shields for operator protection. To assemble the eye shields, proceed as follows: Place shield (A) Fig. 4, under the lip of frame (B). Line up the two holes in the shield with the two holes in the frame and fasten together using two 1/2 inch-long, round head screws (C), washers (D) and nuts (E). -
Page 5: Power Connections
WARNING: DO NOT EXPOSE THE TOOL TO RAIN OR OPERATE THE TOOL IN DAMP LOCA- TIONS. Your grinder is wired for 110-120 volt, 60 HZ alternating current. Before connecting the grinder to the power source, make sure the switch is in the “OFF” position. -
Page 6: Extension Cords
When using an extension cord, be sure to use one heavy enough to carry the current of the grinder. An undersized cord will cause a drop in line voltage, resulting in loss of power and over-heating. Fig. 7A shows the correct gage to use depending on the cord length. -
Page 7: Grinding Wheels
3600 RPM; the 10" grinder has a no-load speed of 1800 RPM. Use only grinding wheels that have a bore equal to the diameter of the arbor shaft on the grinder. The 8" grinder is supplied with a 5/8" diameter arbor and the 10"... - Page 8 Two Year Limited Warranty Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine acces- sory which in normal use has proven to be defective in workmanship or material, provided that the customer...
