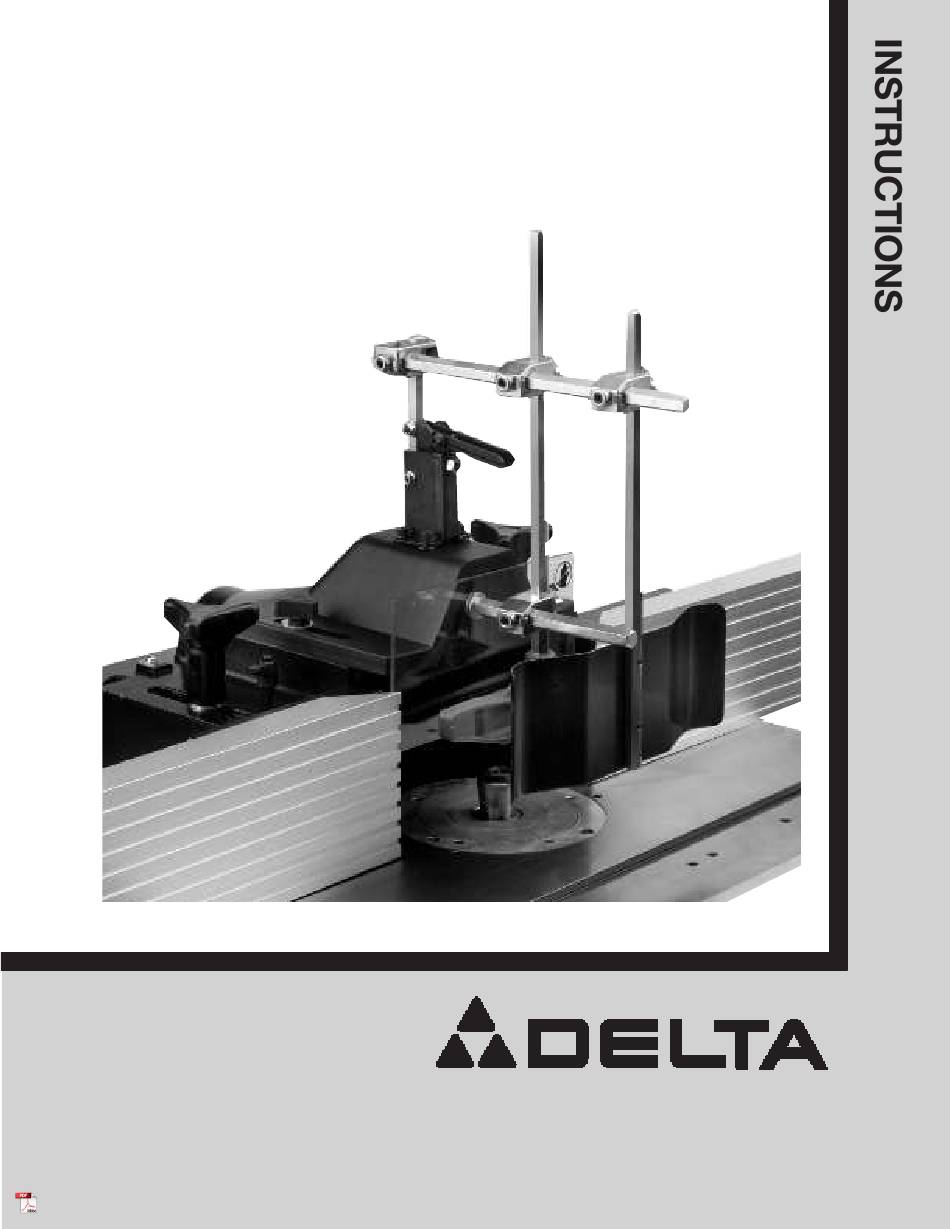

Deluxe Shaper Fence
(Model 43-812)
(Model 43-812X)
PART NO. 432-02-651-0039 - 06-09-03
Copyright © 2003 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call
https://manual-hub.com/

Advertisement

loading
Need help?

Need help?

Do you have a question about the 43-812 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta 43-812

Summary of Contents for Delta 43-812

  • Page 1 Deluxe Shaper Fence (Model 43-812) (Model 43-812X) PART NO. 432-02-651-0039 - 06-09-03 Copyright © 2003 Delta Machinery To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call In Canada call https://manual-hub.com/...

  • Page 2: Safety Guidelines - Definitions

    Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage. NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE MODEL 43-812. ALL OTHER ILLUSTRATIONS ARE OF THE 43-812 WITH THE EXCEPTION OF THE 43-812X CARTON CONTENTS AND FIG 3A. MODEL 43-812 CARTON CONTENTS Fig. 2 1.
  • Page 3 MODEL 43-812X CARTON CONTENTS Fig. 2A 1. Fence Body 13. 1/4" Flat Washers for mounting guard mounting bracket to top cover (4) 2. Left and Right fence halves (2) 14. 1/4-20 Hex Nuts (4) for mounting guard mounting 3. Clear Plastic Guard bracket to top cover 4.
  • Page 4 (B) and tighten securely. Repeat this process for the remaining fence lock knob. Fig. 3A FOR BOTH MODELS 43-812 AND 43-812X 2. Place fence body (C) Fig. 4, on the table as shown, and locate the two fence locking levers with 11/32"...
  • Page 5 3. Fasten bar (E) to the front of the fence half using the locking lever and 11/32" flat washers (D), as shown Fig. 5 in Figs. 5 and 6. Assemble the remaining bar to the other fence half in the same manner. NOTE: Locking levers (D) are spring-loaded and can be repositioned by pulling out the handle and repositioning it on the nut located underneath the hub of the handle.
  • Page 6 Fig. 10 Fig. 11 7. Align the four holes in the bottom of the guard mounting bracket (H) Fig. 10 with the four holes in the top of the top cover (J). Place a 1/4" lockwasher onto a 1/4-20x1" screw. Insert the screw through the hole in the guard mounting bracket (H) and the top cover (J).
  • Page 7 3. Assemble holddown/clear plastic guard assembly to hex rod (B) as shown in Fig. 15. Fig. 15 4. Assemble guard bracket (A) Fig. 16, and spring clamp (F) to hex rod (B) as shown, then tighten all set screws. Fig. 16 5.

  • Page 8: Operating Controls And Adjustments

    OPERATING CONTROLS AND ADJUSTMENTS FENCE CONTROLS AND ADJUSTMENTS The fence halves (A) Fig. 19, should be adjusted endwise so the opening at the spindle is never more than is required to clear the cutter. 2. To adjust the fence halves (A) Fig. 19 endwise, loosen the two fence locking levers (B), slide the fence halves to the required positions, and tighten locking levers (B).
  • Page 9 GUARD CONTROLS AND ADJUSTMENTS DISCONNECT MACHINE FROM POWER SOURCE. The spring clamp (A) Fig. 23, holddown (B), and clear plastic guard (C) are fully adjustable to provide safe protection for most applications. NOTE: For certain applications, the spindle guard supplied with the shaper may have to be used or a custom guard may need to be fabricated. 1.
  • Page 10 Fig. 26 2. Adjust holddown (B) Fig. 26, by placing a piece of material which will be used on the table as shown. Loosen set screws on guard mounting bracket (K) and adjust holddown (B) over top of workpiece to provide some downward pressure and tighten set screws.

  • Page 11: Parts, Service Or Warranty Assistance

    Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
  • Page 12 Delta Distributor, Authorized · Service Center, or Porter-Cable Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will · be directed to the nearest Porter-Cable Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas grandes ciudades.
