Summary of Contents for American Audio DLT-15A

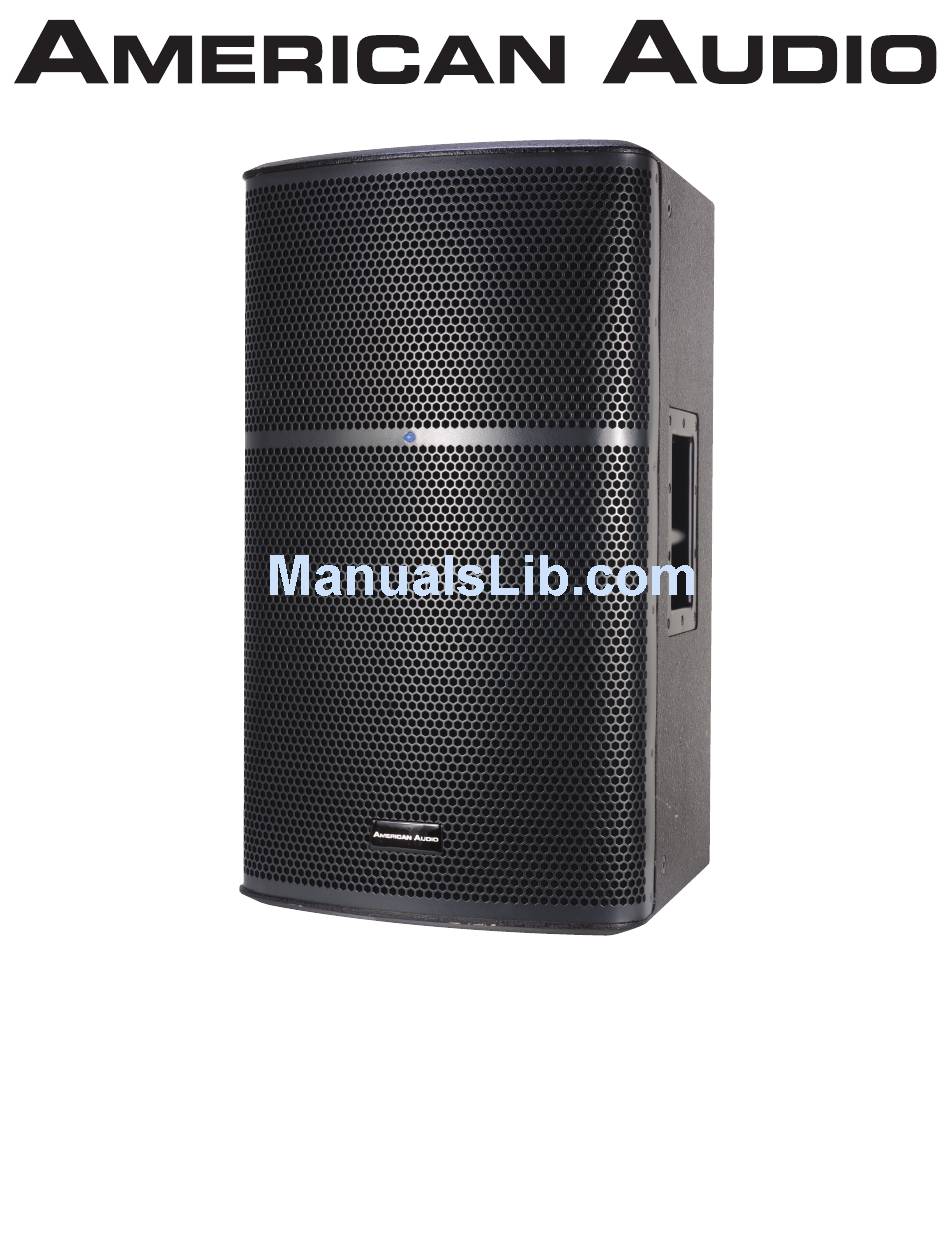

- Page 1 DLT-15A Powered Professional Two-Way Sound Reinforcement Loudspeaker 11/11...
-
Page 2: Table Of Contents
The DLT-15A is a self powered, two-way active loudspeaker encased in a light weight ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit. -
Page 3: Handling Precautions
EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - DLT-15A - Instruction Manual Page 3 © ®... - Page 4 D LT-15A Safety Precautions DLT-15A loudspeaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause sever and permanent hearing damage. A great degree of care should be taken to protect your ears to prolong exposure to SPL in excess of 85dB.
-
Page 5: Features
D LT-15A Registration The DLT-15A carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Controls And Features
D LT-15A Controls and Features Rear of DLT-15A American Audio - www.AmericanAudio.us - DLT-15A - Instruction Manual Page 6 © ®... -
Page 7: Rear Panel Controls
2. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DLT-15A or other line level input jack such as a mixer or power amp. -
Page 8: Rear Panel Controls And Features
Rear Panel Controls and Features FUSE HOLDER – This housing stores the 3.15 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty. -
Page 9: Horn Rotation
D LT-15A Horn Rotation The DLT-15A is equipped with a rotatable high frequency horn. The horn can be turned 90 degrees when a differnet dispersion is desired; i.e. when rigging the speaker horizontally. Carefully follow the directions below to rotate the horn. - Page 10 D LT-15A Typical Speaker Set-Up Typical DLT-15A Output Set-Up XLR-XLR Balanced Cables American Audio - www.AmericanAudio.us - DLT-15A - Instruction Manual Page 10 © ®...
-
Page 11: Looping Speakers
D LT-15A Looping Speakers DLT-15A Looping From Mixer To Next DLT-15A (If Applicable) American Audio - www.AmericanAudio.us - DLT-15A - Instruction Manual Page 11 © ®... - Page 12 The DLT-15A also include a pole mount option. The pole mount socket located on the bottom of the speaker may be used to secure the speaker to a speaker tri-pod, such as the American Audio ® SPS-1B as illustrated on the left. Always be sure to follow the guidelines listed below when pole mounting your speaker;...
-
Page 13: Available Accessories
Available Accessories Speaker Rigging Hardware – The DLT-15A may be permanently installed or mounted using any of the available third party wall brackets and ceiling mounts available. Always be sure to follow all safety instructions and guidelines included with the mounting hardware for safe and proper installa- tion. -
Page 14: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... -
Page 15: Specifications
D LT-15A Technical Specifications Model: American Audio® DLT-15A - Professional Powered Sound Reinforcement Loud Speaker Speaker Section: 17.5” (L) x 17.5” (W) x 28.75” (H) / 445mm x 445mm x 730mm Dimensions: 60 Lbs. / 27 kgs Weight: Operational temperature: 5 to 35˚C (41 to 95˚F) - Page 16 ©American Audio® World Headquarters: 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-3322 Fax: 323-725-6100 Web: www.AmericanAudio.us E-mail: info@americanaudio.us American DJ Europe Junostraat 2 6468 EW Kerkrade Netherlands service@americandj.eu / www.americandj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99...
