- Page 1 PXI 15P ™ Powered Professional Two-Way Sound Reinforcement Loudspeaker MERICAN UDIO 4295 Charter Street Los Angeles, Ca. 90058 www.AmericanAudio.us Rev. 4/05...
-
Page 2: Table Of Contents

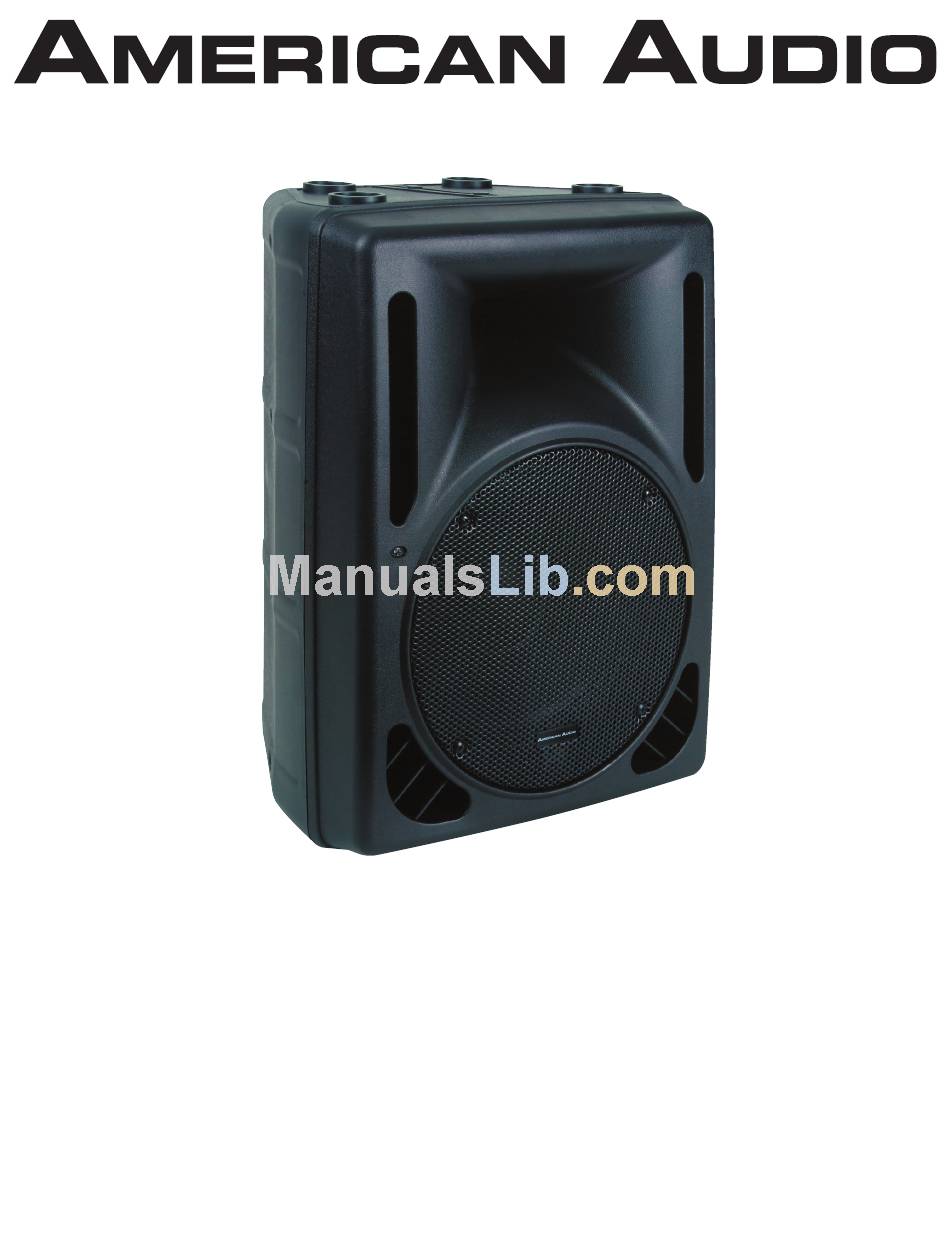

The PXI 15P™ is a 400 watt self powered, two-way active loudspeaker encased in a light weight ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit. -
Page 3: P Xi 15P
ELECTRIC SERVICE EQUIPMENT - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 3 ® Handling Precautions The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 P XI 15P™ PXI 15P™ loudspeaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause sever and permanent hearing damage. A great degree of care should be taken to protect your ears to prolong exposure to SPL in excess of 85dB.
-
Page 5: Features
• Attached heavy Duty Rubber Feet P XI 15P™ The PXI 15P™ carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 6: Front Panel Features
PXI 15P™ and are used to support another speaker when they are stacked together. 6. RIGGING POINTS – The PXI 15P™ has four rigging points. These points are to be used to “fly” or suspend the speaker in the air by some means. Be sure to follow the “flying” outlines on page 15. -
Page 7: Rear Panel Controls
Do not connect mixers to this input, use the Balanced XLR or RCA Input (17 or 19) only! American Audio © Rear Panel Controls and Features L I N E PXI 15P - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 7 ®... - Page 8 24. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another PXI 15P™ or other line level input jack such as a mixer or power amp.
- Page 9 27. FUSE HOLDER – This housing stores the 3.15 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 10 AUX 4 AUX / IN MODEL NO.: Q-3433 MKII POWER SOURCE: 115/230V~ 50/60Hz 20W MADE IN CHINA TRIM OUTPUT XLR-XLR Balanced Cables PXI 15P™ PXI 15P™ American Audio - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 10 © ®...
-
Page 11: Looping Speakers
P XI 15P™ Looping Speakers PXI 15P™ Looping From Mixer To Next PXI 15P™ (If Applicable) American Audio - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 11 © ®... -
Page 12: Rigging And Mounting
American Audio with the PXI 15P. ™ The Z-APX/B is a heavy-duty bolt and may be used to secure the speaker to a cable or chain. The Z-APX/H is a heavy-duty eyebolt and is used to suspend or secure the speaker using safety cables. - Page 13 These brackets slide into each end of the speaker. Each speaker has its own special sized floor bracket. American Audio - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 13 © ®...
-
Page 14: Available Accessories
® ware specially designed to work with the PXI 15P. ™ The Z-APX/B is a heavy-duty bolt and may be used to se- cure the speaker to a cable or chain. The Z-APX/H is a heavy-duty eyebolt and is used to suspend or secure the speaker using safety cables. -
Page 15: Warranty
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which American Audio product; if the product has been repaired or serviced by anyone other than the American Audio factory unless prior written authorization was issued to purchaser by American Audio product is damaged because not properly maintained as set forth in the instruction manual. -
Page 16: Specifications
90˚ x 50˚ (HXV) AC 115v/230v, 50/60Hz 12 Watts Typical I.E.C. Power Cord 80mV 97.4 ± 2dB/m/w +/-12dB +/-12dB - www.AmericanAudio.us - PXI 15P™ - Instruction Manual Page 16 ® Technical Specifications 25 to 85% RH (non-condensation) -20 to 60˚C (4 to 140˚F) - Page 17 ©American Audio A Division of the American DJ Group of Companies American Audio World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.AmericanAudio.us E-mail: info@AmericanAudio.us...
