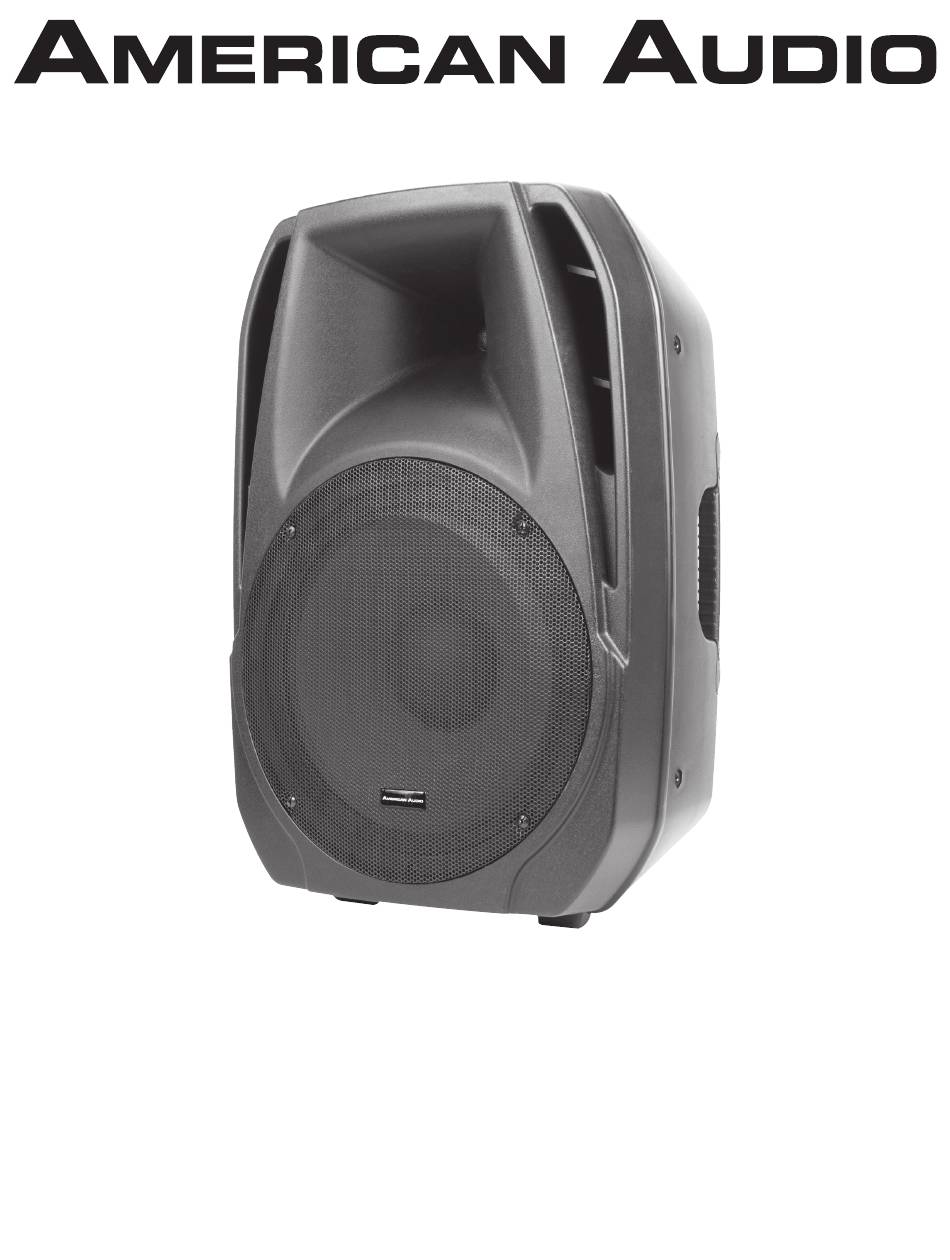

- Page 1 ELS15 BT Professional Powered Two-Way Loudspeaker Rev. 1/15...
-
Page 2: Table Of Contents

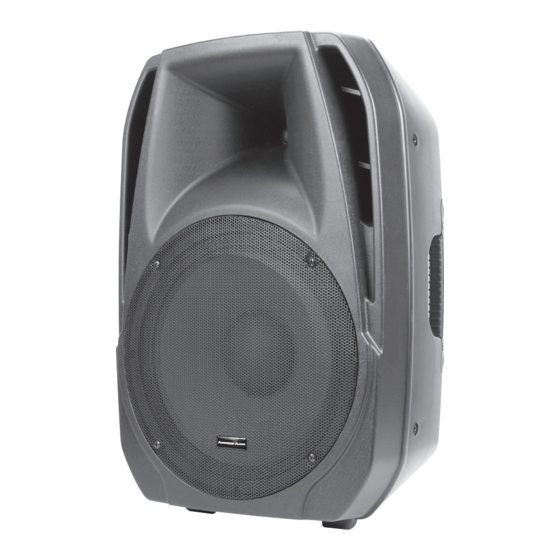

The ELS15 BT is a lightweight 15-inch active speaker. Its extremely high efficiency design, low power consumption, and plenty of output power is ideal for small and mid-size events. The ELS15 BT is multifunctional. -
Page 3: Handling Precautions
EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - ELS15 BT - Instruction Manual Page 3 © ®... - Page 4 ELS15 BT Safety Precautions ELS15 BT loudspeaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause sever and permanent hearing damage. A great degree of care should be taken to protect your ears to prolong exposure to SPL in excess of 85dB.
-
Page 5: Features
ELS15 BT Registration The ELS15 BT carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Rear Panel Controls
ELS15 BT Controls and Features Rear of ELS15 BT American Audio - www.AmericanAudio.us - ELS15 BT - Instruction Manual Page 6 © ®... - Page 7 12. XLR PaRaLLEL oUTPUT jaCk – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another ELS15 BT or other line level input jack such as a mixer or power amp.
- Page 8 FUSE HoLDER – This housing stores the 3.15 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 9 ELS15 BT Typical Speaker Set-Up Typical ELS15 BT output Set-Up XLR-XLR Balanced Cables American Audio - www.AmericanAudio.us - ELS15 BT - Instruction Manual Page 9 © ®...
- Page 10 ELS15 BT Looping Speakers ELS15 BT Looping From Mixer To Next ELS15 BT (If Applicable) American Audio - www.AmericanAudio.us - ELS15 BT - Instruction Manual Page 10 © ®...
-
Page 11: Rigging And Mounting
The ELS15 BT also include a pole mount option. The pole mount socket located on the bottom of the speaker may be used to secure the speaker to a speaker tri-pod, such as the American Audio ® SPS-1B as illustrated on the left. Always be sure to follow the guidelines listed below when pole mounting your speaker;... -
Page 12: Available Accessories
American Audio carries an assortment of rigging hardware specially designed to work with the ® ELS15 BT. Please contact your dealer for more information and availability. SPS-1B - Speaker Stands - American Audio carries the SPS-1B speak- ®... -
Page 13: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... -
Page 14: Specifications
ELS15 BT Technical Specifications Model: American Audio® ELS15 BT - Professional Powered Sound Reinforcement Loud Speaker Dimensions: 18.5” (L) x 14.75” (W) x 27.75” (H) / 469mm x 372mm x 700mm weight: 39.5 Lbs. / 17 kgs Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)
