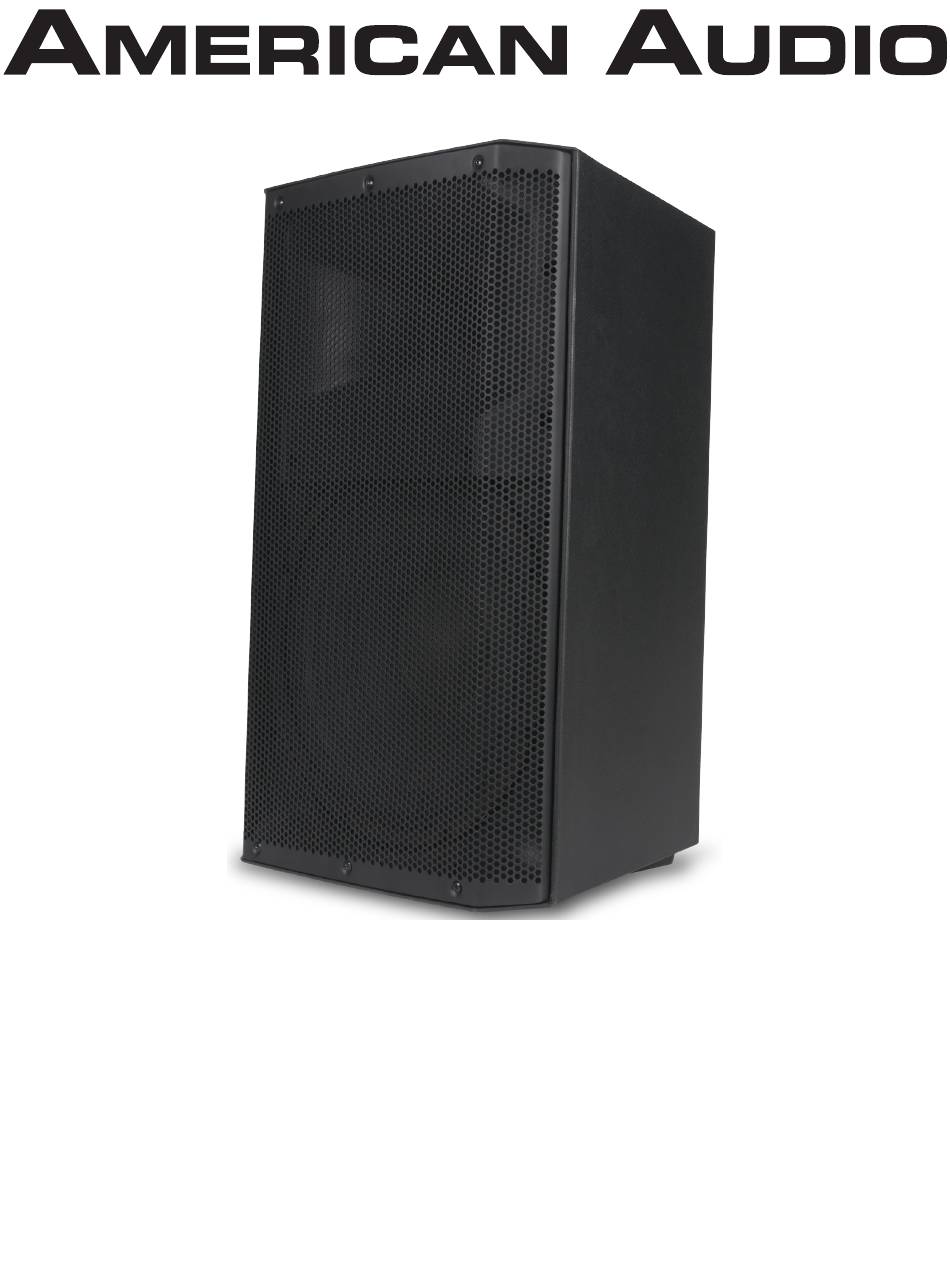

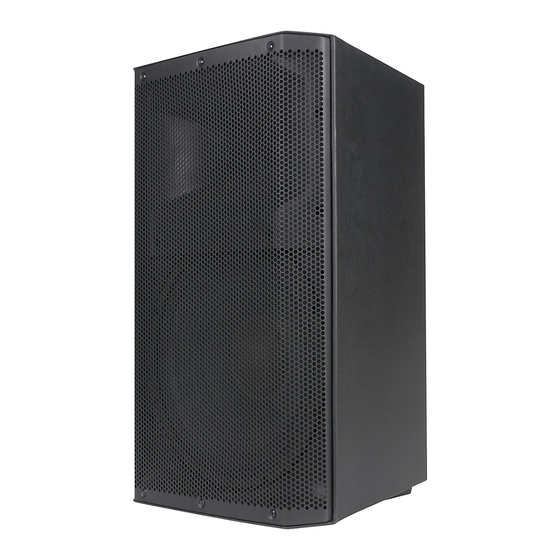

- Page 1 ATX-15W Professional Powered Two-Way Loudspeaker 8/17...
-
Page 2: Table Of Contents
Its extremely high efficiency design, low power consumption, and plenty of output power is ideal for small and mid-size events. The ATX-15W is multifunctional. The speaker includes a poll mount slot and rubber feet on the bottom of the unit for portable applications. Please read and understand this manual completely before attempting to operate your new speaker system. -
Page 3: Atx-15W
EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - ATX-15W - Instruction Manual Page 3 © ®... - Page 4 ATX-15W Unpacking Every ATX-15W has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the car- ton appears to be damaged carefully inspect your units for any damage and be sure all accessories necessary to operate the system have arrived intact.
-
Page 5: Features
ATX-15W Product Registration The ATX-15W carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Rear Panel Controls
(Blue LED starts to flash slowly.) 3. Press the WIRELESS ON/OFF button again, (Blue LED will begin to flash faster.) 4. Select ATX-15W on your wireless device to connect. American Audio - www.AmericanAudio.us - ATX-15W - Instruction Manual Page 6 © ®... - Page 7 FUSE HOLDER – This housing stores the 5 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 8 10. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another ATX-15W or other line level input jack such as a mixer or power amp.
-
Page 9: Wireless Connectivity
Wireless Connectivity FOLLOW THESE INSTRUCTIONS TO CONNECT YOUR WIRELESS AUDIO DEVICE WITH THE ATX-15W SPEAKER. YOUR WIRELESS DEVICE VOLUME WILL OVERIDE ALL VOLUME CONTROLS. NOTE: YOUR SPEAKERS MUST BE PRESET TO YOUR DESIRED VOLUME. 1. Press the LINE LEVEL/WIRELESS button (13) “IN”. -
Page 10: Typical Speaker Set Up
ATX-15W Typical Speaker Set-Up Typical ATX-15W Output Set-Up XLR BALANCED CABLES American Audio - www.AmericanAudio.us - ATX-15W - Instruction Manual Page 10 © ®... -
Page 11: Speaker Looping
Note: The connected speaker in the line will have volume control over the next connected speaker (if applicable) in line. From Mixer 1st Speaker 2nd Speaker (Master Volume Control) To Next ATX-15W (If Applicable) American Audio - www.AmericanAudio.us - ATX-15W - Instruction Manual Page 11 © ®... -
Page 12: Mounting
The ATX-15W includes a pole mount socket. The pole mount socket located on the bottom of the speaker may be used to secure the speaker to a speaker tri-pod, such as the American Audio ® SPS-1B as illustrated on the left. Always be sure to follow the guidelines listed below when pole mounting your speaker;... -
Page 13: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... - Page 14 ATX-15W Notes American Audio - www.AmericanAudio.us - ATX-15W - Instruction Manual Page 14 © ®...
-
Page 15: Specifications
ATX-15W Technical Specifications Model: American Audio® ATX-15W - 15” 2-Way Active PA Speaker Dimensions: 15.08” (L) x 16.66” (W) x 27” (H) / 383mm x 423mm x 685.8mm Weight: 39.7 Lbs. / 18 kgs Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F) Operational humidity: 25 to 85% RH (non-condensation) Storage temperature: -20 to 60˚C (4 to 140˚F) - Page 16 ©American Audio® World Headquarters: 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-3322 Fax: 323-725-6100 Web: www.AmericanAudio.us E-mail: info@americanaudio.us American DJ Europe Junostraat 2 6468 EW Kerkrade Netherlands service@americandj.eu / www.americandj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99...
