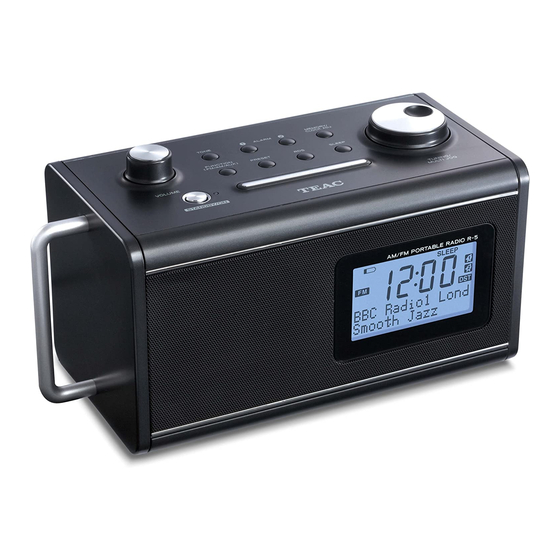

- Page 1 R5B/W DAB+/FM digital radio USER MANUAL IMPORTANT ! WARRANTY INFORMATION INSIDE. PLEASE READ www.teac.com.au Trademark of TEAC Corporation JAPAN...
- Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
- Page 3 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.
-
Page 4: Safety Precautions
Safety Precautions To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product, this will assure you years of trouble free performance and listening pleasure. Important Notes •... -
Page 5: Safety Information
Safety Information Some Do’s and Don’ts on the Safe Use of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 6: Table Of Contents
Table of Contents Safety Precautions ______________________________________________________ 2 Safety Information ______________________________________________________ 3 Package Contents _______________________________________________________ 5 Front Overview _____________________________________________________________ 6 Back Overview ______________________________________________________________ 7 DAB+ Mode ____________________________________________________________ 9 How to Turn on? ____________________________________________________________ 9 How to Change to another Station? ____________________________________________ 9 How to Prune? ______________________________________________________________ 9 How to Update Stations List? __________________________________________________ 9 How to View Station Information? ____________________________________________ 10... -
Page 7: Package Contents
Package Contents Main unit Adapter (To prolong your radio’s lifespan, please use the adapter we provided only.) User manual... -
Page 8: Front Overview
Front Overview Control All mode Press to turn on/off radio When alarm sounds, press to turn alarm off STANDBY/ON Power On – red indicator ‘OFF’, Power OFF – red indicator ‘ON’ Turning it to adjust volume level VOLUME Press to enter Equalizer settings TONE Press to enter relevant alarm settings 1 ALARM 2... -
Page 9: Back Overview
Back Overview Socket Remark Connect the provided AC/DC power adaptor (12V) to this socket, • and then connect the AC/DC adaptor plug to the AC wall outlet. Do not use any AC adaptors other than the one included with this unit DC IN to avoid fire, electric shock, etc. - Page 10 Connecting the battery pack The R-5DAB uses a Nickel-Metal-Hydride battery 1. Loosen the two screws on the battery pack stored in the battery compartment. compartment cover. 2. Remove the cover. The battery pack’s connector is not connected to 3. Connect the battery pack connector. prevent discharge when you purchase the unit.
-
Page 11: Dab+ Mode
DAB+ Mode How to Turn on? 1. Place the unit on a flat stable surface and extend the telescopic aerial to ensure best reception in both DAB+ and FM modes. Connect the power adaptor to the DC jack on the STANDBY to switch it on. -
Page 12: How To View Station Information
How to View Station Information? While playing a DAB+ program, press INFO repeatedly to display station information such as station signal strength, program type, multiple name, program frequency, signal error rate, time and date, etc How to Start Manual Tune? 1. -
Page 13: Dab+ Menu Tree
DAB+ Menu Tree... -
Page 14: Fm Mode
FM Mode How to Tune to FM Mode? 1. Press FUNCTION to switch from DAB+ Mode to ‘FM Mode’. How to Search Programs? 1. Once in FM mode, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, it will play the last FM station you were listening to. -
Page 15: Fm Menu Tree
FM Menu Tree How to Set Station Presets (DAB+ and FM mode)? Your radio can store 10 DAB+ and 10 FM station presets. To store the current station: 1. Press and hold PRESETS button, until it shows: ‘Preset Store <1: (Empty)>’. 2. -
Page 16: Aux In Mode
AUX IN Mode Note: This radio has an auxiliary input which can be used as an audio speaker system for external audio device such MP3 or CD player. 1. Connect an external audio device to the AUX IN socket using a 3.5mm audio stereo cable (not included). -
Page 17: Set Time
Set Time Press MENUà ‘<Time>’,--- ‘Set 12/24 hour’. Rotate TUNING knob to enter a range of time settings: <Set Time/Date>: Manually set-up both Time and Date <Auto update>: ‘Update from DAB’, ‘Update from FM’ and ‘No update’ <Set date format>: DD-MM-YYYY’ and ‘MM-DD-YYYY’ <Set 12/24 hour format>: ‘Set 24 hour’... -
Page 18: Set Alarm
Set Alarm Note: Ensure that time is set correctly before setting the Alarm. 1. Press ALARM1 to select ‘Alarm 1 Setup’, with alarm1 icon blinking. 2. Or press ALARM2 to select ‘Alarm 2 Setup’ mode, , Let’s take Alarm1 setup for example 3. -
Page 19: Specification
Specification ITEMS DESCRIPTION Specifications: DAB+, FM digital Radio Frequency Ranges: FM : 87.5-108MHz DAB+ : 174 –240MHz Power Requirement 100-240Vac, 50-60Hz Output DC 12V/1250mA (AC adaptor): Speaker Type: 65 mm Speaker Impedance: 6 ohms Power Consumption : 8 W (at operation) 15 W (during the charge) Dimension: 238mm x 120mm x 130mm... - Page 20 TEAC CUSTOMER SUPPORT HOTLINE (TCS) 1300 553 315 Between Monday to Friday – AEST 8.30AM to 6PM...
