Summary of Contents for IFB Diva
- Page 1 Advancing the science of washing OPERATING MANUAL USE ONLY GENUINE IFB SPARES & ACCESSORIES * Company shall not be responsible for defects arising due to usage of spurious parts and accessories...
-
Page 3: Table Of Contents
CONTENTS CONTENTS KNOW YOUR MACHINE KNOW YOUR MACHINE INSTALLATION INSTALLATION Pre Installation Unpacking Setting Up Water Inlet Water Outlet Electrical Connection USING YOUR MACHINE USING YOUR MACHINE Control Panel Automatic Detergent Dispenser Tray ON - OFF Switch / Programme Selector Knob Programme Selection Programme Selection Chart OPERATION... -

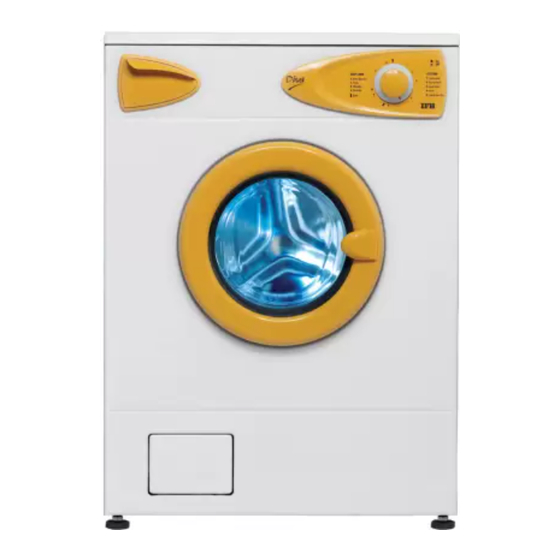

Page 4: Know Your Machine
ON-OFF SWITCH/PROGRAMME DETERGENT DISPENSER TRAY SELECTOR KNOB INTERLOCKING DOOR LOCK PORTHOLE HANDLE DOOR SPECIAL POWDER COATED GALVANISED STEEL CABINET FLUFF ADJUSTABLE FILTER FEET FOR DOOR LEVELLING ADVANTAGES OF TUMBLE WASH ADVANTAGES OF TUMBLE WASH MOST EFFECTIVE CLEANING AS THE CLOTHES PASS THROUGH SOAPY WATER AND ALSO FALL ON SOAP SOLUTION IMPROVING WETTING OF CLOTHES. -
Page 5: Installation
INSTALLATION INSTALLATION PRE-INSTALLATION PRE-INSTALLATION 1. Make sure there is a 16 amp. 3-pin electrical point preferably with a 16 amp. fuse, within 1 meter of the machine. Make sure it has proper earthing. 2. Fixed plumbing is recommended for the machine. water inlet of the machine has a collarwith3/4”parallel internal threads. -
Page 6: Setting Up
SETTING UP SETTING UP 1. MAKE SURE THAT THE MACHINE RESTS ON ALL FOUR FEET ON A LEVEL SURFACE.Adjustable screws are provided at the bottom to allow levelling. 2. Loosen securing nut. Adjust the screw to change level. Tighten securing nut to ensure that screw is locked into place. -
Page 7: Using Your Machine
ON-OFF SWITCH / PROGRAMME SELECTOR KNOB DETERGENT DISPENSER TRAY... -
Page 8: Automatic Detergent Dispenser Tray
AUTOMATIC DETERGENT DISPENSER TRAY AUTOMATIC DETERGENT DISPENSER TRAY Designed for automatic dispensing of detergent. The Detergent Dispenser Tray should be filled with recommended detergent quantity before the start of a programme. The detergent tray must be pulled out, filled as required and shut before the machine is switched on. -
Page 9: Programme Selection
PROGRAMME SELECTION PROGRAMME SELECTION Symbols of the Programme Selector Symbols of the Programme Selector Wash Rinse Spin 1. Normal wash programme A to E 1. Normal wash programme A to E To be used for whites and coloureds of cotton or predominantly of cotton in case of mixed load. - Page 10 Easy Care Programme : G to K Easy Care Programme : G to K To be used for easycare fabrics like polyester blends or predominantly having such fabric in mixed load. STAGE I : Main Wash : G/H Clothes are soaked, tumbled in hot water with detergent for lesser duration than main wash of Normal wash programme before draining of dirty water, it is cooled down by adding cold water.
-
Page 12: Operation
OPERATION OPERATION SORTING OF GARMENTS SORTING OF GARMENTS Machine to be used for machine washable fabrics only (Look for wash symbols given on your garments.) Non-fast coloured should be washed with like colours only. Wash whites separately from colours. Check the pockets for any loose articles like coins, keys, keychain etc. Remove these articles as these can damage the drum/tub. -
Page 13: Detergent To Be Used And Quantity
DETERGENT TO BE USED AND QUANTITY DETERGENT TO BE USED AND QUANTITY The best results will be achieved using correct amount of washing machine detergent . Approximate quantities to be used: Full load i.e. 5 kgs Detergents to be used as per direction indicated by the manufacturer on their package. -
Page 16: Programme Run
PROGRAMME RUN PROGRAMME RUN Note : During the programme run the knob turns automatically in the clockwise direction only. Washing, rinsing and spining can be seen through the porthole window. At any moment the position of the knob with respect to its start position shows how far the programme has advanced. -
Page 17: Maintenance
Open door flap by pressing on the right hand edge and pull out the plastic tray. -
Page 18: Drum
DRUM DRUM Rust Stains Rust Stains Never leave metal items e.g. paper clips, pins etc. in the drum as there is a danger of rusting. If there are any rust stains remove with a non-chlorine agent. Special non- metal sponges (never use steel wool) may also be used SIEVES SIEVES Cleaning of Water connection Sieves, filter... -
Page 19: Fault Diagnosis
FAULT DIAGNOSIS FAULT DIAGNOSIS WHY DOES IT HAPPEN ? WHY DOES IT HAPPEN ? WATER DOES NOT ENTER MACHINE/DETERGENT NOT BEING WATER DOES NOT ENTER MACHINE/DETERGENT NOT BEING FLUSHED INTO DRUM. FLUSHED INTO DRUM. Check water supply Porthole door not firmly closed Water tap not turned on Bent inlet hose Sieve on inlet valve clogged... -
Page 20: Safety Precautions
SAFETY PRECAUTIONS SAFETY PRECAUTIONS Ensure that the machine is properly balanced on four adjustable feet. Ensure that the machine is connected to 3 pin socket with earth and 16 amps fuse. The machine is tested with water during assembly for performance checking. -
Page 21: Technical Data
TECHNICAL DATA TECHNICAL DATA Dimensions 55cm x 60 cm x 85 cm (D x W x H ) Weight 58.5 kgs Capacity 5 kgs of dry clothes (cotton)* Programmes 10 wash care programmes Motor Rating 690 W (max) Spin speed 600 rpm Heater rating 1.55 kw... - Page 23 MODEL : DIVA SERIAL NO. WT DIV B DEALER’S NAME : CUSTOMER’S NAME : ADDRESS : PIN CODE : TEL. NO. (Resi.) (Off.) E-MAIL : MOTOR SR. NO. : DATE OF PURCHASE : MODEL : DIVA SERIAL NO. WT DIV B DEALER’S NAME :...
-
Page 24: Customer Care
ALSO FROM IFB MICROWAVE OVEN CAPACITY - 17 to 30 LITERS DISHWASHER CAPACITY - 12 PLACE SETTING CLOTHES DRYER CAPACITY - 5.5KG Customer Care Dial 1901 425 5678 - BSNL & MTNL Callers 3900 4321 - Other Callers IFB Industries Limited, Plot No. IND - 5, Sector - 1, East Calcutta Township, Calcutta - 700 078 Visit us at www.ifbappliances.com...
