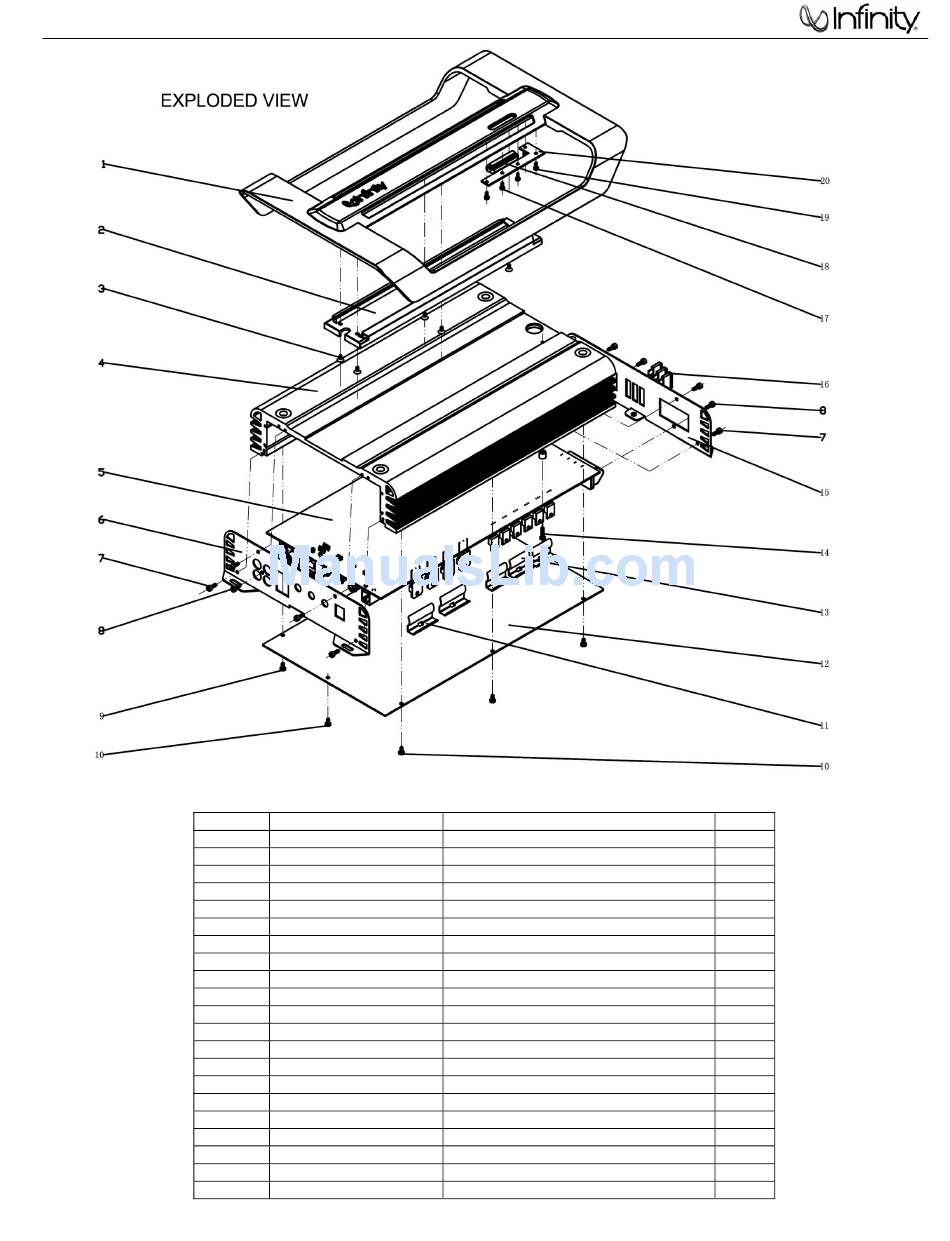

Infinity Reference Series 1300a Service Manual page 7

1300a Reference Series
Item#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Part Number Description
SG-0016-2601 Top cover
GD-600011400 Light panel
LSIFM0300011 Screw
SR-1300-0117 Main heat sink
Main PCB
MK-0004-2601 Front panel
LS5KP0300807 Screw for F/RP
LS5KJ0301007 Screw for terminal, RCA jacks
LSIAP0300607 Screw
LSIAM0300607 Screw
PL-L0007-000 Transistor spring clip (2)
XG-0017-2601 Bottom plate
PL-L0006-000 Transistor spring clip (1)
LSIAY0301201 Screw
HG-0004-2601 Rear panel
1601-203G-00 Fuse 20A ATC
LSIAA0200501 Screw
CP-B00011400 LED lens
LSIAM0250401 Screw
LED PCB
6
Qty
1
1
5
1
1
1
8
3
6
2
4
1
6
1
1
3
1
1
4
1
