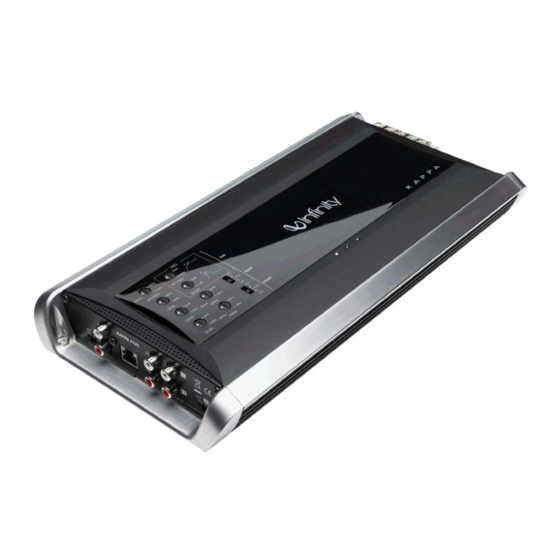

Kappa Five
5 CHANNEL POWER AMPLIFIER
SERVICE MANUAL
Infinity Systems Incorporated
250 Crossways Park Dr.
Woodbury, New York 11797
6/2010
Rev1
Released 2009
Discontinued XXXX

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kappa Five and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity Kappa Five

Summary of Contents for Infinity Kappa Five

  • Page 1 Kappa Five 5 CHANNEL POWER AMPLIFIER SERVICE MANUAL Infinity Systems Incorporated 250 Crossways Park Dr. Woodbury, New York 11797 6/2010 Rev1 Released 2009 Discontinued XXXX...
  • Page 2 14 x 7 x 1.7” (360 x 179 x 44mm) Fuses: (2) x 40A Infinity Systems continually strives to update and improve existing products, as well as create new ones. The specifications and details in this and related JBL publications are therefore subject to change without notice.
  • Page 3 KAPPA FIVE...
  • Page 4 KAPPA FIVE Installation Warnings and Tips: • GND: Connect to the vehicle’s chassis. Refer to A Boost (Q) control provides up to 12dB of boost, the illustration below. • Disconnect the negative (–) lead from your vehicle’s slightly above the high-pass filter’s frequency.
  • Page 5 KAPPA FIVE ¡...
  • Page 6 KAPPA FIVE Amplifier Troubleshooting Guide 1. Status LED on Amplifier not Lit - Head Unit (Source) Turned ON Verify: A. Remote turn-on wire from source to amplifier has proper voltage B. Power (B+) connections at amplifier, terminal blocks, and battery are secure C.
  • Page 7 KAPPA FIVE...
  • Page 8 KAPPA FIVE KAPPA FIVE DISASSEMBLY INSTRUCTIONS NOTE keep track and separate any and all screws; they are dissimilar. For examination: 1) Remove the two screws at opposite ends on the bottom of the heatsink. 2) Remove the end panel on the Input side only, four Phillips screws.
  • Page 9 KAPPA FIVE LOP PASS rca inA 32Hz 80Hz 320 Hz +VCC Daughter-Board HP PASS FL/FR/RL/RR 32Hz 320 Hz 60KHz Modulator Integrator and Level shltter FULL 10Hz 60k Hz INS in IRS20955S Gate Driver -VCC +VCC rca inA LP FREQ BASS BOOST...
  • Page 10 KAPPA FIVE KAPPA FIVE Electrical Parts List Part Number Description Qty Reference Designator Main PCB Resistors 0702-0106-03 Resistor 10 1.5 10.5MM H16.5MM R123P 0703-2000-01 Resistor 1/4W 0Ω ±1% J23 J2 J18 0704-4220-02 Resistor 1W 22Ω ±5% RR1 R180P R183P 07031185XK03 Resistor 1/8W 1.85K ±1%...
  • Page 11 KAPPA FIVE Part Number Description Qty Reference Designator Main PCB Capacitors 06D341047400 Capacitor 104/100V ±5% 5MM C125E C126E 06D374717400 Capacitor 470pF/100V ±5% 5.5mm C122E 06D232227001 Capacitor 222/100 ±20% 5mm C128L C33 06D231047000 Capacitor 0.1uF/100V ±20% 5MM CC8 C128P C128W 06D322227200 Capacitor 222/100V ±5% 5MM...
  • Page 12 KAPPA FIVE Description Qty Reference Designator Part Number Main PCB Q113P Q114P Q116P Q117P Q118P Q119P 03T1-Z48V-02 Mos Fet IRFZ 48V TO-220 Q120P Q115P 04WY-12BV101 Zener Diode SMD 12V DO-213AA 0.5W ZA102P D502S D602S D702S D802S 04WY-15BV111 Zener Diode SMD 15V SOD-123 0.5W...
  • Page 13 KAPPA FIVE Part Number Description Qty Reference Designator Control/Preamp/PWM PCB 0701-2331-02 Resistor SMD 330Ω 1/8W ±5% 0805 R46 R206E R215E 0701-2681-02 Resistor SMD 680Ω 1/8W ±5% 0805 R101E R101A R101B R101D R101C R32 R32A 0701-2182-02 Resistor SMD 1.8KΩ 1/8W ±5% 0805...
  • Page 14 KAPPA FIVE Description Qty Reference Designator Part Number Control/Preamp/PWM PCB 06S121017000 Capacitor SMD 100PF/100V 0805 X7R ±10% C26L C52 C202A C202B C202C C202D 06S121047000 Capacitor SMD 104/100V 0805 X7R ±10% C20 C22S C43 06S138244001 Capacitor SMD 824PF/25V ±10% X7R 1206 TDK...
  • Page 15 KAPPA FIVE Part Number Description Qty Reference Designator Amplifier PCB Capacitors C110A C110B C111A C111B C110C C110D 06S321026000 Capacitor SMD 1000pF/50V 0805 NPO ±5% C111C C111D C17 C18 C20 C27 C30 C37 C39 C6 C31 C41 C19 06S121047001 Capacitor SMD 104/100V ±10% X7R 0805 TDK...
  • Page 16 KAPPA FIVE...
  • Page 17 KAPPA FIVE...
  • Page 18 KAPPA FIVE...
  • Page 19 KAPPA FIVE...
  • Page 20 KAPPA FIVE...
  • Page 21 KAPPA FIVE...
  • Page 22 KAPPA FIVE...
  • Page 23 KAPPA FIVE...
  • Page 24 KAPPA FIVE...
  • Page 25 KAPPA FIVE...
  • Page 26 KAPPA FIVE...
  • Page 27 KAPPA FIVE...
  • Page 28 KAPPA FIVE...
  • Page 29 KAPPA FIVE...
  • Page 30 KAPPA FIVE Data Sheet No. PD60303 IRS20955(S)PbF PROTECTED DIGITAL AUDIO DRIVER Features Product Summary • Floating PWM input enables easy half-bridge implementation ± 100 V (max) OFFSET • Programmable bidirectional over-current protection 1.0 A with self-reset function Gate driver 1.2 A •...
