Page 1: Multifunction Oven

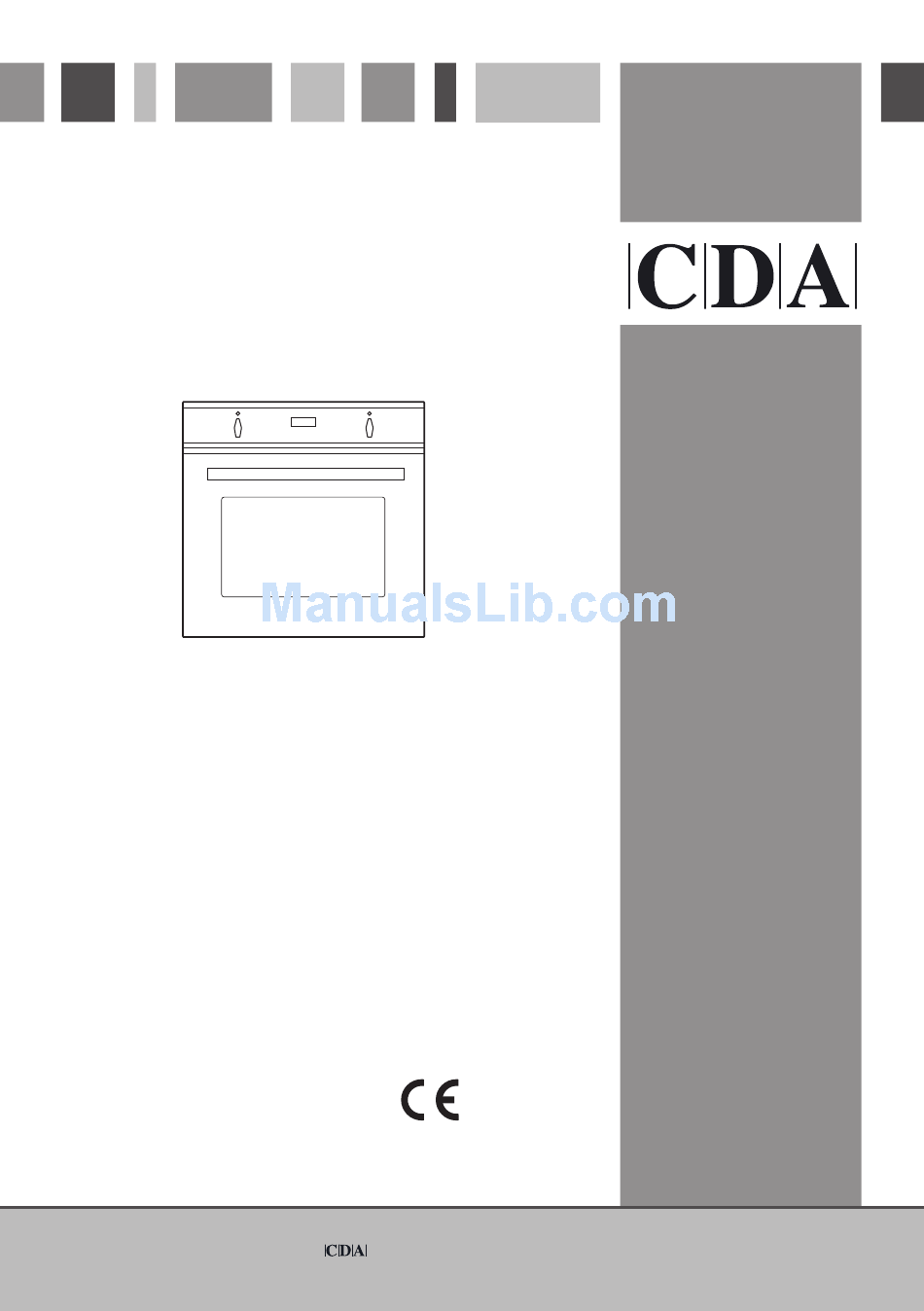

Multifunction Oven Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu... -
Page 2: Appliance Information
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. -
Page 3: Before Using For The First Time
Before Using for the First Time – Read the instructions carefully before installing and using the appliance. – After unpacking the appliance, check that it is not damaged. In case of doubt, do not use the appliance and contact your supplier or a qualified engineer. –... - Page 4 Important Safeguards and Recommendations – Do not carry out any cleaning or maintenance without first disconnecting the appliance from the electrical supply. – During and after use of the oven, certain parts will become very hot. Do not touch hot parts. –...
-
Page 5: Control Panel
Control Panel Fig. 1 Controls Description 1. Oven thermostat knob 2. Oven switch knob 3. Clock and timer with “Touch-Control” keys Warning Lights: 4. Power on indicator lamp 5. Oven thermostat indicator light Please Note: This appliance incorporates a safety cooling fan which you will hear operating whenever the oven or grill are in use. -
Page 6: General Features
Multifunction Oven General Features As its name indicates, this is an oven that presents particular features from an operational point of view. In fact, it is possible to insert 7 different programmes to satisfy every cooking need. The 7 positions, thermostatically controlled, are obtained by 4 heating elements which are: –... -
Page 7: How To Use The Oven
How to Use the Oven WARNING: The door is hot, use the handle. ATTENTION - MOST IMPORTANT Pay special attention not to touch the hot heating element inside the oven cavity. Thermostat Knob (Fig. 2) This only sets the cooking temperature and does not switch the oven on. -
Page 8: Traditional Grilling
Traditional Grilling The infrared grill element comes on. The heat is dispersed by radiation. Use with the oven door closed. The temperature can be regulated via the thermostat knob to between 50 °C and 225 °C. For cooking hints, see the chapter “USE OF THE GRILL”. Recommended for: Intense grilling, browning, cooking au gratin and toasting etc. - Page 9 Ventilated Grill Cooking The infrared grill element and the fan come on. The heat is dispersed mainly by radiation and the fan then distributes it all over the oven. Use with the oven door closed. The temperature can be regulated via the thermostat knob to between 50 °C and 225 °C.
-
Page 10: Cooking Advice
Cooking Advice Sterilization Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way: a. Set the switch to position b. Set the thermostat knob to position 185 °C and preheat the oven. c. - Page 11 Roasting To obtain classical roasting, it is necessary to remember: – that it is advisable to maintain a temperature between 180 °C and 200 °C. – that the cooking time depends on the quantity and the type of foods. Use of the Grill –...
-
Page 12: Clock And Timer With "Touch-Control" Keys
Clock and Timer with “Touch-Control” Keys Touched simultaneously (for more than 2 seconds): – setting the clock; – setting the timer volume (by touching once, along with the “ ” key); – to cancel automatic cooking at any time. Function selection (touched for more than 2 seconds): –... -
Page 13: Setting The Clock
“Touch-Control” Keys The “touch-control” keys shall be operated by the fingers (just by touching the key). When using touch controls it is best to use the ball of your finger rather than the tip. The keys are automatically deactivated: – 8 seconds after the last selection; the deactivation is indicated by an acoustic signal (“beep”). To reactivate just touch the “... -
Page 14: Automatic Cooking
Automatic Cooking Use automatic cooking to automatically turn the oven on, cook, and then turn the oven off. 1. Check the clock shows the correct time. 2. Select the function and temperature (function and temperature knobs). The oven will come on. 3. -
Page 15: Do's And Do Not's
Do’s and do not’s – Do always grill with the oven door closed. – Do read the user instructions carefully before using the oven for first time. – Do allow the oven to heat for one and a half hours, before using for the first time, in order to expel any smell from the new oven insulation, without the introduction of food. -
Page 16: Care And Maintenance
Care and Maintenance It is advisable to clean when the appliance is cold and especially for cleaning IMPORTANT: the enamelled parts. Before any operation Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the of cleaning and surfaces. maintenance Avoid using cleaning products with a chlorine or acidic base. - Page 17 Stainless Steel, Aluminium, Painted Parts and Silk-screen CAUTION: Printed Surfaces Do not use abrasive substances or non- Clean using an appropriate product. Always dry thoroughly. neutral detergents as Stainless steel surfaces: can be cleaned with an appropriate stainless steel these will irreparably cleaner.
- Page 18 Replacing the Halogen Oven Light WARNING: Ensure the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. – Let the oven cavity and the heating elements to cool down; – Switch off the electrical supply; –...
- Page 19 Assembling and Dismantling of the Side Runner Frames – Assemble the wire racks to the oven walls using the 2 screws (Fig. 6). – Slide the tray and rack into the runners (Fig. 7). The rack must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven.
-
Page 20: Removing The Oven Door
Oven Door Removing the Oven Door The oven door can easily be removed as follows: – Open the door to the full extent (fig. 8a). – Open the lever A completely on the left and right hinges (fig. 8b). – Hold the door as shown in fig. 8. –... - Page 21 Oven Door - Removable Inner Pane of Glass Cleaning the Panes of Glass The oven door is fitted with no. 2 panes: - no. 1 outside; - no. 1 inner; To clean the panes on both sides it is necessary to remove the inner pane as follows.
- Page 22 Replacing the Inner Pane of Glass 1. Make sure the door is locked open (see fig. 11). 2. Replace the inner pane: – Check that the four rubber pads are in place (D in Fig. 14). – Check that you are holding the pane the correct way. You should be able to read the wording on it as it faces you.
-
Page 23: Advice For The Installer
ADVICE FOR THE INSTALLER Important Appliance installation and maintenance must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards. • Failure to observe this rule will invalidate the warranty. • Always disconnect the appliance from the electrical supply before carrying out any maintenance operations or repairs. - Page 24 Important The oven can be fitted in standard units, width and depth 60 cm. Installation requires a compartment as illustrated in figures 20 and 21. On the lover side, the oven must lay on supports standing the oven weight. Fig. 20 Fig.
- Page 25 To ensure internal ventilation, aeration channels must be provided as illustrated in the figures 22 and 23. 50 mm 30 mm Fig. 22 Fig. 23...
-
Page 26: Fixing The Oven
Fixing the Oven Introduce the oven into the furniture opening and fix it with screws (not supplied) as figure 24. It is essential that the oven rests on a surface which will support its weight, as the screw fixing is only complementary. - Page 27 IMPORTANT: – To avoid damage to the lower trim please note the following instructions. – The lower trim is designed to allow for good air circulation and the correct opening of the oven door. – To ensure the trim is not damaged due to the appliance being placed on the floor, the appliance should be suitably supported as in below illustrations.
-
Page 28: Mains Electricity Connection
Mains Electricity Connection Incorrect installation may be dangerous and the manufacturer can not be held responsible. Warning! This appliance must be earthed The manufacturer declines all responsibility for any problem caused by failure to observe this rule. THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 13A FUSE. - Page 29 Connection of the Power Supply Cable Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (fig. 27). Open the cable gland by unscrewing screw “F” (fig. 28), unscrew the terminal screws and remove the cable. The new supply cable, of suitable type and section, is connected to the terminal board following the diagram of fig.
-
Page 30: Appliance Servicing
Appliance Servicing CDA provide a quality and effective after-sales service to cover all your servicing needs. Please attach your receipt to this page for safekeeping. Please help us to help you by having the following information available when booking a service-call: 1. - Page 32 Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
