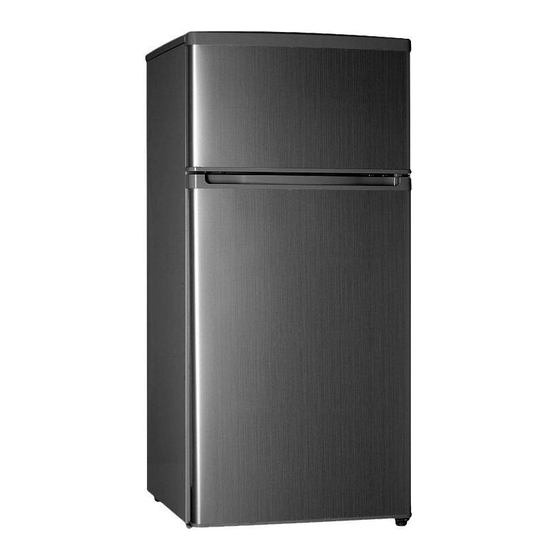

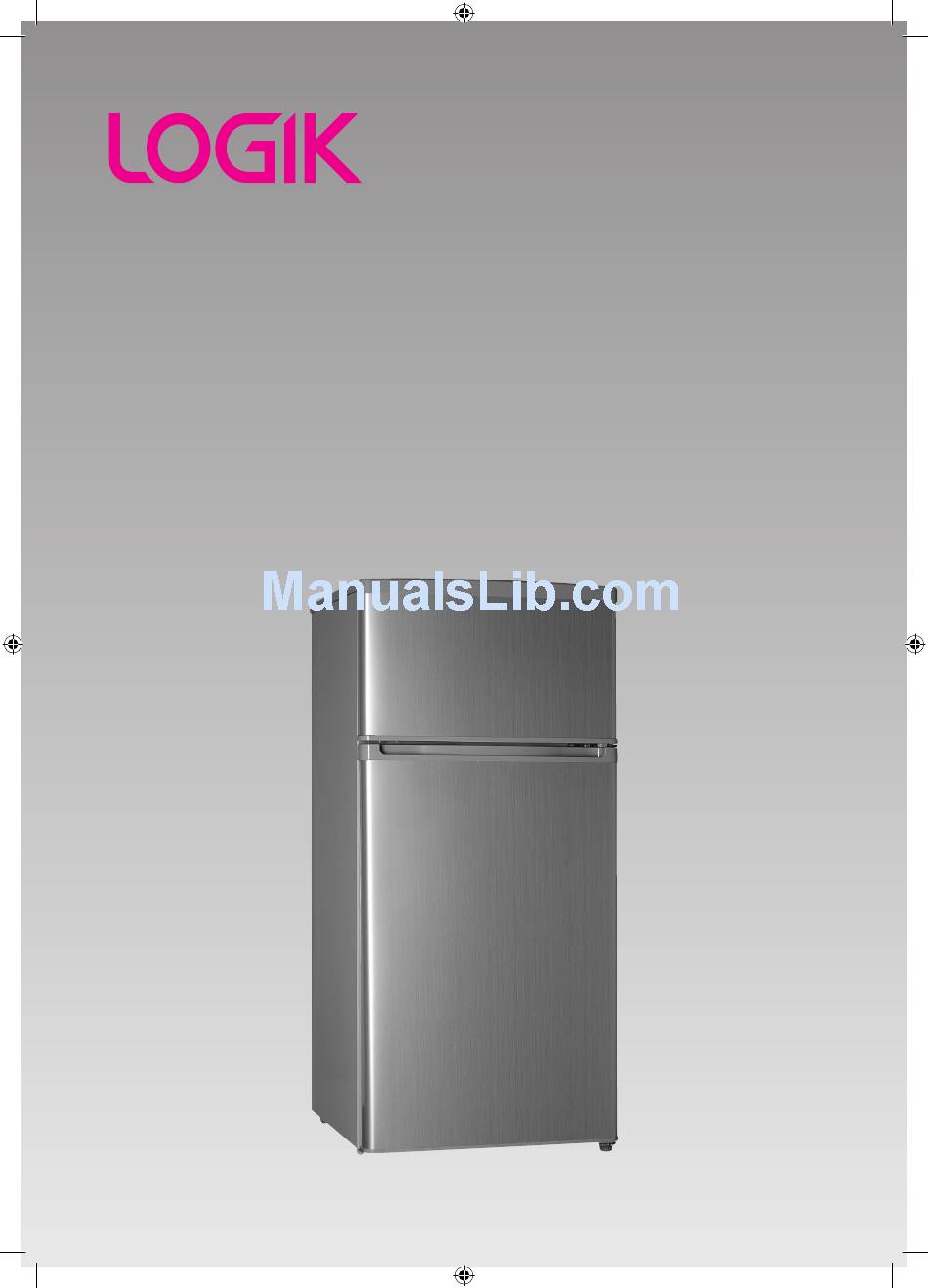

- Page 1 Undercounter Fridge Freezer Instruction Manual LUC50S11 LUC50W11_IB_110324.indd 1 3/24/11 5:53 PM...
- Page 2 LUC50W11_IB_110324.indd 2 3/24/11 5:53 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................8 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Product Overview ........................9 Operation ........................... 10 Switching On Your Unit ............................10 Knowing Your Freezer Compartment......................10 Adjusting the Temperature ..........................10 Noises Inside the Unit ............................11... -
Page 4: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Remove the hinge bracket by removing the screw. Remove the adjustable feet from both sides. Lift the fridge door and move it away. 3. Remove the hinge cover on the fridge door by removing the screw. Refit to the opposite side and tighten the screw.
- Page 7 INSTALLATION 8. Replace the top lid. 9. Remove the hinge cover on the freezer door by removing the screw. Refit to the opposite side and tighten the screw. 10. Replace the freezer door, and then refit the middle hinge and tighten the screws. Ensure the freezer door is aligned screw horizontally and vertically, so that the...
-
Page 8: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 9: Product Overview
Product Overview Top Cover Freezer Door Freezer Door Shelf Thermostat Fridge Control Dial Door Glass Shelf Lower Glass Shelf Fridge Salad Bin Door Shelves Levelling Feet LUC50W11_IB_110324.indd 9 3/24/11 5:53 PM... -
Page 10: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off. -
Page 11: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 12: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 13: Cleaning
Cleaning Defrosting Frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper. Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. Use a flat bladed screwdriver and gently prise off the light bulb cover. 3. -
Page 15: Specification
Specification Model LUC50S11 Overall Dimension (W x D x H) 505 x 516 x 844mm Total Gross Volume Fresh Food Storage Compartment Volume Total: 24L Frozen Food Storage Volume Defrosting Type Manual Defrost 2 star section: ≤ -12°C, Storage Temperature 4 star section: ≤... -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 18 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LUC50S11-001) LUC50W11_IB_110324.indd 18 3/24/11 5:53 PM...
- Page 19 LUC50W11_IB_110324.indd 19 3/24/11 5:53 PM...
- Page 20 LUC50W11_IB_110324.indd 20 3/24/11 5:53 PM...
