American Standard Portsmouth 4285.051 Installation Instructions

PORTSMOUTH™
HIGH ARC SINGLE CONTROL
KITCHEN FAUCET WITH SPRAY
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Regular Screwdriver
1

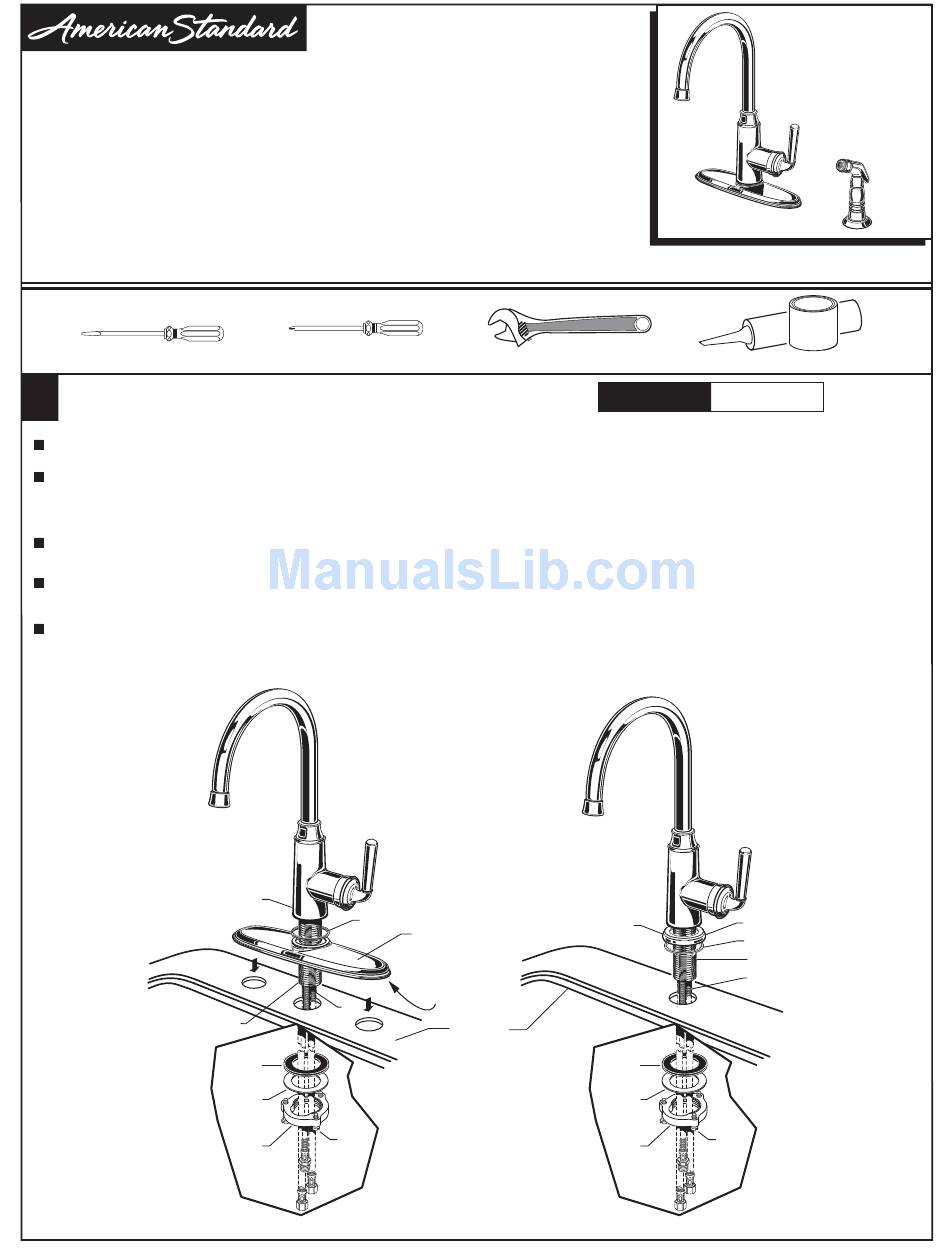

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
Make certain the SEAL (9) is properly seated in recess of spout base.
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Insert all HOSES (2) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting surface.
Follow mounting instructions below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1).
mounting surface. Do not use putty.
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6).
Use a screwdriver to tighten SCREWS (7) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
S P O U T B A S E
Phillips Screwdriver
Insert all HOSES (2) and SHANK (3) through MOUNTING RING (10) and
9
2
3
4
5
7
6
Installation
Instructions
4285.051
Adjustable Wrench
B
R I N G B A S E
1
P U T T Y
S I N K O R
M O U N T I N G
S U R FA C E
Certified t o comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
Turn off water at
CAUTION
main supply.
10
9
3
2
4
5
7
6
M 9 6 5 4 7 3 R ev. 1. 1
