Logik L19DIGB10 Instruction Manual

19” hd ready digital lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

19" HD Ready Digital LCD TV
Instruction Manual
L19DIGB10

Advertisement

Table of Contents
loading

Related Manuals for Logik L19DIGB10

Summary of Contents for Logik L19DIGB10

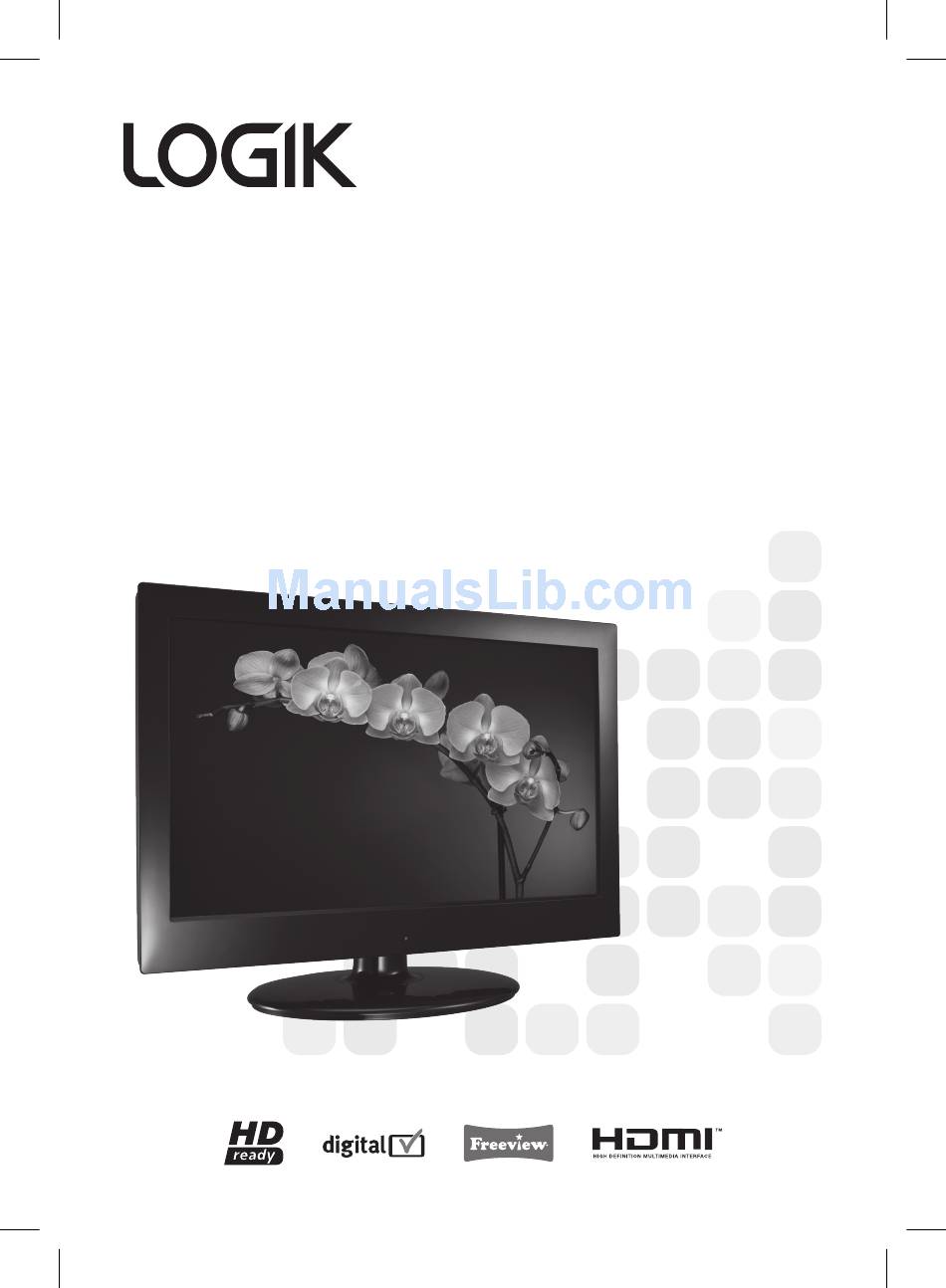

  • Page 1 19” HD Ready Digital LCD TV Instruction Manual L19DIGB10...

  • Page 2: Table Of Contents

    Contents Preparation ....................................4 Unpacking the TV ........................................4 Installing / Removing the Base Stand ................................5 Front / Top / Side View and Controls ................................6 Rear View and Sockets ......................................7 Installing Batteries in the Remote Control ..............................8 Remote Control Operation Range ..................................8 Remote Control ........................................9 Connections ....................................
  • Page 3 Customising the TV Settings (PC Mode) ..............................31 Customising the TV Settings (HDMI and YPbPr Modes)........................31 Teletext (TV Mode) ......................................32 − To Turn on Teletext Function ................................32 Digital Teletext (DTV Mode) ..................................... 33 − Teletext within Digital Service ................................

  • Page 4: Preparation

    Preparation Congratulations on the purchase of your new Logik TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 5: Installing / Removing The Base Stand

    Installing / Removing the Base Stand Remove the base stand before mounting the TV onto the wall. The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

  • Page 6: Front / Top / Side View And Controls

    Front / Top / Side View and Controls Item Description Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode. The LED will illuminate blue when the timer programming has started in the standby mode.

  • Page 7: Rear View And Sockets

    Rear View and Sockets Item Description Connect the mains cable to the mains socket. S-VIDEO Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets. Allows the insertion of a USB storage device. You can view media files or record DTV DVR USB port programmes through this port.

  • Page 8: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control Press and lift the back cover up to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.

  • Page 9: Remote Control

    Remote Control 1 Transmission Indicator Illuminates red when you press a button. Switch the TV between on and standby mode. Mute and restore your TV sound. 4 P.MODE Selects picture mode: Personal / Standard / Movie / Mild / Game. S.MODE Selects sound mode: Standard / Music / Voice / Theatre / Personal.
  • Page 10 14 SOURCE Select among the different input signal sources: DTV / TV / AV / S-VIDEO / SCART / YPBPR / HDMI / PC 15 CH +/- Select a channel. 16 VOL +/- Adjust the volume. 17 MENU Display the OSD (On Screen Display) menu. 18 EXIT Exit the OSD (On Screen Display) menu.

  • Page 11: Connections

    Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibilty and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

  • Page 12: Connecting A Computer With Vga Cable

    Connecting a Computer with VGA Cable Right Rear Side View of TV Use a VGA cable to connect the TV’s VGA input socket to a computer’s VGA output socket. Use an audio cable to connect the TV’s PC AUDIO input socket to the computer’s audio output socket.

  • Page 13: Connecting An Av Device With Scart Cable

    Connecting an AV Device with SCART Cable Right Rear Side View of TV Use a SCART cable to connect the TV’s SCART input socket to an external AV device’s SCART output socket. Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the side of the TV.

  • Page 14: Connecting An Av Device With Composite Cable

    Connecting an AV Device with Composite Cable Right Rear Side View of TV Use the supplied AV cable to connect the TV’s AUDIO(L/R)/VIDEO input sockets to an external AV device’s composite audio/video sockets. (Video = yellow, Audio Left = white, and Audio Right = red) Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the side of the TV.

  • Page 15: Connecting A Usb Storage Device

    Connecting a USB Storage Device Right Rear Side View of TV Switch off the TV before connecting any USB storage device. Connect your USB storage device to the USB port of your TV. Portable Plug the connected devices into the mains socket USB Hub hard Disk before switching on the POWER ON/OFF switch...

  • Page 16: Initial Setup

    Initial Setup Turning the TV On for the First Time Connect the mains cable to the mains socket after you have completed all the connections. Switch on the POWER ON/OFF switch at the side of the TV. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.

  • Page 17: Channel Selection

    Channel Selection CH + / – buttons repeatedly or the 0-9 buttons to select the channel. • Press the Alternative In DTV mode, press the OK button to enter the Channel List. Then use the buttons to highlight and select the channel. Press the OK button to view the selected channel.

  • Page 18: Using The Features

    Using the Features Customising the PICTURE Setting Picture Mode Allows you to set your preferred picture mode. MENU button and then use the buttons to select the PICTURE Press the menu and then press the button. Press the buttons to highlight an individual Picture option. Press the buttons to change the following settings.

  • Page 19: Customising The Sound Setting

    Customising the SOUND Setting Sound Mode Allows you to select an audio-enhancement technique. MENU button and then use the buttons to select the SOUND Press the menu and then press the button. Press the buttons to highlight an individual Sound option. Press the buttons to change the following settings.

  • Page 20: Customising The Function Setting

    Customising the FUNCTION Setting Video Size Allows you to watch the screen in various picture formats. For TV Mode, Auto / Full / 4:3 / 14:9 / Zoom are the available options. For DTV mode, Auto / Full are the available options. For YPbPr and HDMI mode, Full / 4:3 are the available options. Press the MENU button and then use the buttons to select the...

  • Page 21: Tt Language

    TT Language Allows you to select your preferred Teletext language. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select TT Language. Press the buttons to change the settings. MENU button to save the setting and return back to the previous Press the menu.

  • Page 22: Osd Timer

    OSD Timer Allows you to select the display time of the on-screen menu. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select OSD TIMER. Press the buttons to select time: 5 / 10 / 30 / 60 sec / NEVER.

  • Page 23: Key Locked

    Press the button and then press the button to select CHANGE CODE. 0–9 buttons to input a 4-digit password. Use the The default password is “0000”. If you change the password, be sure to remember the new password! If you forget your password, press the master password “8899” on the remote control.

  • Page 24: Reset

    Reset Restores all settings to factory defaults. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select RESET and then press the OK button or the button.

  • Page 25: Customising The Tv Setting (Tv Mode)

    Customising the TV Setting (TV Mode) Country Allows you to select the country where you are using the TV. MENU button and then use the buttons to select the TV menu Press the and then press the button. Press the buttons to select COUNTRY.

  • Page 26: Manual Tuning

    Manual Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under TV mode. In the TV menu, press the buttons to select MANUAL TUNING and then press the OK button or the button. Press the buttons to change the following settings.

  • Page 27: Customising The Tv Settings (Dtv Mode)

    To Lock buttons to highlight a channel and then press the BLUE Press the button. Press the BLUE button again to unlock. To Move Press buttons and then press the button to select a channel. Press buttons to move the selected channel. Press the OK button to confirm.

  • Page 28: Manual Tuning

    Manual Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under DTV mode. Press the MENU button and then use the buttons to select the DTV menu and then press the button. Press the buttons to select MANUAL TUNING and then press the OK button or the button.

  • Page 29: Timer

    Timer Timer programming is only available when a USB storage device is connected. Press the MENU button and then use the buttons to select the DTV menu and then press the button. Press the buttons to select TIMER and then press the OK button or the button.

  • Page 30: Ci (Common Interface) (Dtv Mode)

    CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

  • Page 31: Customising The Tv Settings (Pc Mode)

    Customising the TV Settings (PC Mode) Allows you to adjust the PC desktop content. MENU button and then use the buttons to select the PC menu Press the and then press the button. Press the buttons to highlight an individual PC Position option. Press the buttons to change the following settings.

  • Page 32: Teletext (Tv Mode)

    Teletext (TV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

  • Page 33: Digital Teletext (Dtv Mode)

    Digital Teletext (DTV Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. The subtitle will temporarily auto off when digital teletext function is turned on. Teletext within Digital Service In DTV mode, press the OK button to display the Channel List.

  • Page 34: Using The Features Via Usb Port

    Using the Features via USB Port My Album SOURCE button and select DTV mode and then press the MEDIA Press the button. Press the buttons and then press the OK button to select My Album. Press the BLUE button to open the directory. Press the buttons to select your desired folder and then press the OK button to enter the folder.

  • Page 35: My Music

    My Music SOURCE button and select DTV mode and then press the MEDIA Press the button. Press the buttons and then press the OK button to select My Music. Press the buttons to navigate in the music folder. Select the music you want to play and then press the OK button to play it.

  • Page 36: My Recorder

    DISPLAY button If more than one USB storage device is connected, press the to switch to the device type menu. Press the buttons to select the active device and then press the OK button to confirm. Press the buttons to navigate in the movie folder. Select the movie you want to play and then press the OK button to play it.

  • Page 37: Recording Device

    To Play In the Recorded List, press the buttons to select the recorded programme you want to view. Press the GREEN button to preview the recorded programme and then press the OK button to play the selected programme. If the selected programme was stopped before it had finished the last time you viewed it, the “DVR PLAY OPTION”...

  • Page 38: Recording Preference

    Press the buttons to adjust the settings. Device Type Indicates that a USB device is connected. Slot Select the active USB storage device connected to the USB hub slot (1 Partition Select the active partition (1 … max.15) on the selected USB device. RED button to select Format.

  • Page 39: Dvr (Digital Video Recorder)

    DVR (Digital Video Recorder) Time Shift Function This function allows the TV to automatically record live TV and make it available for viewing at any time. With the Time Shift Mode set to Auto or Pause, you may pause or rewind normal TV viewing at any time without missing any of the live broadcast.

  • Page 40: Recording Dtv Programme Onto A Usb Storage Device

    Recording DTV Programme onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. You may use the DVR Time Shift function during recording to view the recorded programme instantly. Please refer to the section “Time Shift Function”...

  • Page 41: Timer Programming

    Timer Programming This function is used to perform scheduled recording. EPG button on the remote control. The EPG menu will appear. Press the RED button on the remote control to enter the Timer Programming Press the menu. Alternative You may press the MENU button and then use the buttons to select the DTV menu and then press the button.

  • Page 42: Maintenance

    Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the POWER ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. Use a soft dry cloth to wipe away the dust from the screen and surfaces. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water.
  • Page 43 The audio function does not work. • Press the VOL + / - buttons. Picture OK but no sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No output from one of the speakers •...

  • Page 44: Display Modes

    Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr Mode Resolution Vertical Frequency (Hz)

  • Page 45: Specification

    Specification Model L19DIGB10 Panel System 18.5 inch LCD panel Display Resolution 1366 pixels (horizontal) x 768 pixels (vertical) Television System PAL I/BG/DK, SECAM L/BG/DK Brightness 230-300 cd/m Contrast Ratio 800-1000:1 Inputs/Output SCART HDMI PC AUDIO S-VIDEO YPbPr VIDEO IN (RCA)

  • Page 46: Safety Warnings

    Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 47 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level.
  • Page 48 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control I.14.000000586 Batteries (x2) E.17.101570001 AV Cable E.14.113150013 Base Stand I.01.597705251 Screws x 4 I.03.MP4010001 Instruction Manual I.08.995199003 Quick Start Guide I.08.015199001...
